• 5V 4 Channel Relay Module without Optocoupler
  • 5V 4 Channel Relay Module without Optocoupler
  • 5V 4 Channel Relay Module without Optocoupler
1 3

Generic

5V 4 Channel Relay Module without Optocoupler compatible with Arduino Uno - RS2928

5V 4 Channel Relay Module without Optocoupler compatible with Arduino Uno - RS2928

RS2928

88 in stock

Rs. 149.00
Rs. 149.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

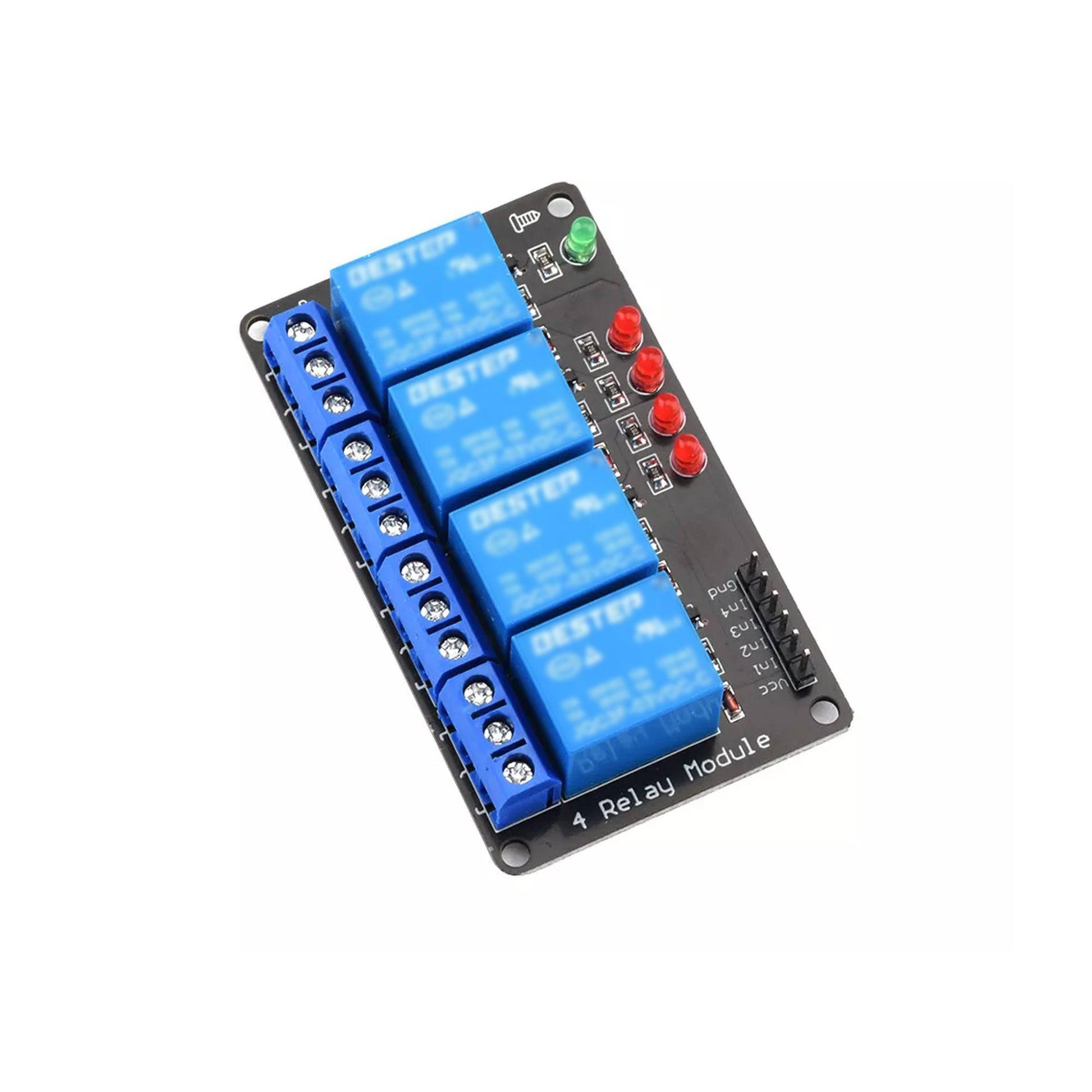

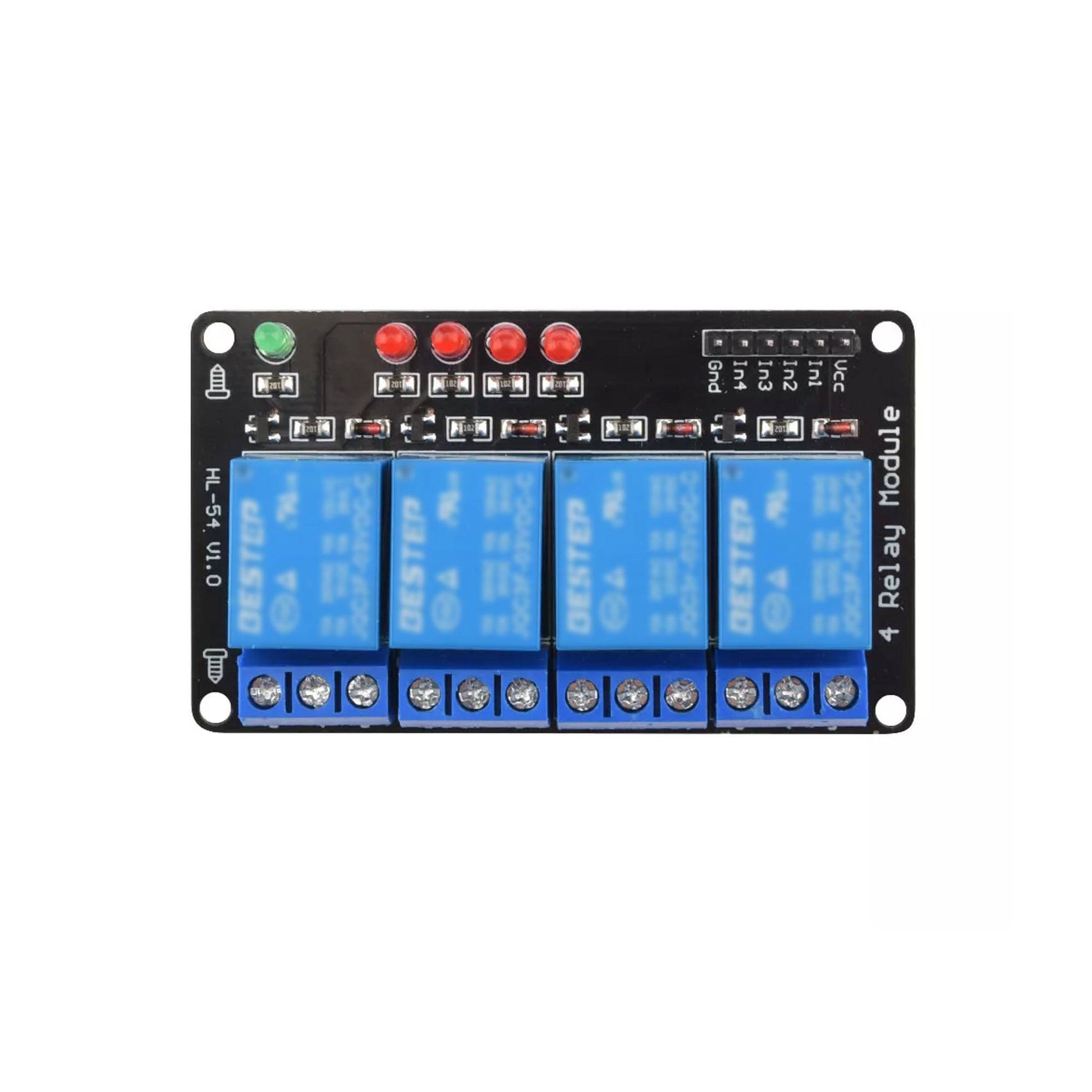

This is a 5V 4 Channel Relay Module, that can control various appliances and other equipment with a large current. 5V 4 Channel Relay Module can be controlled directly by a microcontroller (for Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

Specifications:

Operating Voltage

3.3 ~ 5V DC
Trigger Voltage

5V DC
Trigger Current

20mA
Switching Voltage

240@10A V AC
Switching Voltage

30@10A V DC
Operating Temperature

-40 to 85°C
Opt. Relative Humidity

20% ～ 85% RH
Storage Condition

– 65 to 125 ℃

Features:

  • 5V 4-Channel Relay interface board and each one needs 15-20mA Driver Current.
  • Equipped with high-current relay, AC250V 10A; DC30V 10A.
  • Standard interface that can be controlled directly by microcontroller (for Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
  • Indication LEDs for Relay output status.

Package Included:

1 x 5V 4 Channel Relay Module without Optocoupler compatible with Arduino Uno
