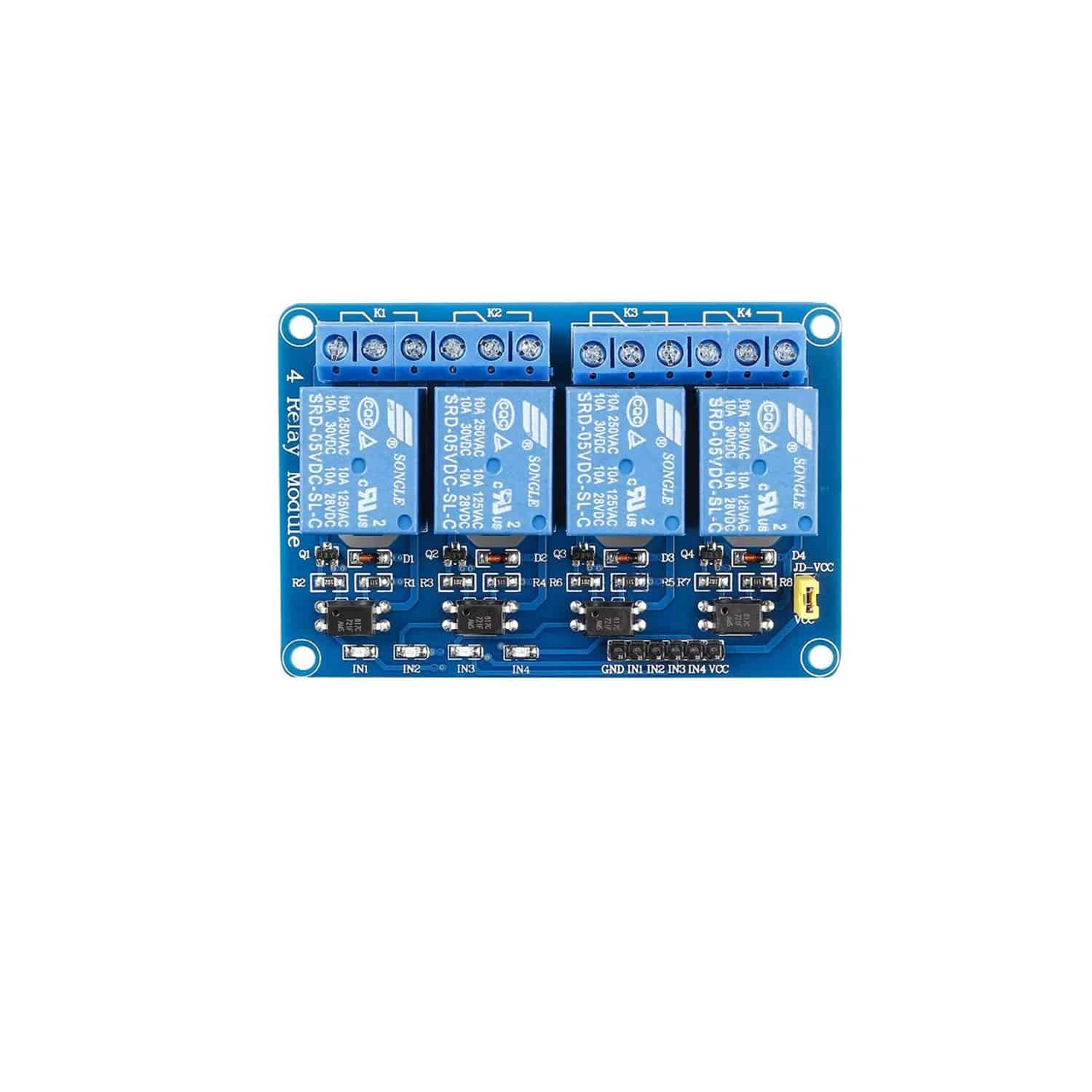

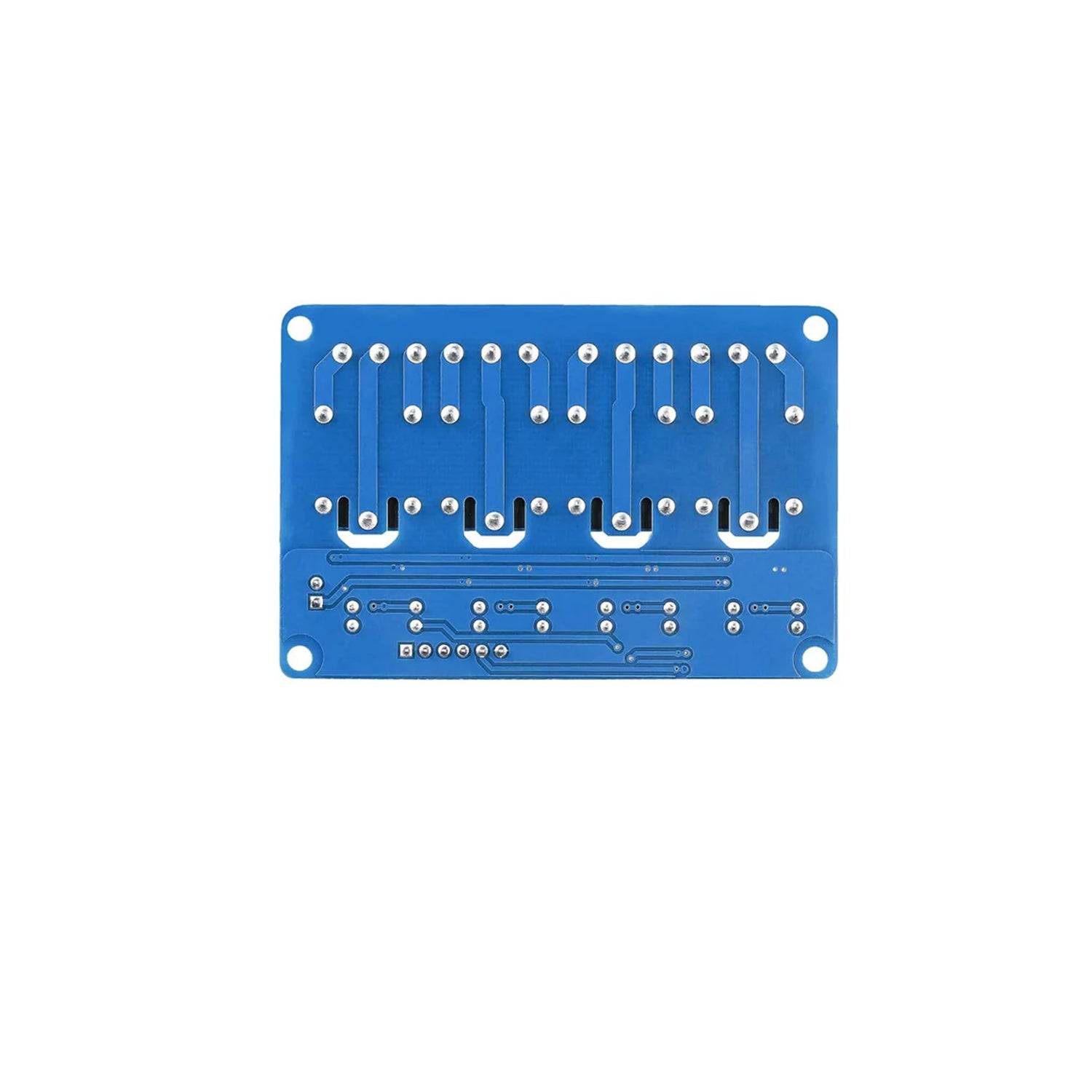

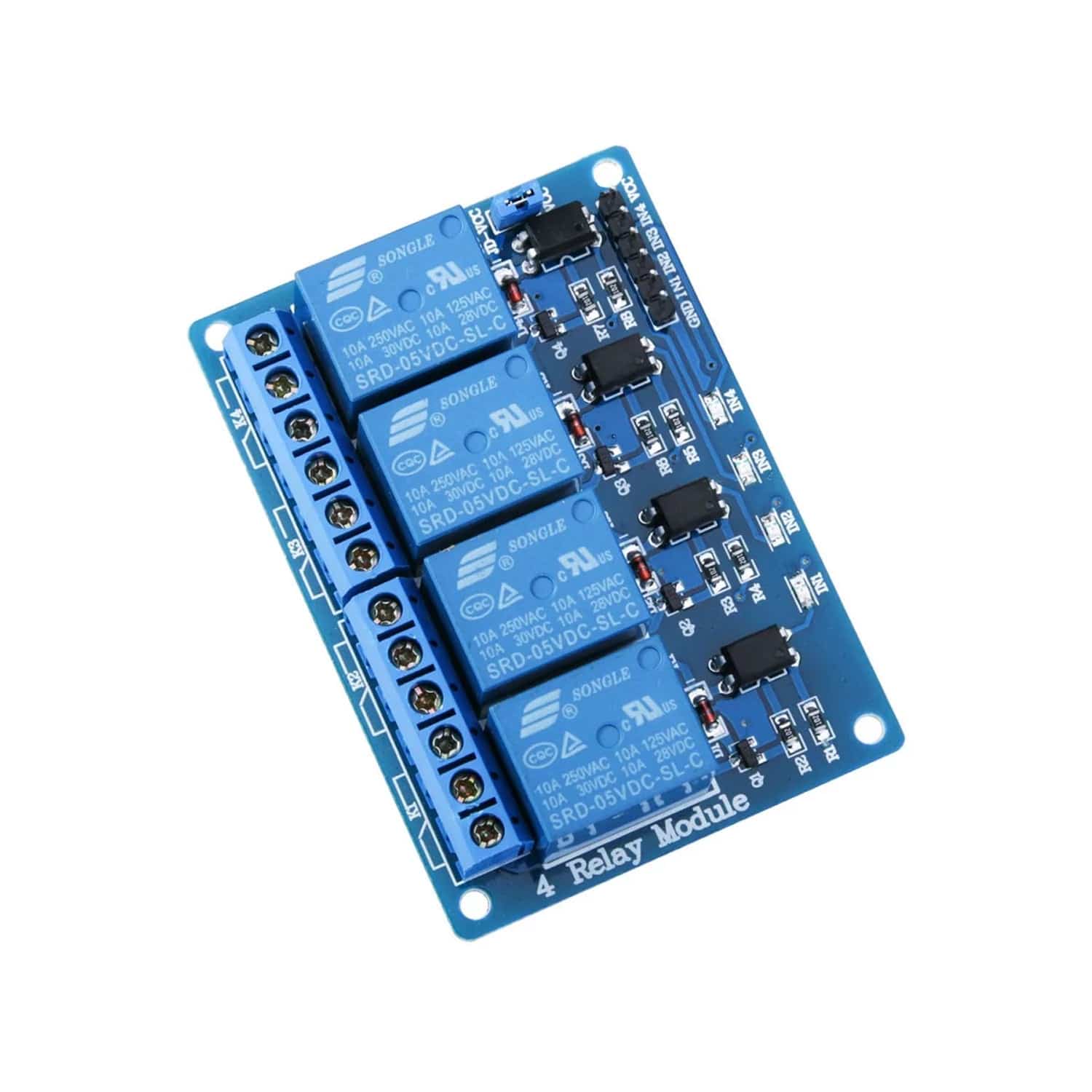

• 5V 4 Channel Relay Module Isolated 5V 10A with Opto Coupler
  • 5V 4 Channel Relay Module Isolated 5V 10A with Opto Coupler
  • 5V 4 Channel Relay Module Isolated 5V 10A with Opto Coupler
1 3

Generic

5V 4 Channel Relay Module 4 Channel Isolated 5V 10A Relay Module Opto Coupler for Arduino PIC AVR DSP ARM - AA026

5V 4 Channel Relay Module 4 Channel Isolated 5V 10A Relay Module Opto Coupler for Arduino PIC AVR DSP ARM - AA026

AA026

Low stock: 4 left

Rs. 117.00
Rs. 117.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

It is a 5v 4 Channel Relay Module, A wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control it. It can also control various appliances and other types of equipment with a large current. 5v 4 Channel Relay Module output maximum contact is AC250V 10A and DC30V 10A. One can connect a microcontroller with a standard interface directly to it. Red working status indicator lights are conducive to safe use. 5V 4 Channel Relay Module has a wide range of applications such as all MCU control, industrial sector, PLC control, and smart home control.

Specifications:

  • No. of Channel: 4
  • Trigger Voltage: 5VDC
  • Trigger Current: 20mA
  • Switching Voltage: 250VAC@10A
  • Switching Voltage: 30VDC@10A

Two setups of electronic components are displayed with breadboards, wires, and circuit boards on a table. The left setup features an Arduino board and a Generic 5V 4 Channel Relay Module - AA026 suitable for smart home control, while the right features a Raspberry Pi. Note at the bottom states: "Other accessories are not included in the package.

Features:

  • Pull-down circuit for the avoidance of malfunction
  • Power supply indicator and Control indicator lamp
  • The power supply and relay instructions are lit, but the disconnect is off
  • The input signal, signal, common Terminal and start conducting
  • DC or AC signal, control, you can control the 220V AC load
  • There is a normally open and one normally closed contact
  • 5V 4 Channel Relay Module is compliant with international safety standards, control and load areas isolation trenches

Package Included:

1 x 5V 4 Channel Relay Module 4 Channel Isolated 5V 10A Relay Module Opto Coupler for Arduino PIC AVR DSP ARM
