Description:
The 5V 2A Wireless Charging Coil is for various small electronic products, wireless charging, power supply development, and design, with a small size, ease of use, high efficiency, and low price characteristics.
Wireless Charging Coil is mainly used in mobile electronics products such as wirelessly charging mobile phones, game machines, tanks, MP3, MP4, adult products, digital cameras, electric shavers, machine learning, health care, etc. The adoption of a Wireless Charging Coil, to complete the sealing of the products, waterproof and dust-proof; increase product service life, and make use more convenient.
Specifications:
- Model: XKT-412
- Input Voltage: 12VDC
- Output: 5V / 1A current
- Normal Use Distance: 2 ~ 10mm
- Operating Current: 1.2-2 A
- Tx/Rx Coil Dimensions: Diameter 43mm, Inner diameter 20mm
- Coil Wire Thickness: 2.3mm
Features:
- The charging module is small in size, easy to use, and high in efficiency. Suitable for mobile electronic products.
- The use of non-contact charging and power supply can make the product fully sealed, waterproof, and dustproof; increase the service life of the product and make it more convenient to use.
- Input voltage: DC9~12V. Maximum load current: 1.1A. Receive maximum output voltage and current: DC5V/2A, DC12V/700mA. 1.5A is recommended for long-term work.

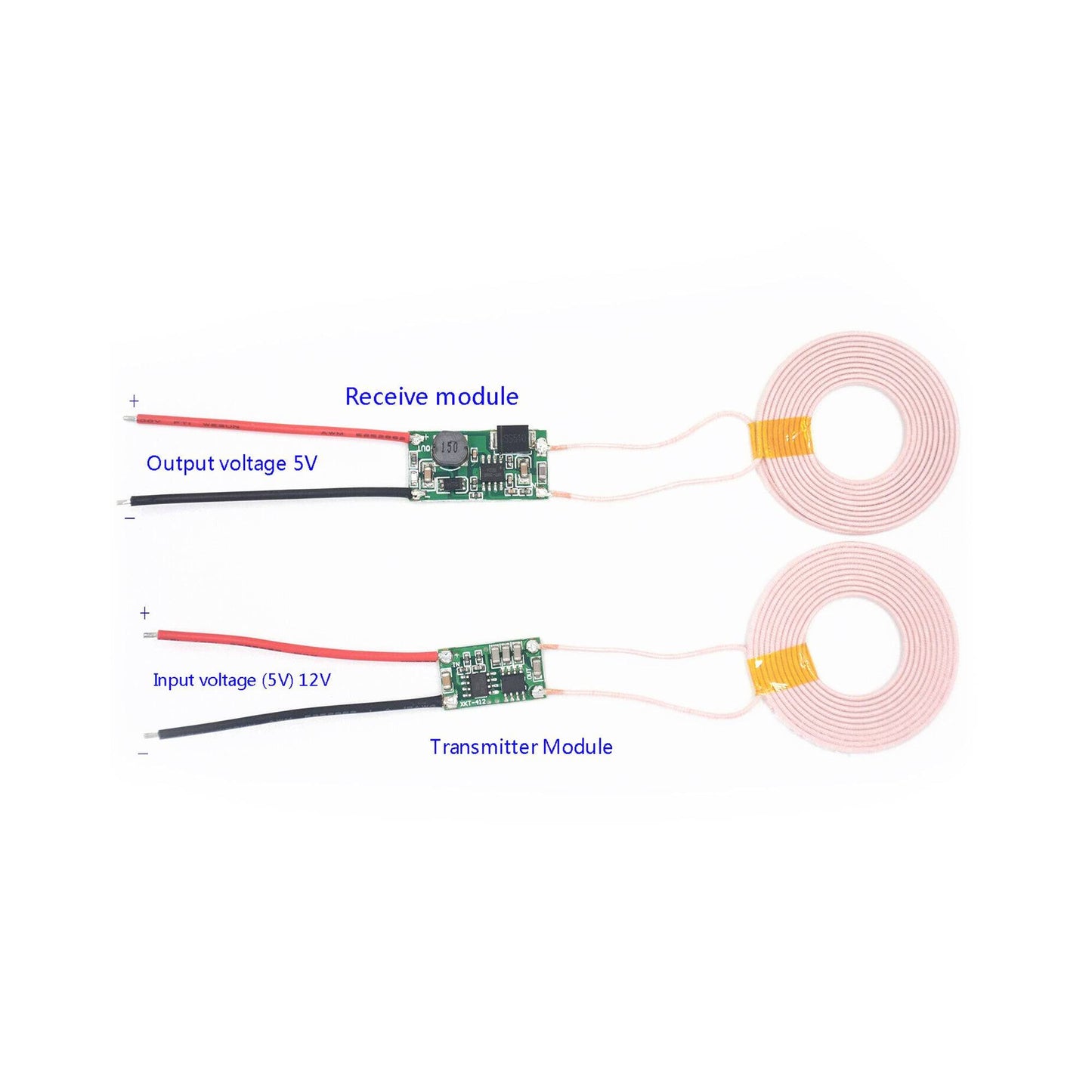

- Transmitting coil and receiving coil size: outer diameter 43mm, thickness 2.3mm. Transmitter module size: 22mm*13mm*2.5mm. Receiving module size: 30mm*15mm*4.5mm. Common distance for receiving: 3~6mm.
Package Included:
1 x 5V 2A Wireless Charging Coil Module Wireless 5V 2A Power Transmitter/Receiver High-Power Wireless Charging Coil For Industrial Applications
