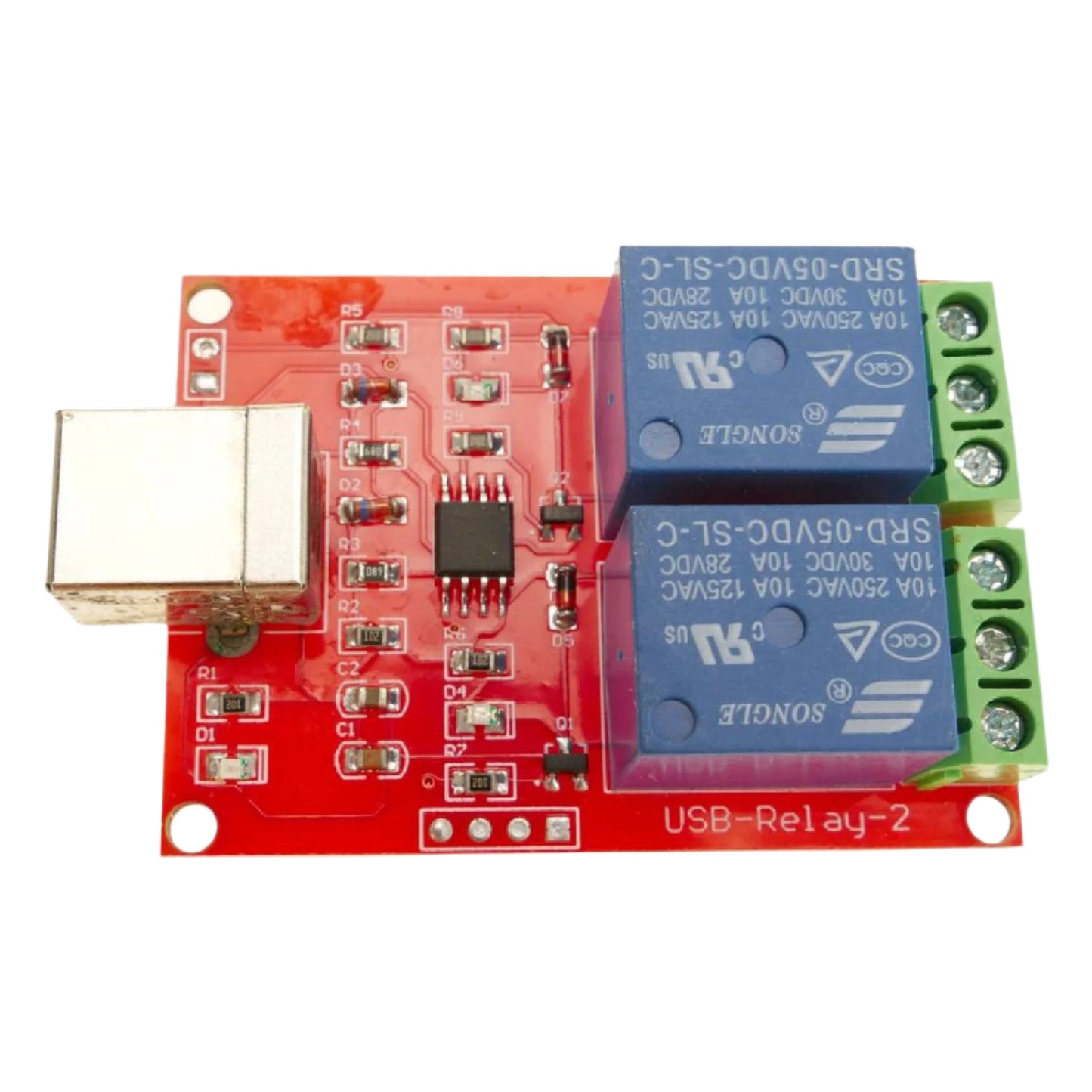

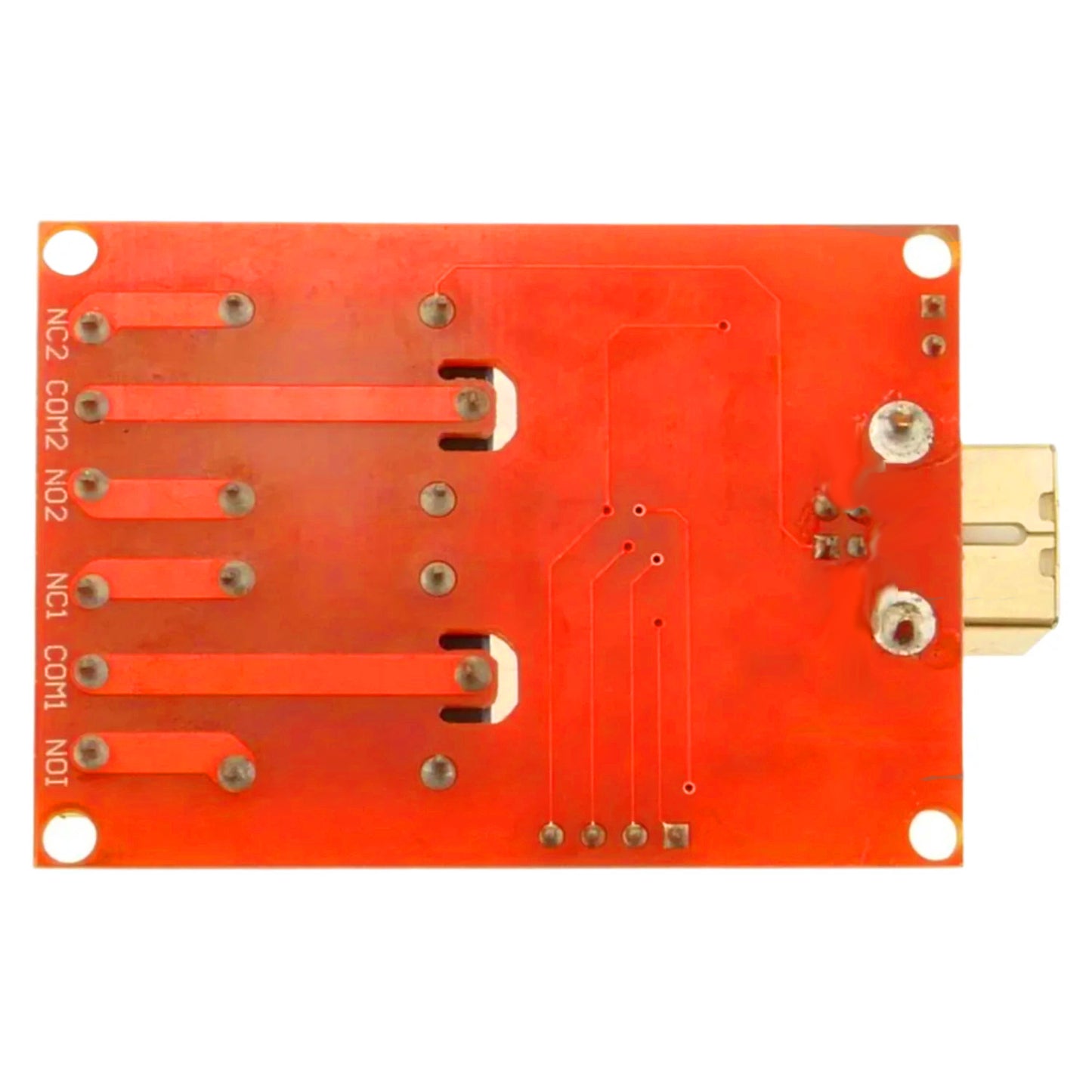

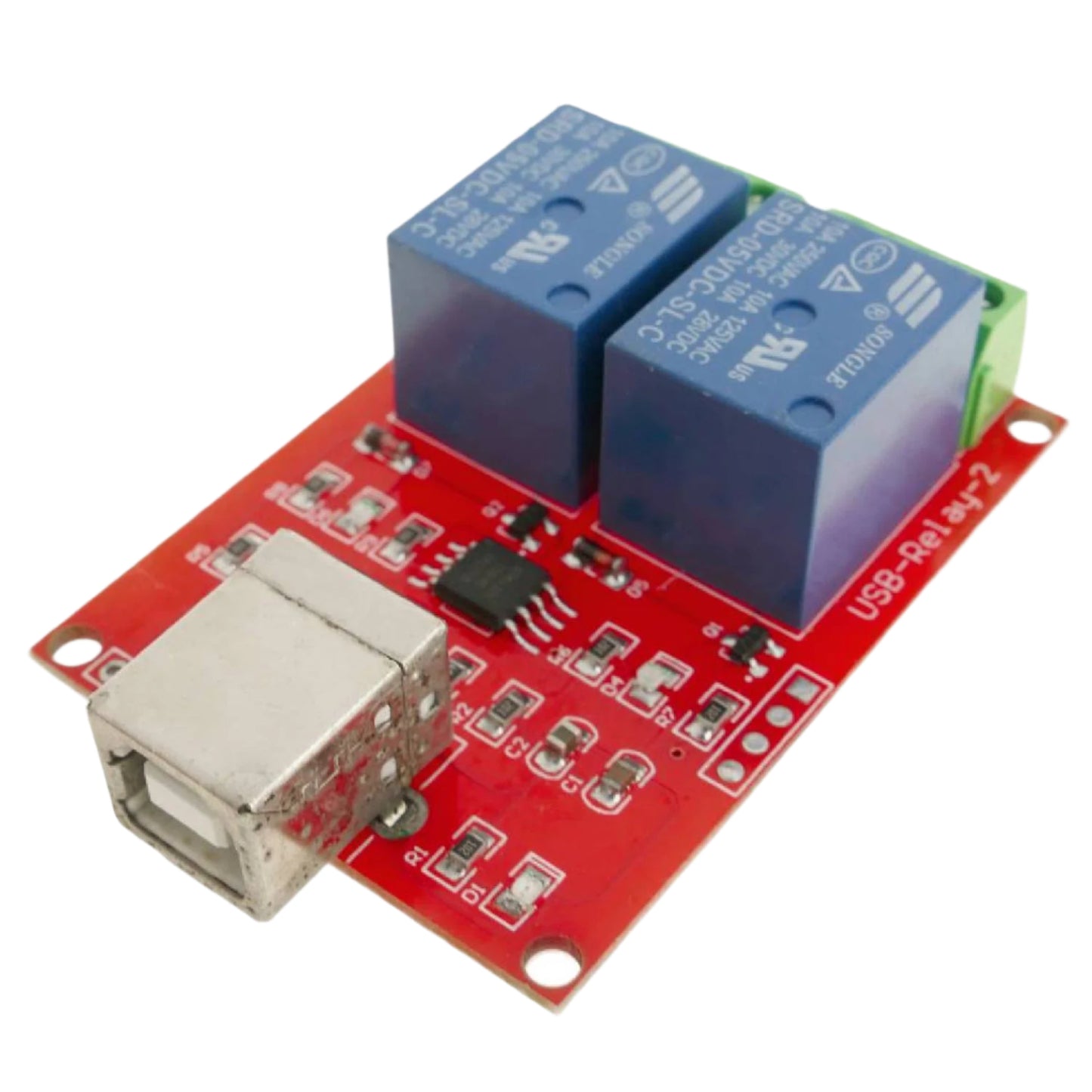

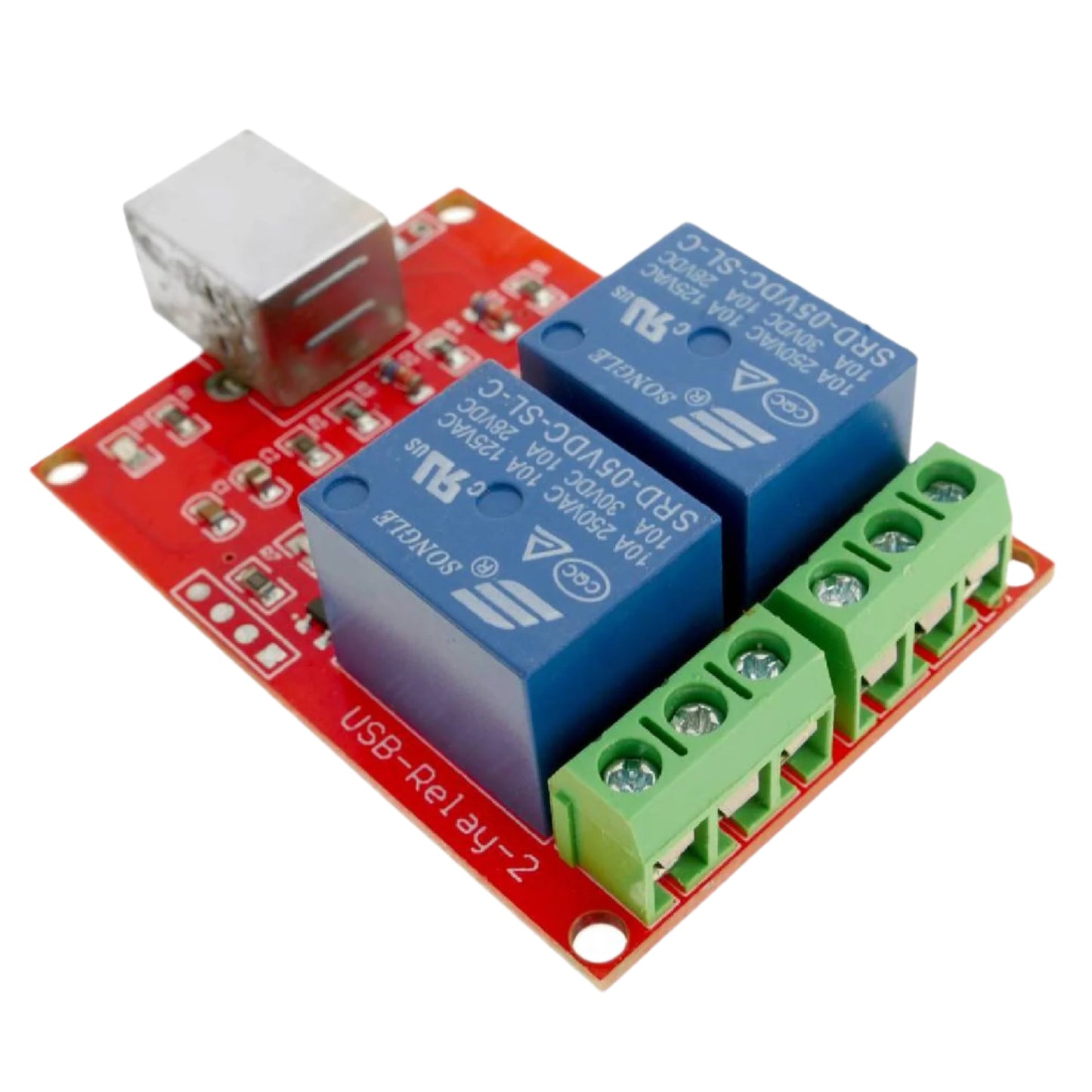

Description:
This 5V 2 channel USB PC Intelligent Control Relay Module uses HID technology and high quality so no need use the driver. Just you need to download data which comes inside the application and plug and play. It supports Windows 7, XP 32 systems.
It has Military level PCB production. Available with 4-channel, 8-channel power connector, after connecting the power. Even if you plug out the USB or turn off the computer, a relay can still keep setting condition. It has fix hole size is 3mm and fix hole central moment: 52.2mm x 36.6.
Specifications:
- Contact Type: NC/ COM/ NO
- Input Voltage: DC 5V
- Input Current: 300mA
- Current Rating: 10 Amps
- Mounting Type: Screw Mount
- Operation Mode: Off
Features:
- Adopting USB HID mode for relay control, suitable for various occasions and professionals;
- Easy to use, suitable for a variety of operating systems, such as WINDOWS 10, MAC, LINUX, etc.;
- It has a power-on memory function and works according to the last use situation when power is turned on;
- It has strong anti-interference ability and adopts diode freewheeling protection;
- The contact part of the relay adopts double-sided thick wiring, which can be used for large currents, which is safe and reliable;
- The input and output are all made of 5.08mm high quality terminal block, the wiring is more convenient, suitable for PLC control;
- Each relay has a pull-in indicator, and the working state of the relay is clear at a glance;
- Each relay output leads to two sets of electric shocks, normally open and normally closed, which are convenient and flexible to use;
- Fixed screw holes for easy installation;
- The finished product passes 100% functional test and stability test.
Package Included:
1 x 5V 2 Channel USB PC Relay Module
