Generic

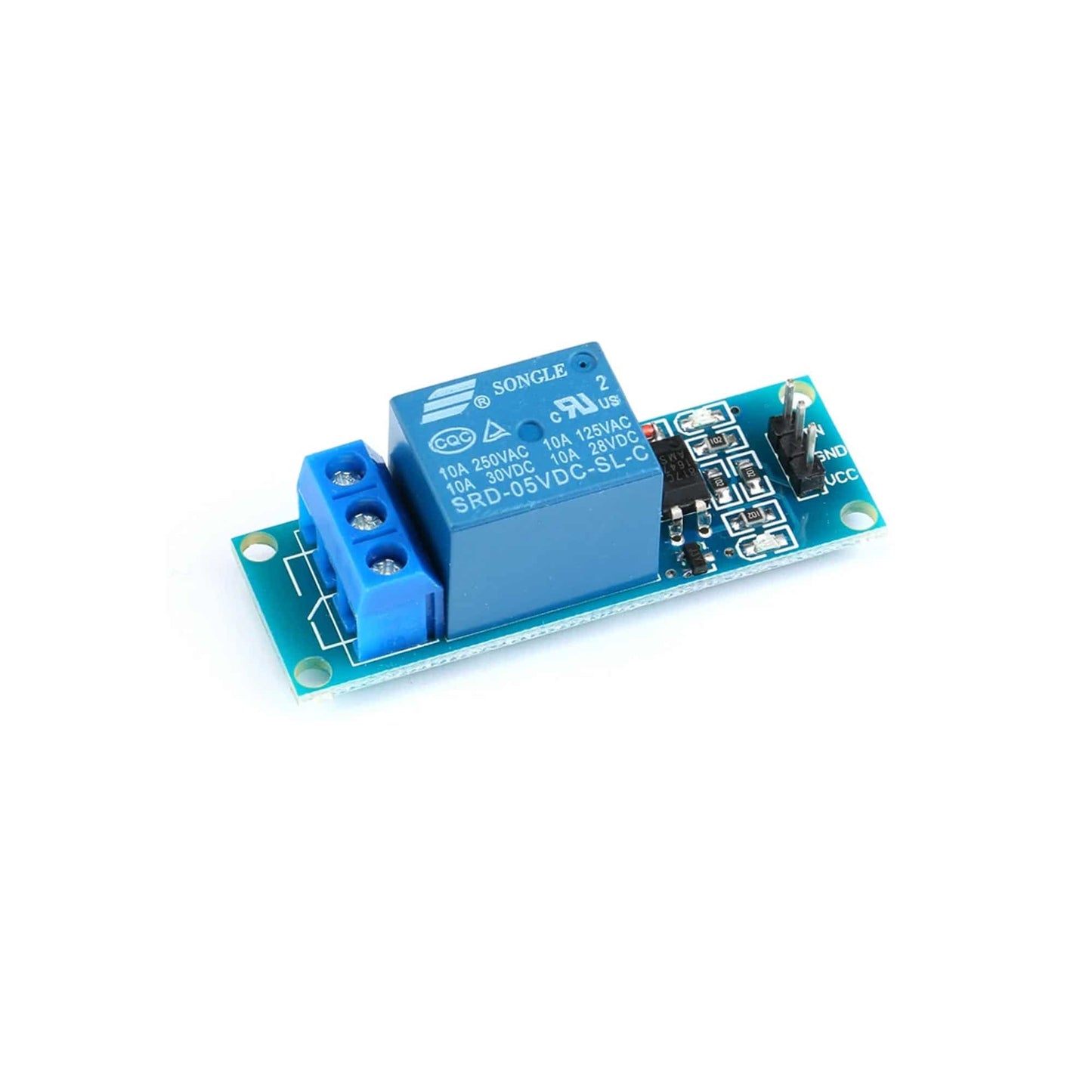

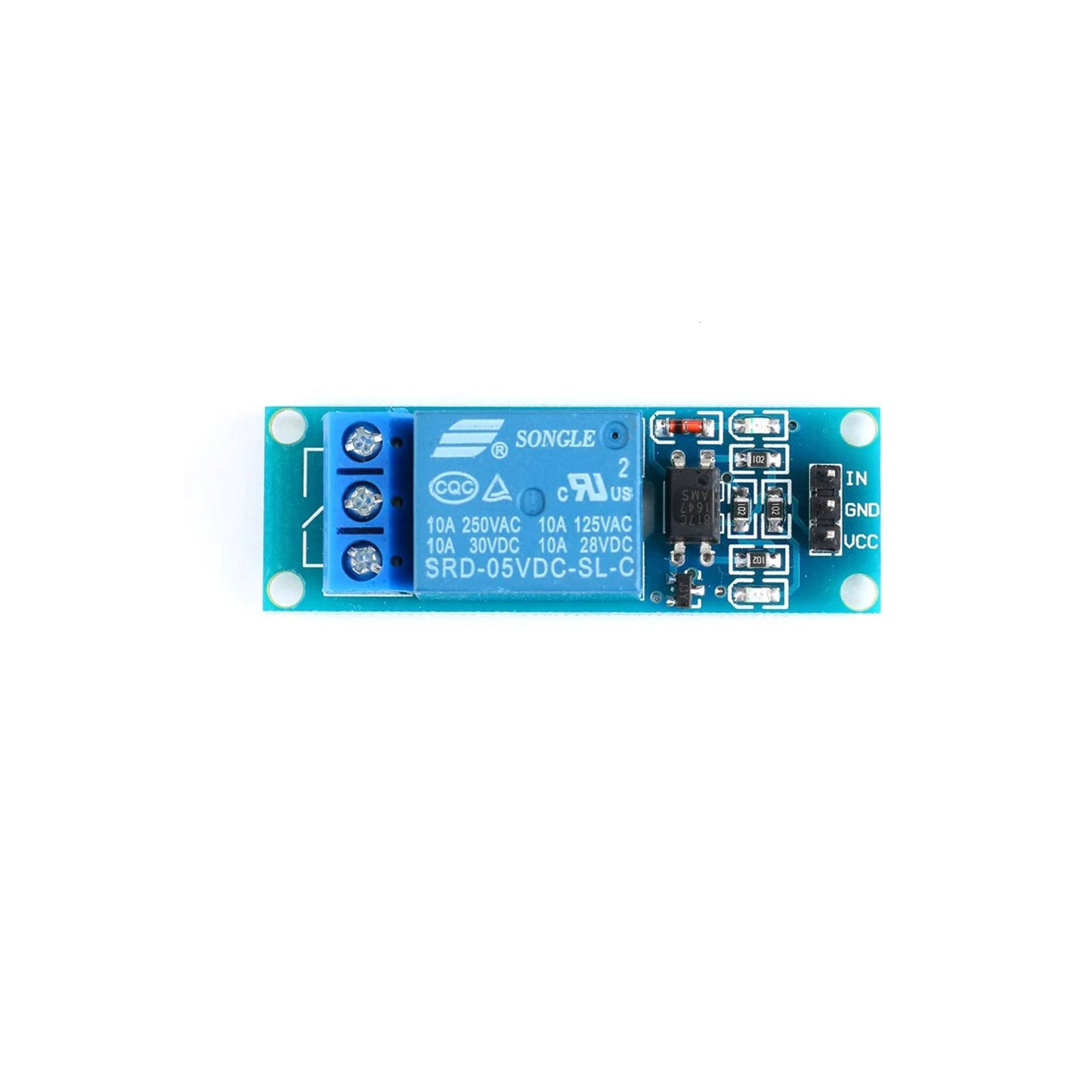

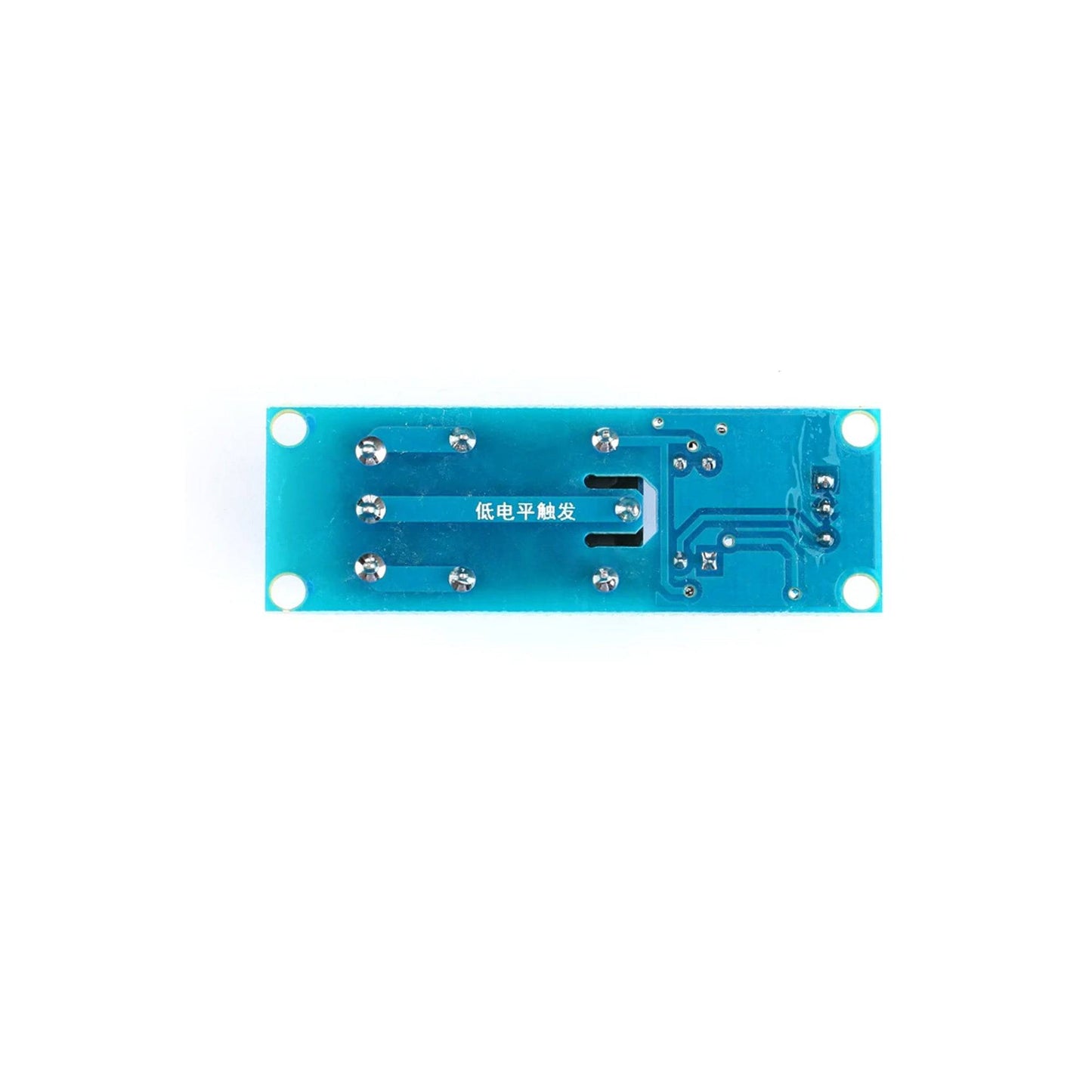

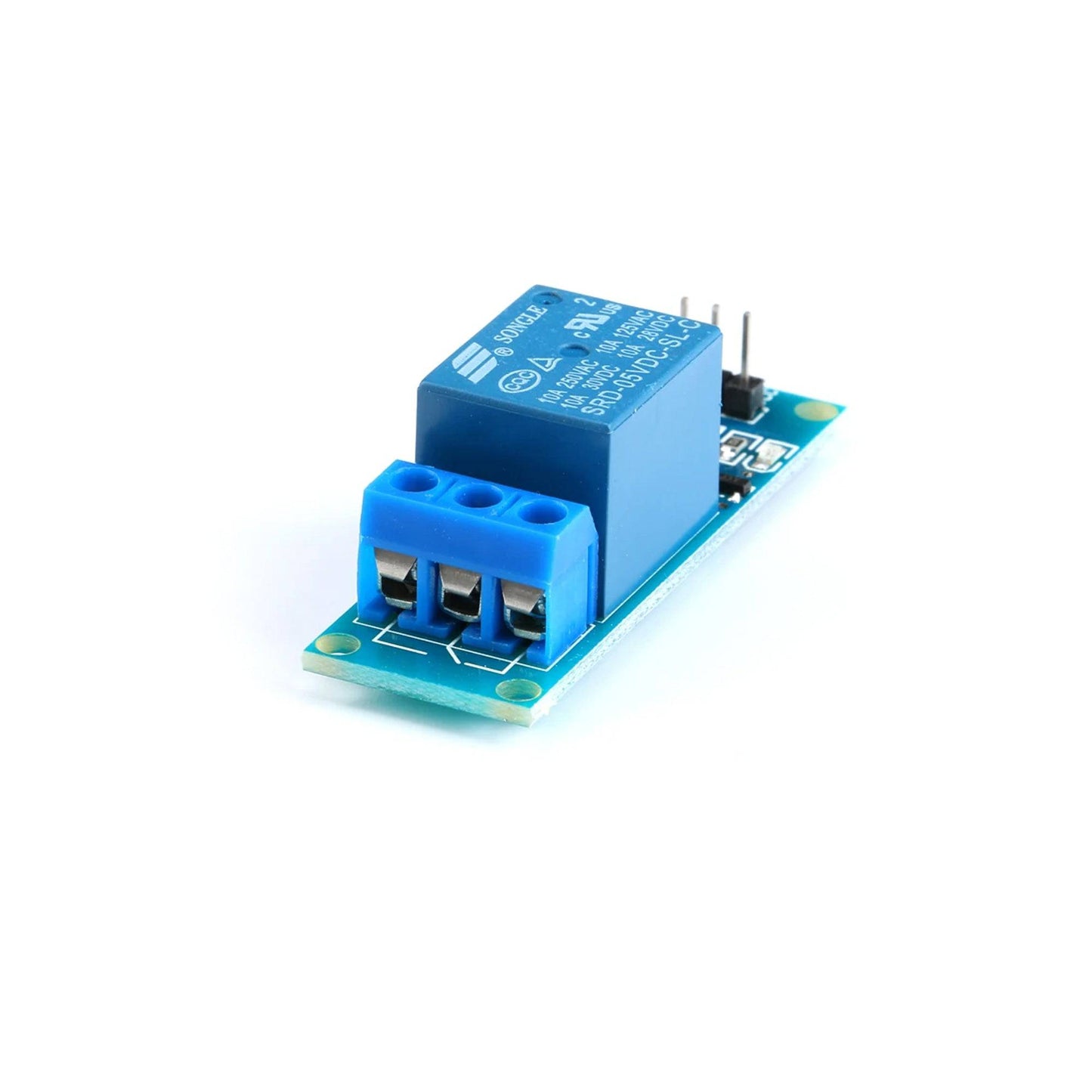

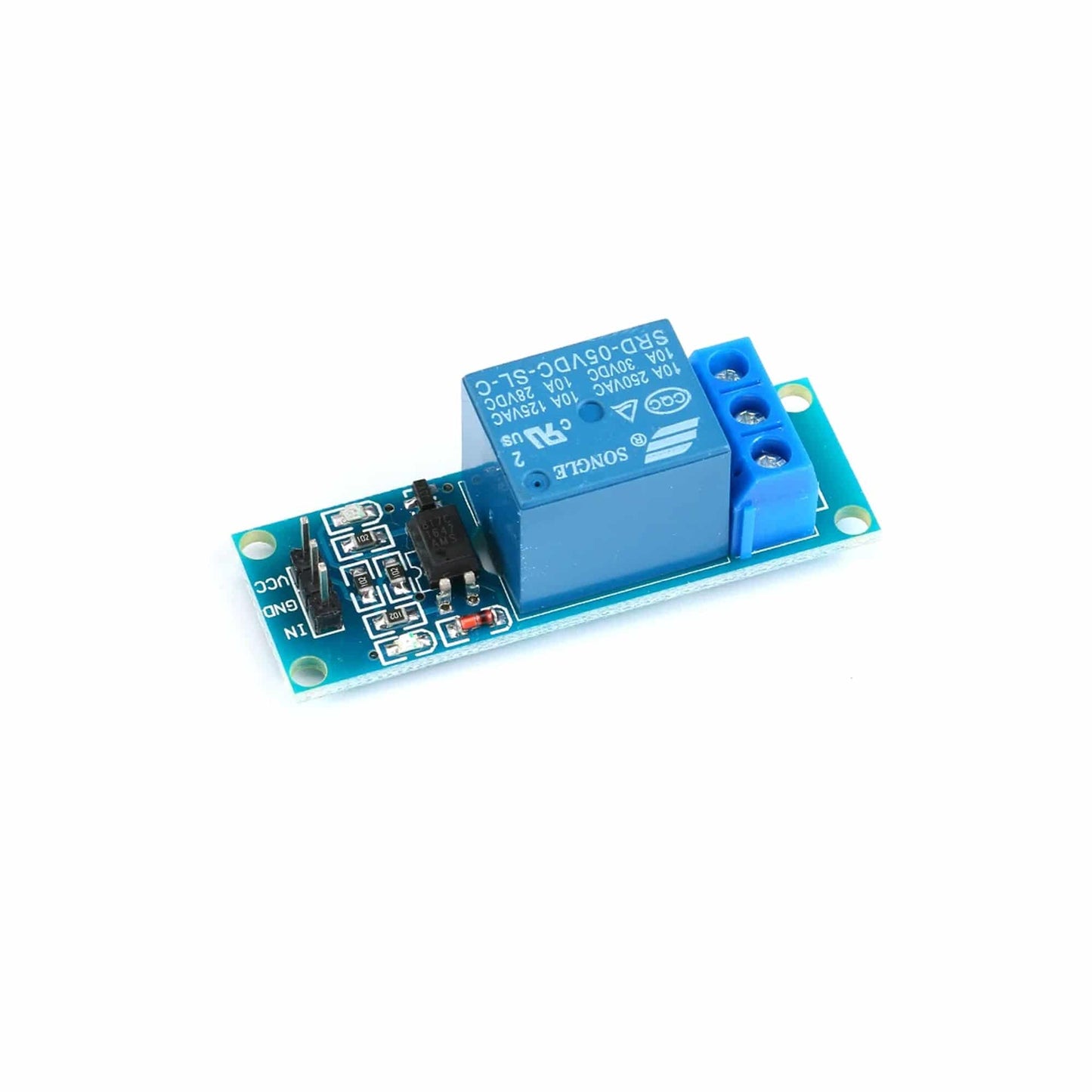

5V 1 Channel Relay Module 1 Channel 5V Relay Module with Optocoupler - RS5454

5V 1 Channel Relay Module 1 Channel 5V Relay Module with Optocoupler - RS5454

SKU:RS5454

Regular price Rs. 45.00
Regular price Sale price Rs. 45.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

This is a 5V 1 Channel Relay Module For Arduino PIC AVR DSP ARM. A wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control it. Each one needs a 15mA - 20mA driver current and is equipped with a high current relay: DC 5V / 10A, AC 250V / 10A. Standard interface that can be compatible with microcontroller.

Specifications:

  • Operating Voltage: 5V
  • Relay Contact Current Capacity at AC250V: 10A
  • Relay Contact Current Capacity at DC5V: 10A
  • Max Current: 10A

Features:

  • One normally closed contact and one normally open contact
  • Triode drive, increasing relay coil
  • 5V 1 Channel Relay Module has high-impedance controller pin
  • Pull-down circuit for avoidance of malfunction
  • Power supply indicator lamp
  • Control indicator lamp
  • 5V 1 Channel Relay Module has indicator for Relay output status
  • Can Be controlled by various appliances & other Equipment With Large currents.
  • Standard TTL Level logic controlled (AVR, Arduino, 8051, PIC, ARM)

Package Included:

1 x 5V 1 Channel Relay Module 1 Channel 5V Relay Module with Optocoupler
