Description:

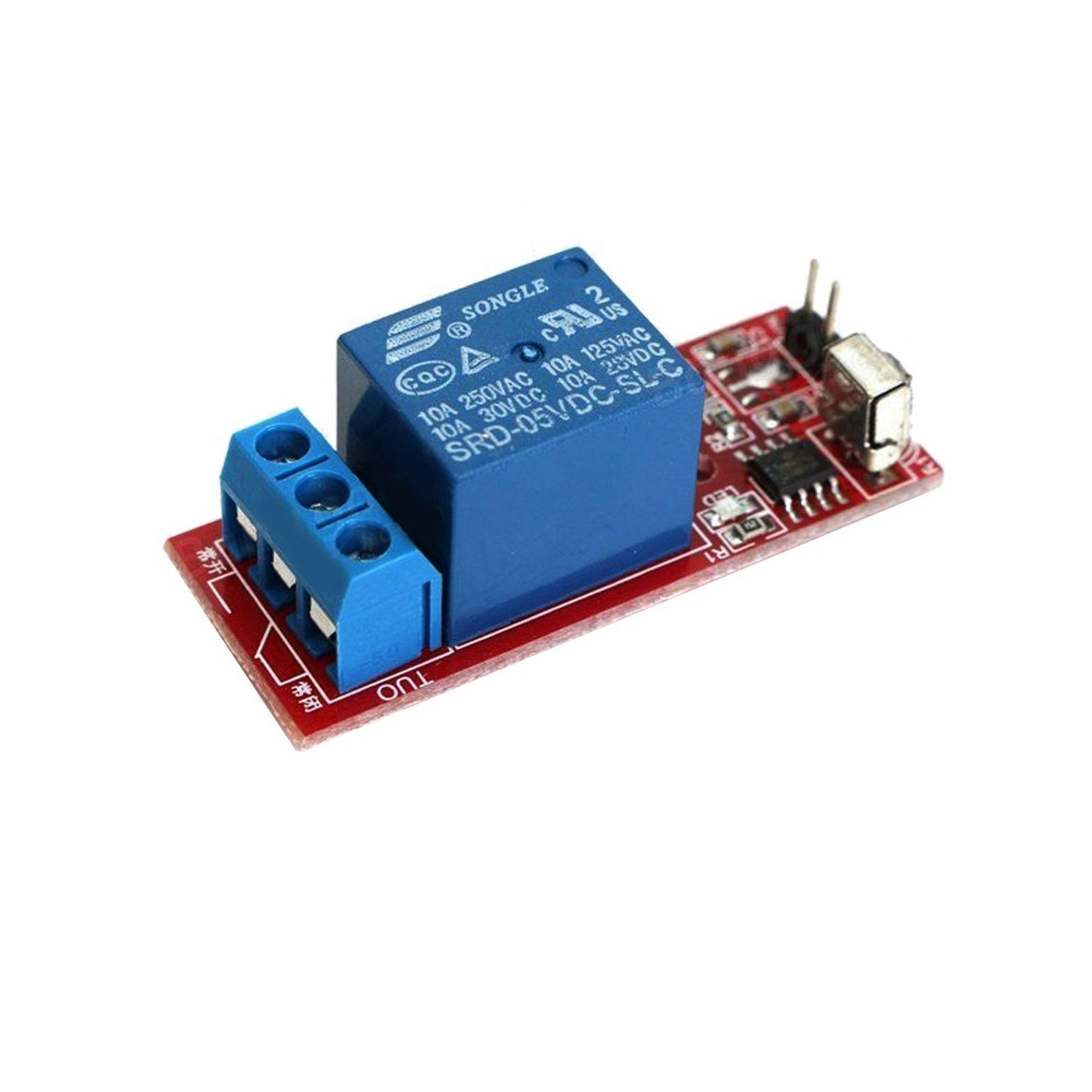

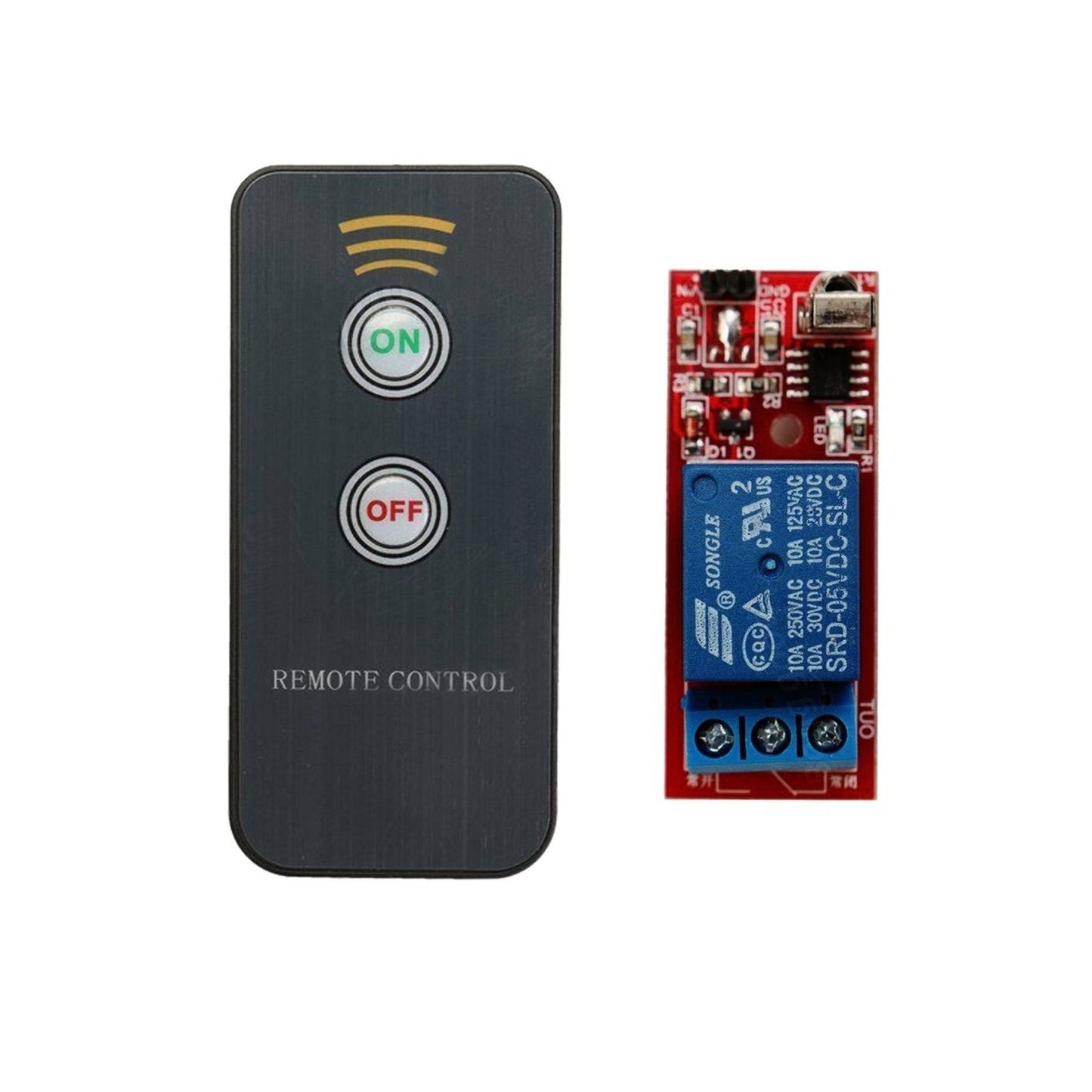

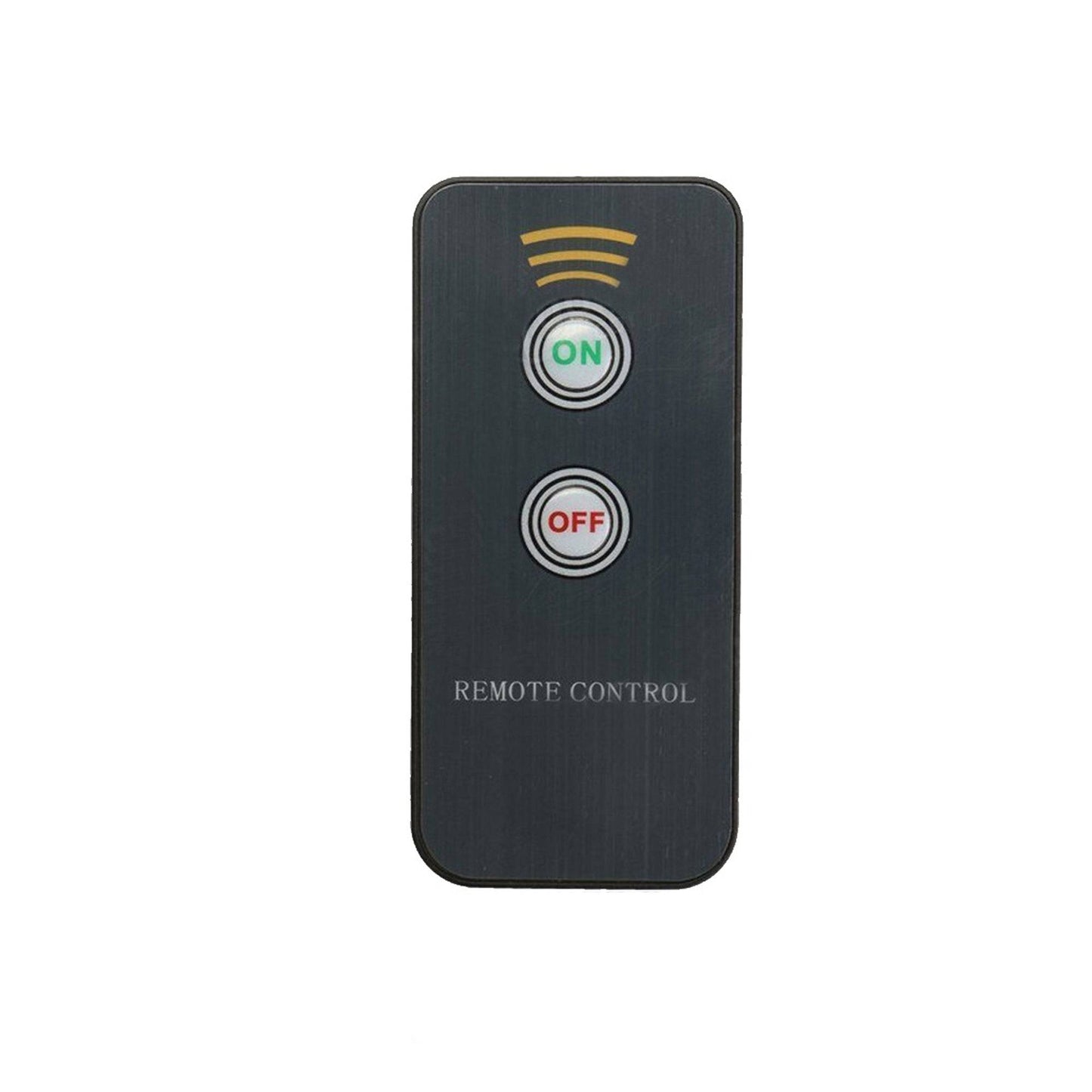

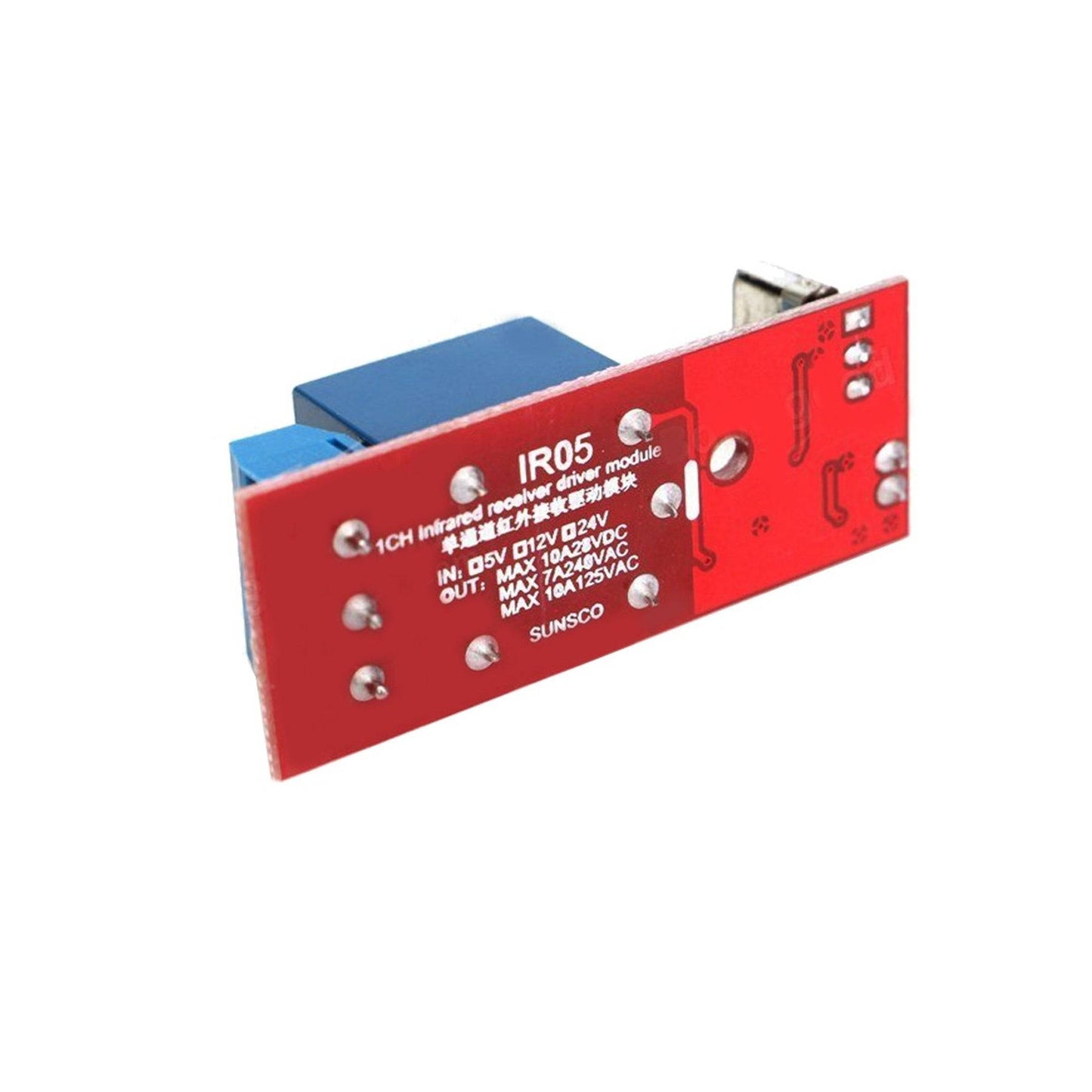

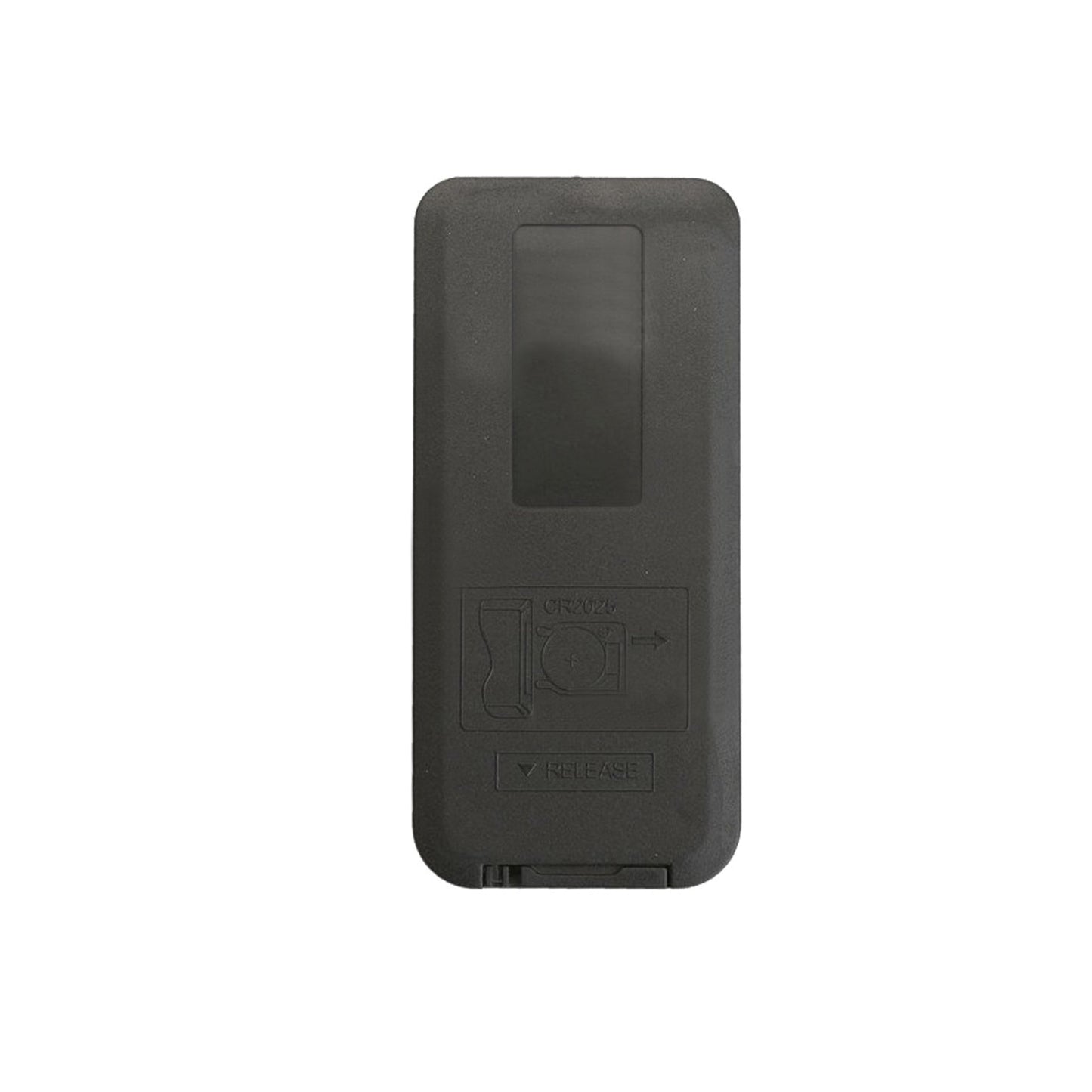

This 5V 1 Channel IR Relay Module with Remote Control is a one-channel latching relay module. The output of the module is passive and it can be controlled by its 2-button IR wireless controller when the module is powered on. The output of the module is passive and it can be controlled by its 2-button IR wireless controller when the module is powered on. The 5V 1 Channel IR Relay Module comes equipped with a suitable remote control. It also can drive most household electrical appliances.
Specifications:
- Operating Voltage: 5V
- Control Distance: 8m / 314.96 inch
- Operating Temperature: -40 to 90°C
- Material: FR4
Features:
- The standard interface can be directly connected with microcontrollers.
- With the LED indicator light (For connection, and disconnection).
- The 5V 1 Channel IR Relay has normally closed contact and normally open contact.
- With the relay coil absorber diode protection.
-
Active-low signal input, VCC, GND power supply input terminal.
Package Included:
1 x 5V 1 Channel IR Relay WG0151 1 Channel Infrared Switch Relay Module Driver Board 5V Active Remote Controller
