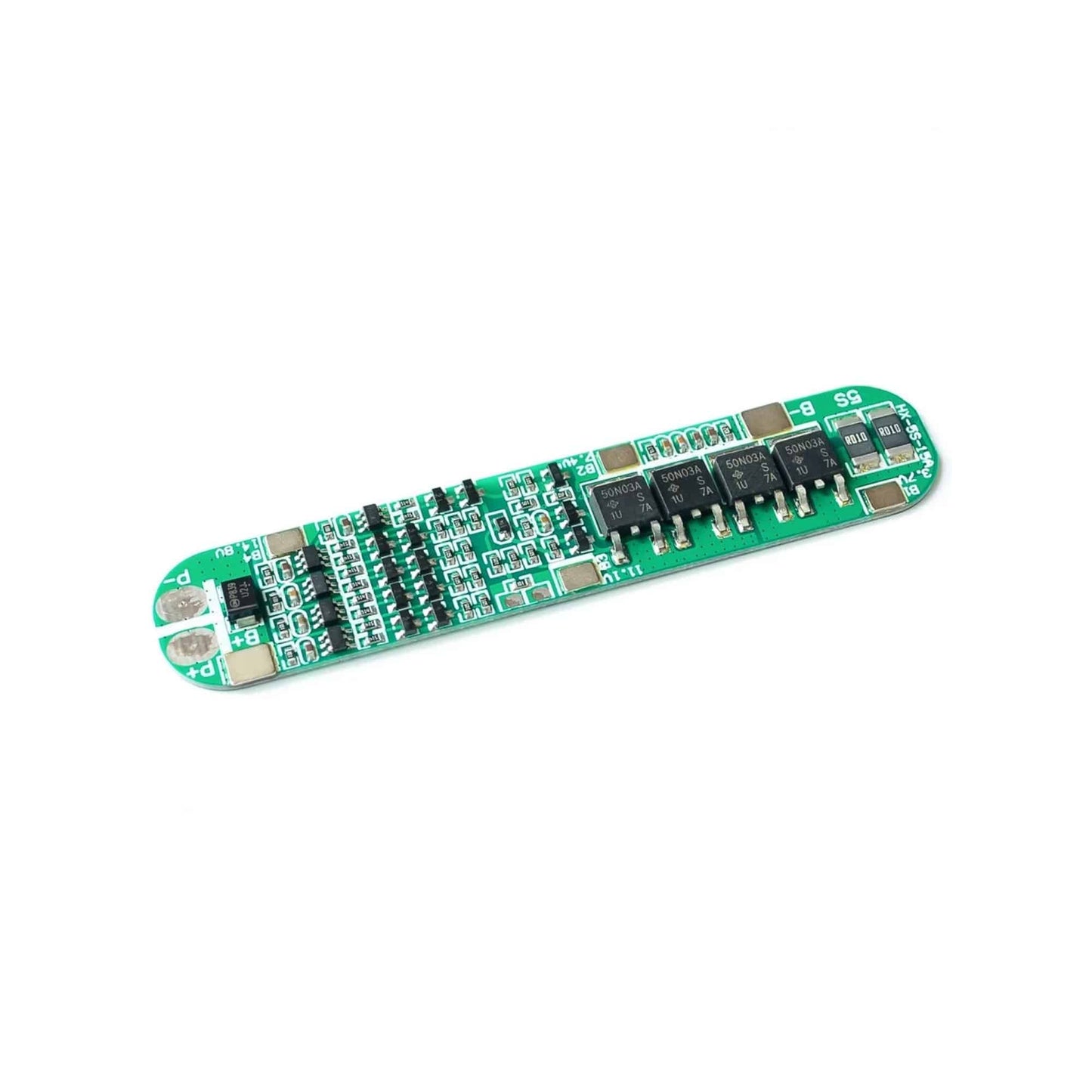

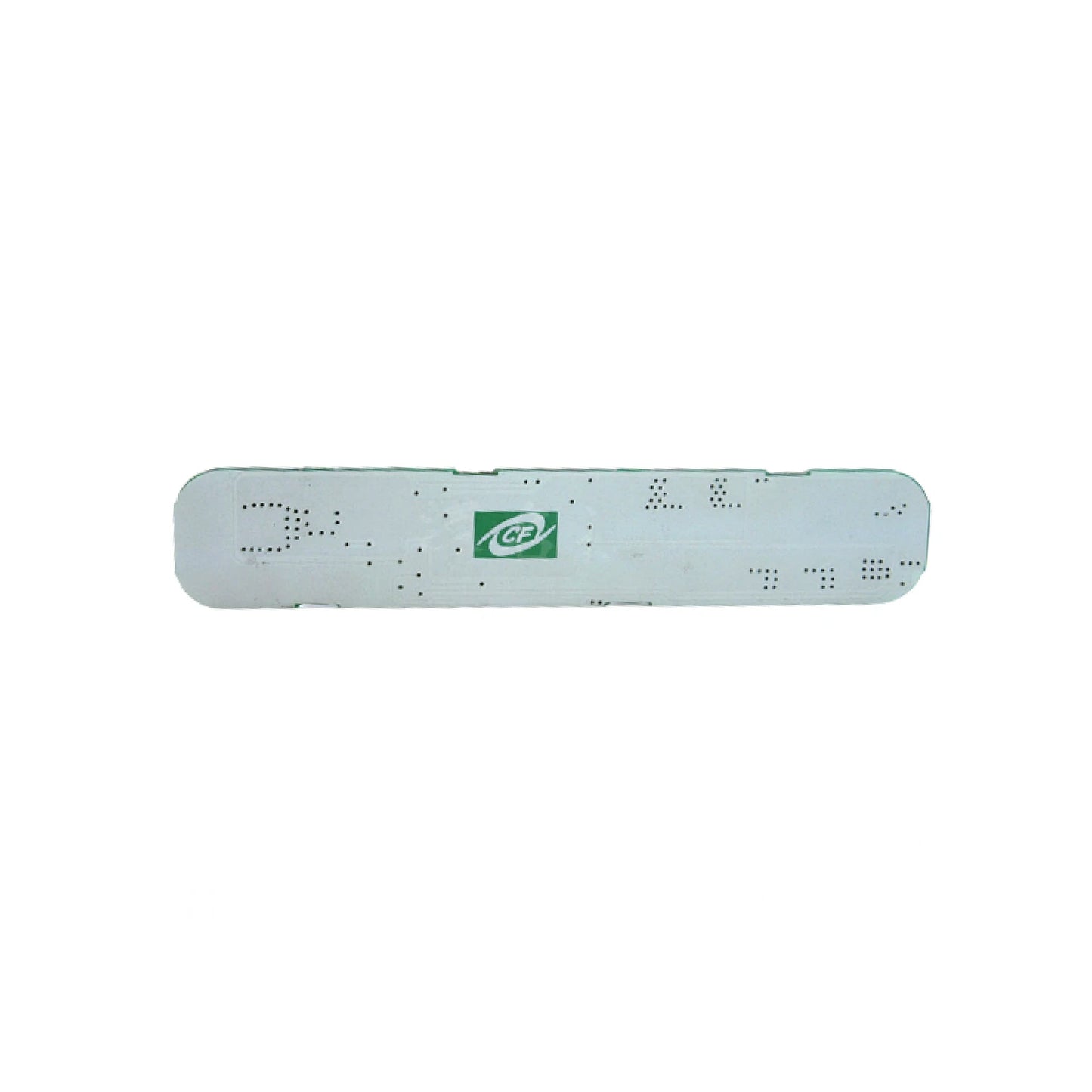

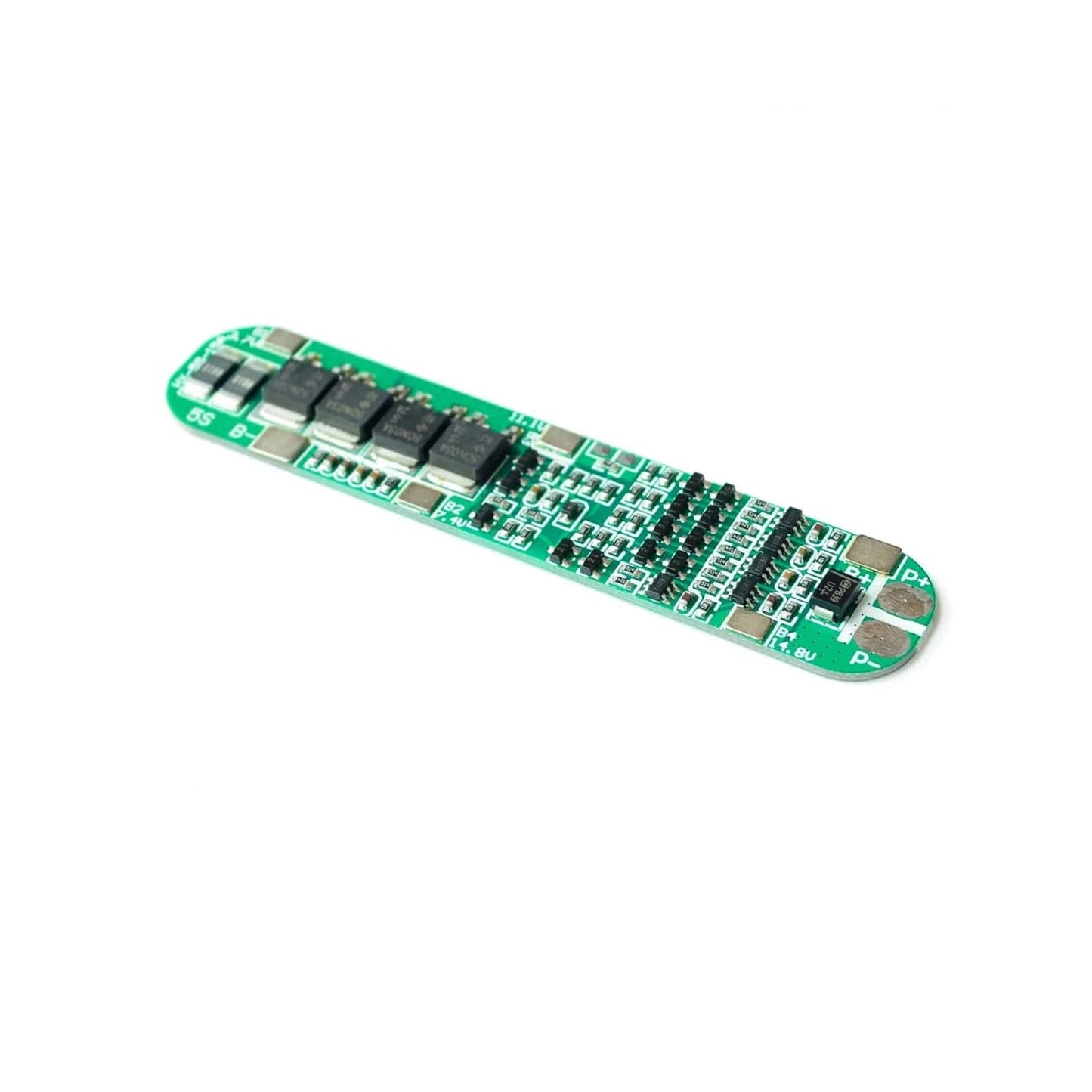

5S 15A BMS Board 5S 18.5V 15A Li-Ion Lithium Battery Protection Board - RS2994

5S 15A BMS Board 5S 18.5V 15A Li-Ion Lithium Battery Protection Board - RS2994

SKU:RS2994

231 in stock

Regular price Rs. 105.00
Regular price Sale price Rs. 105.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

BMS stands for the Battery Management System. This is a 5S 15A BMS Board with an 18.5V voltage rating to charge 5 cells of Li-ion cells. The 5S 15A BMS Board comes with overcharge protection, over-discharge protection, short circuit, and over-current protection features. 5S 15A BMS Board is mostly used for solar lighting, for dedicated 18650 battery packs.

Specifications:

Discharge:
  • Continuous discharge current: 15A(max)
  • Instantaneous discharge current: 25A
Charge:
  • Charge voltage: 21V
  • Charging current: 15A(max)
Overcharge Protect:
  • Over-charge detect: 4.28±0.05V
  • Protect delay: 0.5s
  • Over-charge release: 4.28±0.05V
Over-discharge Protect:
  • Over-discharge detect: 2.55±0.08V
  • Over-discharge detect delay: 0.1s
  • Release voltage: 2.9±0.1V
Short-circuit Protect:
  • Protect condition: Cut load
  • Detect delay: 250uS
  • Release condition: Cut load
  • Over-current Protect:
  • Detect voltage: 150mV
  • Detect delay: 9MS
  • Current detect: 30±3A
  • Release condition: Cut load
  • Inner Resistance: ≤20mΩ
Self-consumption:
  • Working current: ≤30uA
  • Sleep current: (when over-charge)≤10uA
  • Working Temperature Range: -30-+80℃

Features:

  • Small size designed for a four-cell battery pack.
  • Simple and convenient circuit for easy connections.
  • Over-charge/Over-discharge Protection.

Package Included:

1 x 5S 15A BMS Board 5S 18.5V 15A Li-Ion Lithium Battery Protection Board
