- Diameter : 5MM
- Wave length: 940nm
- Forward Voltage: 1.2-1.3V, Power: 0.15 W
- Receiving Angle: 40 degrees
- Voltage (VF) : 1.1-1.4 V (0.1 V each file)
Description:
Infrared LEDs are used for remote controls (they're the little LED in the part you point at your TV) and 'night-vision' cameras, and these little blue guys are high powered ones! They are 940nm wavelength, which is what nearly all devices listen to. They're 20 degree beam width, and work great for any kind of remote control application.
Specification:
- Diameter : 5MM
- Wave length: 940nm
- Forward Voltage: 1.2-1.3V
- Power: 0.15 W
- Receiving Angle: 40 degrees
- Voltage (VF) : 1.1-1.4 V (0.1 V each file)
- Receiving tube (limit parameters (Absolute Maximum Ratings) (Ta = 25 )
- Storage temperature: - 25 ~ + 80
- Transmitting and receiving distance: about 7 - 8 M
- Maximum power: 70 mw
- Maximum forward current: 30 ma
- Maximum reverse voltage: 5 v
- Maximum pulse current peak: 75 ma
- Welding temperature/time: 260 / acuities 5 S
- Working environment: - 25 ~ + 70
Features:
- High reliability
- High radiant intensity
- Peak wavelength λp=940nm
- Low forward voltage
Package Included:

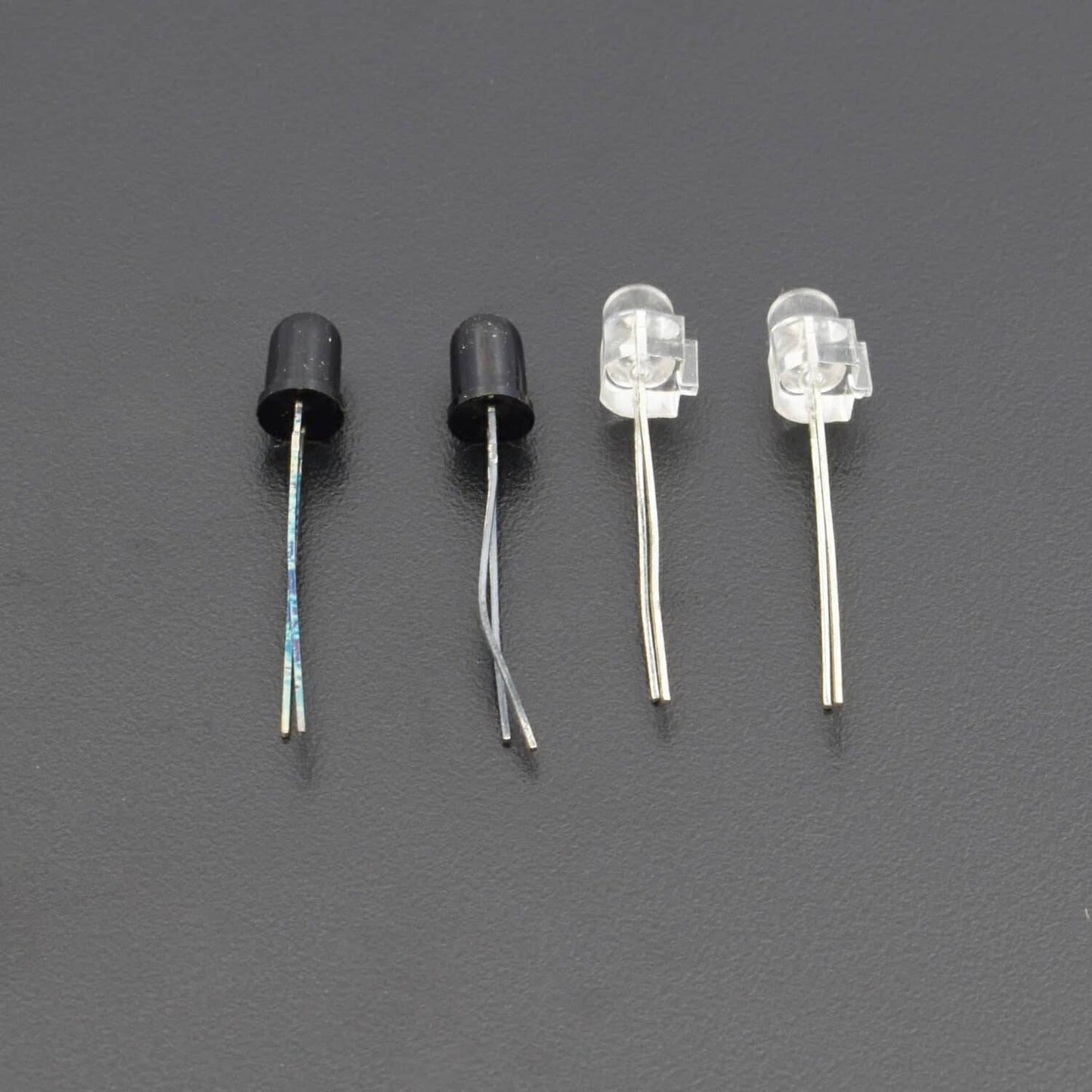

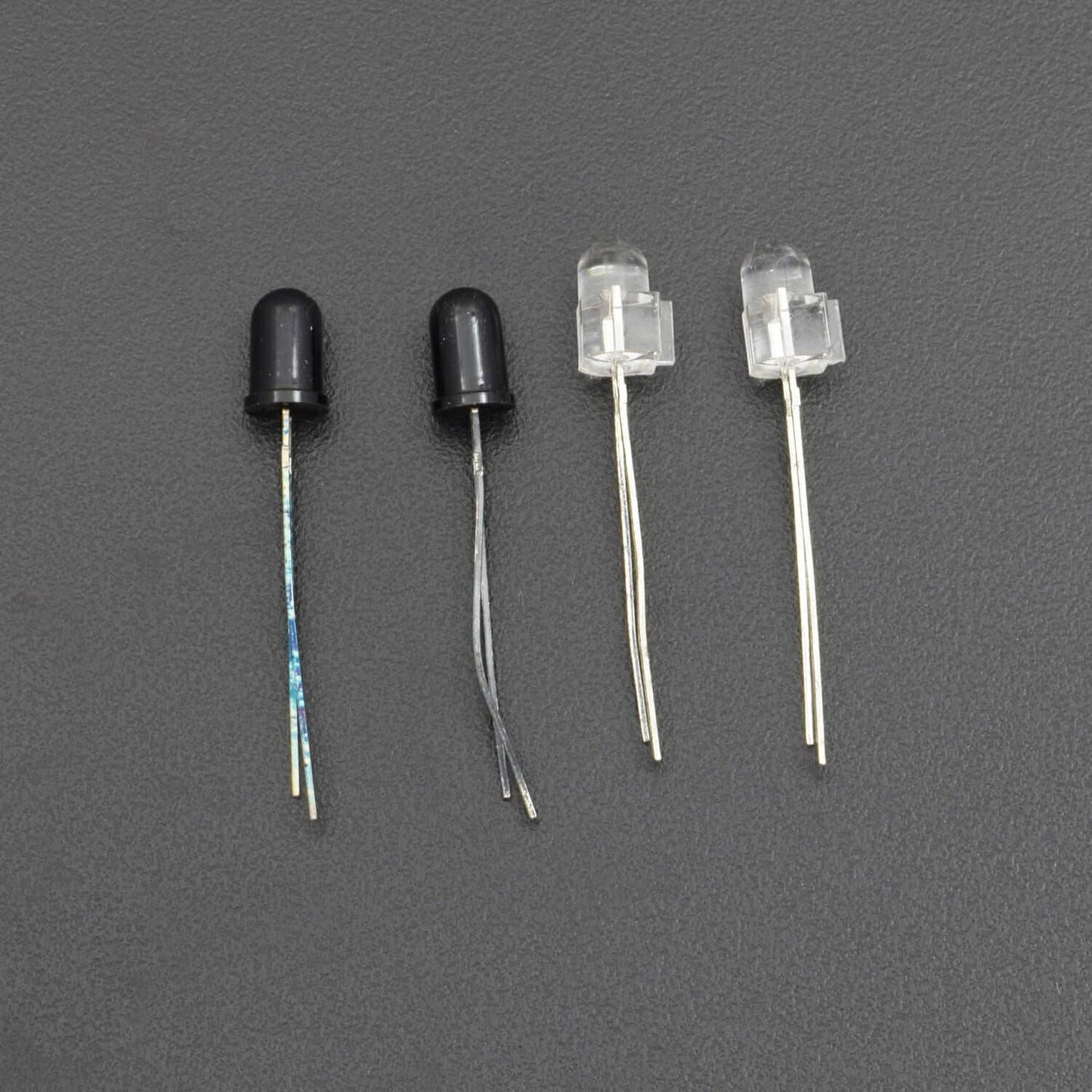

- 1 x IR EMITTER
- 1 x IR RECEIVER
