- Diameter: 5mm
- Color: Black
- Material: Polyolefin
- Shrinkage Ratio: 2:1 (will shrink to 1/2 its supplied diameter)
- Minimum Shrinkage Temp: +70¡ãC
- Full Shrinkage Temp: +110 deg C
Description:
This is great quality Polyolefin HeatShrink Tube Polyolefin HeatShrink Tube - Top Quality Heat Shrink sleeve Polyolefin are excellent for insulation. Perfect for electrical, electronic, automotive, hobby, electrical insulation, wire bundling, color coding, mechanical protection, wire/cable joints and repairs etc. Good electrical, mechanical and chemical performance. Ideal for Hobbyists and Model Makers, Electrical, Electronic, Automotive and General Purpose uses.
Specification:
- Diameter: 5mm
- Color: Black
- Material: Polyolefin
- Shrinkage Ratio: 2:1 (will shrink to 1/2 its supplied diameter)
- Minimum Shrinkage Temp: +70¡ãC
- Full Shrinkage Temp: +110 deg C
- Maximum Operating Temperature: -55degC to +125degC
- Tensile strength: 10.4 Mpa
- Dielectric strength: 20 kv/mm
How to Use:
- Take a Heat Shrink Tube with diameter slightly larger than Cut it according to the required length.
- Use a heat source to heat up the tube for 10-20 seconds.
- You will notice the Heat Shrink tube shrinking down and upon completion it will hold the wire firmly.
- Feels like rubber.
- Does tubes don't get cracked with time.
- Works best for insulation.
- Is being used in military, aerospace and railway industries, etc.
Package Included:

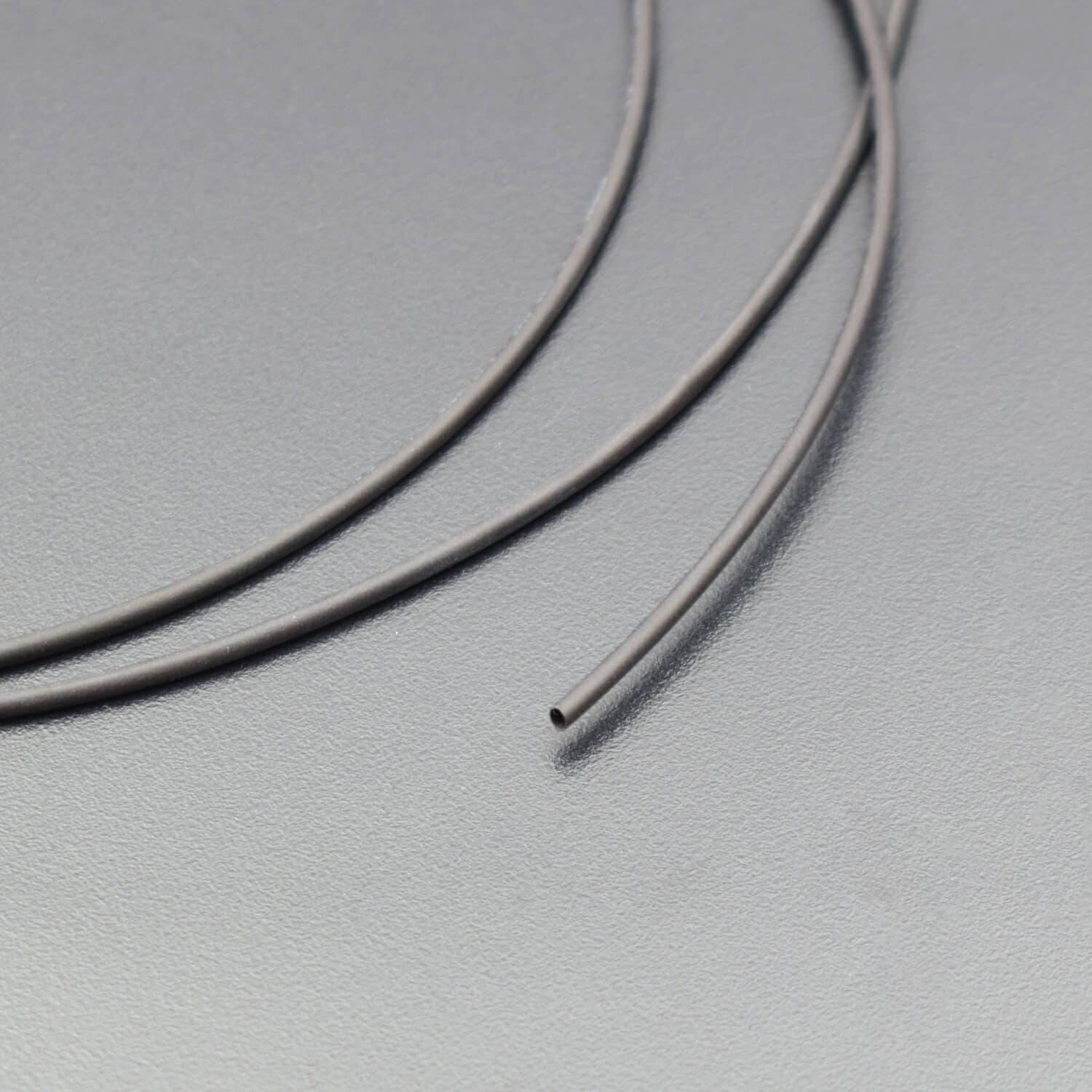

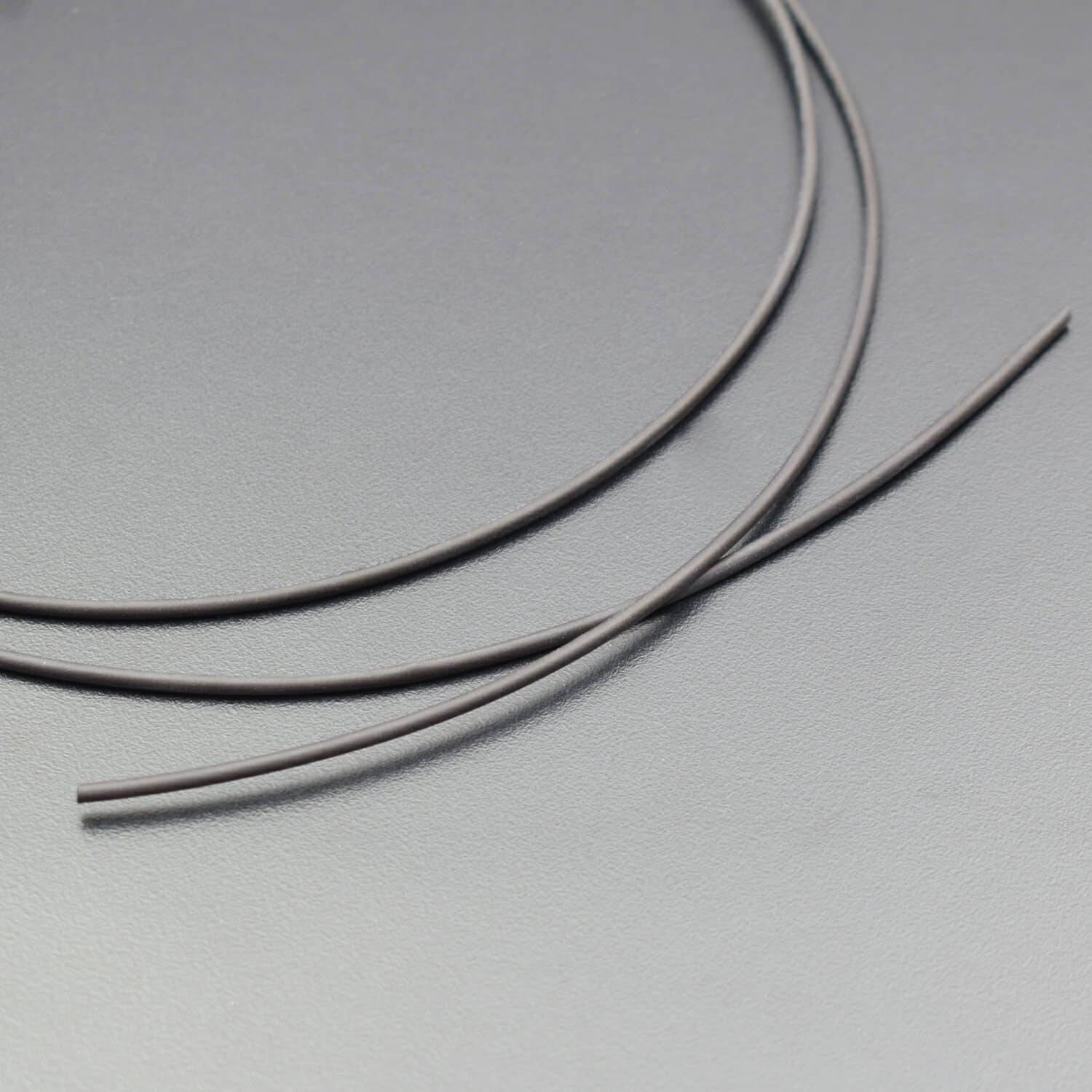

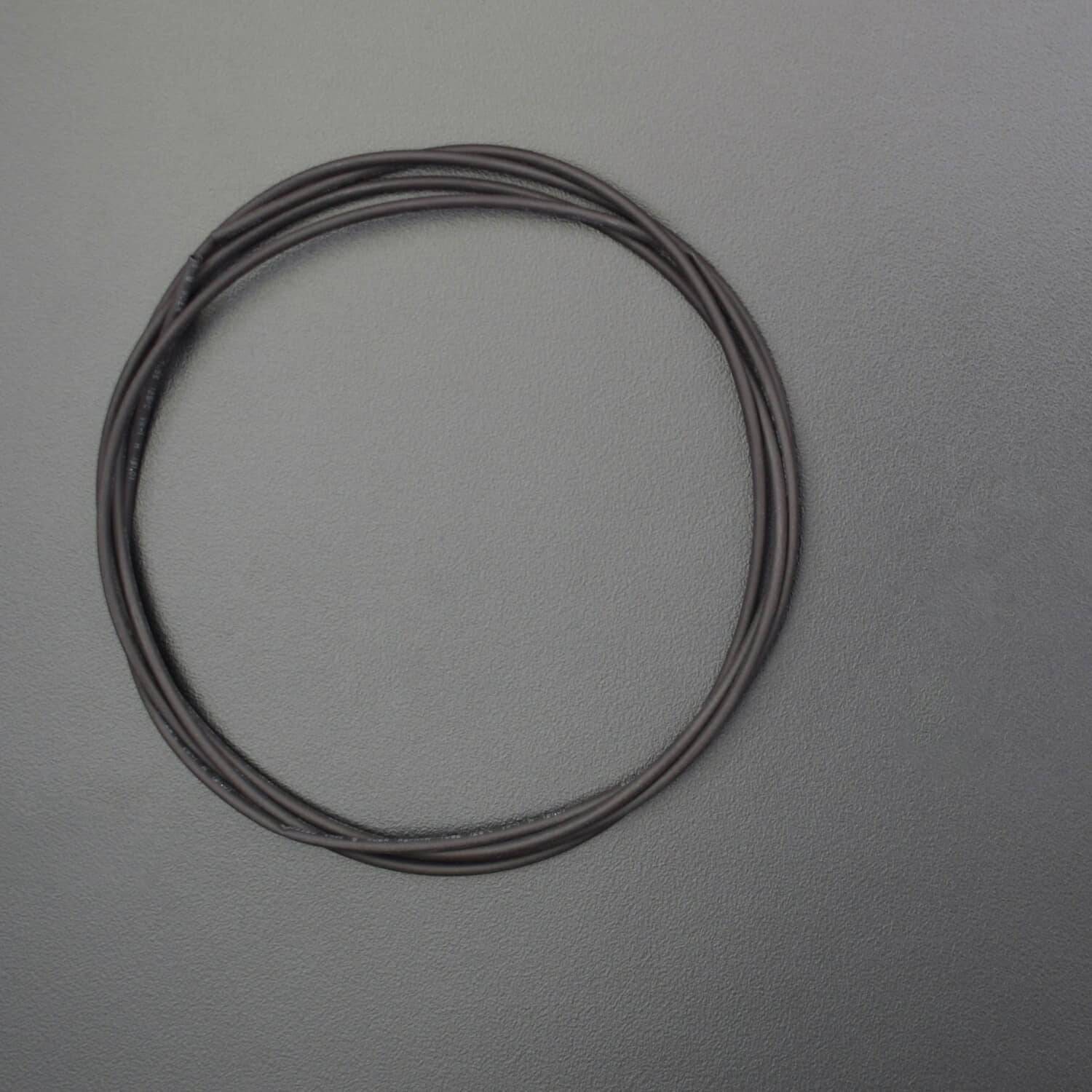

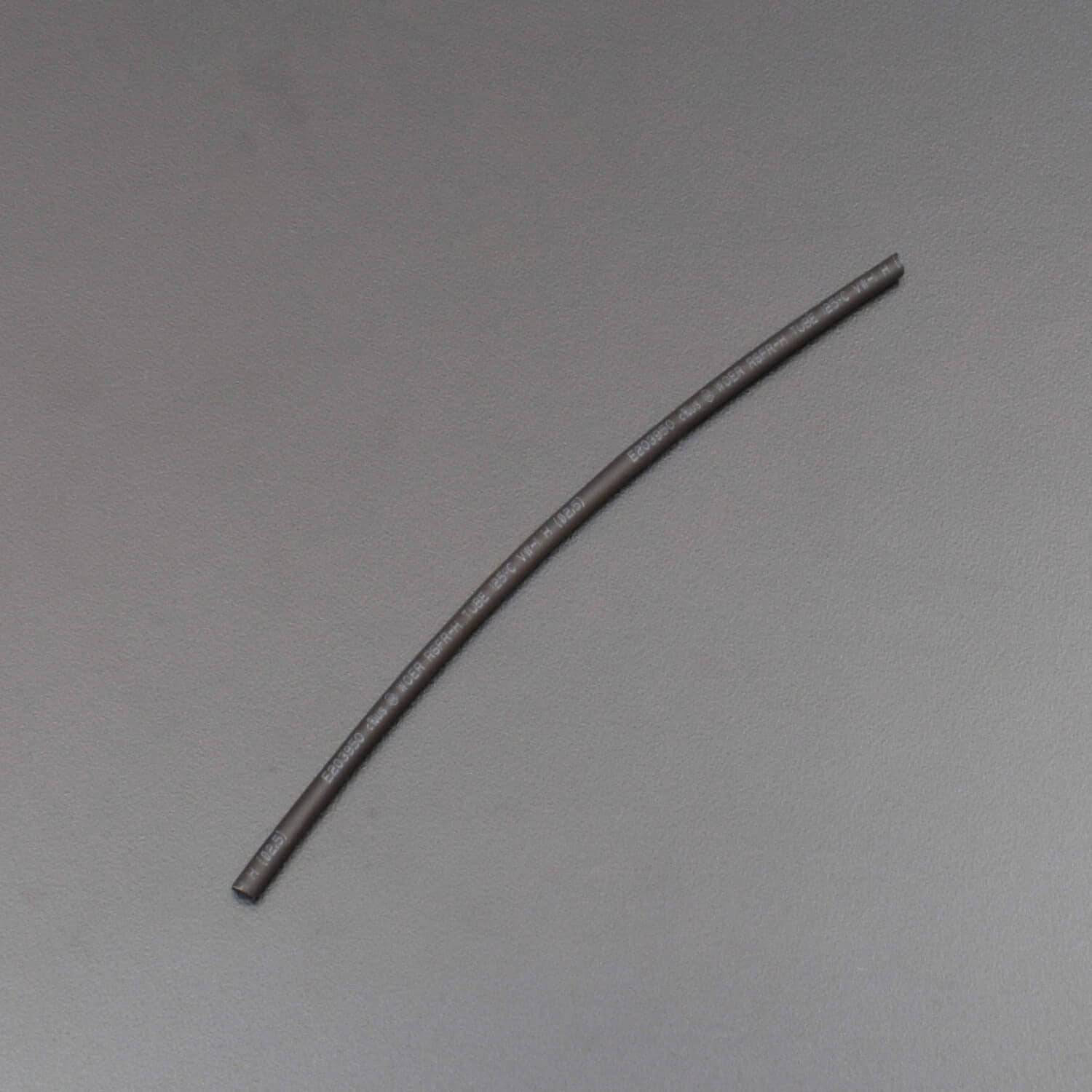

1 x 5mm Black Polyolefin Heatshrink-Tube Sleeve (5 Meter)
