Description:

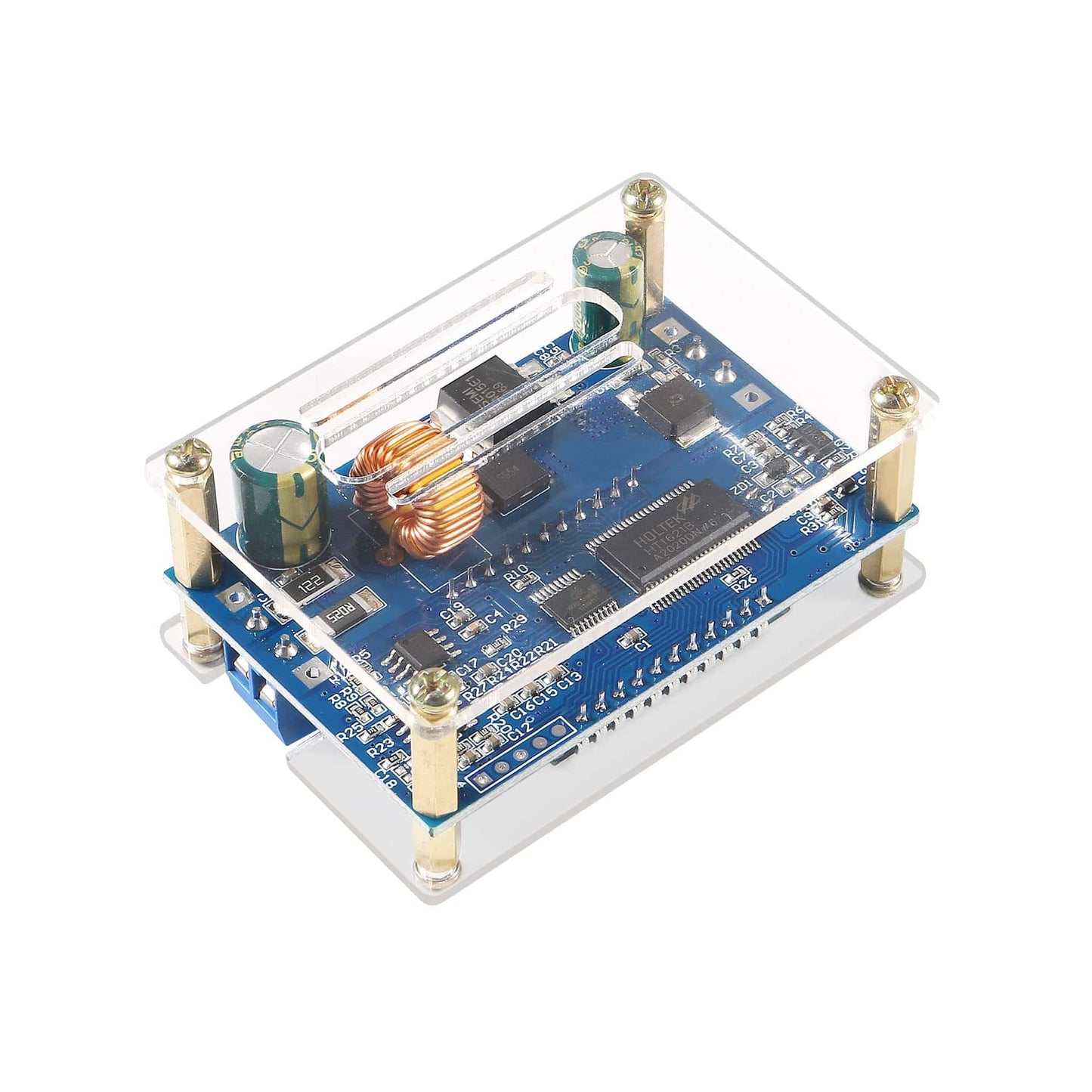

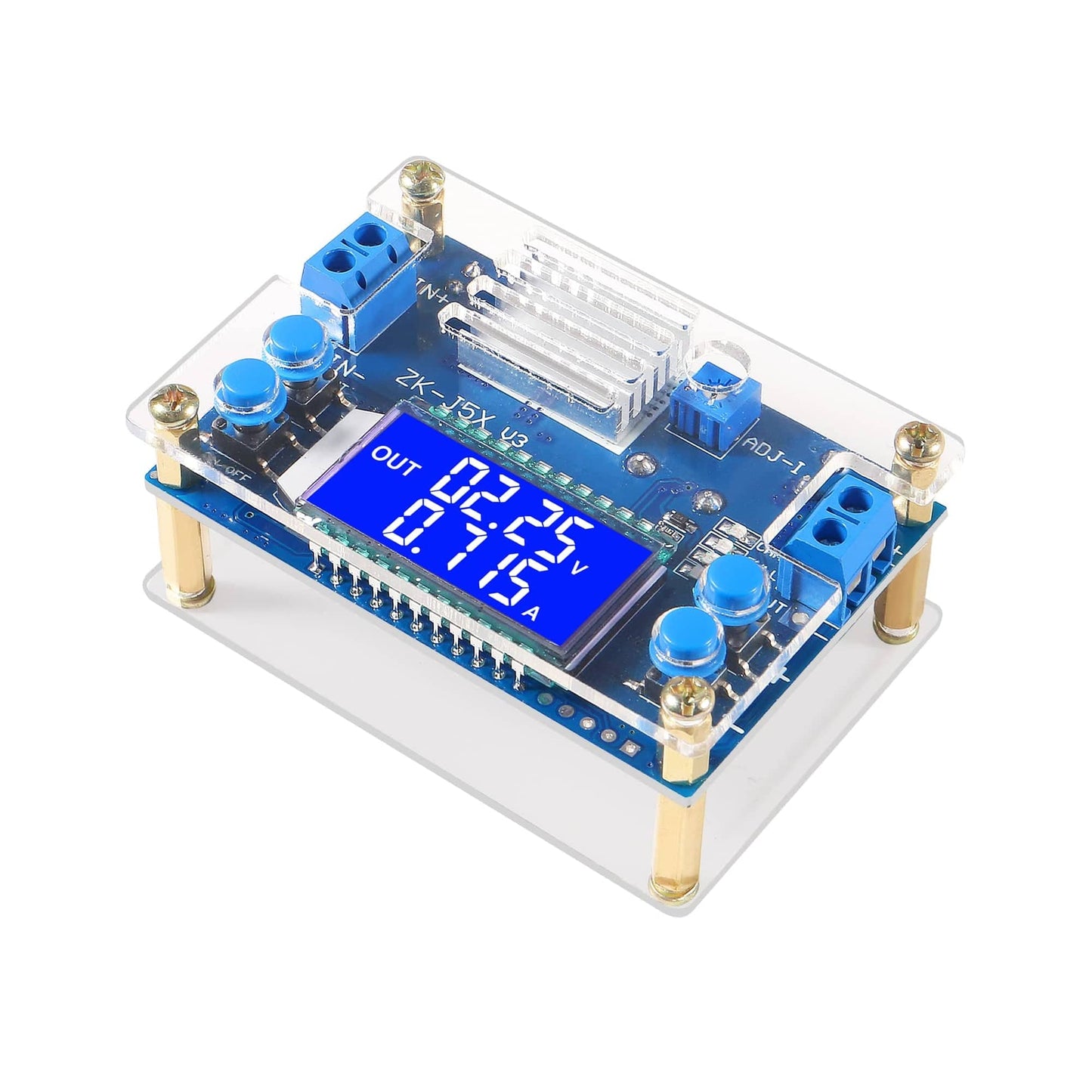

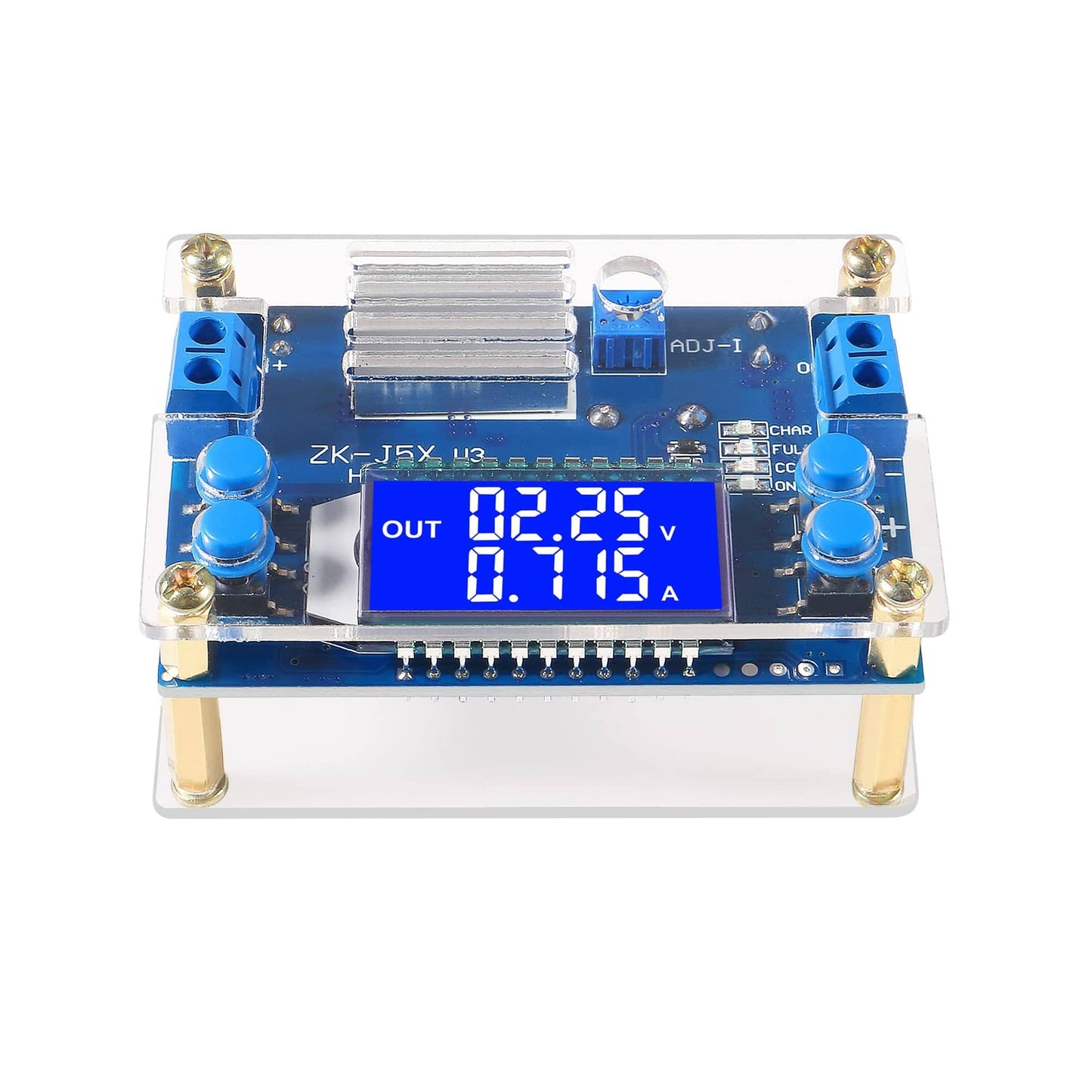

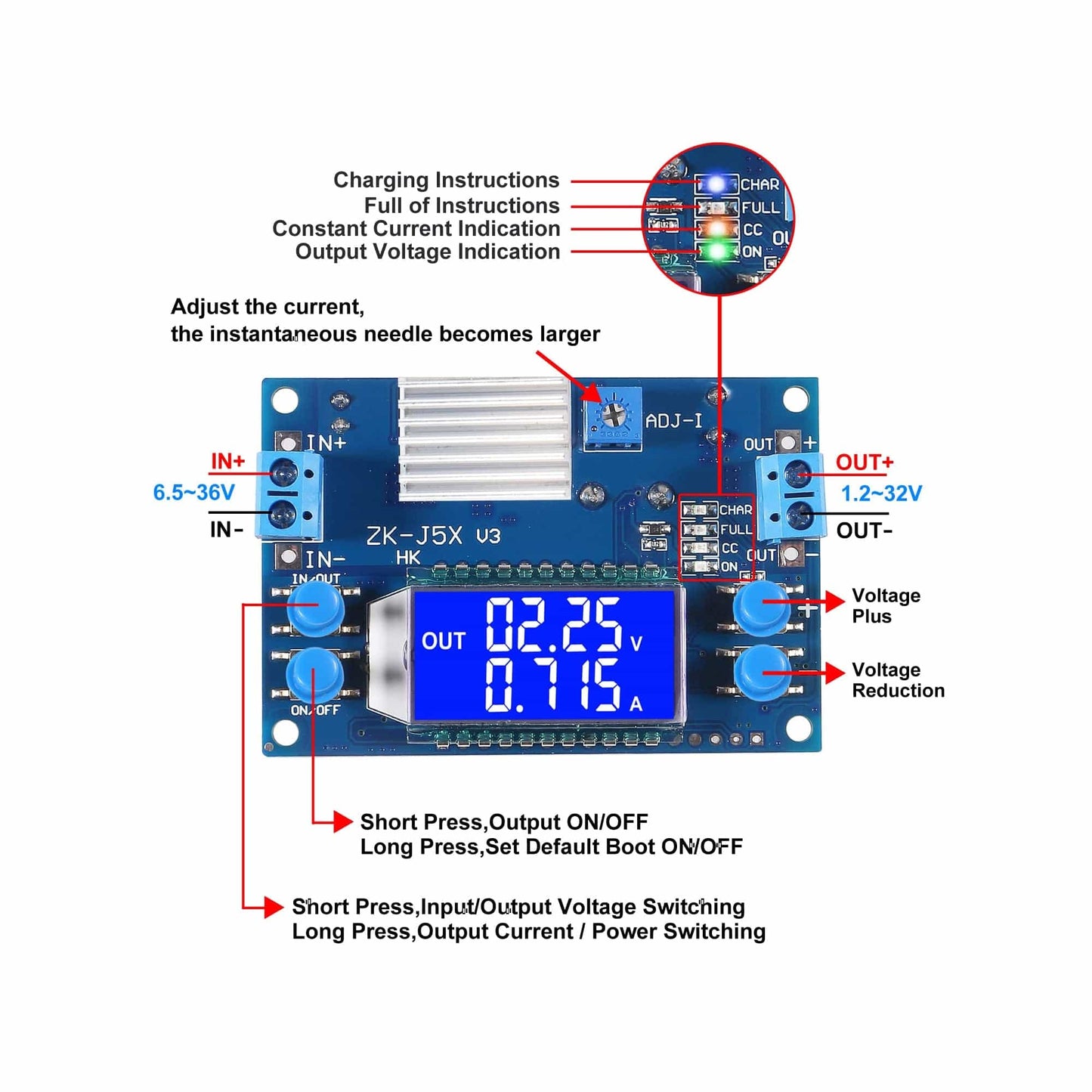

ZK-J5X 5A CNC DC-DC Buck Converter is a DC adjustable constant voltage constant current step-down power supply module with an LCD. HD displays input voltage and output voltage, current, power, and display status. Adjustable stable output voltage and current. Set output current to meet the demand. 5A CNC DC-DC Buck Converter can be used as an ordinary buck power supply module, charger, and LED constant current driver. Simple and efficient, practical.
Specifications:
- Working Voltage: DC 6.5V-36V
- Output Voltage: DC 1.2V-32V
- Output Current: 5A
- Output Power: 75W(75W need heat sink;50W is for 3.5A)
- Voltage Display Range:1.2~32V
- Voltage Display Precision: +/-0.1V
- Voltage Display Resolution: 0.05V
- Current Display Range: 0~5A
- Current Display Precision: +/-0.05A
- Voltage Display Resolution: 0.005A
- Conversion Efficiency: About 94%
- Working Current: 30mA
- Working Temperature Range: -20~85
- Working Humidity Range: 0%-95%RH
- Size With Shell: 70.5*48.4*30mm
Features:
- With a high-quality acrylic shell
- Support complete disability output
- Support anti-reverse protection, short circuit protection
- 5A CNC DC-DC Buck Converter supports enable output
Package Included:
1 x 5A CNC DC-DC Buck Converter ZK-J5X 5A CNC Step-Down Module DC to DC Buck Converter CC CV Power Module 1.2-32V 5A Adjustable Regulated Power Supply Voltmeter Ammeter
