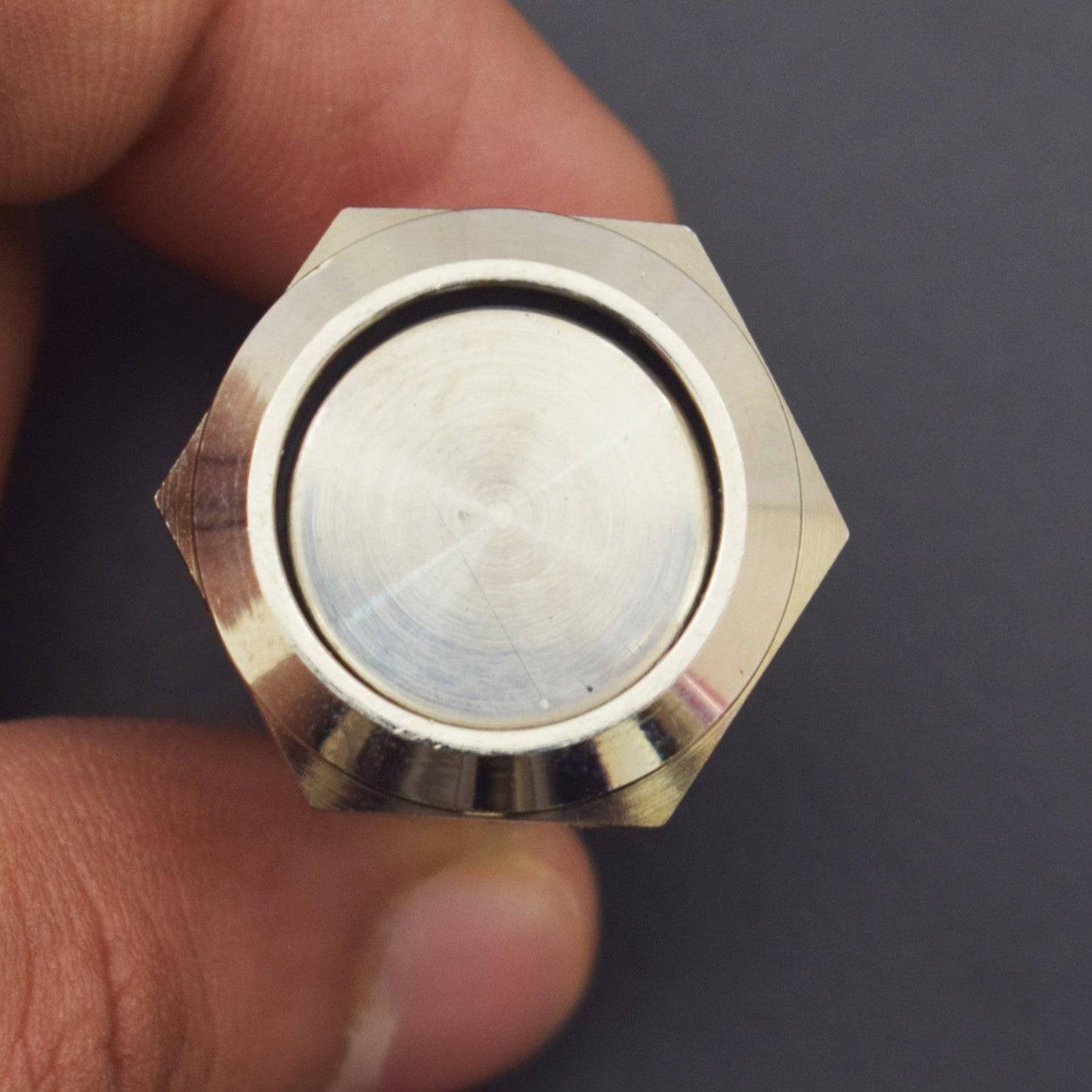

5A/ 250VAC Flat Head Self-Locking Latching 1NO1NC Stainless Steel Ring Illuminated Push Button Switch-RS1468
5A/ 250VAC Flat Head Self-Locking Latching 1NO1NC Stainless Steel Ring Illuminated Push Button Switch-RS1468
SKU:RS1468
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Type: L19A-F
- Illuminated Options: Ring-Illuminated
- Max. Panel Thickness: 0.394″ (10.0 mm)
- Terminal: Pin(2.8×0.5)
- Max. Switch Rating: 5A/ 250 VAC
- Contact Resistance: ≤50 mΩ
- Insulation Resistance: ≥1000 mΩ
- Dielectric Strength: 2000 VAC
- Operation Temp.: -20°C ~ +55°C
- Mechanical Life: 1,000,000 cycles
- Electrical Life: >50,000 cycles
- Contact Material: Silver Alloy
Description:
The Anti-vandal switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing, and actuator materials.
Used widely: Great for Box Mod, Horn Button Switch, PC Power Switch, Kill Switch or any circuit controls
IP65 Waterproof & IK09 Protection: Rustproof, can be used in a wet or dusty environment

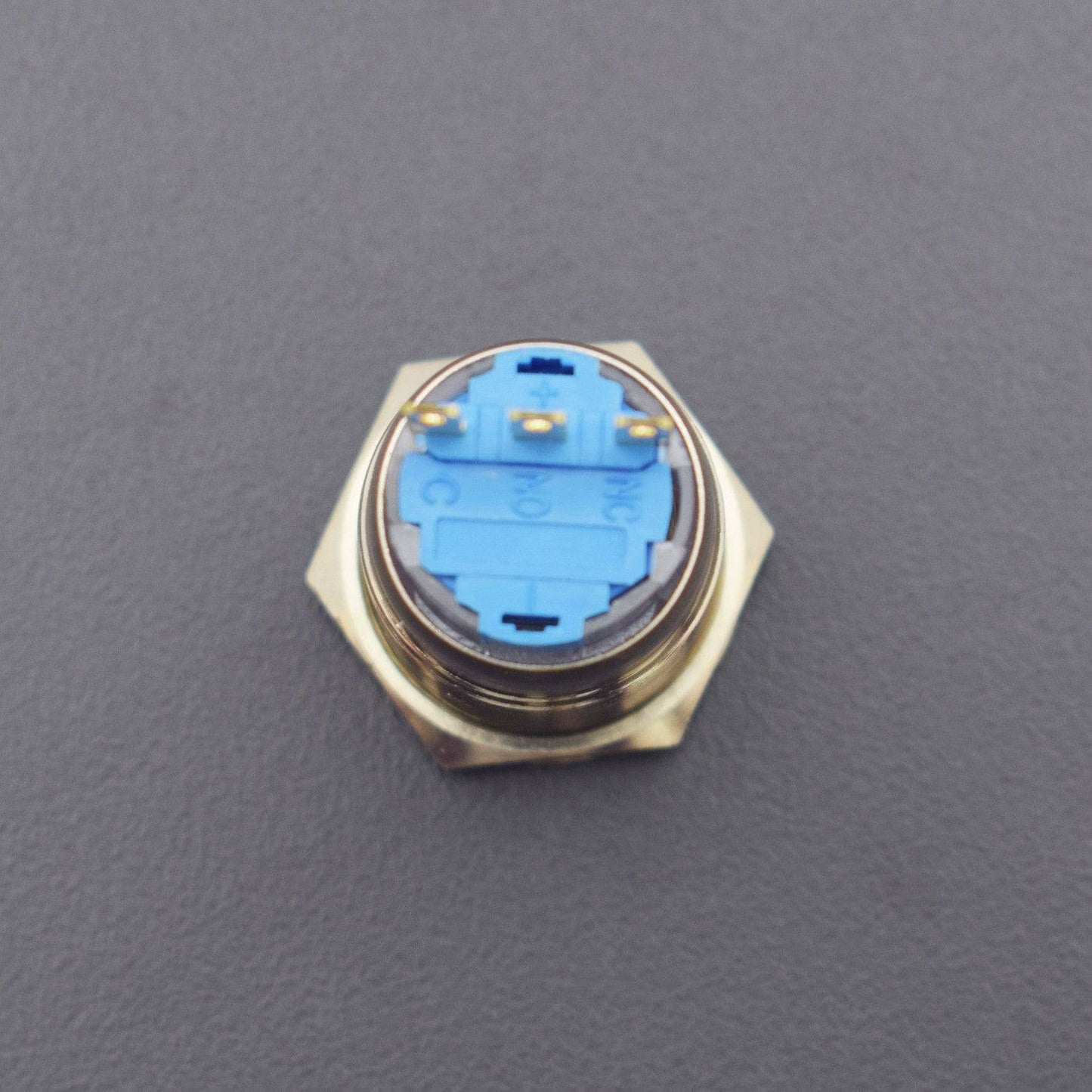

Mounting Hole Size: 19mm, Switch Rating: 5A/ 250VAC, Switch Contacts: 1NO1NC
Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to the original position unless you push it again.
Specification:
- Size Name:12v
- Color Name: Blue
- Type: L19A-F
- Illuminated Options: Ring-Illuminated
- Max. Panel Thickness: 0.394″ (10.0 mm)
- Terminal: Pin(2.8×0.5)
- Max. Switch Rating: 5A/ 250 VAC
- Contact Resistance: ≤50 mΩ
- Insulation Resistance: ≥1000 mΩ
- Dielectric Strength: 2000 VAC
- Operation Temp.: -20°C ~ +55°C
- Mechanical Life: 1,000,000 cycles
- Electrical Life: >50,000 cycles
- Contact Material: Silver Alloy
- Torque: 5 ~ 14Nm
- Operation Pressure: approx. 3 ~ 8N
- Protection: IP65
- Material Actuator: Stainless Steel
- Material Body: Stainless Steel
- Material Base: PA
Main Suitable Applications:
- Household appliances metal button switch
- Machinery metal button switch (coffee machines metal button switch/laser machine metal button switch/lathe metal button switch/punch metal button switch)
- Auto metal button switch/electric mobile metal button switch/e-scooters metal button switch
- PC metal button switch
- Door access control system metal button switch ( doorbell metal button switch/safety door metal button switch)
- Home/buildings decoration metal button switch
- Industrial control cabinet (box) metal button switch
- Garden equipment/devices/machines metal button switch
- bathroom devices metal button switch

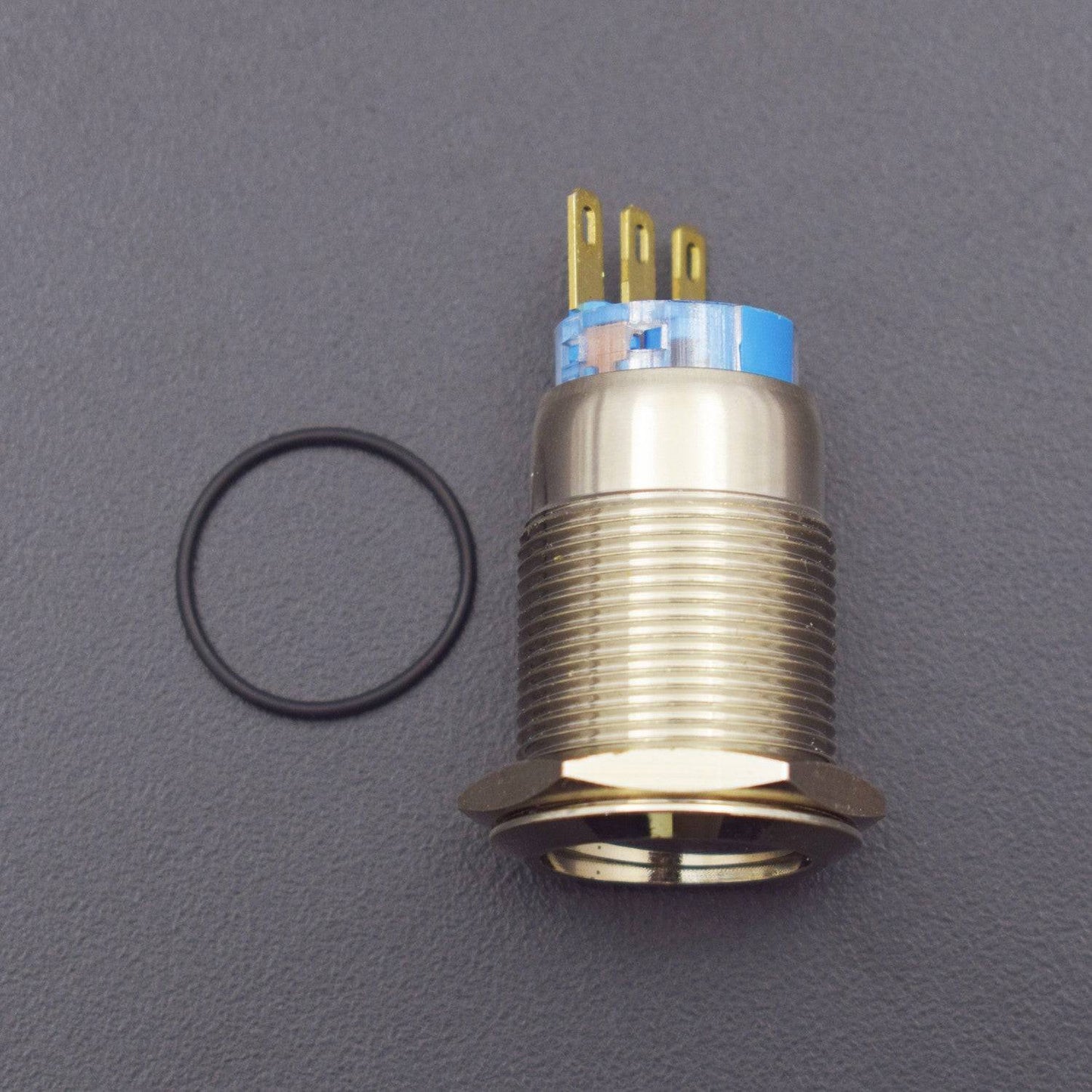

Package Included:
1 x Push Button Switch

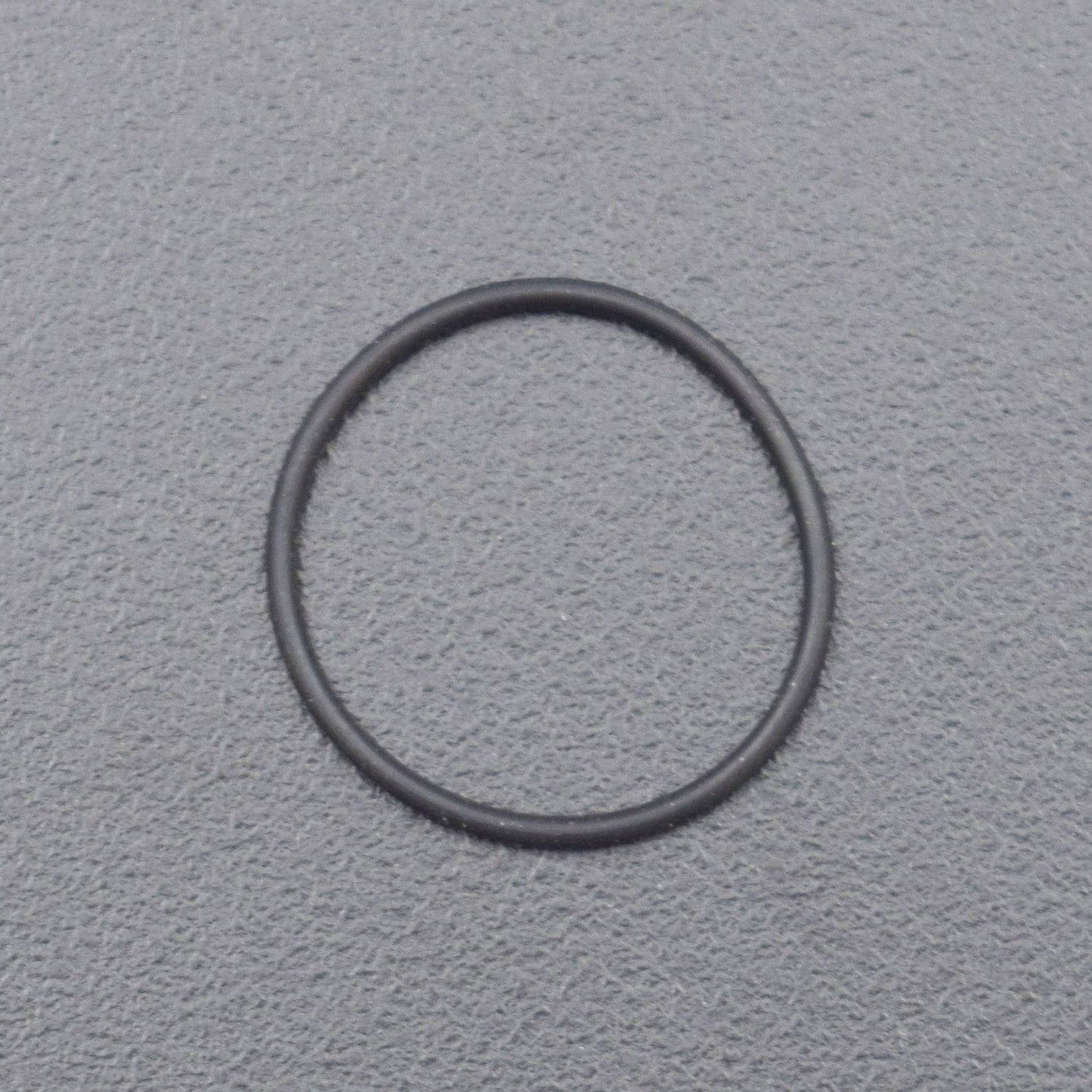

1 x O-rings
