Description:

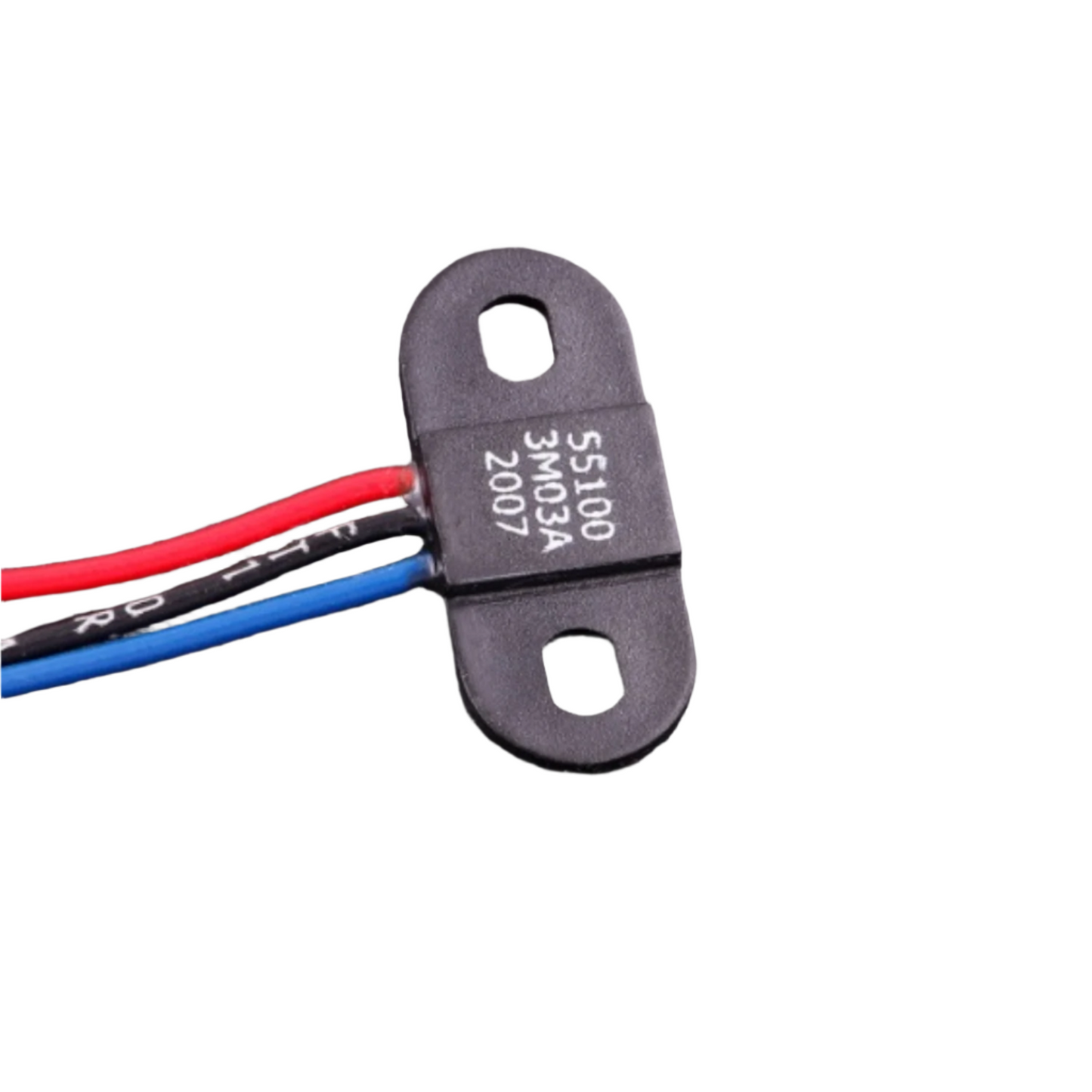

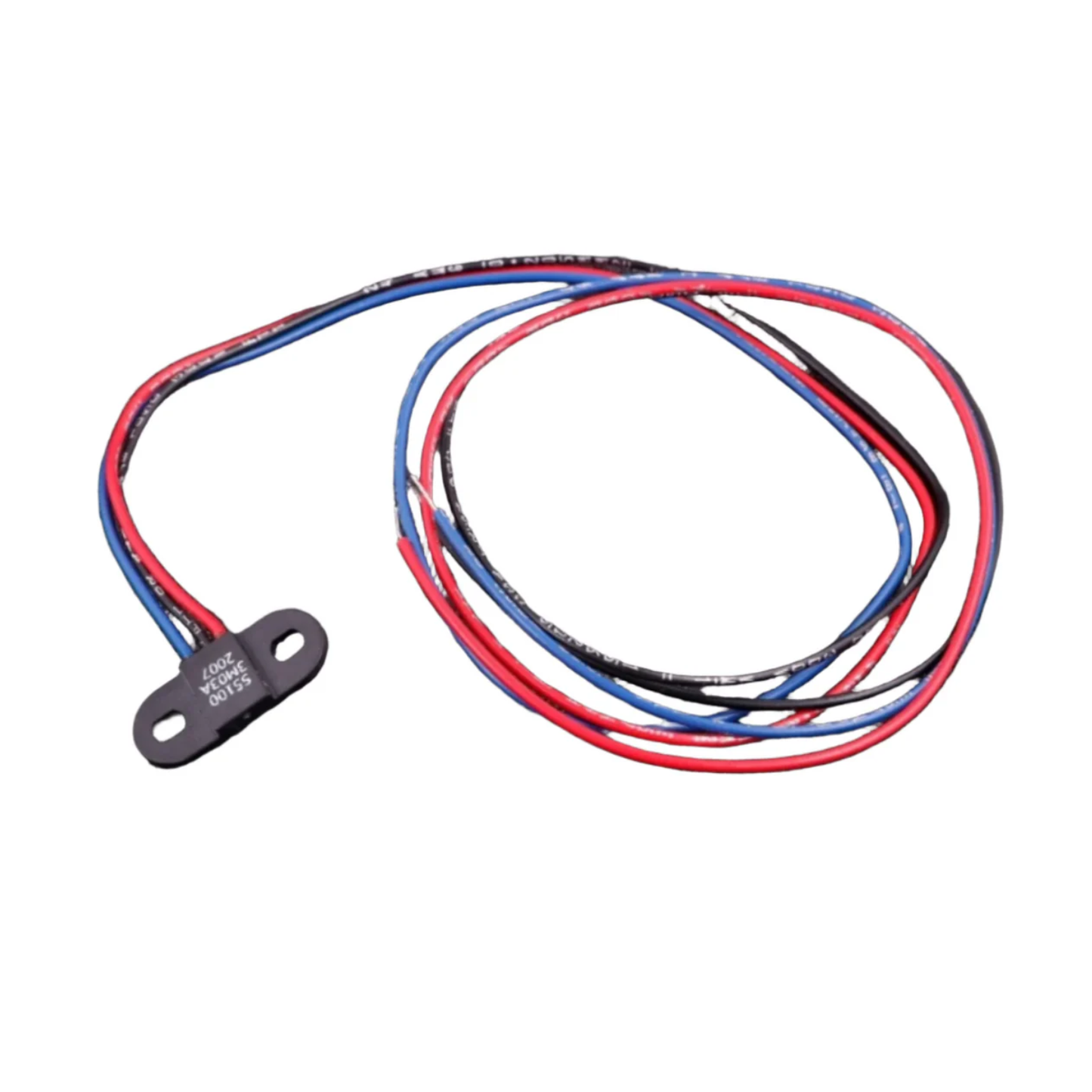

Hall Effect Proximity Sensor 55100 offers flexibility in output configuration, providing both digital and programmable analog options to suit various system requirements. It is available in two convenient connection types: three-wire (voltage output) for standard applications and two-wire (current output) for simplified wiring.
The sensor's robust design allows for secure mounting using either screws or adhesive, ensuring reliable operation in diverse industrial settings. It is capable of switching up to 24Vdc and 20mA, providing sufficient power for most control applications.
Specifications:
- Operating Voltage: 3 to 24
- Operating Temperature: 40 to + 100°C
- Switching Speed: 12 kHz
- Operating Current: 12.0 to 17.0mA
- Wire Connection Method: 3 Wires
Features:
- Magnetically activated position sensor.
- Available in digital or programmable analog.
- Medium, high, or programmable sensitivity options.
- Three-wire (voltage) or two-wire (current) configurations.
- Reverse/over-voltage protection.
- Built-in temperature compensation.
Applications:
- Position and limit sensing
- RPM measurement
- Flow metering
- Commutation of brushless DC motors
- Angle sensing
-
Magnetic encoders
Package Included:
1 x 55100 Hall Effect Proximity Sensor
