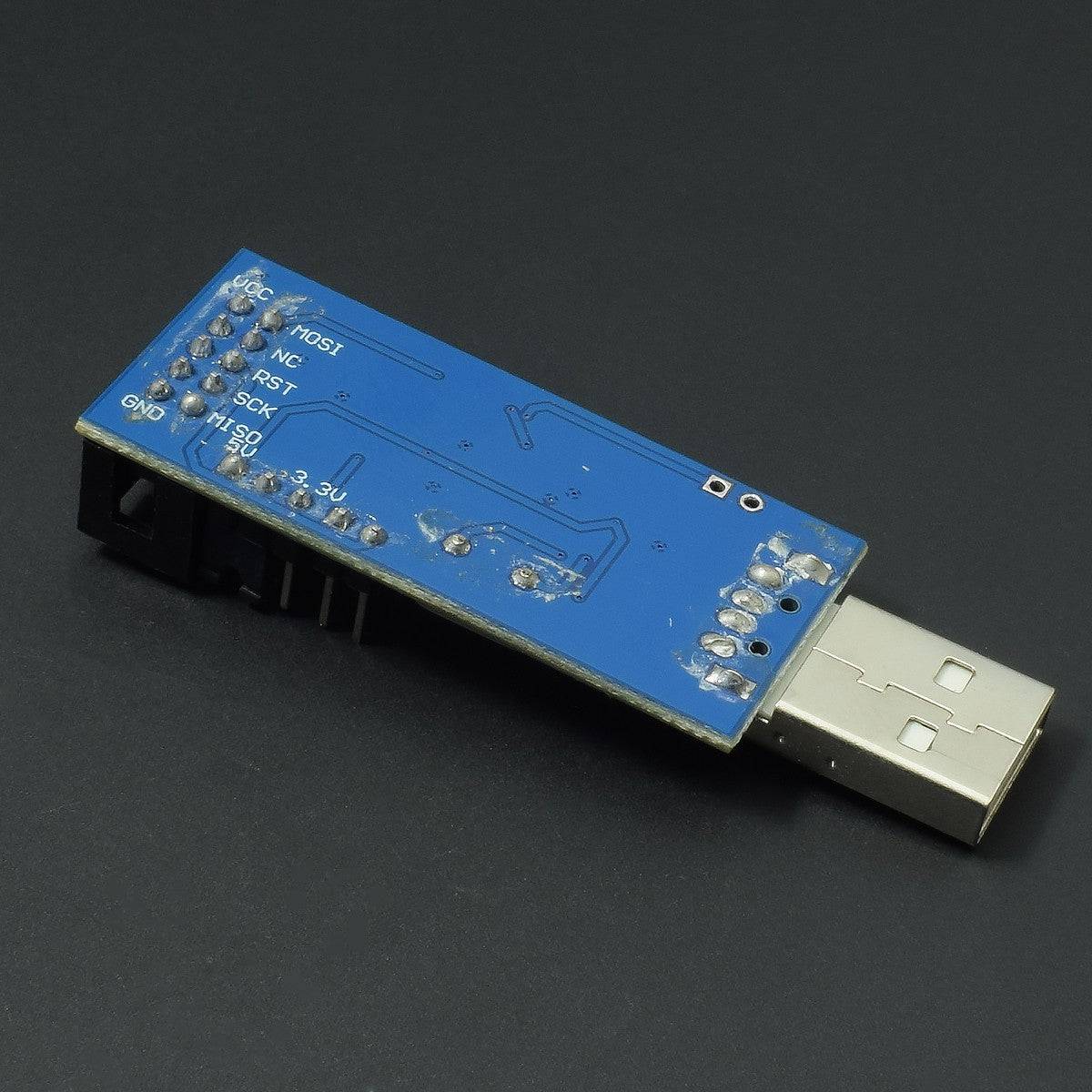

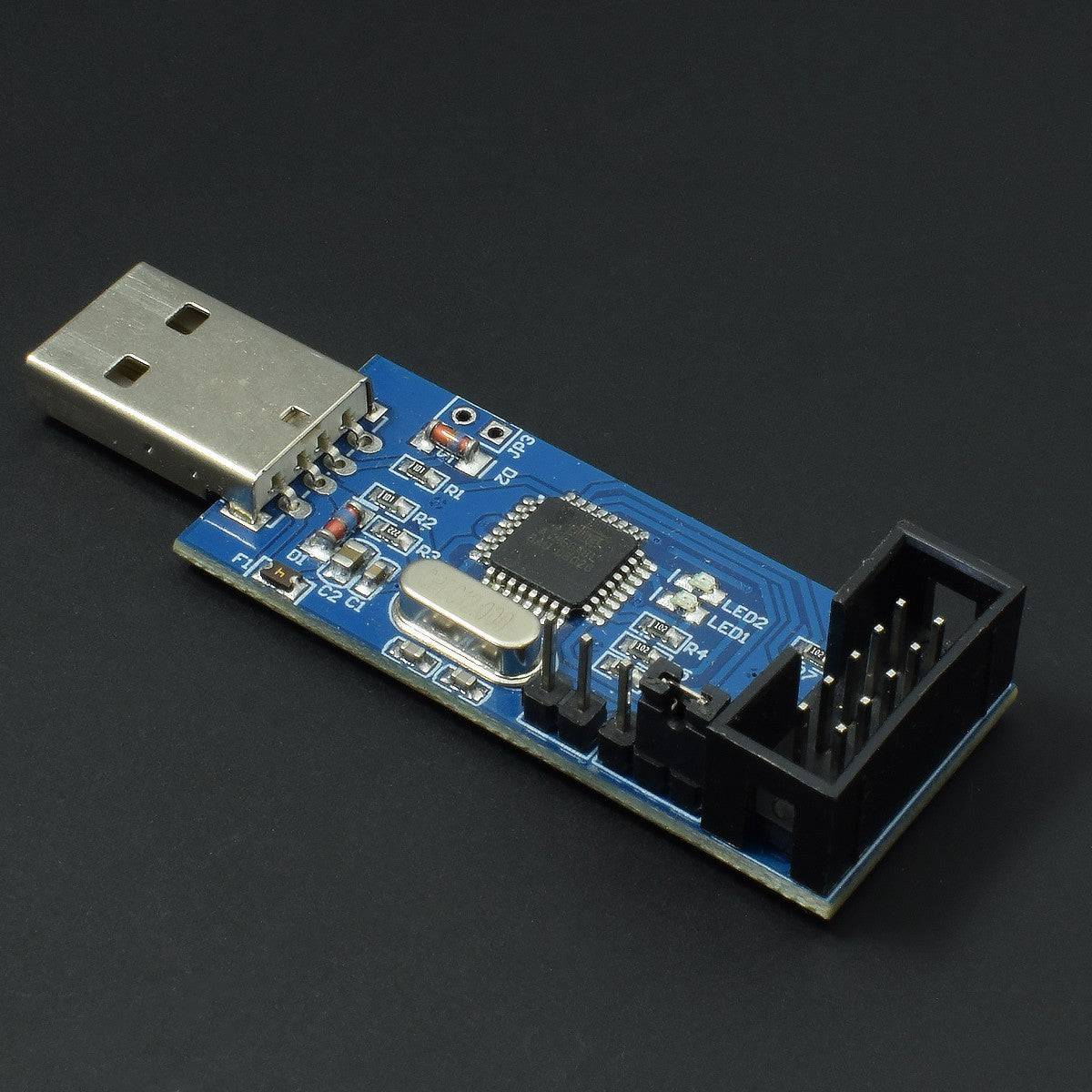

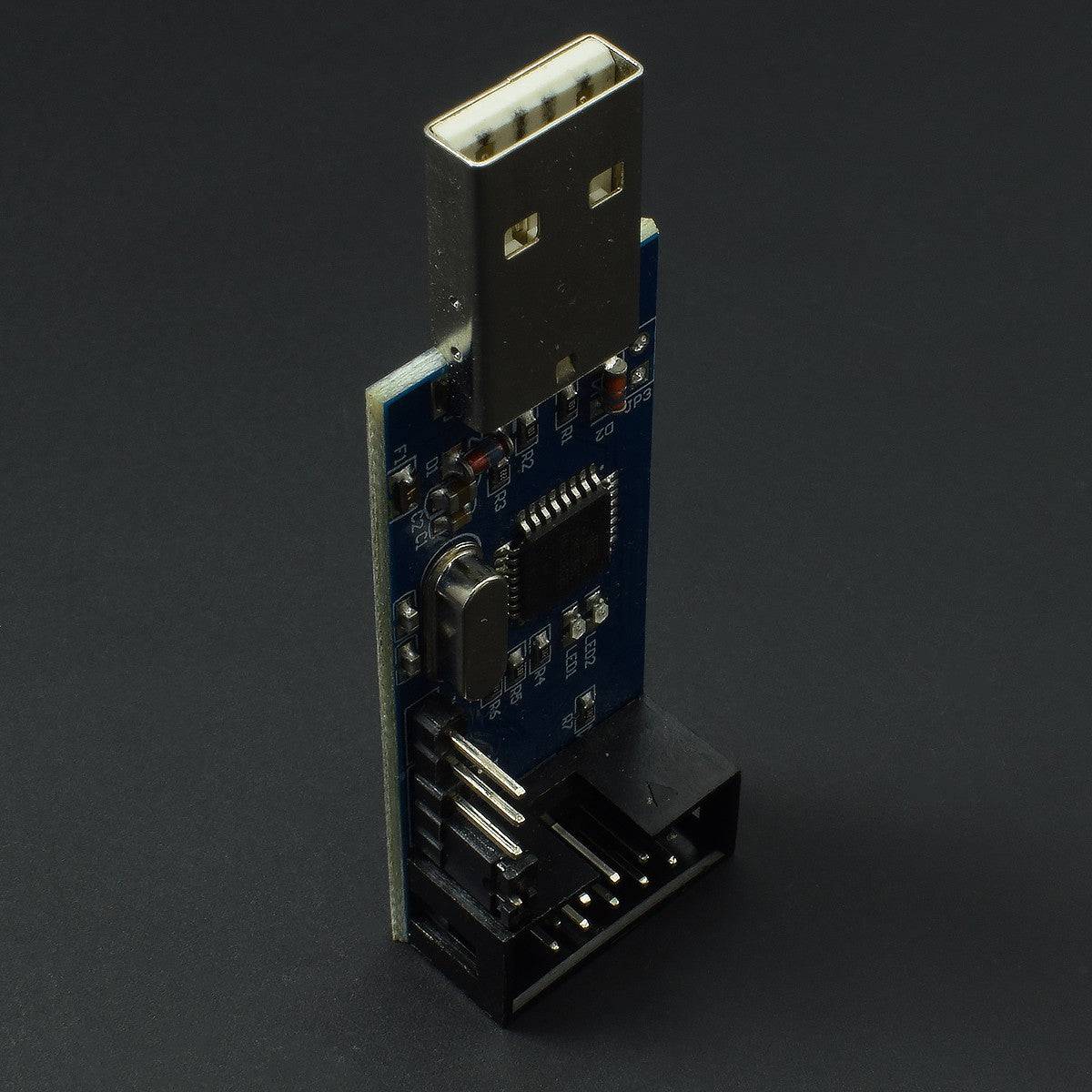

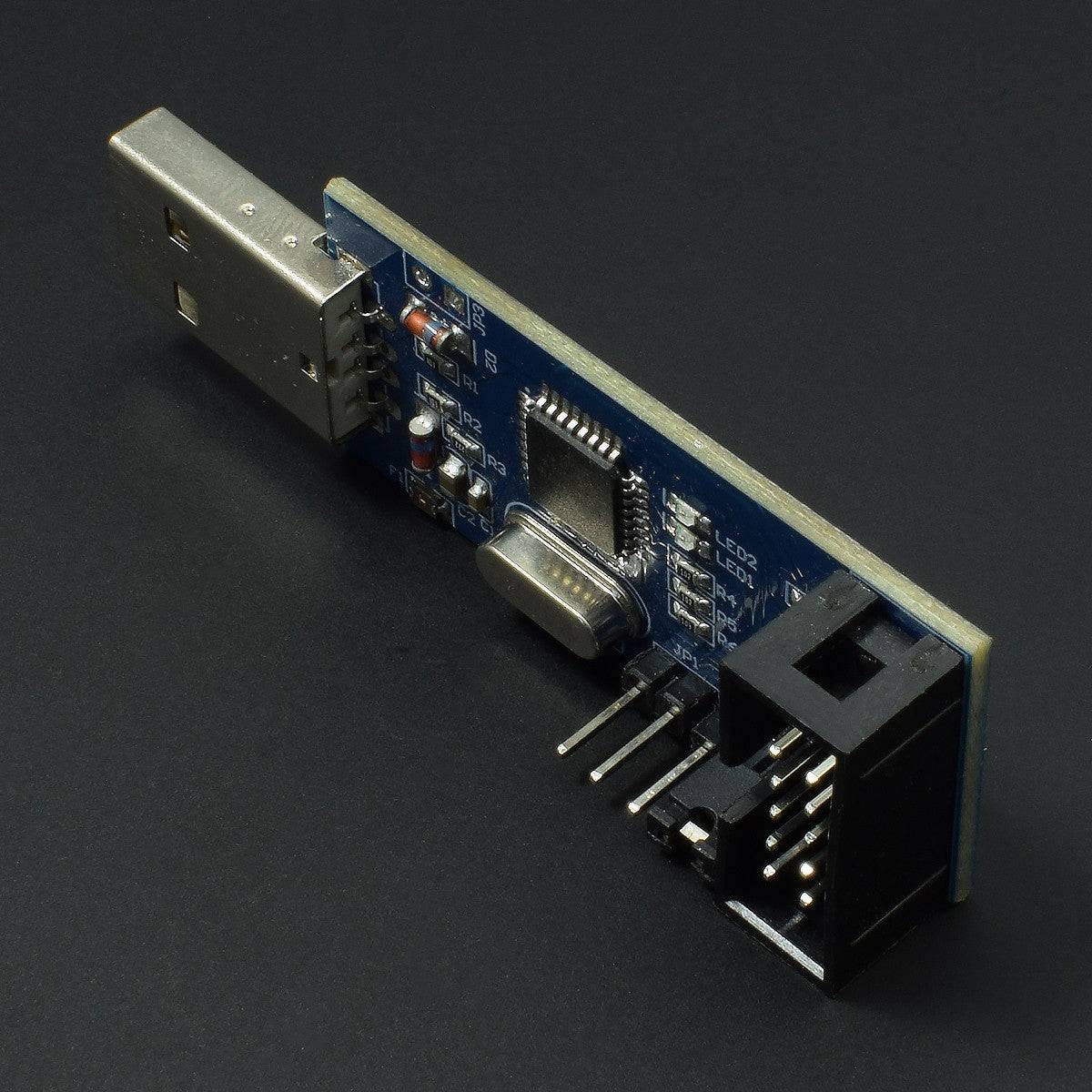

51 AVR ATMEGA8 Programmer USB ASP USB ISP 10 Pin USB Programmer 3.3V/5V with Cable - AA109

51 AVR ATMEGA8 Programmer USB ASP USB ISP 10 Pin USB Programmer 3.3V/5V with Cable - AA109

SKU:AA109

86 in stock

Regular price Rs. 370.00
Regular price Sale price Rs. 370.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Main Chip: ATMega8A-AU
  • Power Supply: 5V and 3.3V
  • Works under multiple platforms. Linux, Mac OS X and Windows are tested.
  • Allows you to read or write the microcontroller EEPROM, firmware, fuse bits and lock bits.

Description:

This is a USBasp programmer for Atmel AVR microcontrollers. It simply consists of an ATMega8 and a couple of passive components with 12 MHz operating frequency of ATMega8. The programmer uses a firmware-only USB driver, no special USB controller is needed, and that's make it low cost USB programmer. USBasp Programmer is low cost USB based programmer. This is an ISP (in system programmer) programmer therefor you can program your target microcontroller without removing it from your target microcontroller development board. This programmer will work with a wide variety of Atmel AVR and AT89Sxx microcontroller. They quite compact, but the design is really elegant. The USB interface is achieved by using an atmega8 processor and the rest is done in firmware. This is a low-cost programmer designed for those on a tight budget. Software Supported:- It is low cost, easy to use, the programmer will work with a wide variety of Atmel AVR microcontrollers. The programmer will also work with a variety of software./p>

Specification:

  • Main Chip: ATMega8A-AU
  • Power Supply: 5V and 3.3V

Features:

  • Works under multiple platforms. Linux, Mac OS X and Windows are tested.
  • Allows you to read or write the microcontroller EEPROM, firmware, fuse bits and lock bits.
  • Programming speed is up to 5KB/second
  • Software controlled SCK option to support targets with low clock speed (less than 1.5MHz).
  • 6 Pin Adapter board along with the programmer for Standard ISP connections.
  • B-type USB Connector for power.
  • Separate Two Different LED's for power & programmer status.

List of support chips:

51 Series:

AT89S51, AT89S52, AT89S53, AT89S8252

AVR Series:

ATTiny12(L), ATTiny13(V), ATTiny15(L), ATTiny24(V), ATTiny25(V), ATTiny26(L), ATTiny2313(V), ATTiny44(V), ATTiny45(V), ATTiny84(V), ATTiny85(V), AT90S2313(L), AT90S2323(L), AT90S2343(L), AT90S1200(L), AT90S8515(L), AT90S8535(L), ATMEGA48(V), ATMEGA8(L), ATMEGA88(V), ATMEGA8515(L),ATMEGA8535(L), ATMEGA16(L), ATMEGA162(V), ATMEGA163(L), ATMEGA164(V), ATMEGA165(V), ATMEGA168(V), ATMEGA169(V), ATMEGA169P(V), ATMEGA32(L), ATMEGA324(V), ATMEGA325(V), ATMEGA3250(V), ATMEGA329(V), ATMEGA3290(V), ATMEGA64(L), ATMEGA640(V), ATMEGA644(V), ATMEGA645(V), ATMEGA6450(V), ATMEGA649(V), ATMEGA6490(V), ATMEGA128(L), ATMEGA1280(V), ATMEGA1281(V), ATMEGA2560(V), ATMEGA2561(V), AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2(B), AT90PWM3(B), etc.

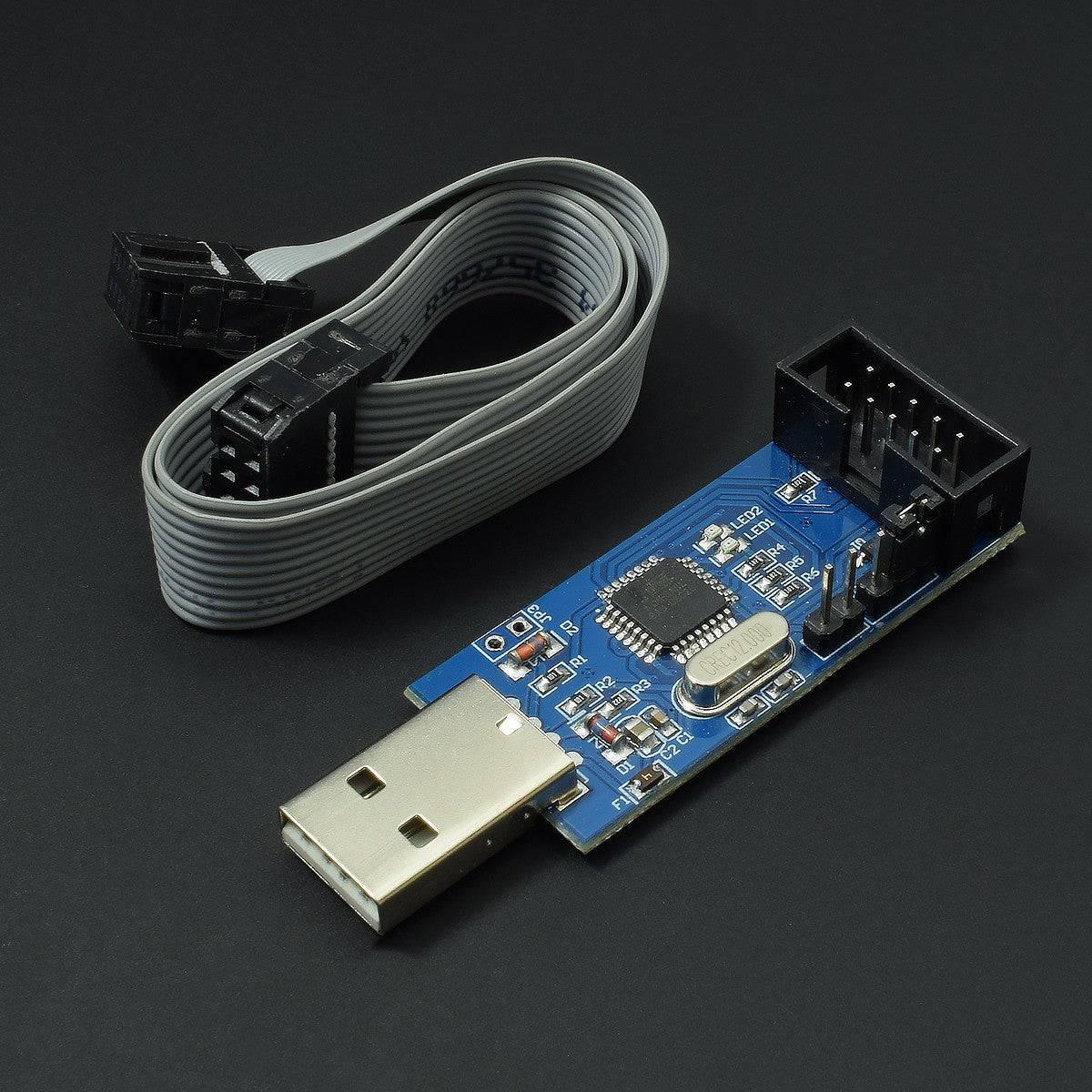

Package Included:

  • 1 x USBasp Programmer

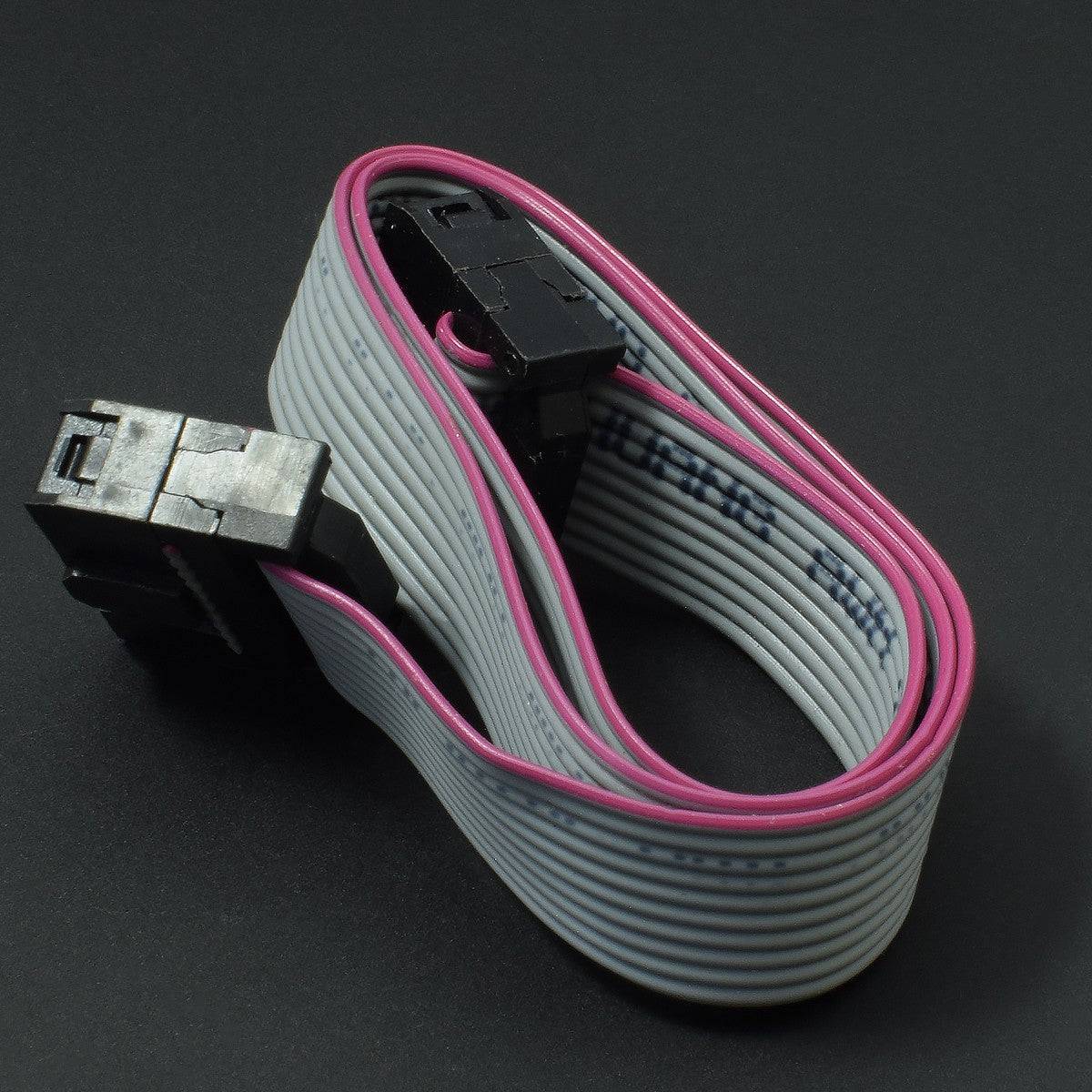

  • 1 x 10 Pin Data Ribbon Cable
