Description:
Solder Seal Wire Connector is designed for the electrical termination of multiple-wire combinations. They provide a reliable alternative to crimping, welding, or conventional twist-on-style closed-end connectors. Their unique combination of wire fixtures and controlled soldering technology provides dependable electrical termination. This transparent Solder Seal Wire Connector provides precise inspection when stripping and inserting wires inside. Tubing reduces in size and solder will melt and flow through the stripped wires, ensuring the strong holding of your wire will never slip out of the connector. Can be ideally used in marine and automobile applications.
Specification:
- Shrink Ratio: 2:1
- Tubing: Polyolefin
- Plating: Tin
- Terminal Body: Copper
- Operating Temperature: -55 to 125°C
- Shrink Temperature: 80°C
Features:
- Waterproof Protection: Hot Melt Adhesive & Solder inside the insulated polyolefin tubing creates a durable waterproof seal between the wire and the connector, and prevents any corrosion.
- Fast & Easy Operation: No need to crimp, just strip your wires, insert them into the Solder Seal Wire Connector and apply heat to finish the connection. Use a heat gun to heat until the heat shrink tube wrap terminal.
- No-Slip Wire Contact: When heat is applied, tubing reduces in size and melted solder flows through the stripped wires, ensuring strong holding and preventing wires from slipping out from the terminal.
- Easy Identification: Different Colors for Different Sizes of the Solder Seal Wire Connector are easy to identify and pick up for use. The transparent sleeve provides precise inspection when stripping and inserting wires inside.
- Wide Application: This Solder Seal Wire Connector kit is widely used for marine, aviation, and automobile applications, maintenance operations, and other wiring projects.
Steps For Use:
- Select the right size of connectors for the wires.
- Insert the wires into the solder splice.
- Heated directly with a hot gun make the solder melt and flow through the stripped wires.

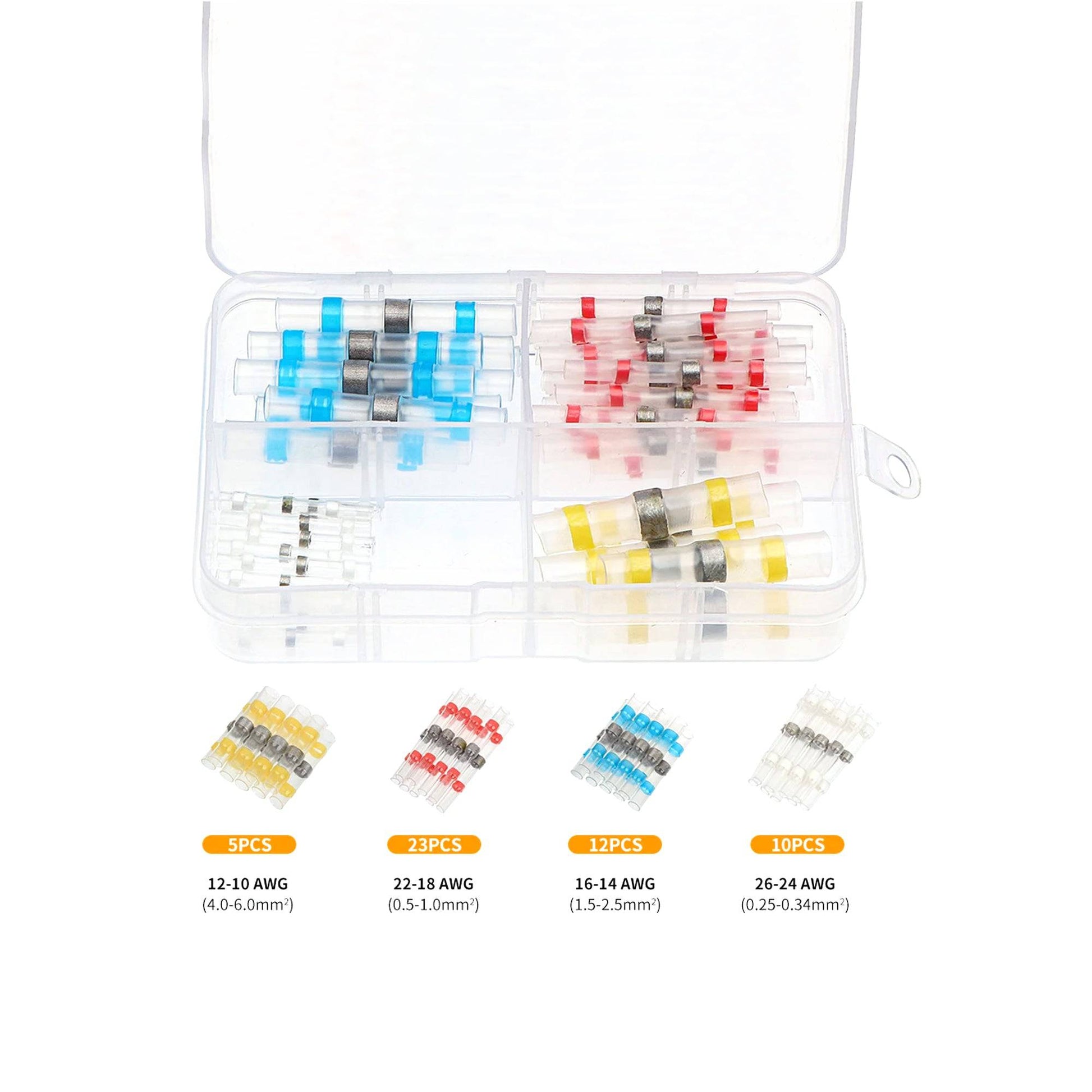

Package Included:

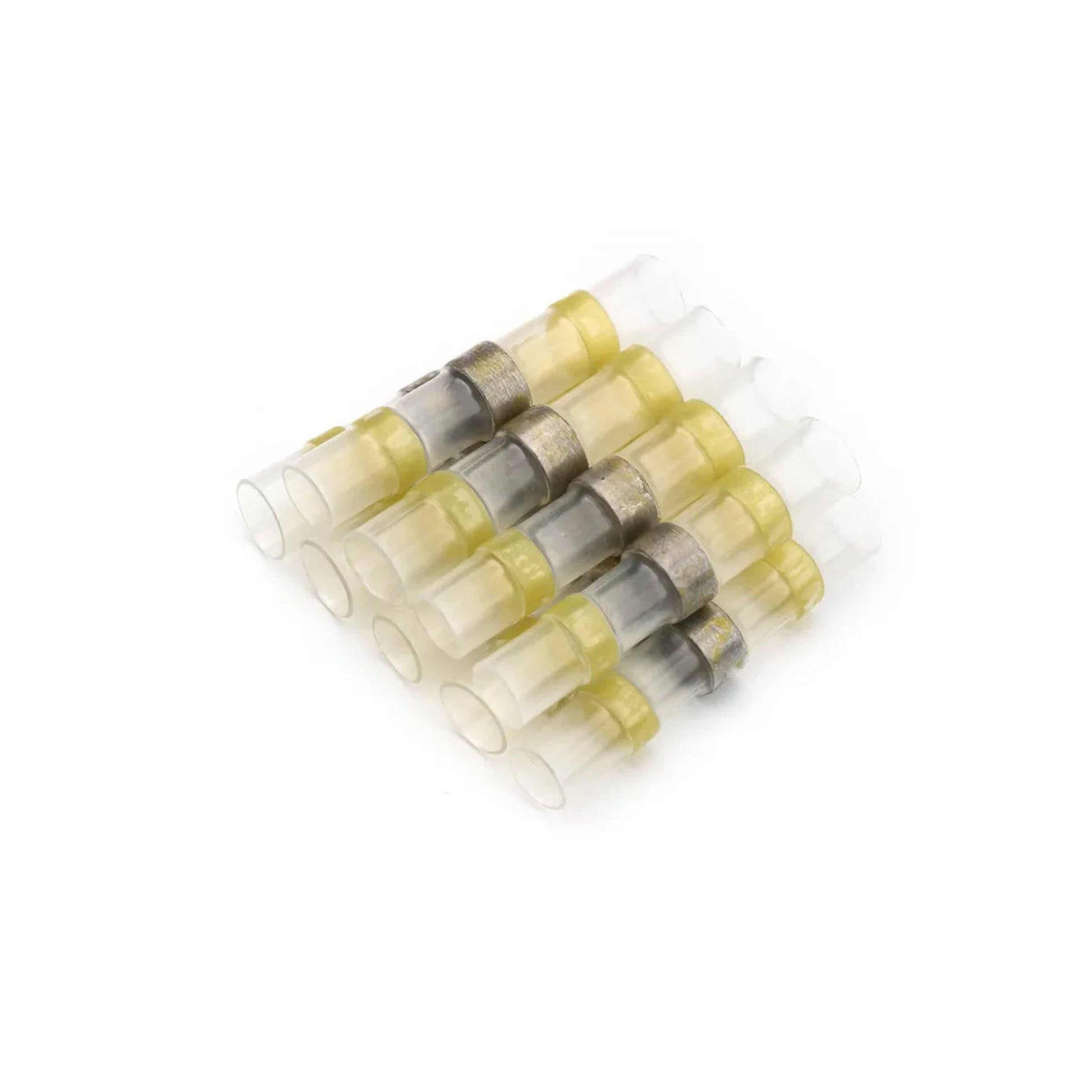

- 5 x Yellow Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0 mm²(A.W.G.:12-10)

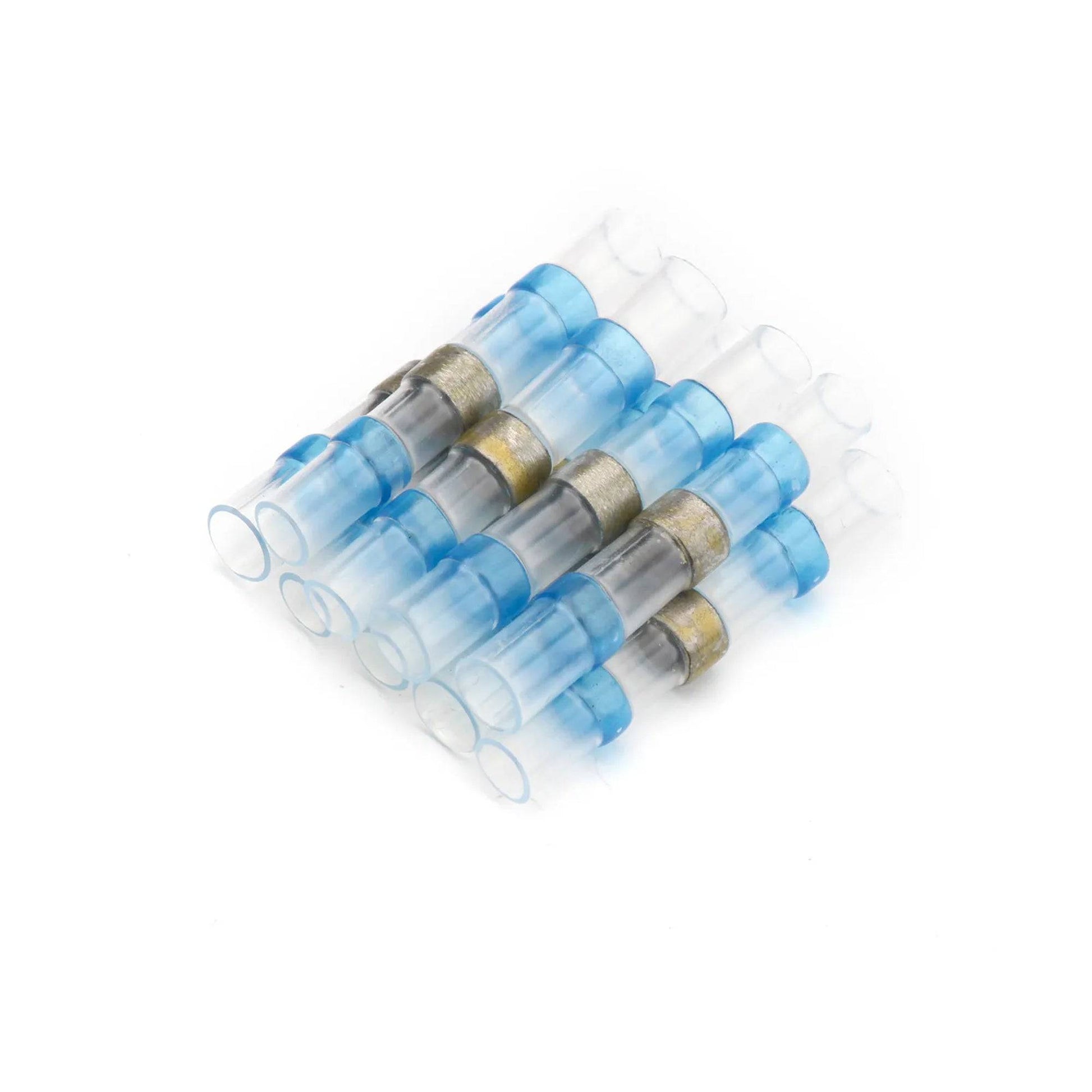

- 12 x Blue Connectors: Diameter 4.5mm, Cable cross-section 1.5-2.5 mm²(A.W.G.:16-14)

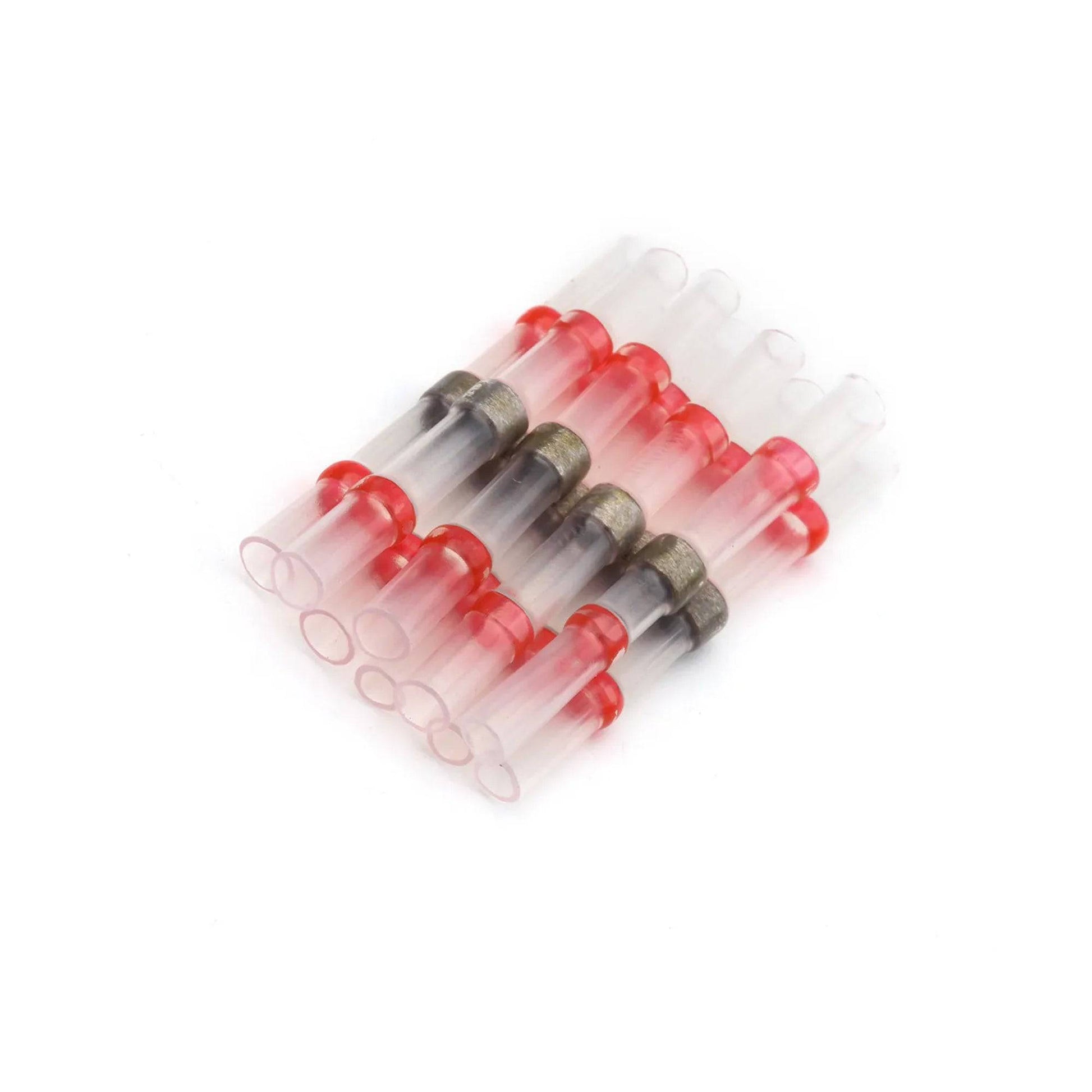

- 23 x Red Connectors: Diameter 2.7 mm, Cable cross-section 0.5-1.0 mm²(A.W.G.:22-18)

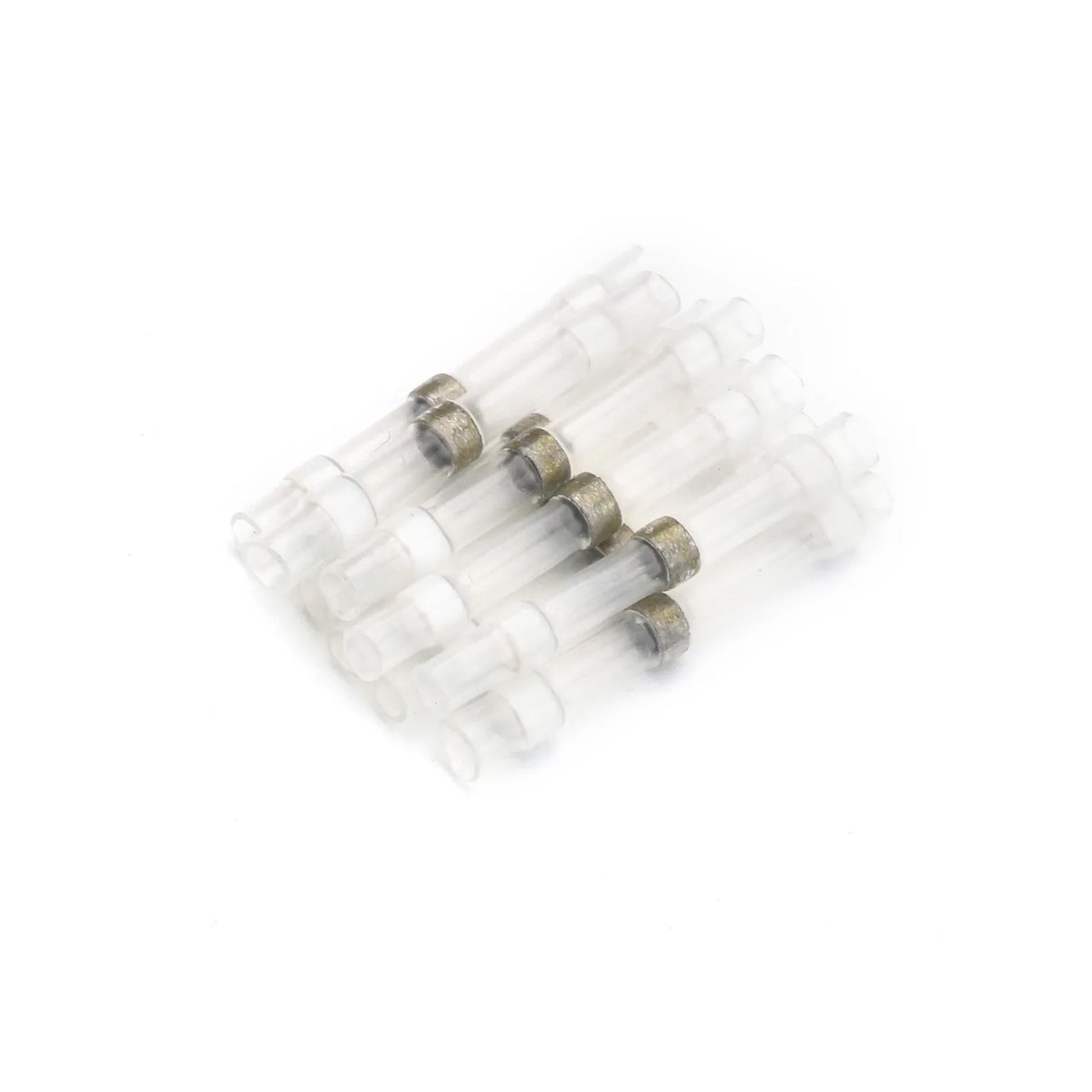

- 10 x White Connectors: Diameter 1.7 mm, Cable cross-section 0.25-0.34 mm²(A.W.G.:26-24)
