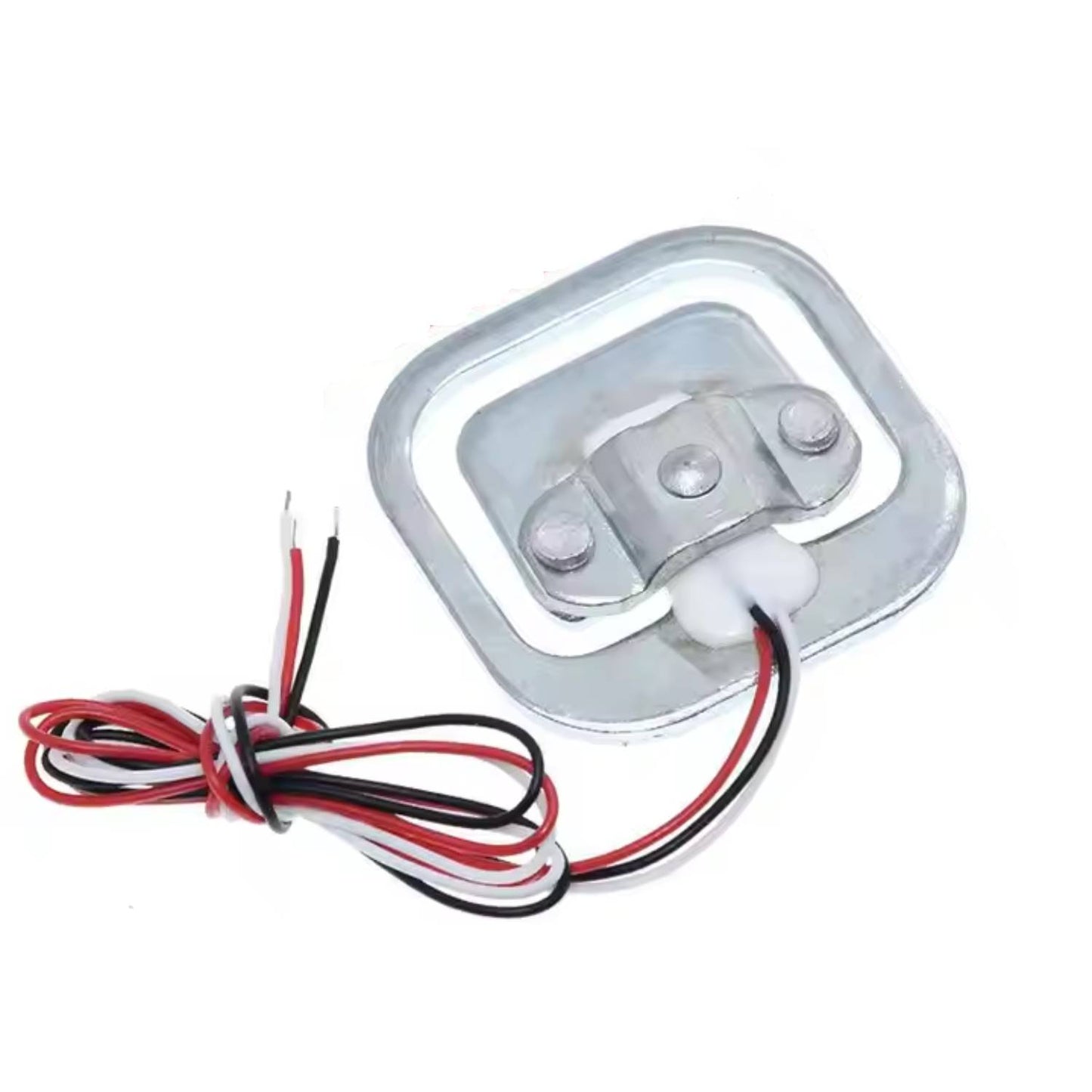

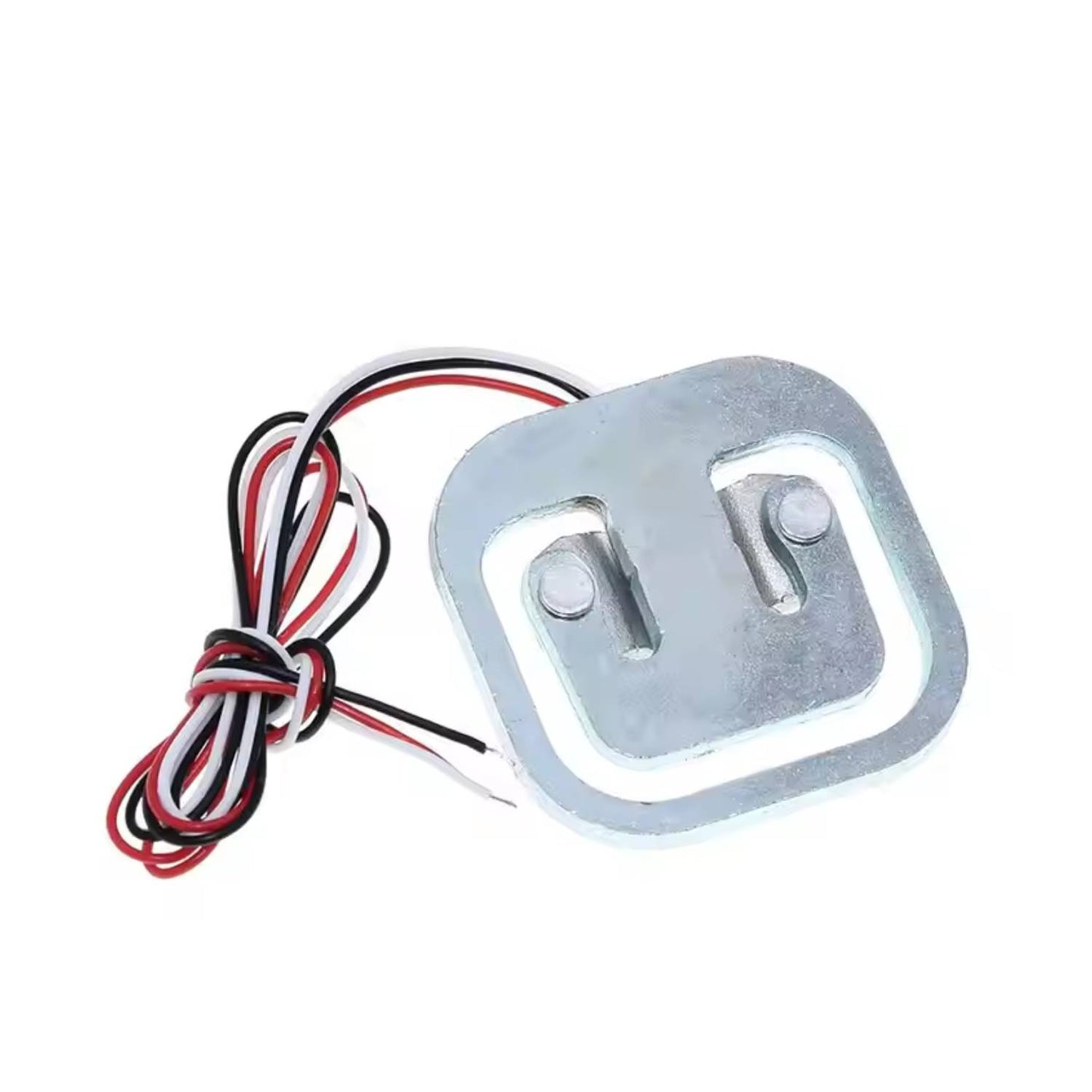

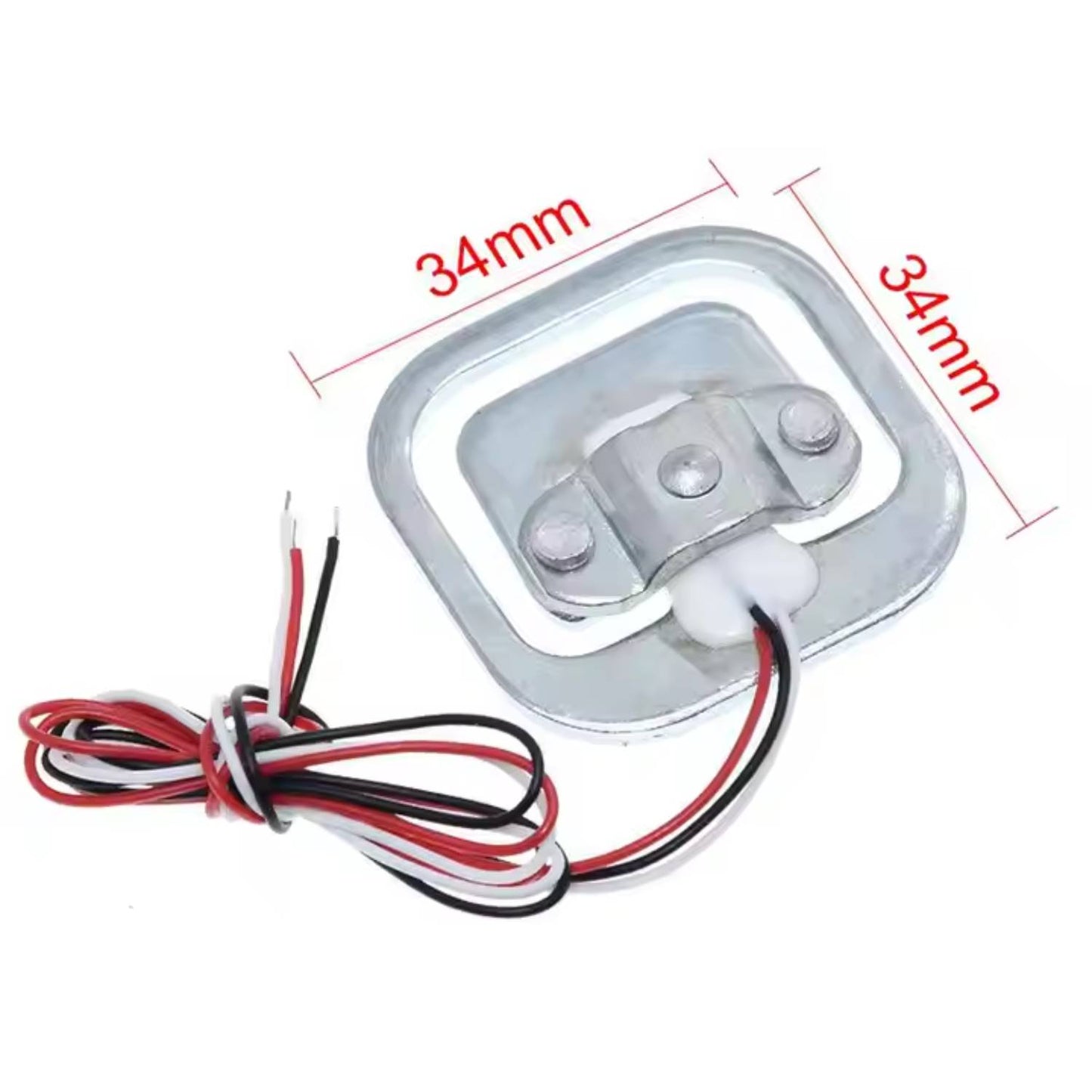

50kg Half-Bridge Load Cell Sensor Human Scale Load Cell Sensor for Body Weight Experiments Wholesale High Precision Strain Gauge Sensors - AB098

Description:

The 50kg Half-bridge Experiments Body Scale Load Cell Sensor is measuring; the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the intermediate, adhesive coating with white beam arms); and the outer edges to form a shear force in the opposite direction, i.e., middle strain beam bending necessary changes can occur under stress, strain beam side by another force should not be a barrier.

Use one sensor with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements. CASE2.Use two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg CASE3.Use four sensors to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg

Specification:

• Capacity (Kg): 50.
• Output Sensitivity (mv/v): 1.0±0.1.
• Nonlinearity (%FS): 0.03.
• Repeatability (%FS): 0.03.
• Input Resistance (Ω): 1000.
• Insulation Resistance (MΩ): ≥5000.

Features:

• Internal 1000Ohm half-bridge strain gauge load cell, the range is 50kg, half-bridge structure.
• Widely used in hopper scales, platform scales, platform balance, belt scales, and other electronic weighing devices.
• This is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends the signal via the red signal wire.
• Alloy Steel wired weighing load cell, high accuracy, simple structure, simple installation.
  You can use multiple load sensors simultaneously to increase the capacity range and parallel use to add additional capacity.

The sensor uses the following three methods:
