Description:

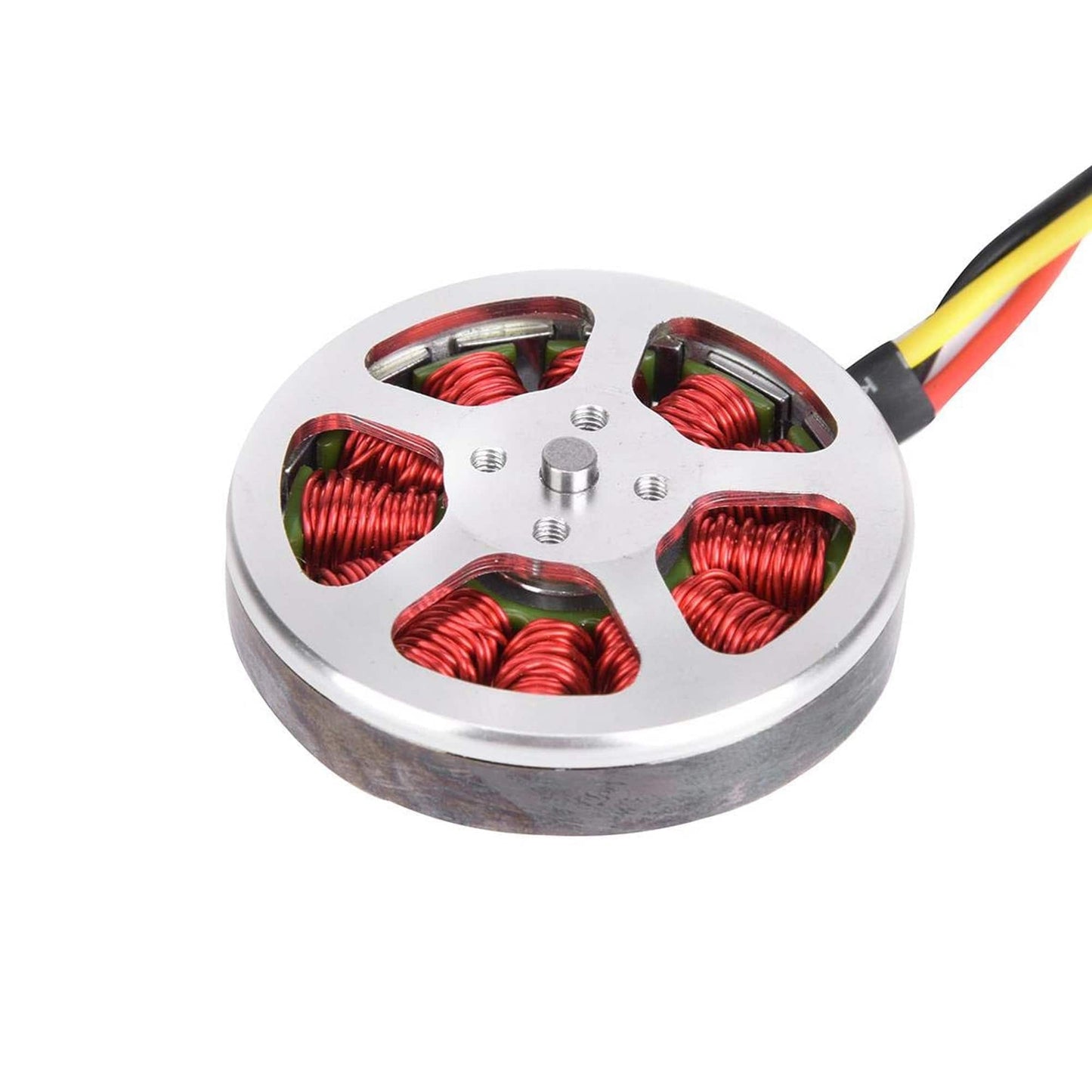

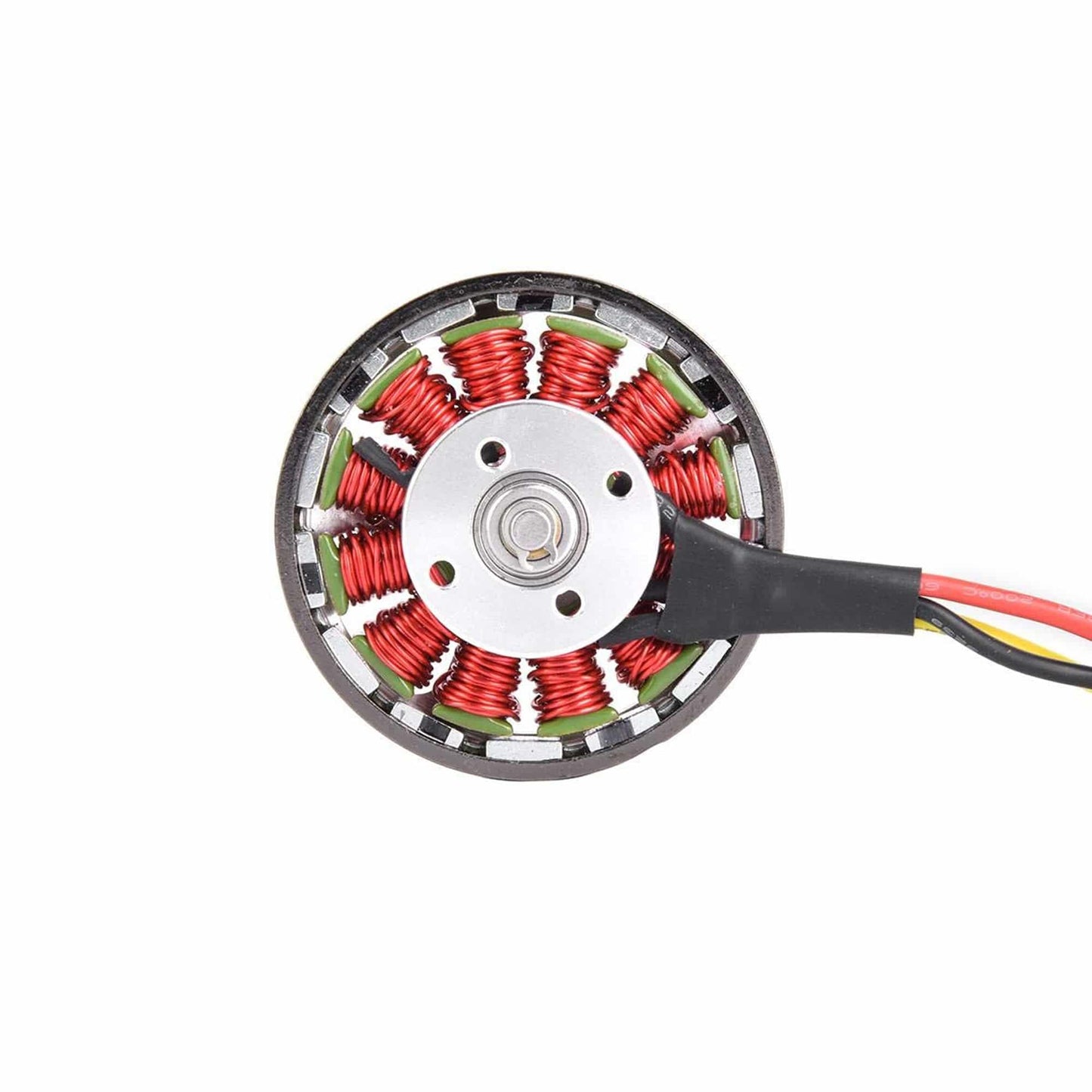

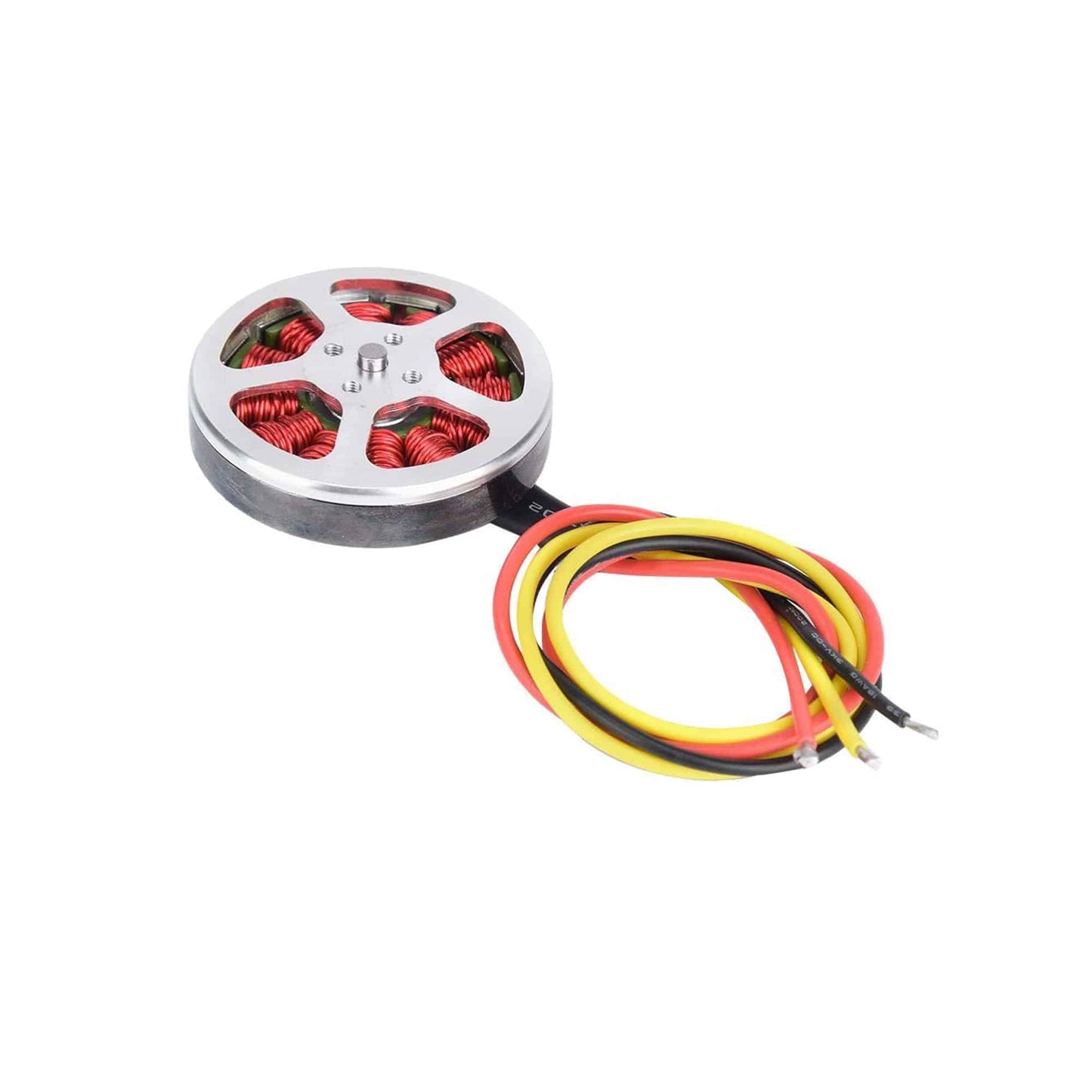

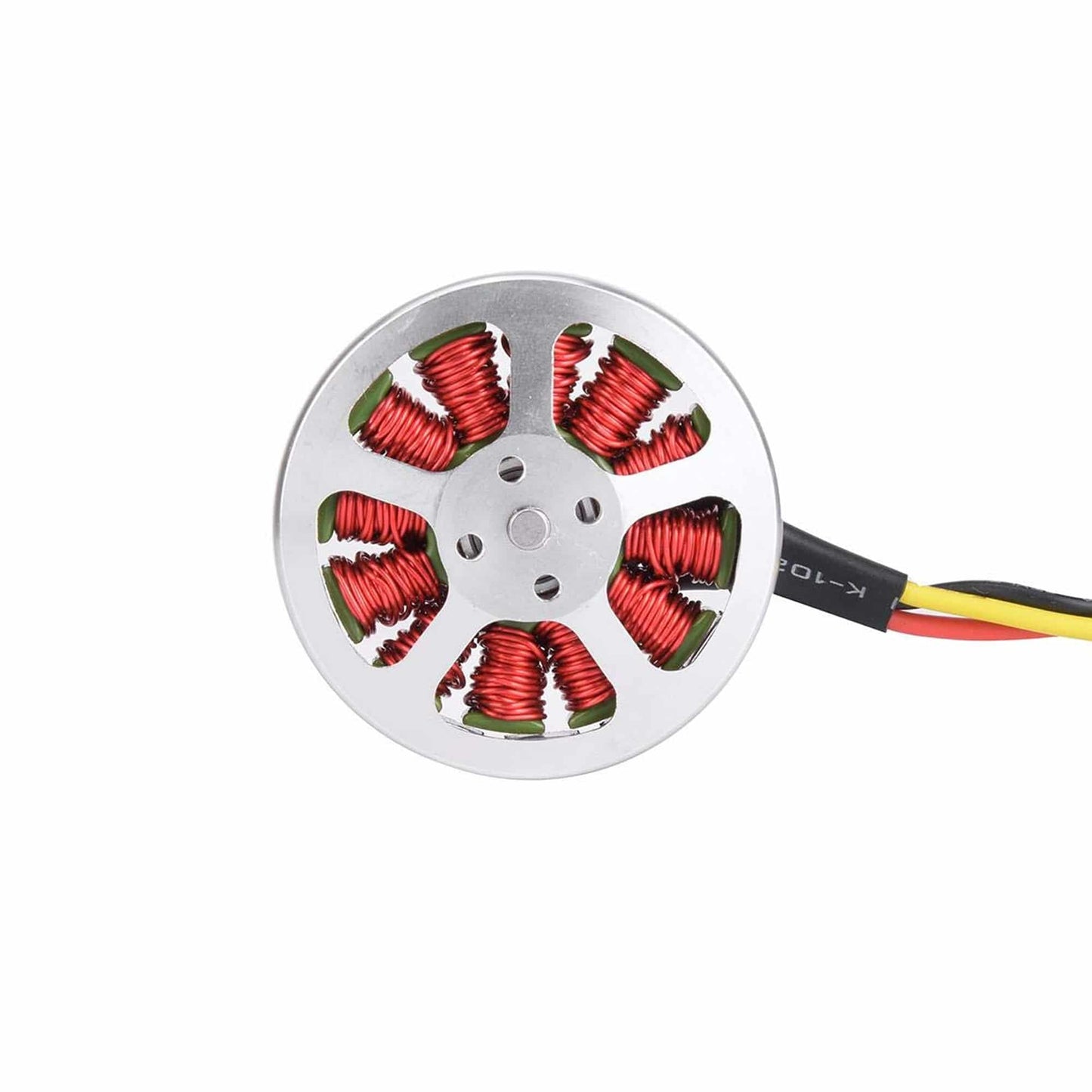

This 5010 750KV Brushless Motor comes with self-cooling technology, so it will be able to withstand high temperatures up to 140 C (356 F). This 5010 750KV Brushless Motor for the Drone is evaluated by the high torque offered by them. The 5010 750KV Brushless Motor gives an awesome flight experience on behalf of the NdFeB magnets and properly lubricated high-quality ball bearings. They are equipped with high-temperature wires in the windings of the motor to minimize the burning of the motor. Also, they have high-temperature adhesives which are used to secure the stator winding and prevent them from shifting and getting pinched or shorting out.
Specifications:
- Model: 5010
- Motor KV: 750 RPM/V
- Required ESC: 20 ~ 40A
- Compatible LiPO Batteries: 2S ~ 6S
- Compatible Propellers Size: 14 ~ 16 Inch
- Shaft Diameter: 4mm
Features:
- Equipped with four fan-style cooling holes that pump air through the motor while it runs.
- Rear threaded mounting holes with both 16 mm and 19 mm hole spacing fit a variety of applications.
- NdFeB magnets with a high-temperature rating for trouble-free operation.
- 140 C high temperature rated wire is used for winding the motors.
- Plates are epoxy coated on the inner surface to prevent winding short out.
- 5010 750KV Brushless Motor have lubricated ball bearings are used to support the motor.

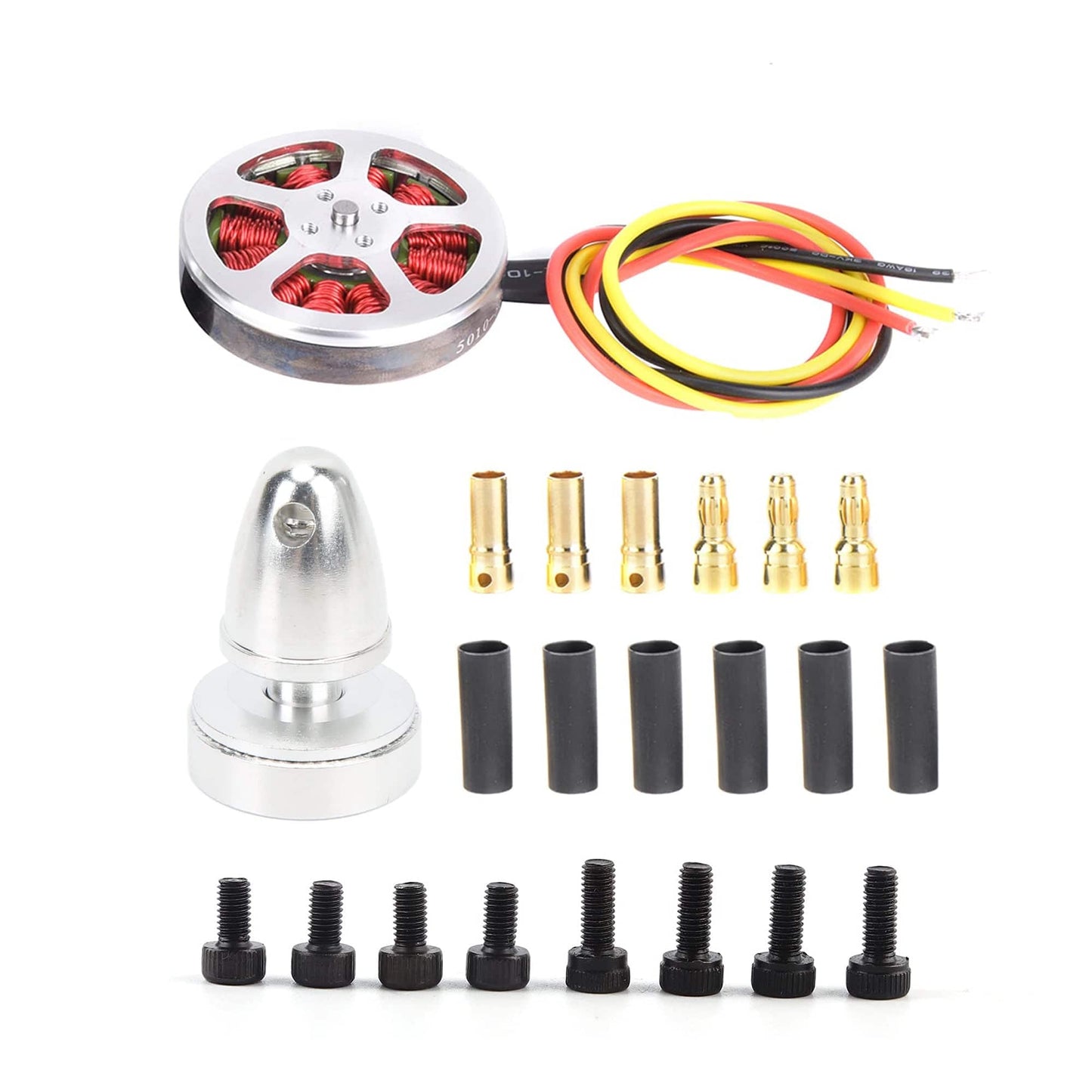

Package Included:
- 1 x 5010 750KV Brushless Motor
- 3 x Male Female Golden Connector Pairs with Heat Shrink Tube
- 1 x Propeller Mount with Accessories
