Description:
It is best to use an adjustable power supply current limiting mode to test whether the actual idle current is abnormal to prevent the high power from burning in abnormal moments.

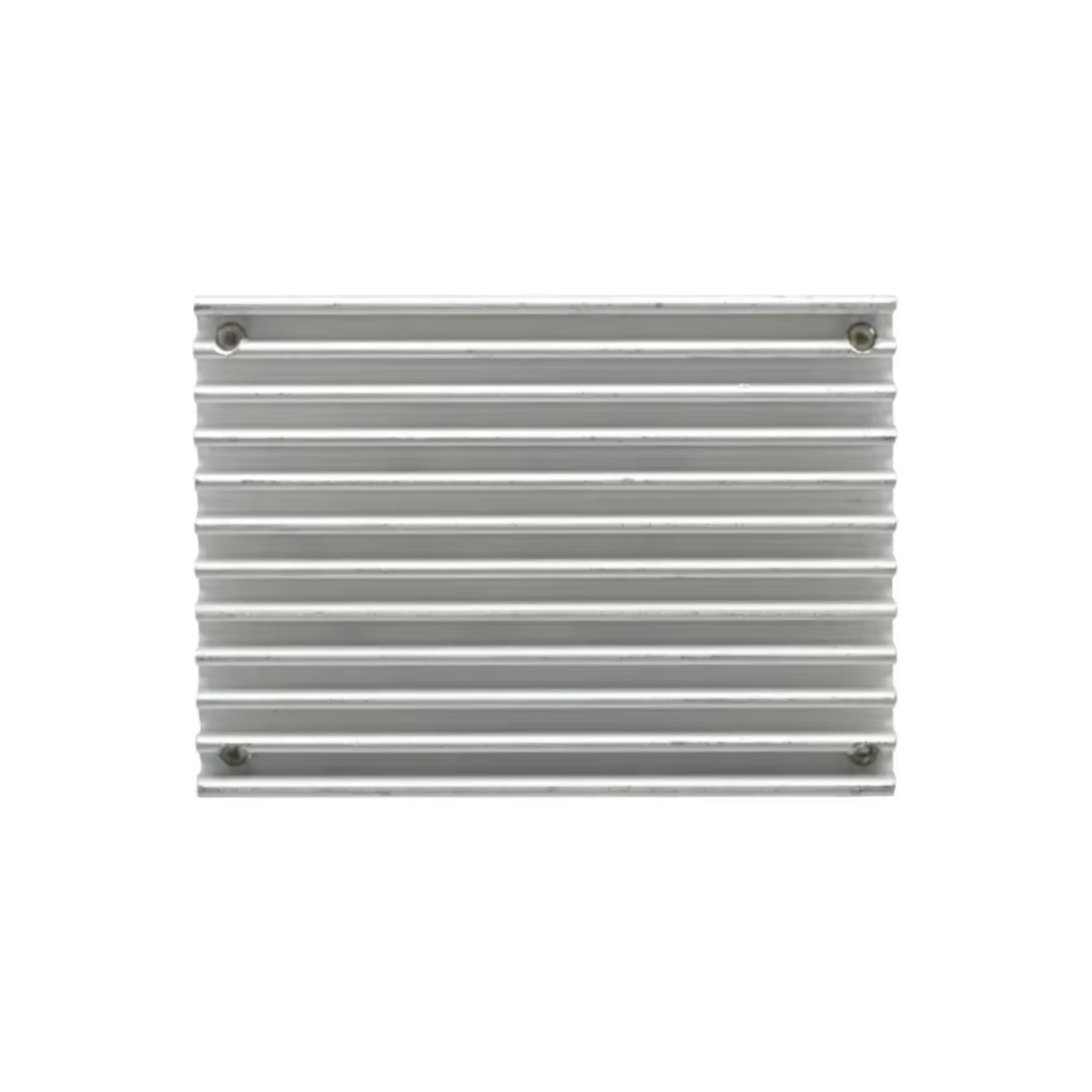

The output UVW three-phase should not be short-circuited or burned. is equipped with an 18 mm thick heat sink. The use of high power depends on the actual heating size. When the heater is on, a fan should be added for forced air cooling.
Supports plus and reverse shifting, and the potentiometer is used for speed regulation. In general, the potentiometer can be used for 10-50K, or it can also be used for speed regulation with a PWM 5V signal. It is strictly forbidden to connect the positive and negative poles of the input power incorrectly.

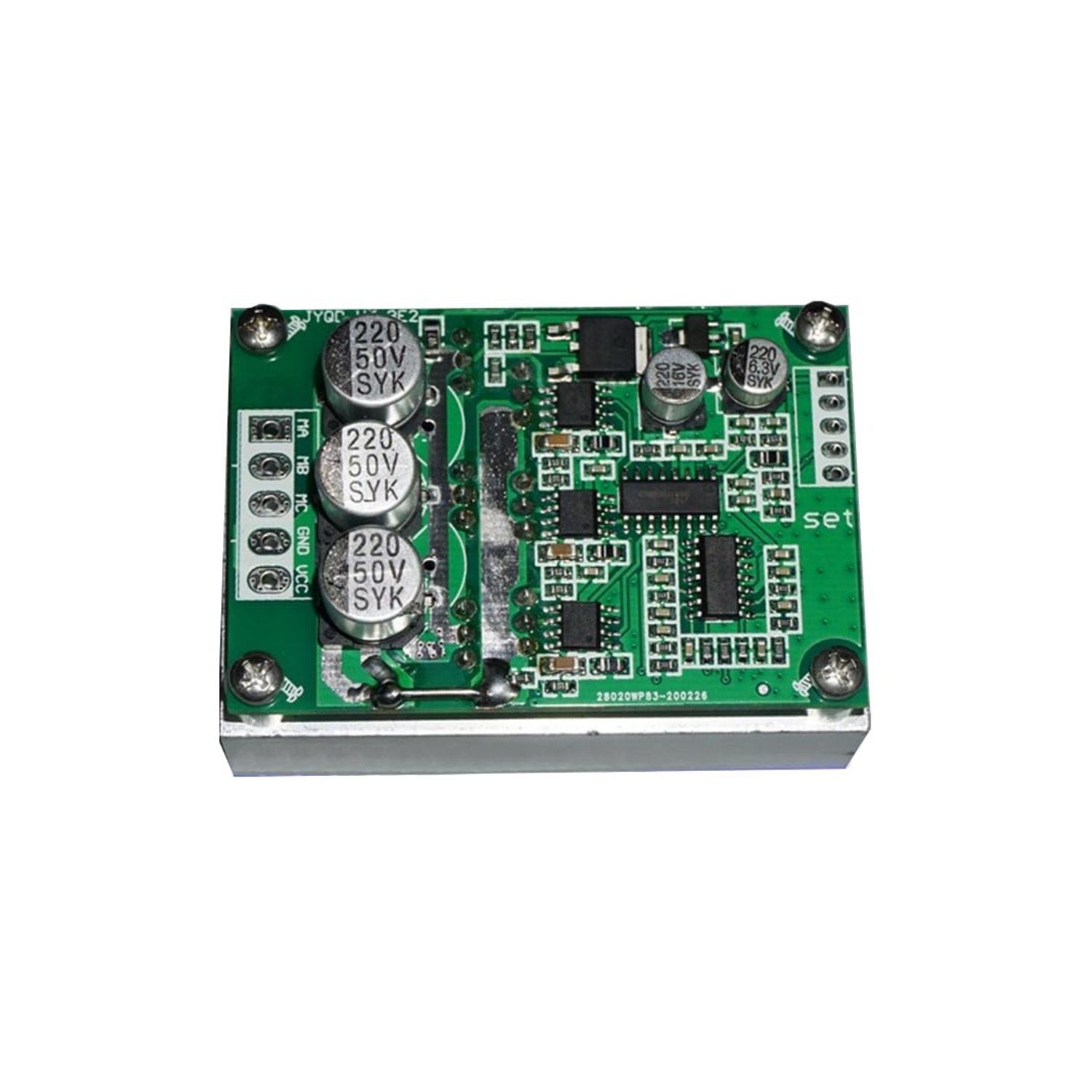

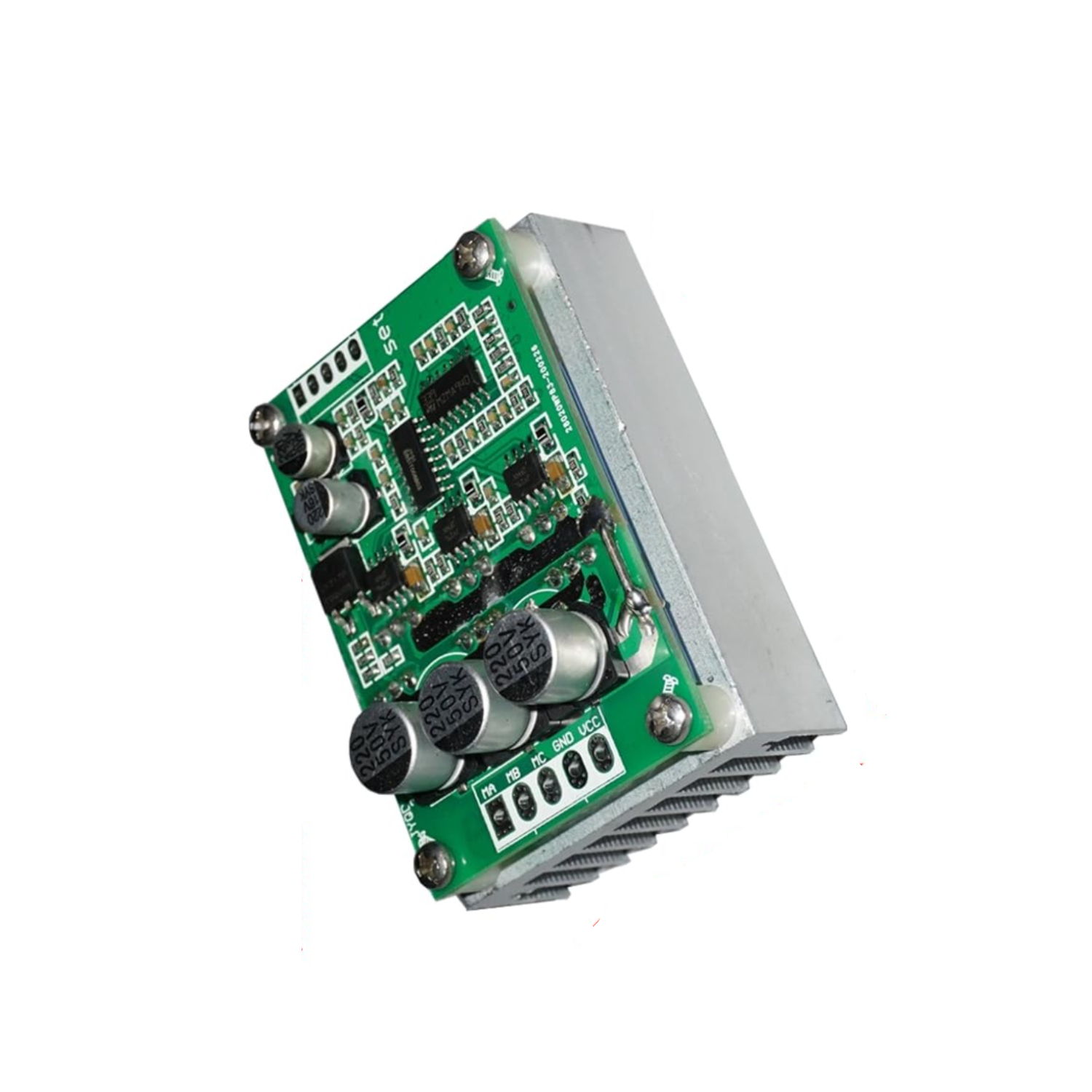

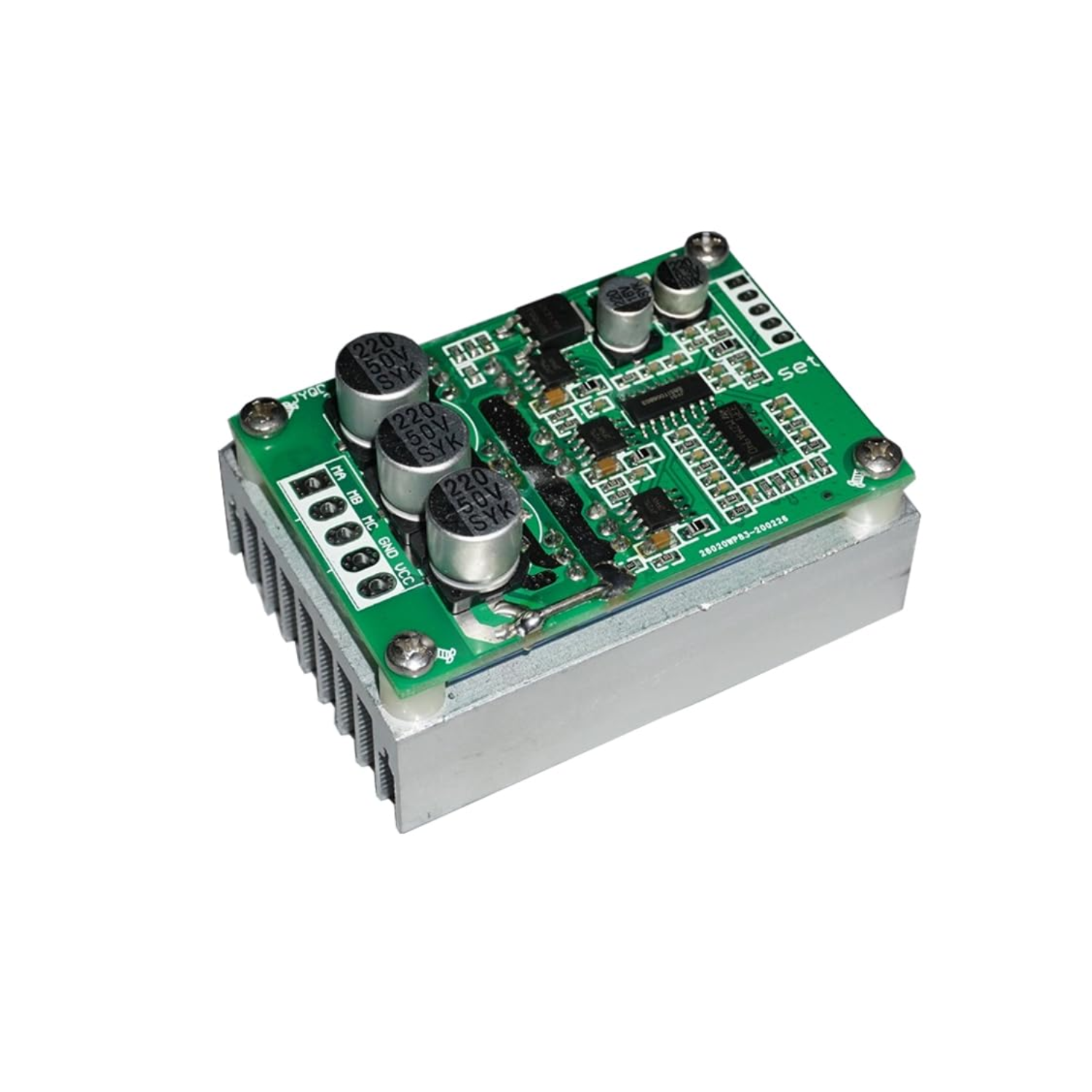

High-performance Hall-free brushless drive, with a wide voltage of 12-36V, a maximum current of 15A, and a maximum power of 500W. Most motors have been tested for good compatibility, while a small number of motors may not be fully compatible. It is necessary to test yourself.
Specifications:
- Voltage range: 12V-36V
- Drive power: 500W (associated working voltage)
- Material: Plastic
- Color: green
Features:
- Wide voltage range: 12V-36V for versatile applications.
- Supports high current up to 15A for robust performance.
- Maximum power capability of 500W for demanding tasks.
- Positive and reverse switching for enhanced control.
- Includes speed regulation functionality via potentiometer or PWM.
Package Included:
1 x 500W 15A brushless DC Motor Driver
