- Low current operation.
- Low power consumption.
- High brightness.
- Industrial standard size.
- Easy mounting on P.C. board or sockets.
Description:
It has lower working voltage and current. Lighting answering Time<0.1μs, better high frequency, chromaticity uniformity, high brightness. Smaller volume, lighter weight, better impact resistance, solid sealing, good steady. Long life for 50000 hours. Keep scanning and driving every segment continuously. Better show effect and wider visual angle. Recommend constant current driver. Protective coating and rip off when using. Solder temperature: 260℃ and stay time less than 5 seconds. For operation above 25℃, The Ifm Ifp and Pd must be derated, the Current derating is-0.36Ma/℃ for DC drive and -0.86mA/℃ for pulse drive, the power dissipation is -0.75mW/℃. The product working current must not more than the 60 percent of the Ifm or Ifp according to the working temperature.
Features:
- Low current operation.
- Low power consumption.
- High brightness.
- Industrial standard size.
- Easy mounting on P.C. board or sockets.
- Face color : black / gray .
- Surface dot type : epoxy diffusion / clear lens .
Package Included:

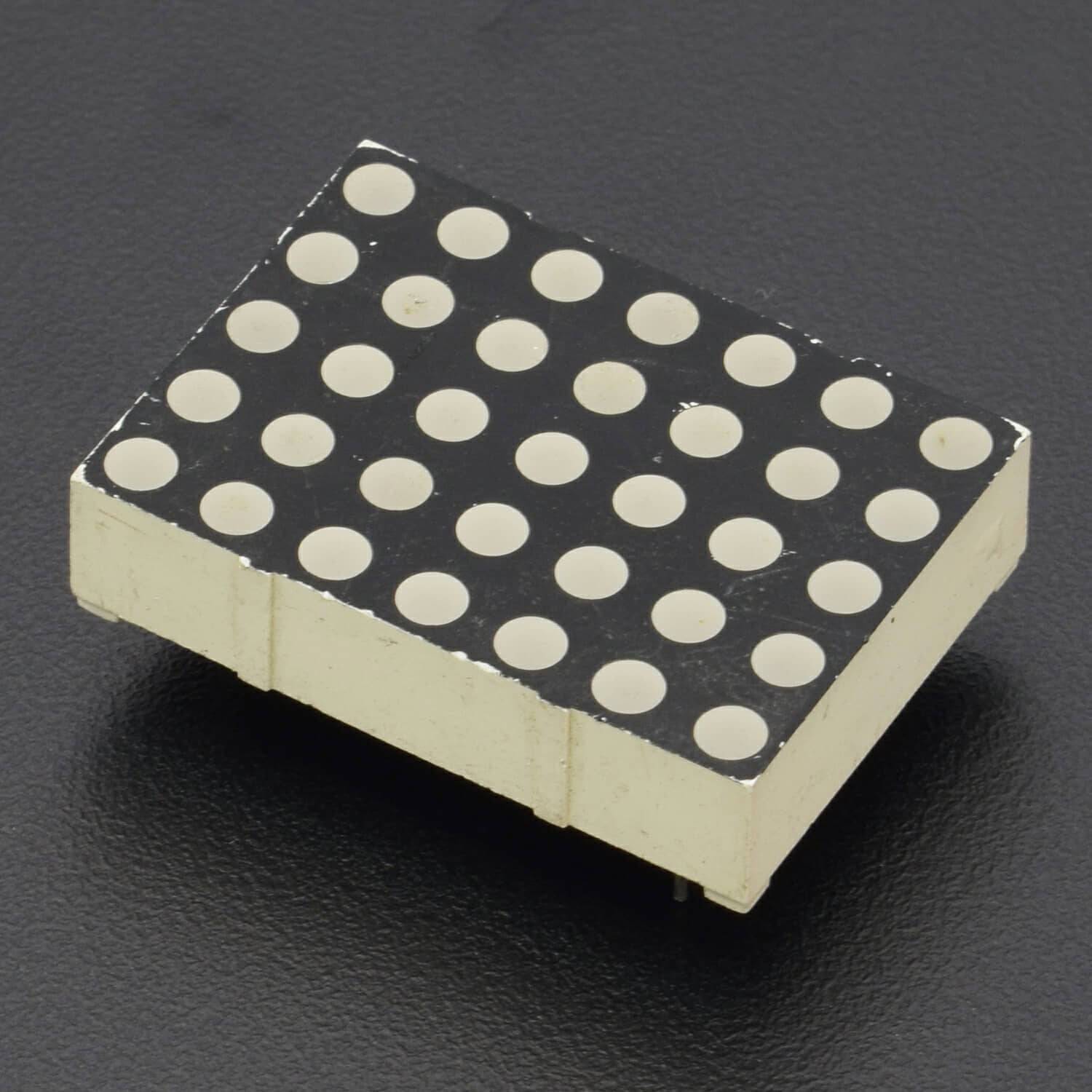

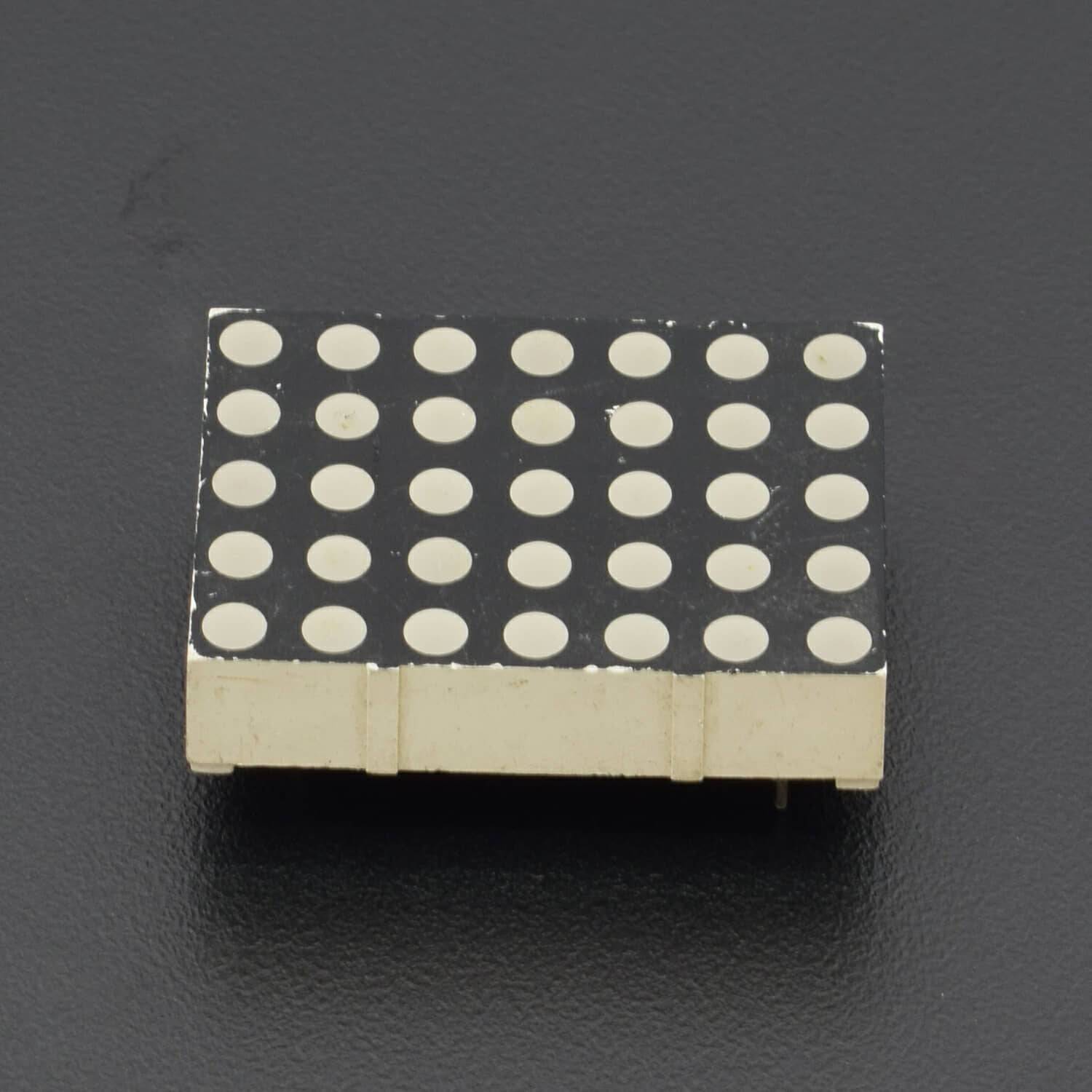

1 x 5 x 7 Matrix LED Round Dot Matrix Display
