Description:

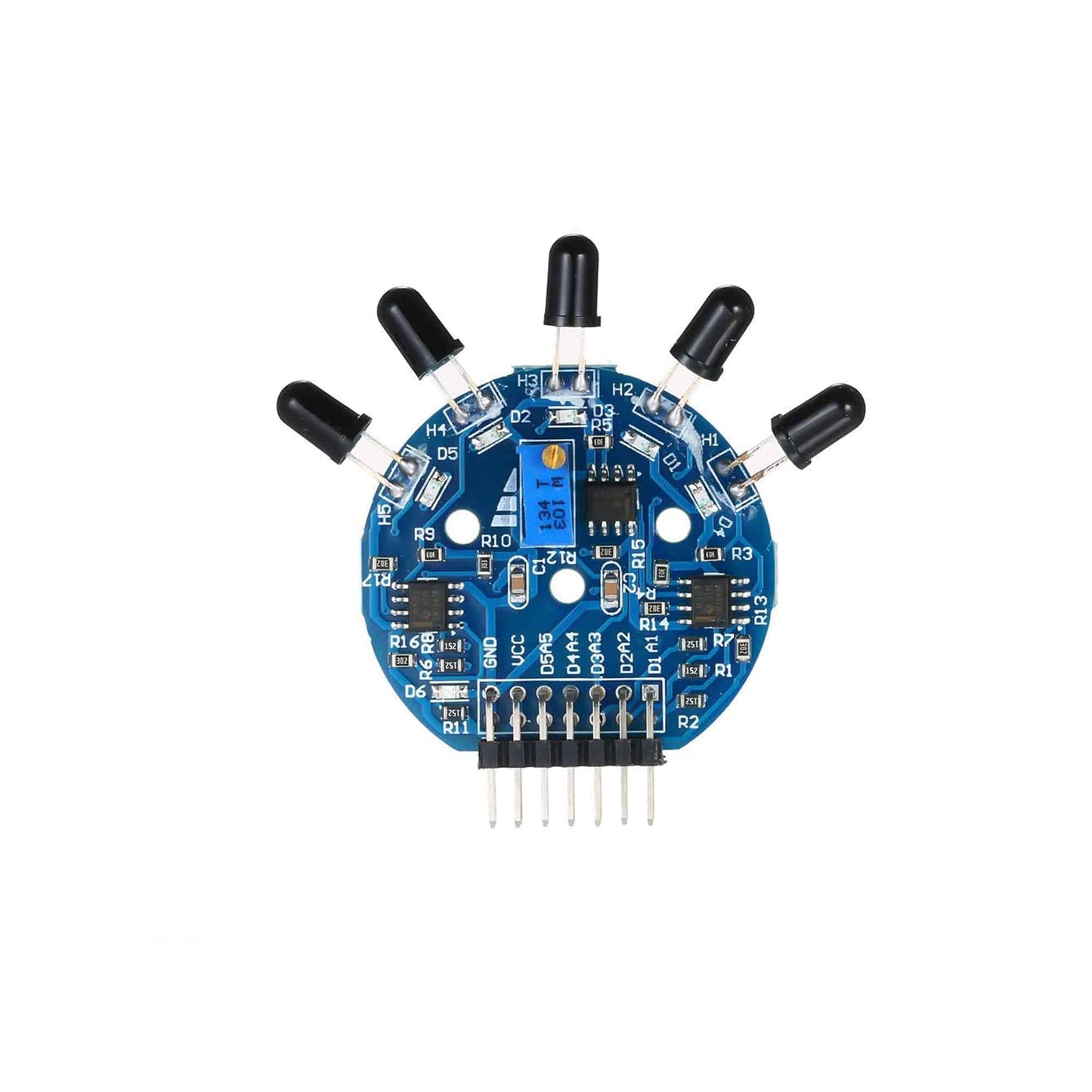

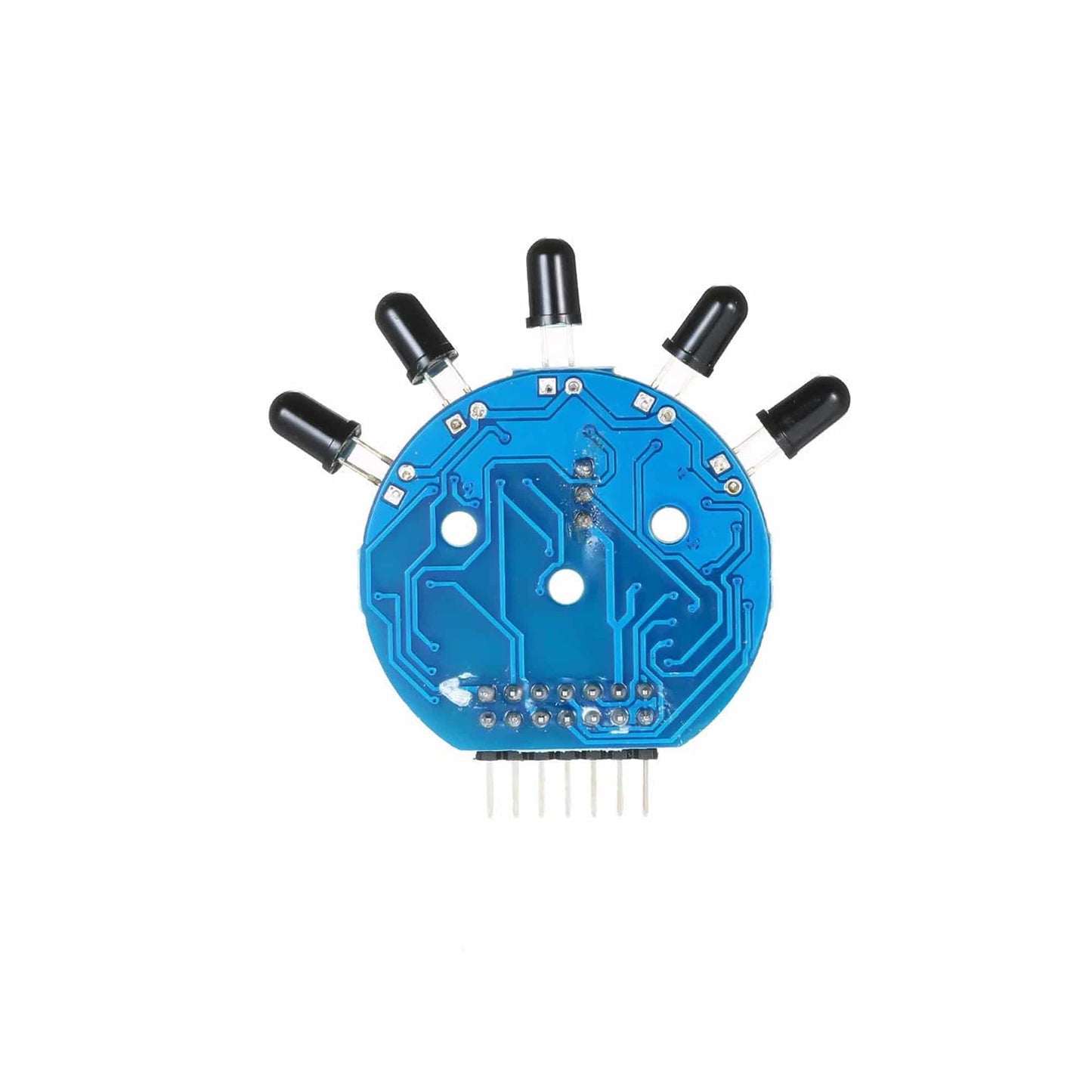

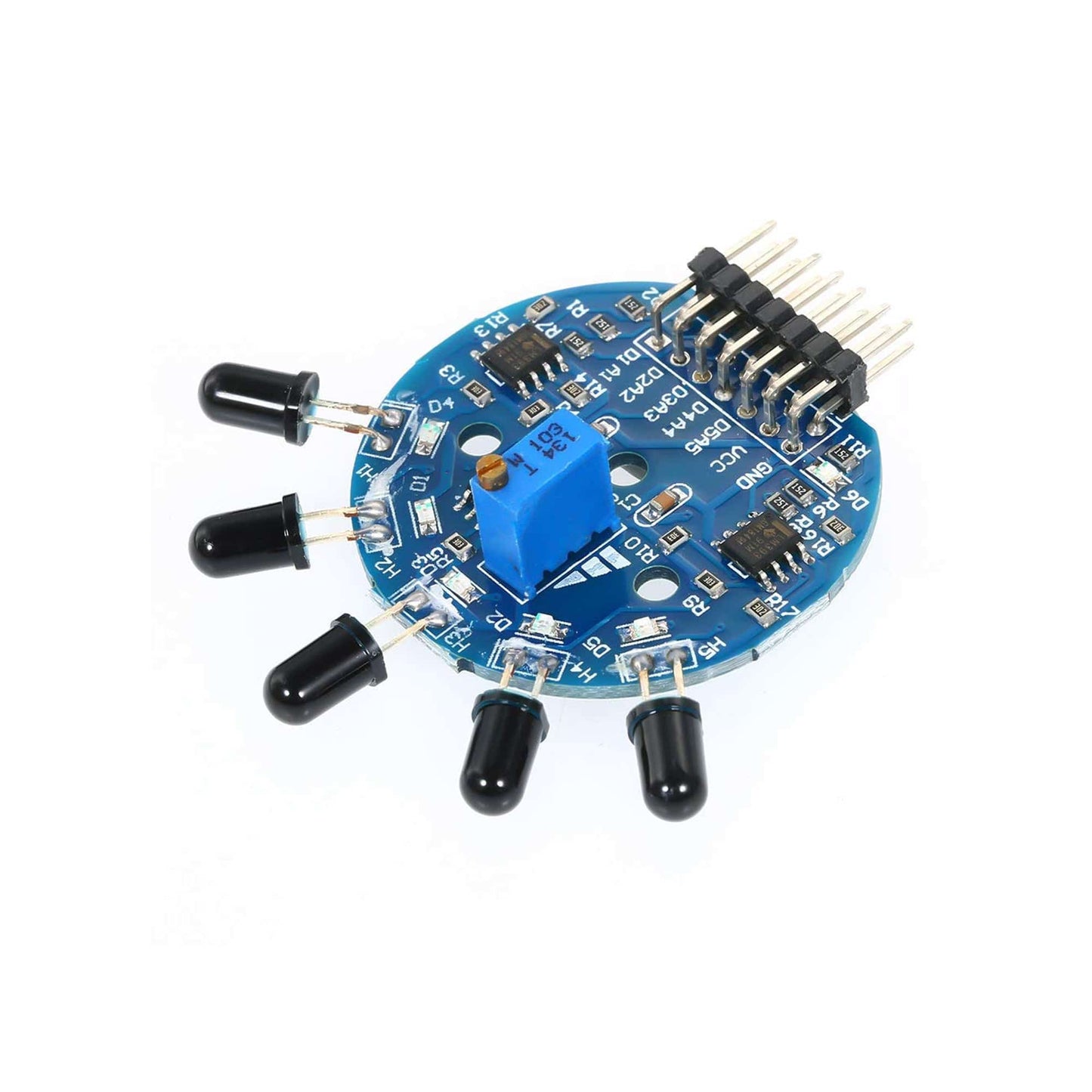

5-Way Flame Sensor Module is a 5-station fire sensor module used to discover flame in bigger places ( >120 degrees). If you require a robot that detects fire rounds, this 5-Way Flame Sensor Module will be helpful for you. It finds that the flame has 5 fire detectors organized with 30 levels.
This 5-Way Flame Sensor Module outputs an analogue signal, which might be precise, as well as a digital sign which would be simpler to use, you can fix the electronic output signal sensitivity from the onboard potentiometer. The 5 LED signs are useful in your debugging, the high-precision resistors make this detector more exact than other fire detectors.
This 5-Way Flame Sensor Module is sensitive to the flame and radiation. It also can detect ordinary light sources in the range of a wavelength 760nm-1100 nm—lighter flame test distance of 80cm, the greater the flame, the farther the distance test.
Specifications:
- Operating Voltage: 3.3 to 9V DC
- Detecting Range: >120°
Features:
- 1% resistors to make this module more reliable and precise.
- Can the output of the analogue signal be accurately measured, for high-precision applications?
- Adjustable detection range digital output, analogue output sensitivity adjustable design flexibility.
- Analog and digital outputs.
- On-board potentiometer and indicators.
Package Included:
1 x 5-Way Flame Sensor Module 5-Channel Flame Sensor Module
