- Gender : Male-Female
- Rated Operating Voltage (VDC) : 250
- Current Handling Capacity (A) : 3
- No. of Contact Points : 5
- Connector Type : JST XH
- Contact Material : Phosphor Bronze
- Contact Plating : Nickel
- Metal Connector Size (mm) : 7.5
- Operating Temperature Range (C) : -25 to 85
- Flammability Rating : UL94V-0
- Color : White
Description :

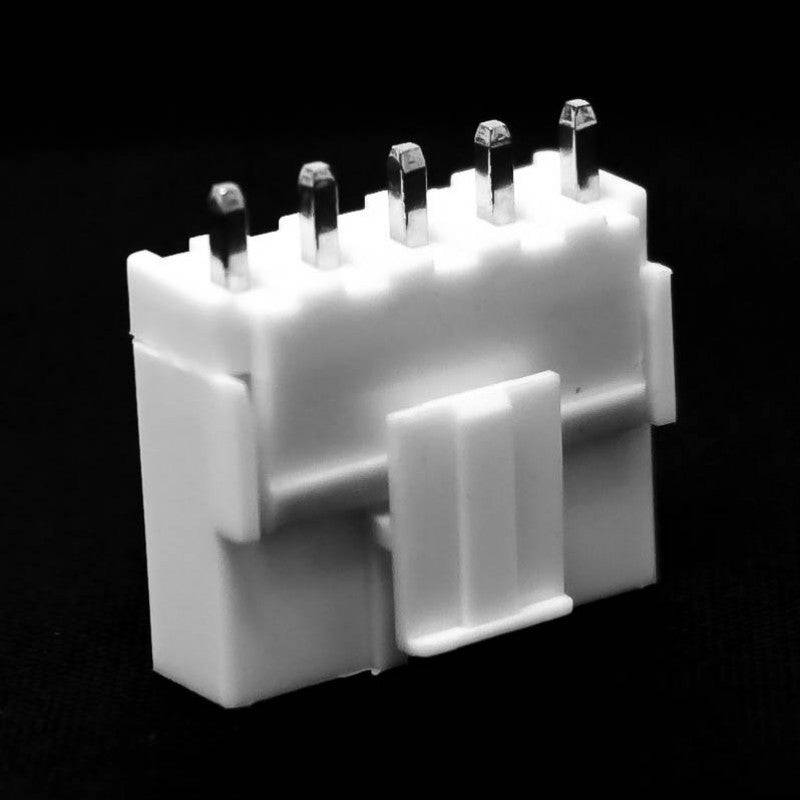

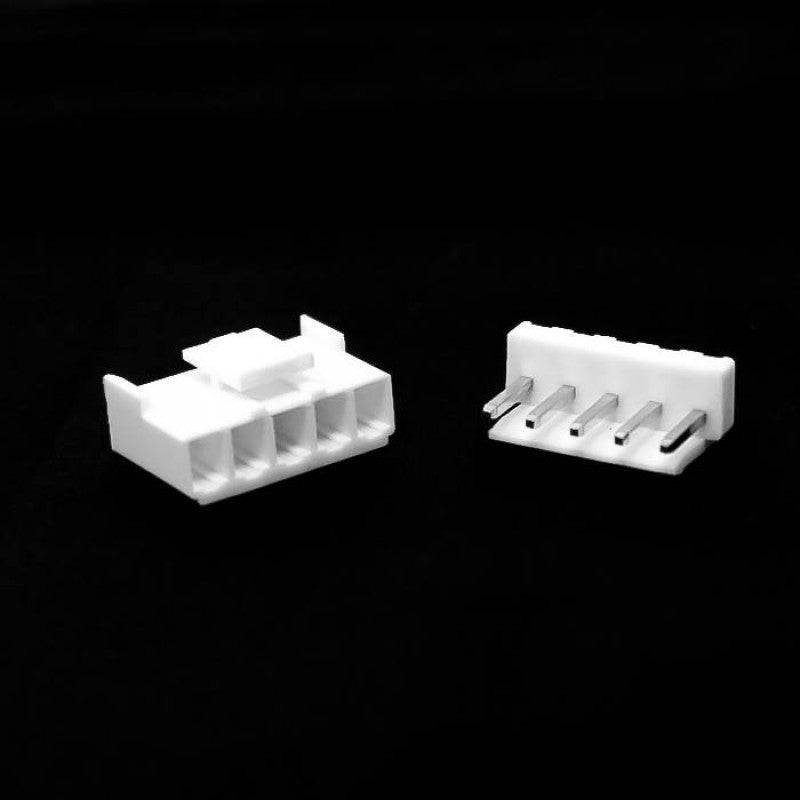

5 Pins 3.96mm Pitch JST-VH Connector With Housing is an electrical connector that is used in rechargeable battery packs, radio-controlled servos, battery balancers, etc. The connector is made from good quality plastic and has nickel-plated terminals.
This package includes 5 (male + female) connector pair.
Feature:
- Width of 1 contact point pin: 1.1 mm(Approx).
- Good quality plastic.

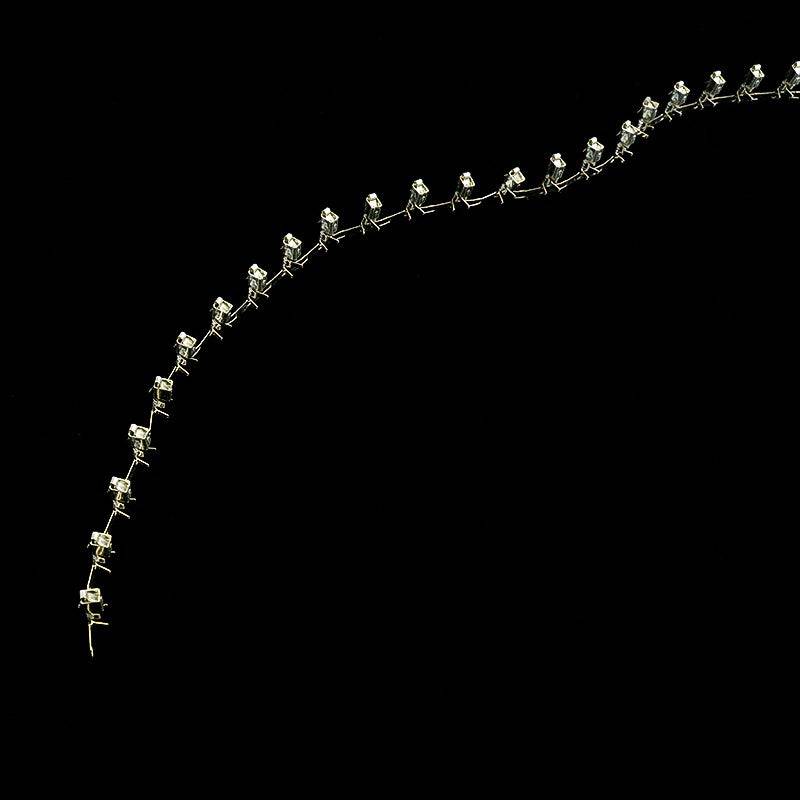

- Nickel-plated terminals.
- Ideal for rechargeable battery packs, radio-controlled servos, etc.
Specifications :
- Gender : Male-Female
- Rated Operating Voltage (VDC) : 250
- Current Handling Capacity (A) : 3
- No. of Contact Points : 5
- Connector Type : JST XH
- Contact Material : Phosphor Bronze
- Contact Plating : Nickel
- Metal Connector Size (mm) : 7.5
- Operating Temperature Range (C) : -25 to 85
- Flammability Rating : UL94V-0
- Color : White
Package Included:

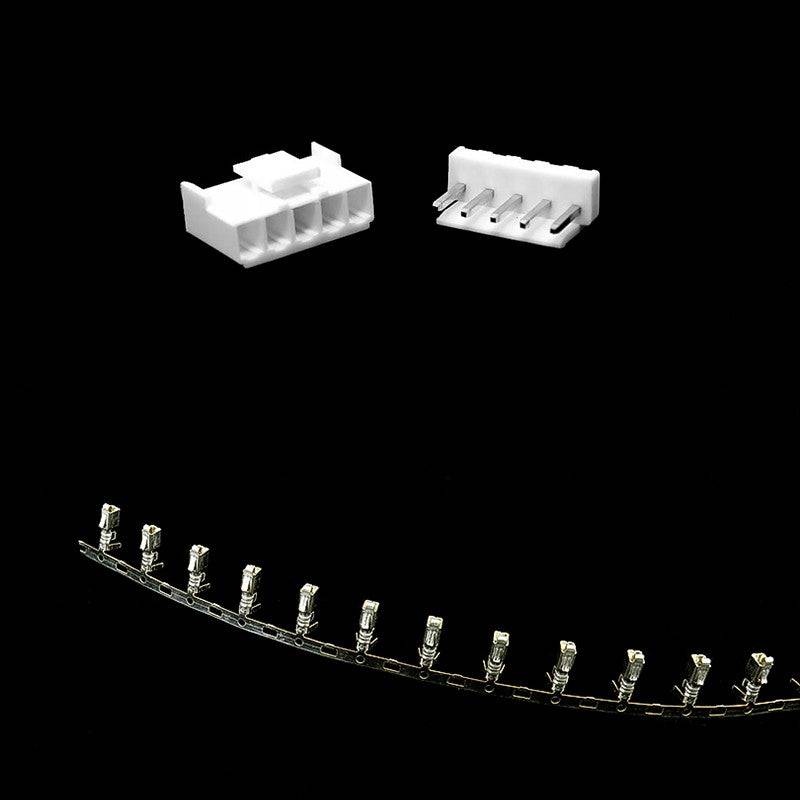

5 x 5 Pins 3.96mm Pitch JST-VH Connector With Housing
