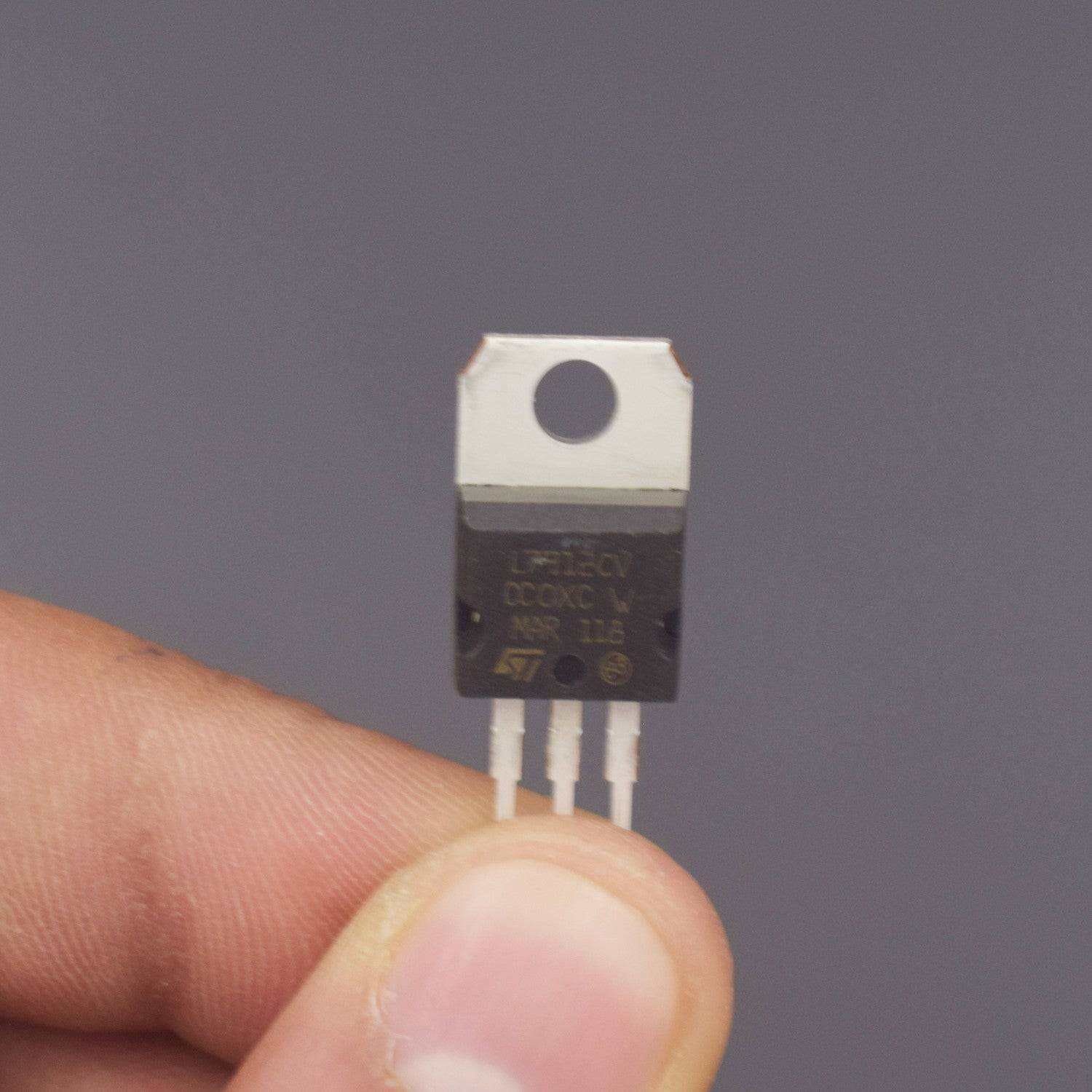

5 Pcs 3 Terminals 1A 12V L7912 Cv Negative Voltage Regulators LW - KT1127

• Versatile, High-Accuracy, Fixed Voltage Regulators
• Suitable for Currents up to 1A
• Internal Thermal Overload Protection
• Internal Short-Circuit Current Limit
• Output Voltage Tolerance ±4%

Description:

• The LM7912 (3-terminal regulators) is available with the fixed output voltage of 12V. These devices need only one external component a compensation capacitor at the output. The LM79XX series is packaged in the TO-220 power package and is capable of supplying 1.5A of output current.
• These regulators employ internal current limiting safe area protection and thermal shutdown for protection against virtually all overload conditions. Low ground pin current of the LM7912 allows the output voltage to be easily boosted above the preset value with a resistor divider. The low quiescent current drain of these devices with a specified maximum change with line and load ensures good regulation in the voltage boosted mode.

Specification:

• Output Voltage: -12 volts (negative)
• 7912 provides a regulated supply of -12 V and 1A current
• Its additional features include internal thermal overload protection, short circuit protection, and output transistor safe operating area compensation
• Voltage fluctuations may damage or reduce the life of circuit components. Usage of voltage regulator ICs helps in avoiding such events by maintaining the voltage at the required levels

Package Included:

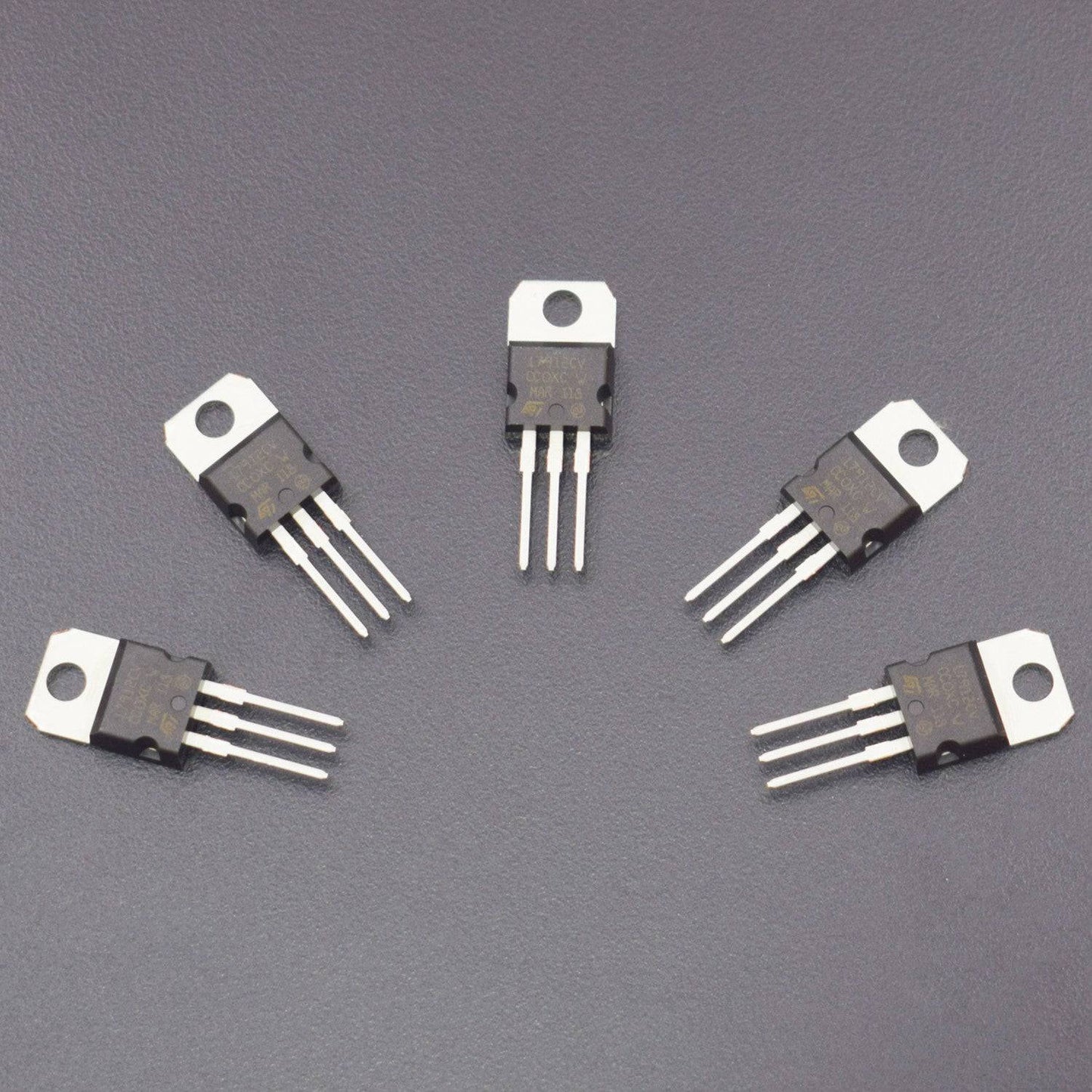

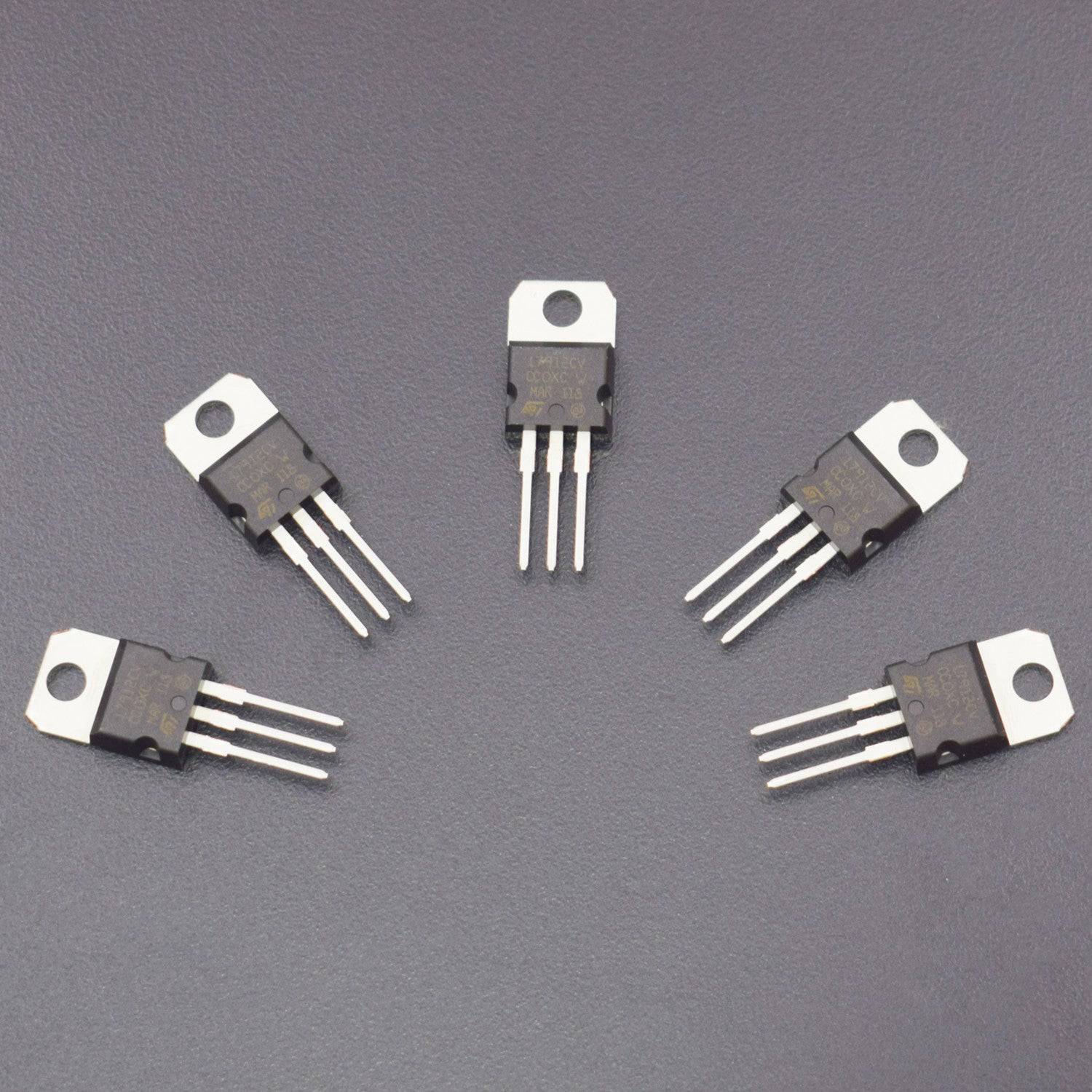

5 x 7912 Voltage Regulator
