- Power Supply: 5V DC or 12V DC
- LEDs: 3 LEDs which indicate working mode, wifi status, relay on/off status respectively Two input interfaces
- Board Consumption: <1W
- Standby Current: 80mA
- Max Input Current: 10A
Description:

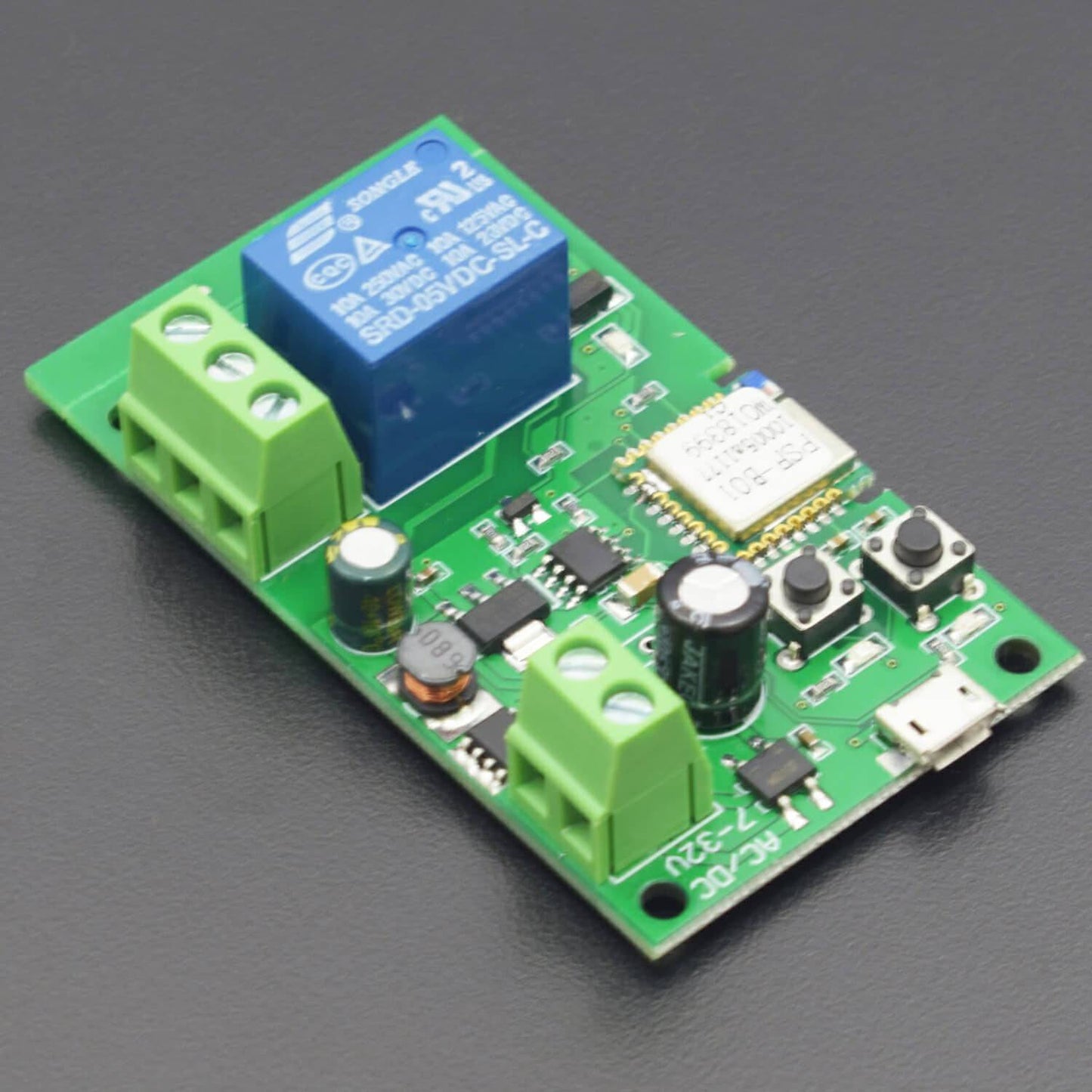

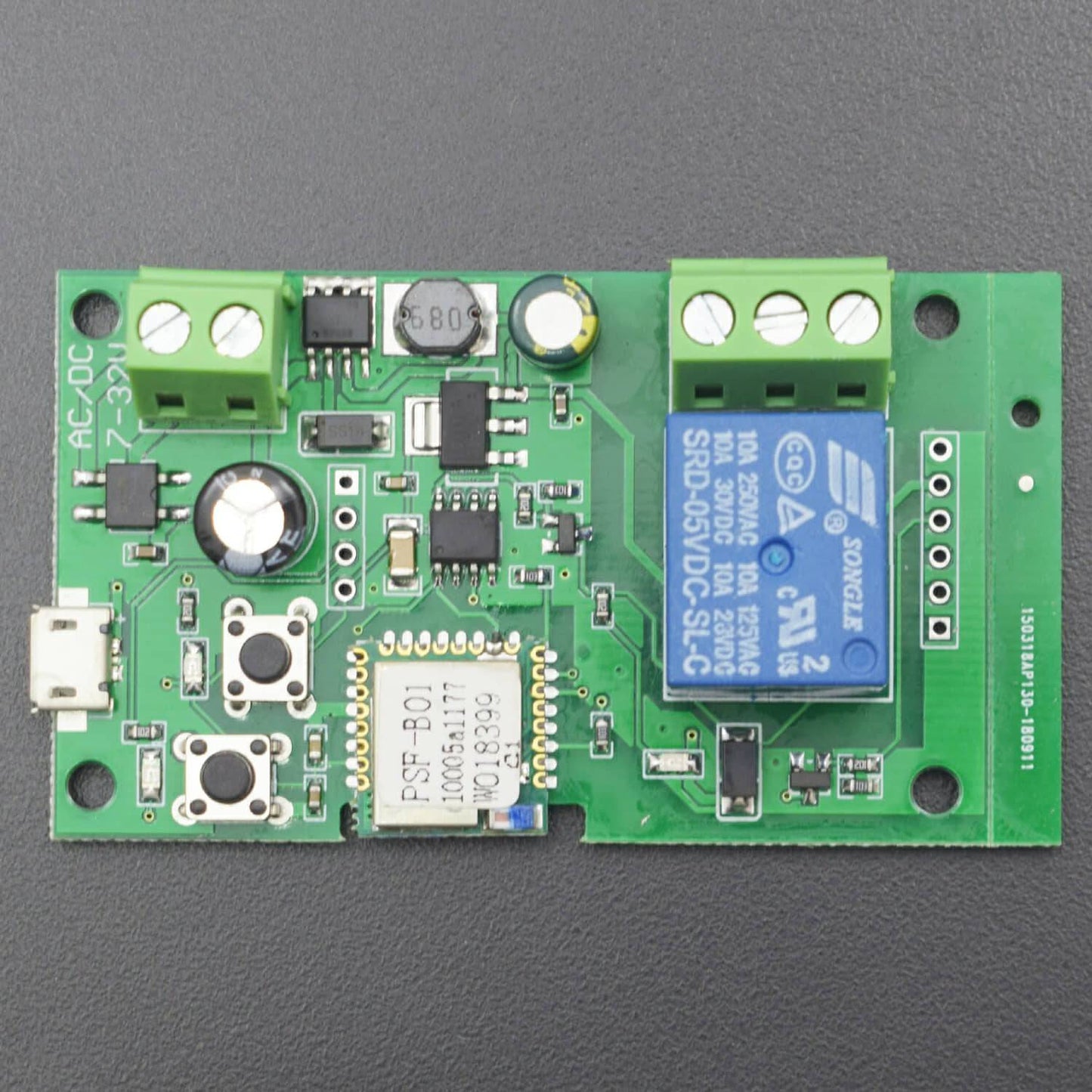

This product is a wireless switch that supports momentary(inching)/self-locking/interlock work modes. The product enables remote control of home appliances through the mobile application eWeLink, available on Android and iOS. The self-lock/inching mode wireless switch has two input voltage supply specifications: 5V and 5V/12V. No matter which specification is selected, the features are the same.
Specification:
- Power Supply: 5V DC or 12V DC
- LEDs: 3 LEDs indicate working mode, wifi status, and relay on/off status respectively Two input interfaces
- Board Consumption: <1W
- Standby Current: 80mA
- Max Input Current: 10A
- Relay Lifespan: more than one million times
- Transportation Mode: Wifi
- Operating Temperature:-40℃~70℃
- Working Humidity:40%~80% RH
Features:
- Remote ON/OFF: Turn electrical devices on/off from anywhere(Need wifi)
- Low Power Supply 5V DC low voltage input
- App Support: Free iOS and Android mobile App eWeLink
- Sync Status: Real-time device status provided to the App
- Timing: Set scheduled/countdown timers to turn on/off at the specified time
- Share Control: Control your smart home together with your family
- Scene: Turn on/off a gang of devices with one tap
- Smart Scene: Trigger on/off by temperature, humidity or other environmental conditions
- Voice Control: Works perfectly with Amazon Alexa, Google Home
Package Included:
1 x 5-32 V Inching/Self-locking Wifi Wireless Switch Module Work for Alexa Nest home
