4S 30A BMS Board 4 Series 30A 18650 Lithium Battery Protection Board 16.8V with Cable - RS5934
4S 30A BMS Board 4 Series 30A 18650 Lithium Battery Protection Board 16.8V with Cable - RS5934
SKU:RS5934
36 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

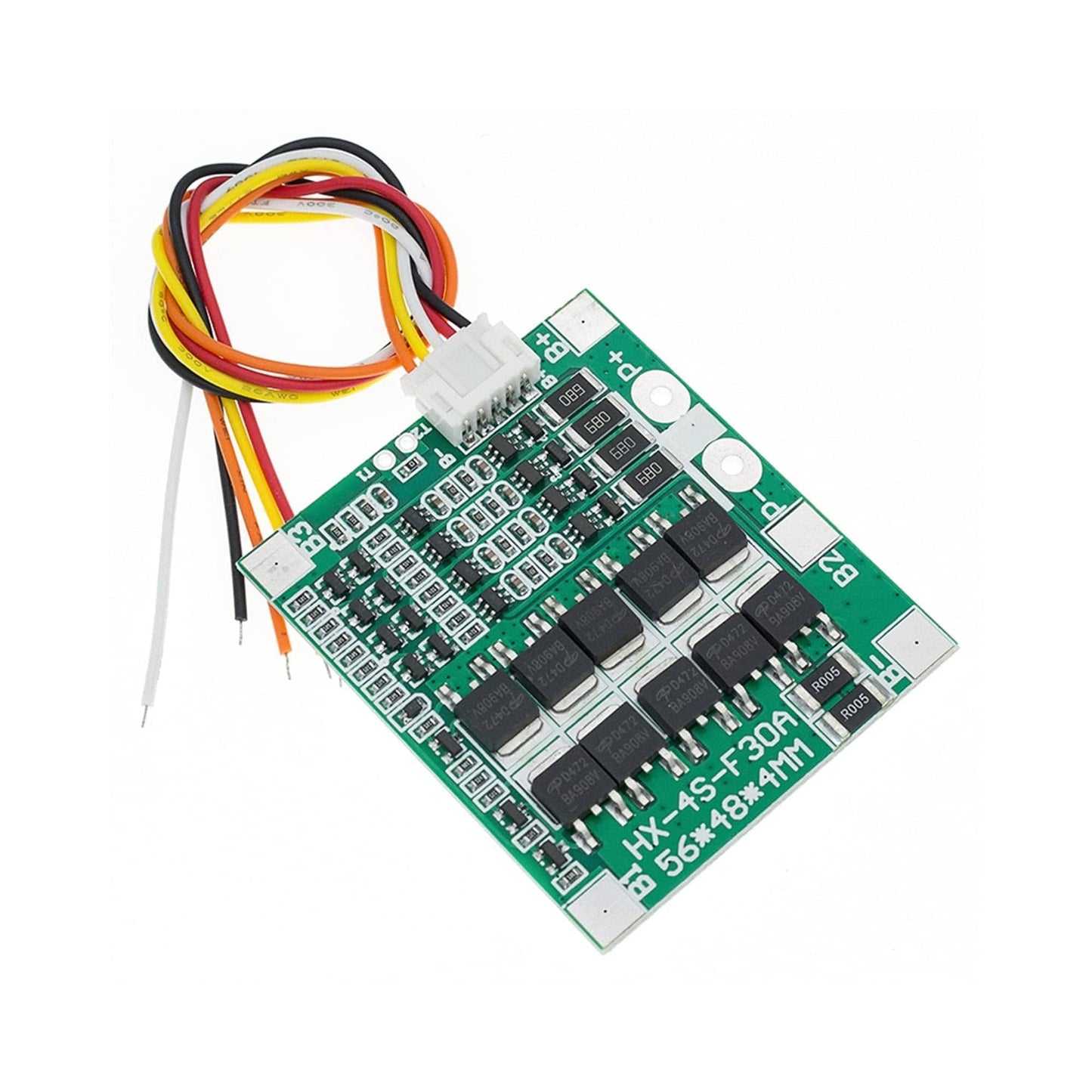

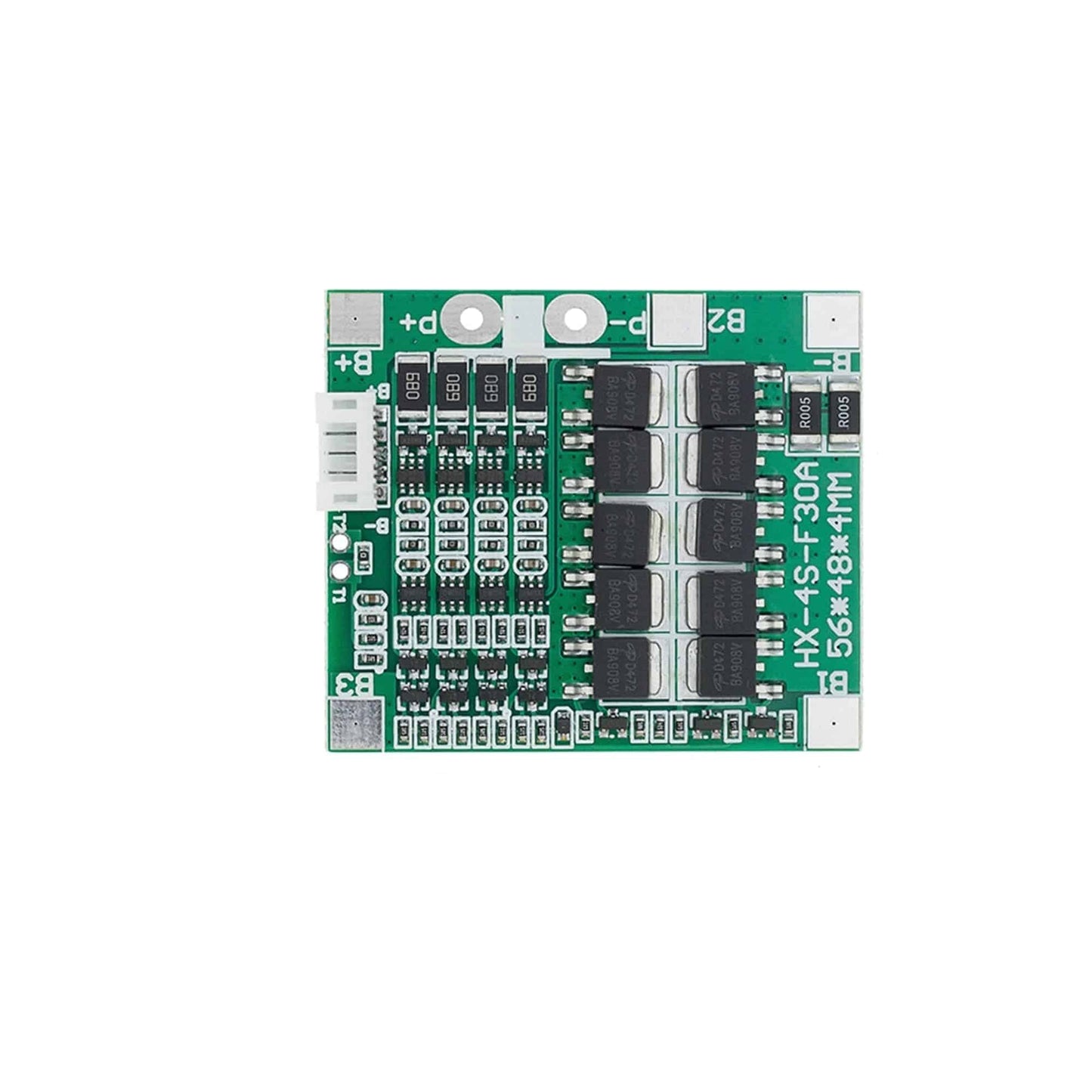

4S 30A BMS Board is a Balance Board for the drill Motor Lipo Cell Module that comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube. It provides continuous discharge of 30A, Balanced current, for electric drill/sprayer/LED lights/low power inverter. (if the cooling environment is not good, please reduce the load current use).
Specifications:
- Overcharge Detection Voltage: 4.28+ 0.05 V
- Overcharging Voltage: 4.095-4.195V
- Overdischarge Voltage: 2.55±0.08
- Overcharge Detection Delay Time 0.1s
- Temperature Range: -30-80°C
- Shortcircuit Detection Delay Time: 100ms
- Overcurrent Detection Delay Time: 500 ms
- Balanced Current: 60mA
- Working Current: 30A
- Over-Current: 60A
Features:
- Over-discharge protection function, short circuit protection function.
- 4S 30A BMS Board has overcharge protection.
- Overcurrent protection function, band balance.
Package Included:
1 x 4S 30A BMS Board 4 Series 30A 18650 Lithium Battery Protection Board 16.8V with Cable
