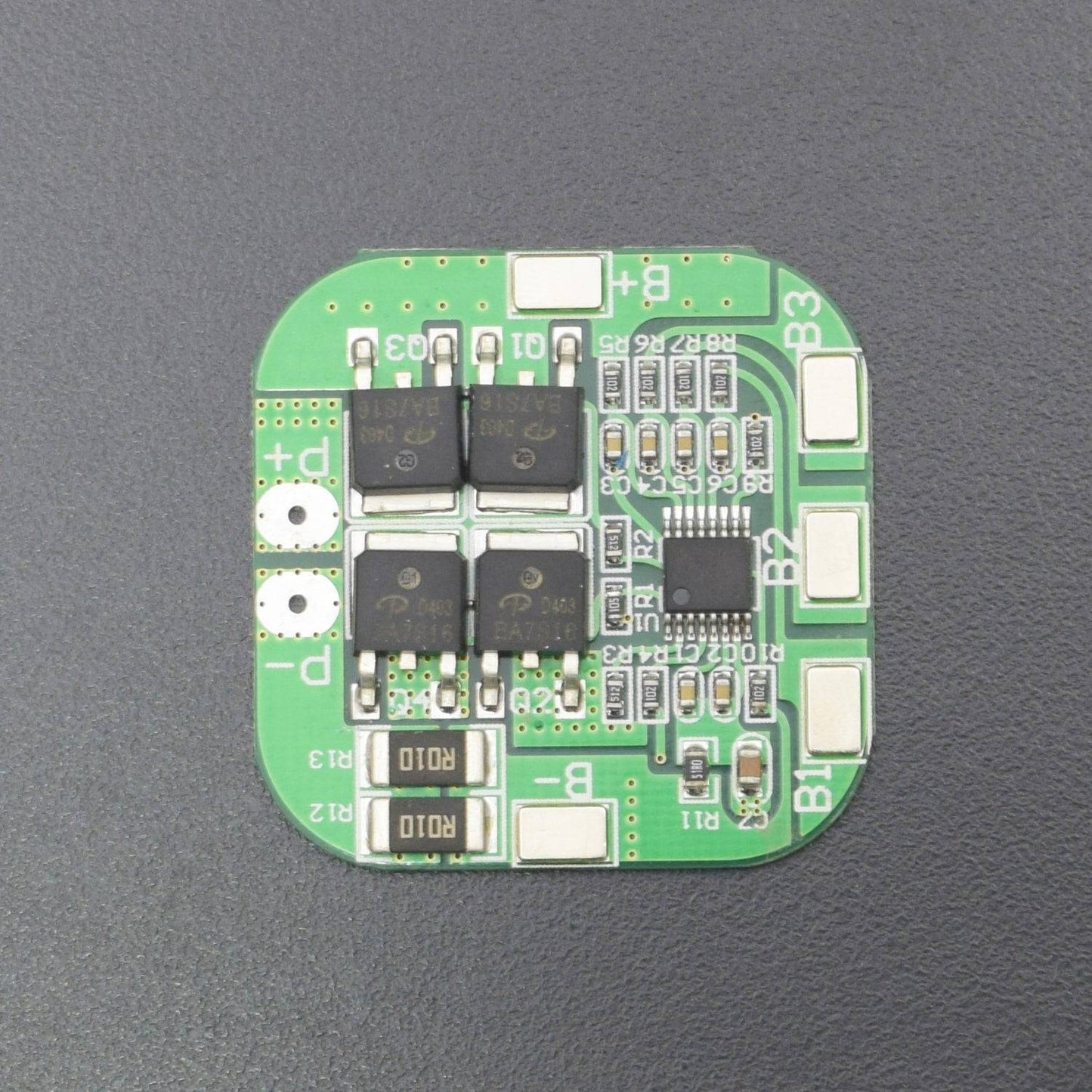

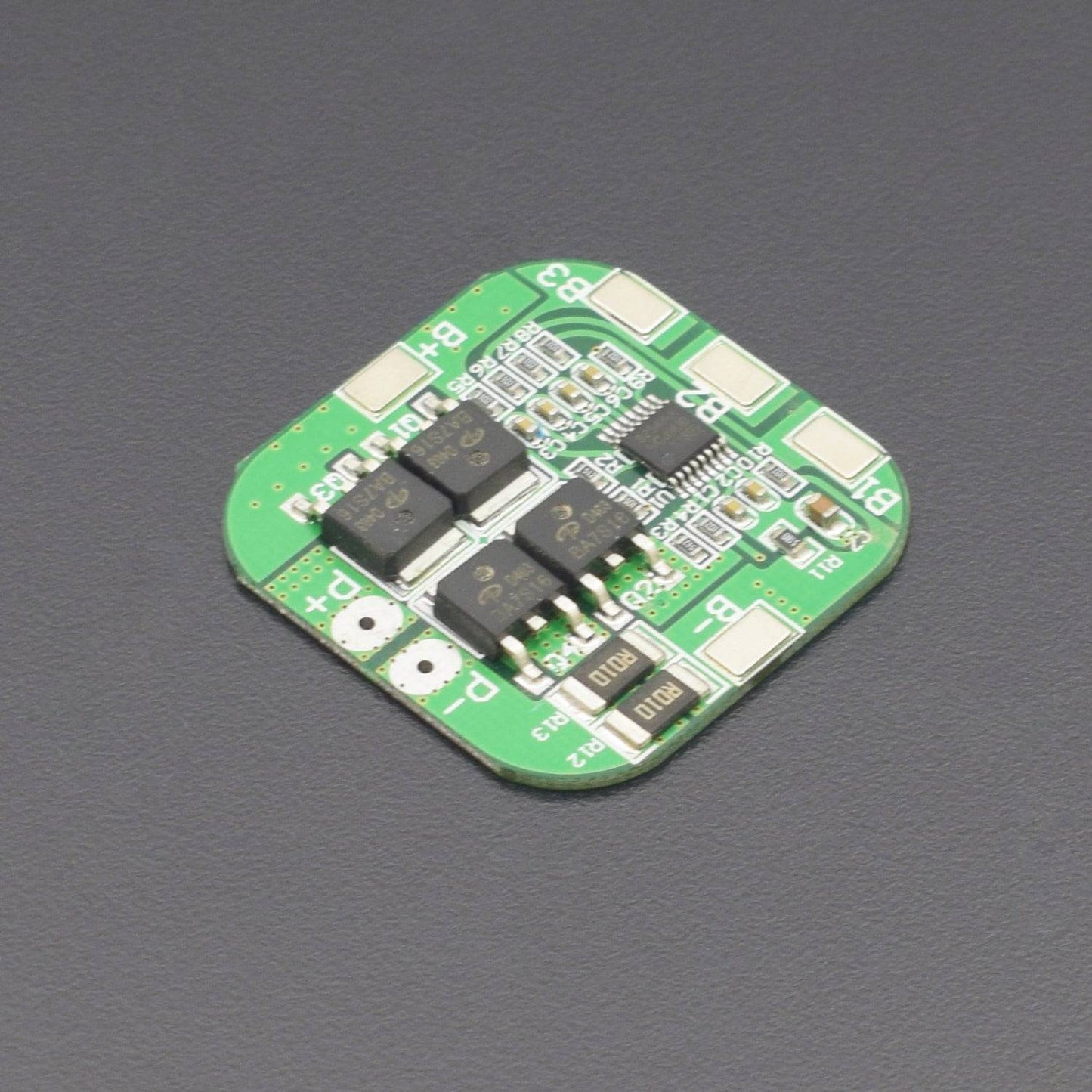

4S 20A 14.8V 16.8V Li-ion Battery18650 BMS, Lithium PCM Protection PCB Board - RS1817

4S 20A 14.8V 16.8V Li-ion Battery18650 BMS, Lithium PCM Protection PCB Board - RS1817

SKU:RS1817 ( RS4824 )

111 in stock

Regular price Rs. 160.00
Regular price Sale price Rs. 160.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Over Charge Voltage:4.25-4.35v±0.05v
  • Over Discharge Voltage: 2.3-3.0v±0.05v
  • Max working current:10A
  • Max Peak current:20A
  • Working Temperature:-40~+50
  • Storage Temperature:-40~+80
  • Small current: 6uA
  • Life cycle:50000hours

Description:

  • This board is not suitable for high-power electronic tools.
  • Above 3a device, means the discharge rate battery more than 3C.
  • The rated battery 1 mAh, 2000 is equal 2ah * 1 = 2A max. operating current.
  • 3C Rated battery means 2ah x 3 = 6A Maximum operating current.
  • High precision voltage detection circuit.
  • Built-in three-stage over current detection circuit (over current 1, over current 2 or load short circuit)

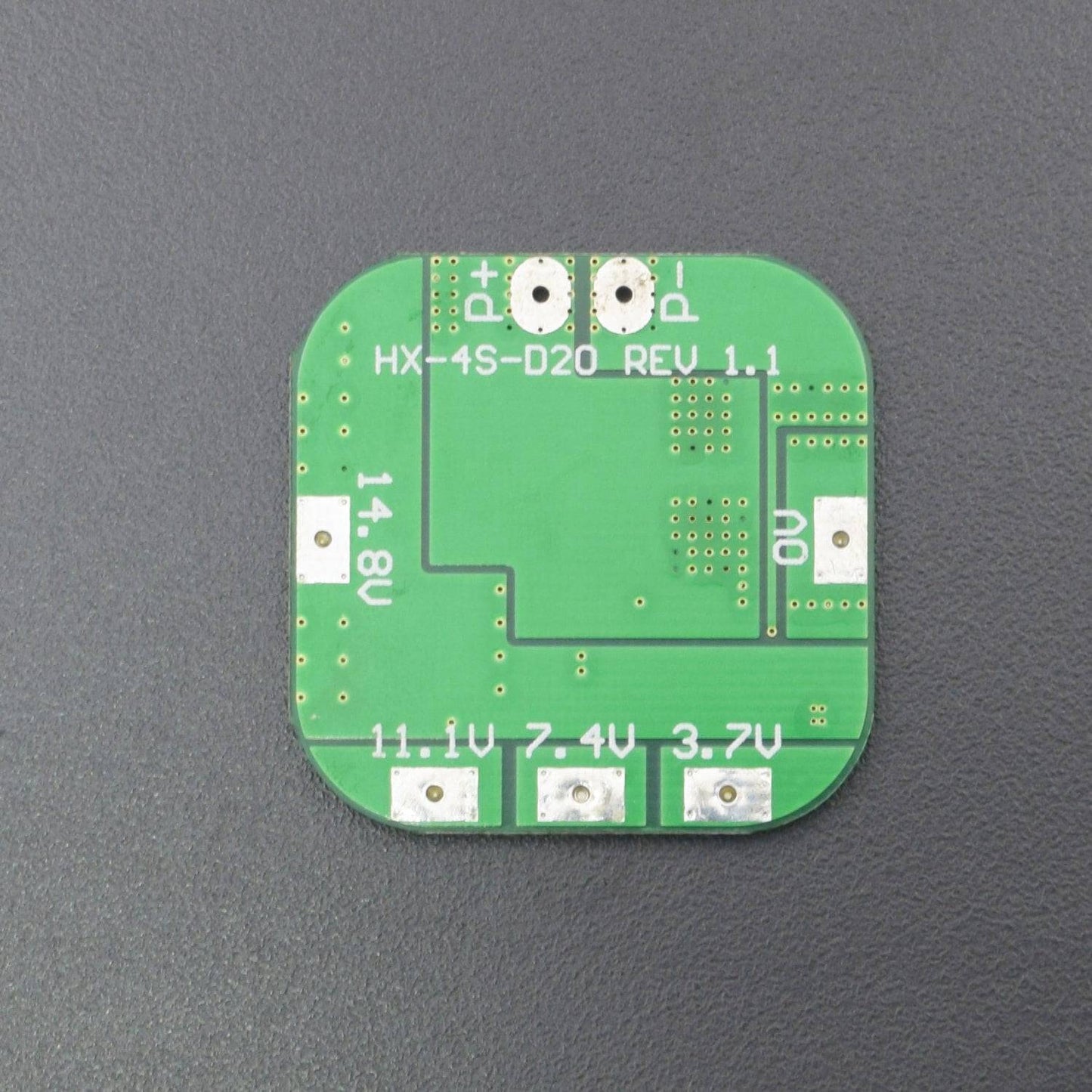

BMS Solder Instructions

  • B + connected battery positive.
  • B1 connection point between battery 1 and battery 2
  • B2 Connect the dots between battery2 and battery 3
  • B3 Connect the dots between battery 3 and battery 4
  • B-connection to the battery with a negative end
  • P- + charge / discharge charge is positive;
  • P-connection charge / discharge negative
  • 4S Li-ion18650, LiCoO2, LiMn2O4, Li (NiCoMn) O2 rechargeable batteries
  • 4S rechargeable lippo batteries.

Package Included:

1 x 4S 20A 14.8V 16.8V Li-ion Battery18650 BMS, Lithium PCM Protection PCB Board
