4S 14.8V 16.8V Battery Protection Board Li-ion Lithium BMS Board 18650 Charger PCB BMS PCM 10A Charging Board High-Quality Battery Protection Board For Li-ion Cells Safe And Reliable Battery Management System For Li-ion Batteries - RS2523

4S 14.8V 16.8V Battery Protection Board Li-ion Lithium BMS Board 18650 Charger PCB BMS PCM 10A Charging Board High-Quality Battery Protection Board For Li-ion Cells Safe And Reliable Battery Management System For Li-ion Batteries - RS2523

RS2523

In stock

Rs. 169.00
Rs. 169.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

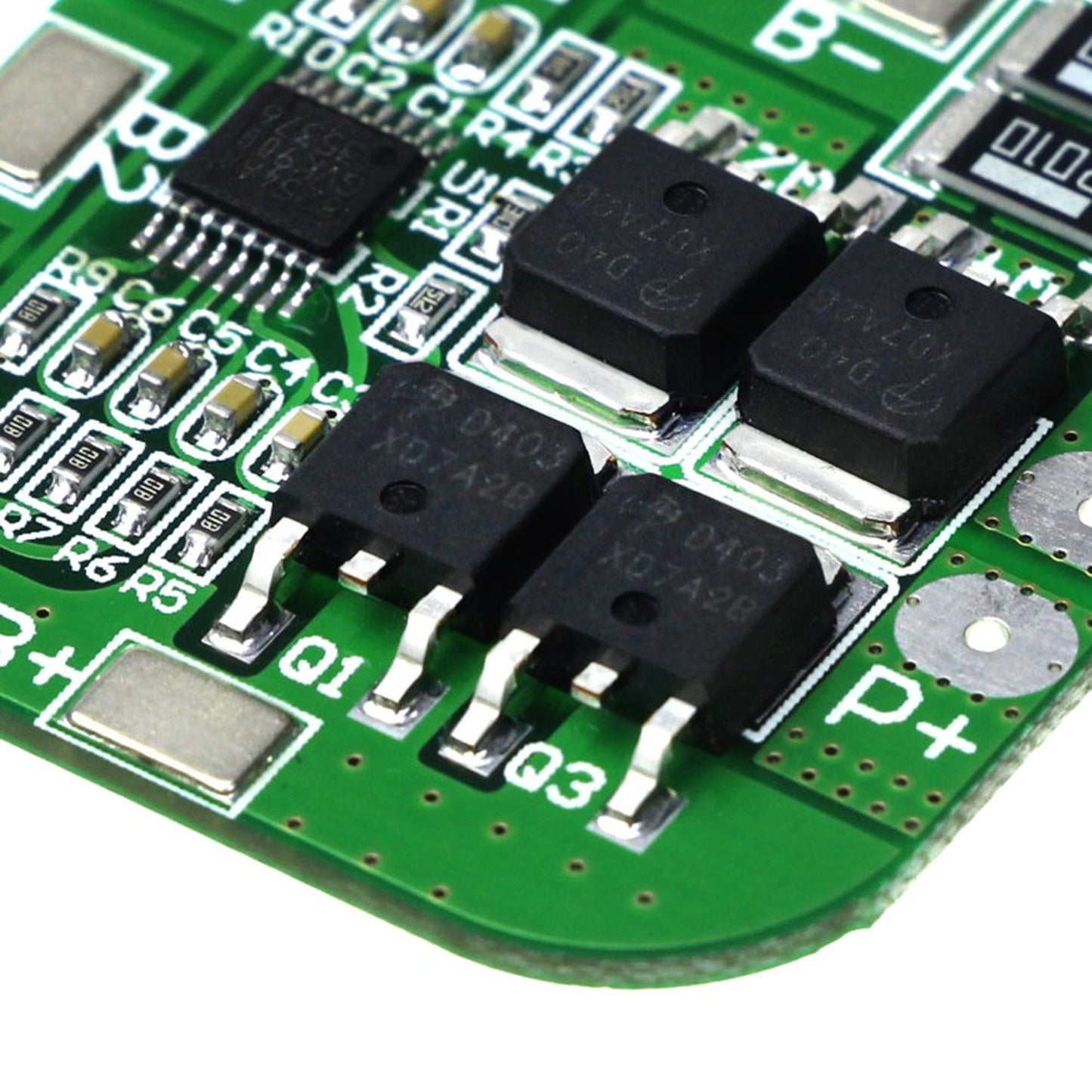

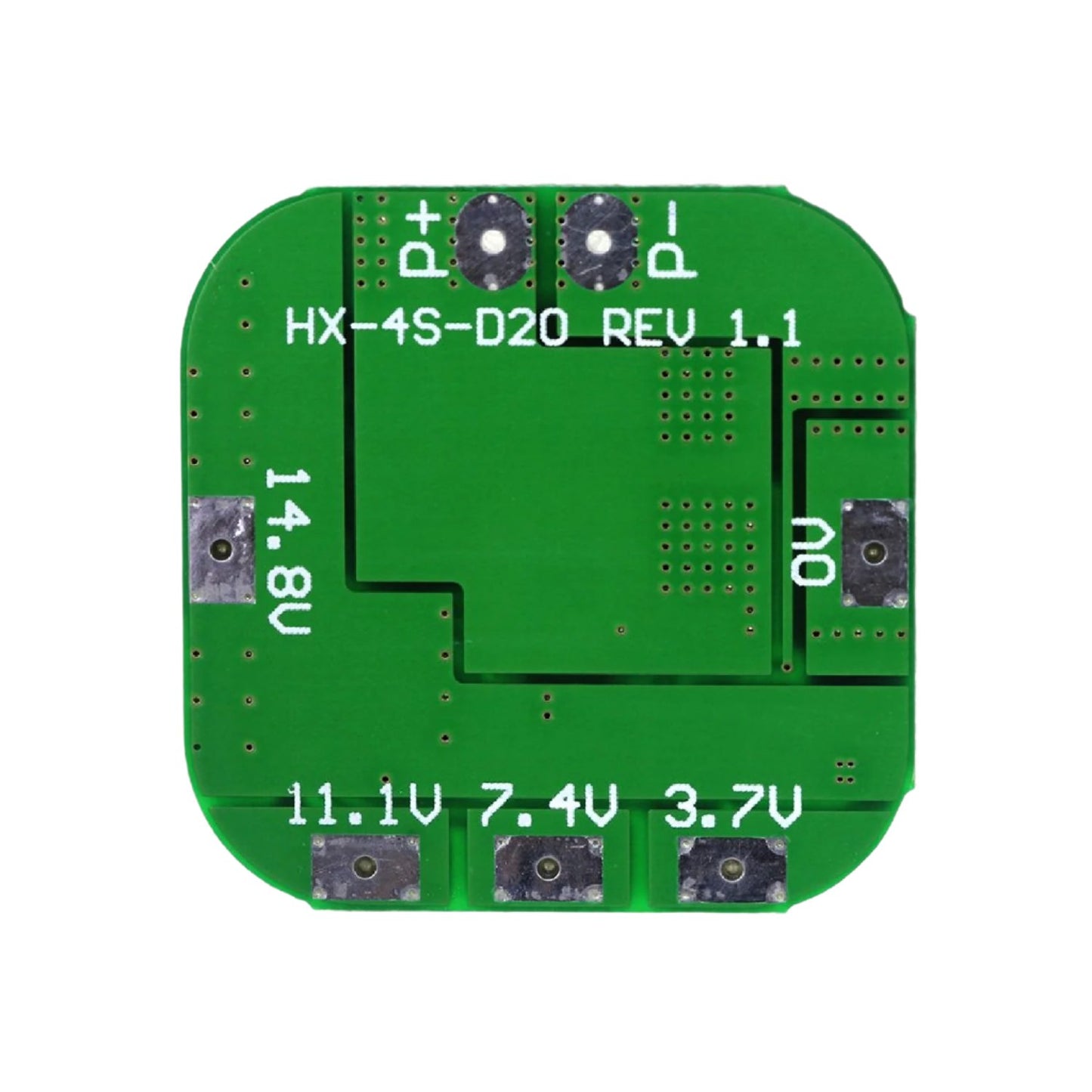

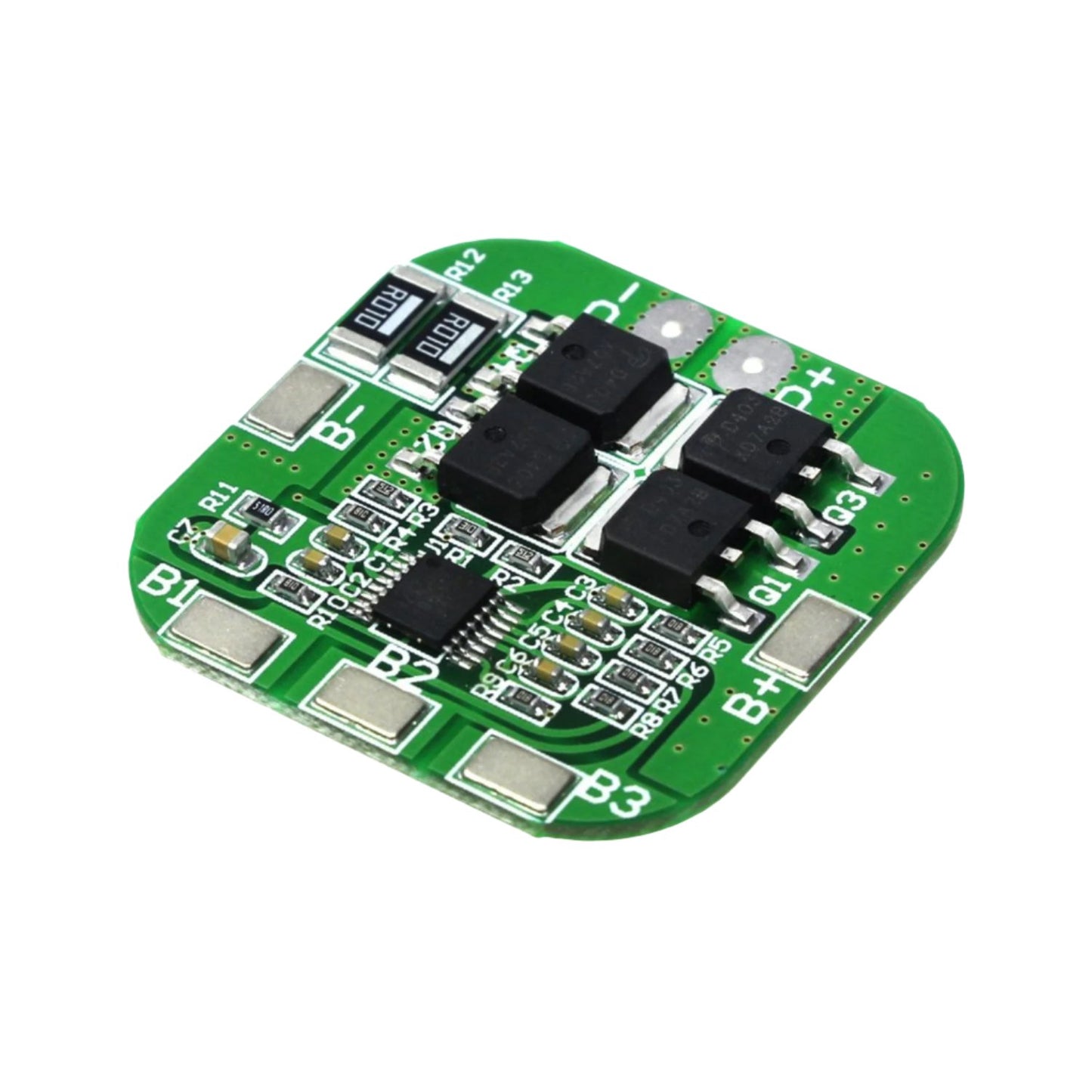

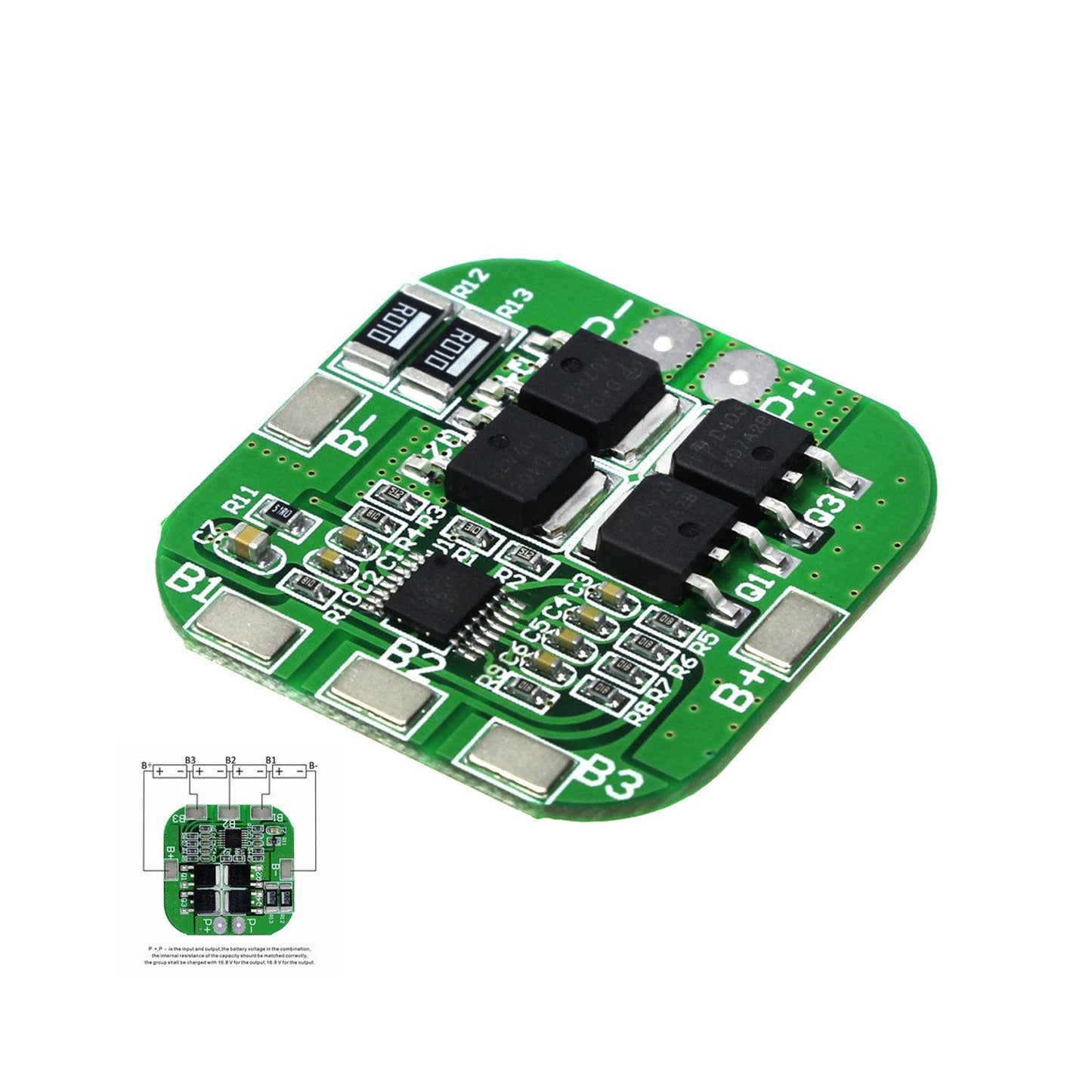

4S 14.8V 16.8V Battery Protection Board is a protection circuit board with this board, you can build a 4-cell lithium-ion battery.

It protects your battery from deep discharge, overvoltage overcurrent and short circuits. with its small form factor, it can fit into any of your projects.

Battery Protection Board is less than 4mΩ, 4 series 18650 battery 16.8V 16V 14.8V 14.8V (Li-ion 18650 or li-ion battery rated voltage)16.8V (Li-ion battery full charge voltage) 14.4V ( Lipo battery pack rated voltage).

Specifications:

  • Supply Voltage: 14.8V/16.8V
  • Max Peak Current: 20A
  • Over Charge Voltage: 4.25V - 4.35V ±0.05v
  • Over Discharge Voltage: 2.3V - 3.0V ±0.05v
  • Max Working Current: 10A
  • Working Temperature: -40 ~ +50
  • Storage Temperature: -40 ~ + 80
  • Small Current: 6uA
  • Life Cycle: 50000 hours
  • Resistance: 45mΩ
  • Short Protection: Protectable, change for repair
  • Size: 35*35*3.0mm

Features:

  • High-accuracy voltage detection circuit
  • Built-in three stages current detection circuit (over-current 1, over-current 2, or load short circuit)
  • MOS transistors can control the battery charge and discharge
  • Low standby current consumption.

Package Included:

1 x 4S 14.8V 16.8V Battery Protection Board Li-ion Lithium BMS Board 18650 Charger PCB BMS PCM 10A Charging Board High-Quality Battery Protection Board For Li-ion Cells Safe And Reliable Battery Management System For Li-ion Batteries
