49E LM393 Linear Hall Sensor Module Effect Sensitivity Detection Module - AB073

49E LM393 Linear Hall Sensor Module Effect Sensitivity Detection Module - AB073

AB073

In stock

Rs. 70.00
Rs. 70.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

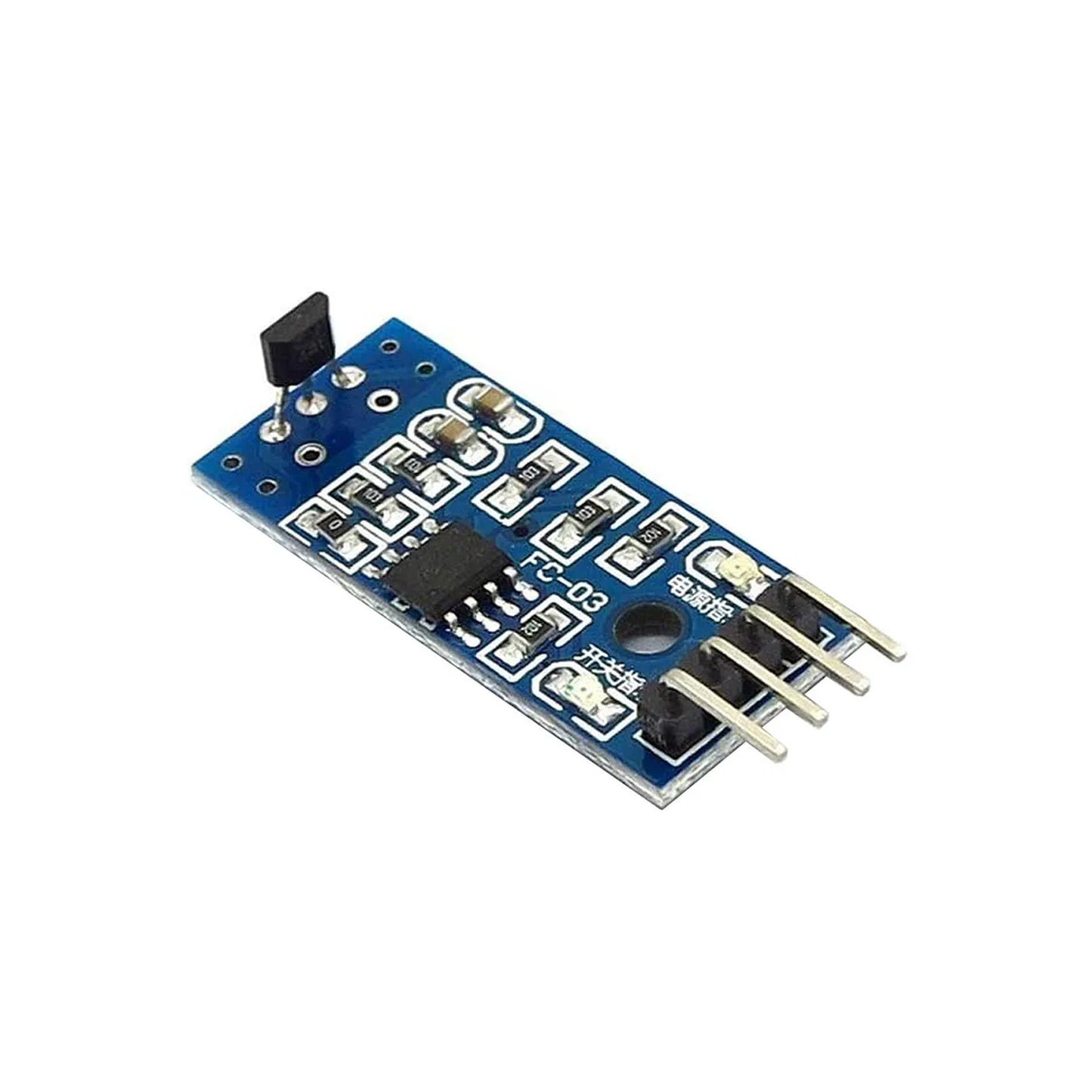

This 49E LM393 Linear Hall Sensor Module used Hall Sensor - A3144E. The Hall Sensor measures the Hall Effect, which is a production of a voltage difference across an electrical conductor, transverse to an electric current in the conductor as well as a magnetic field perpendicular to the current. The output of the Hall sensor switches low and turns on when a magnetic field perpendicular to the Hall sensor exceeds the BOP threshold, and it switches high and turns on when the magnetic field disappears. And the comparator circuit that makes the output signal more reliability.

 Specifications:

  • Power supply voltage:3.3v to 5.5v
  • The current of the signal output can up to 16mA
  • With the comparator circuit, The output signal is more reliability

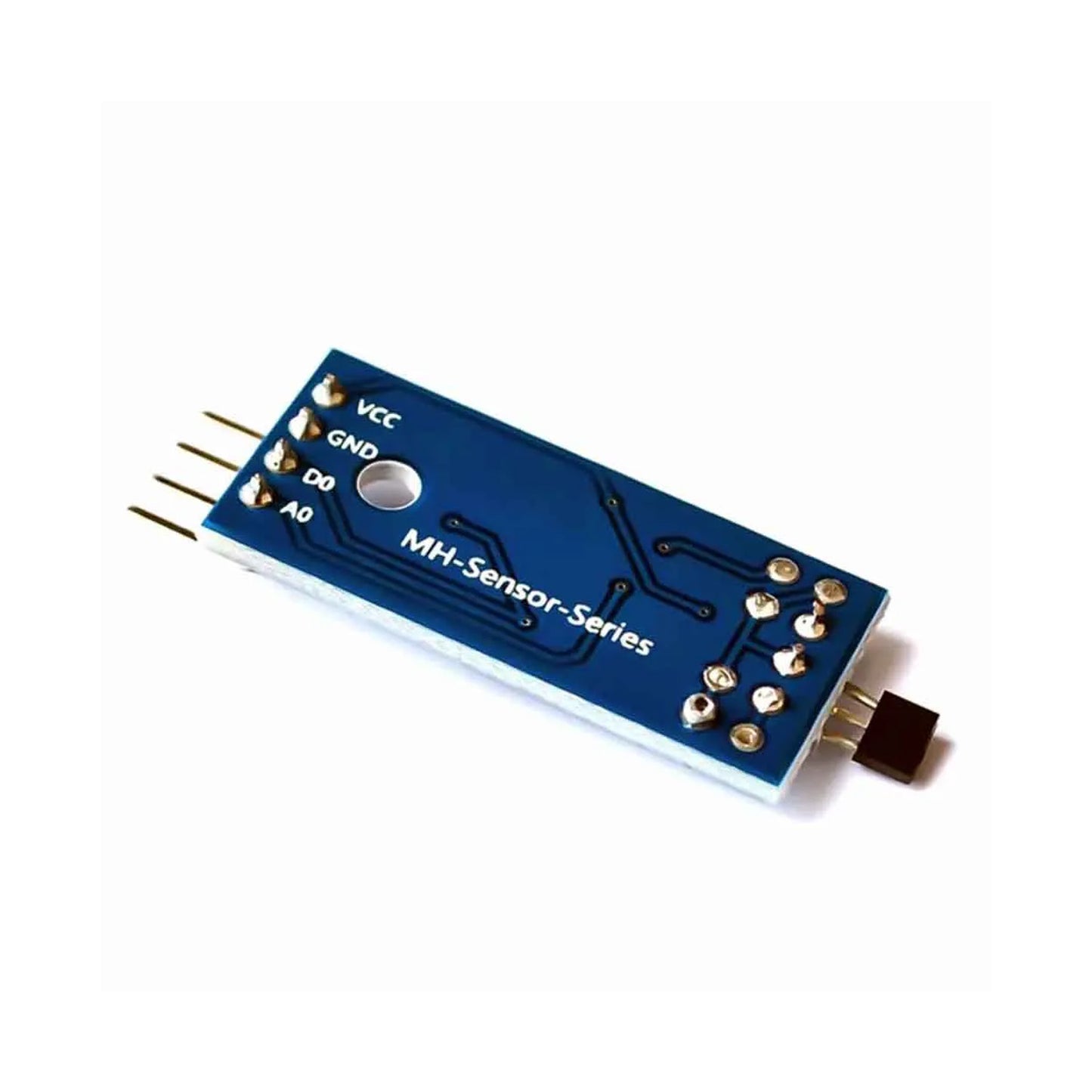

  • Breakout PINs
  • VCC:3.3V to 5.5v
  • GND: GND
  • DO: Digital Output, Output Low when there is a magnetic field
  • AO: Analog Output,
  • Dimension: 32mm x 14mm
  • 3mm screw hole
  • Power supply indicator and Digital output indicator

How to Use (In the case of working with an MCU):

  • VCC ↔ 2.3V ~ 5.3V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)

Package Included:

1 x 49E LM393 Linear Hall Sensor Module Effect Sensitivity Detection Module
