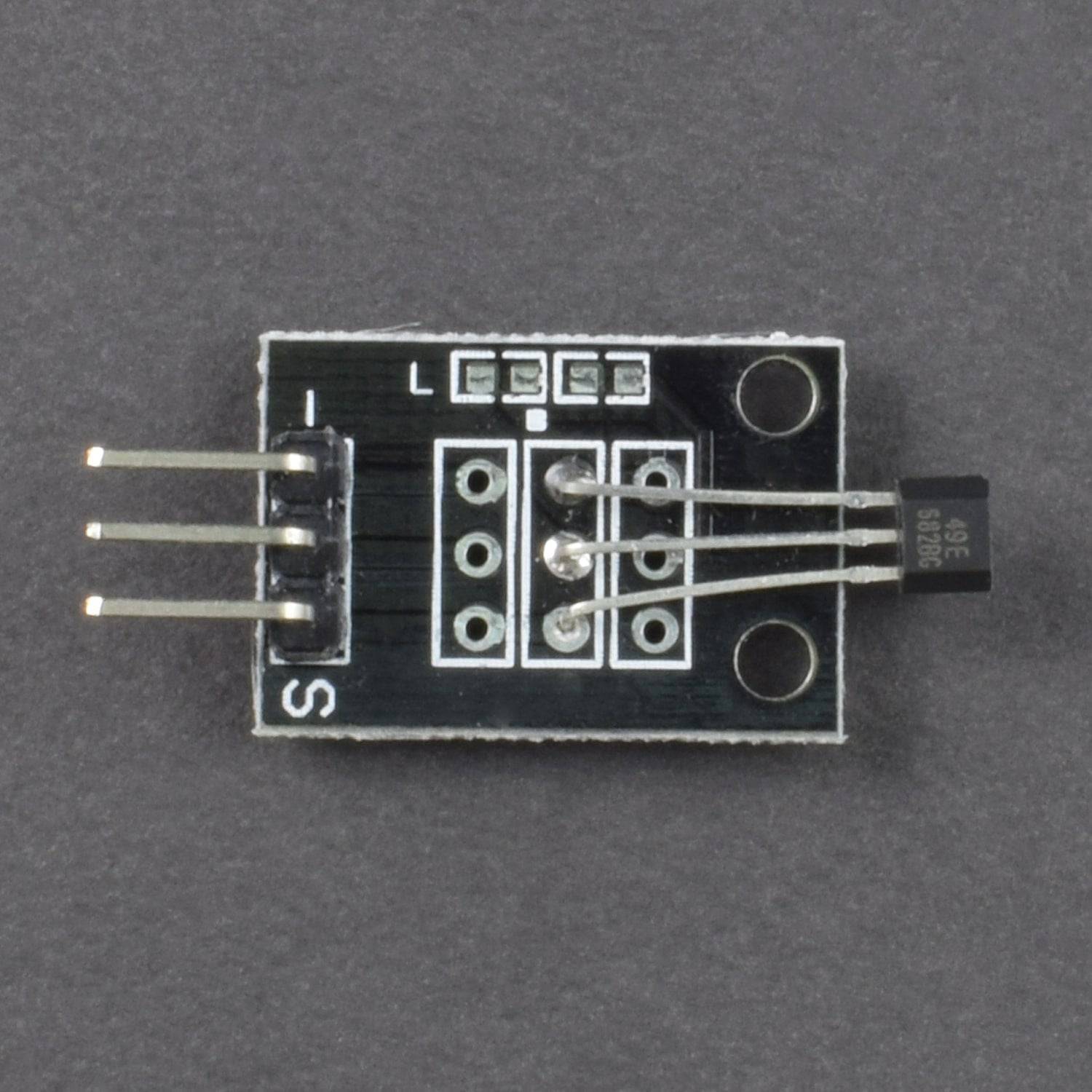

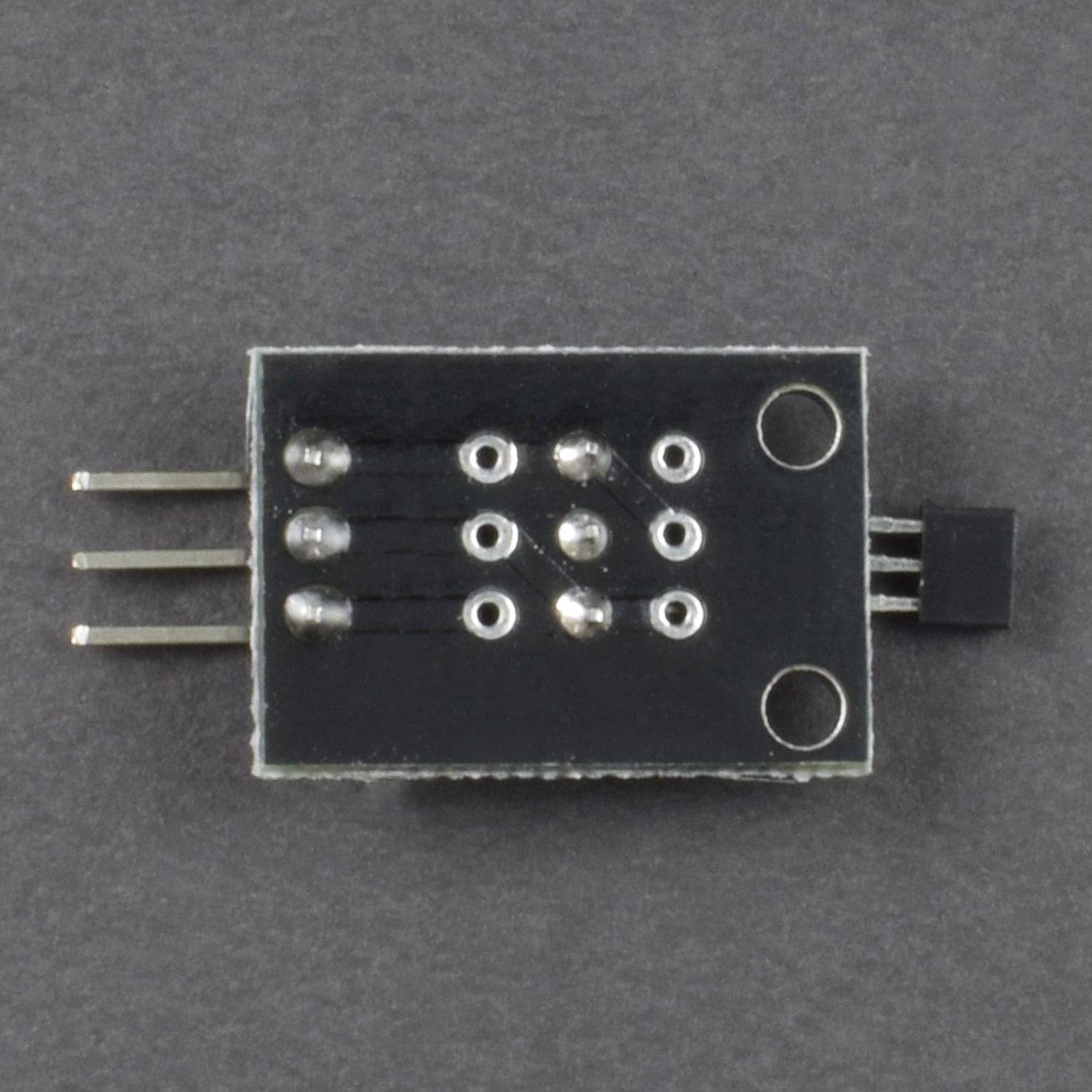

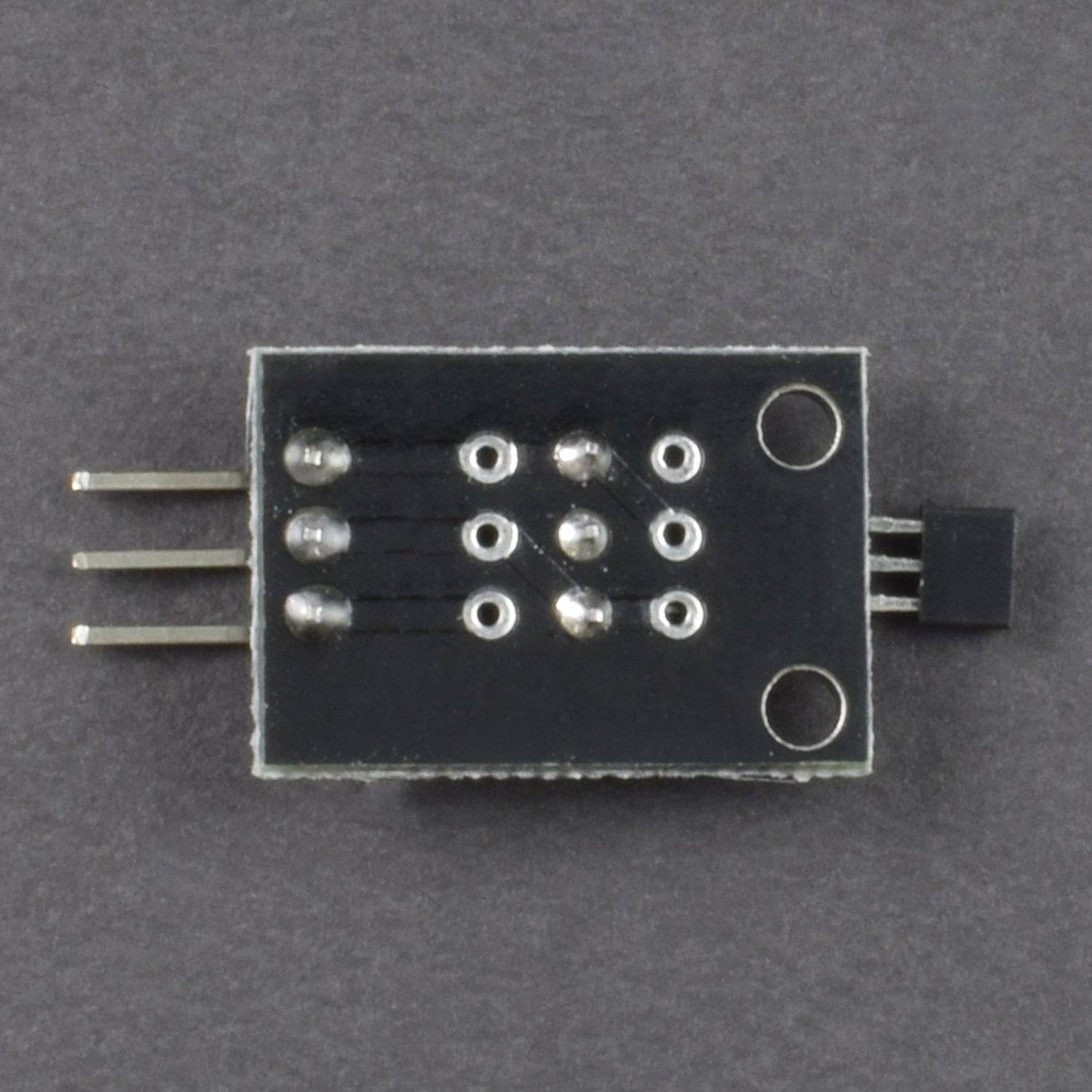

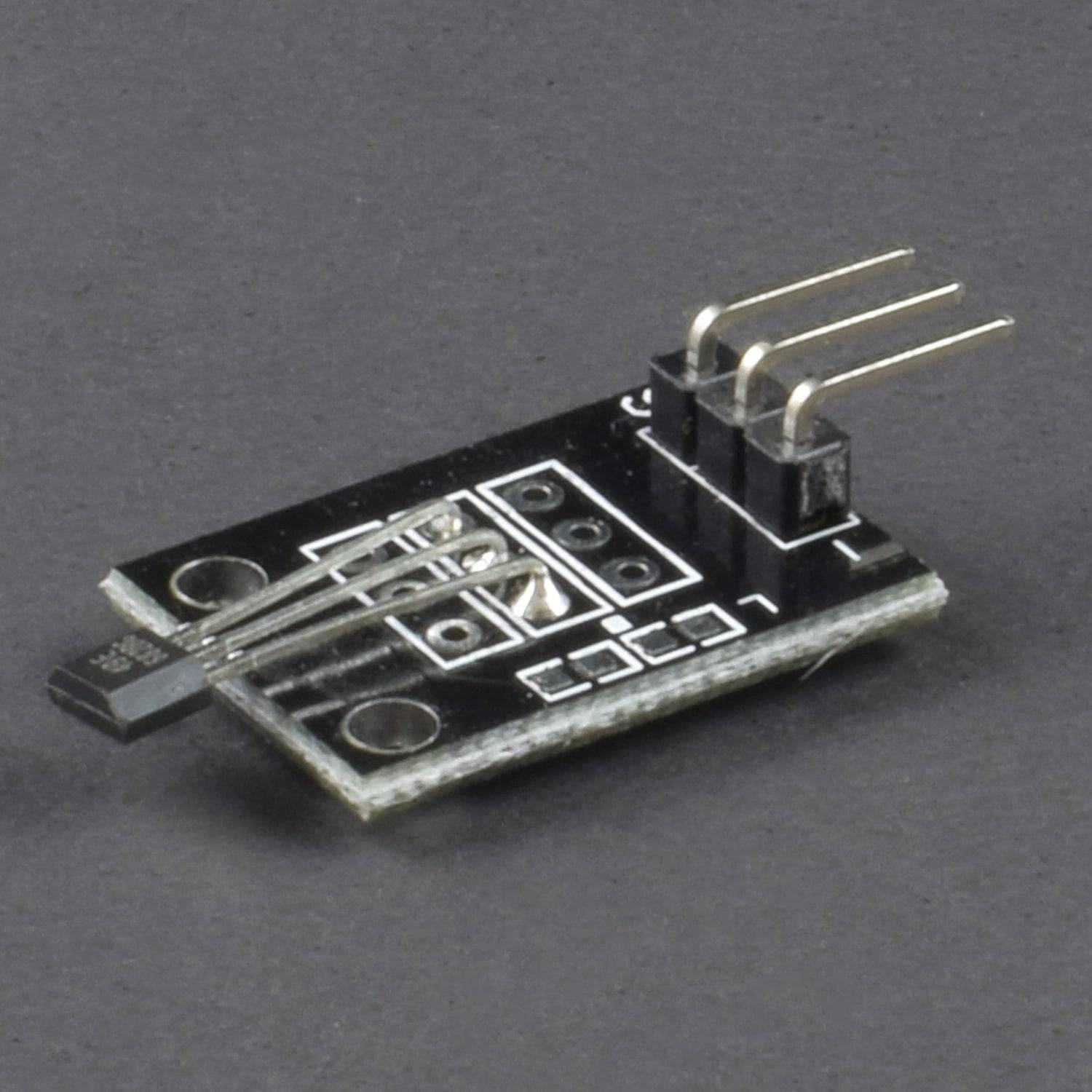

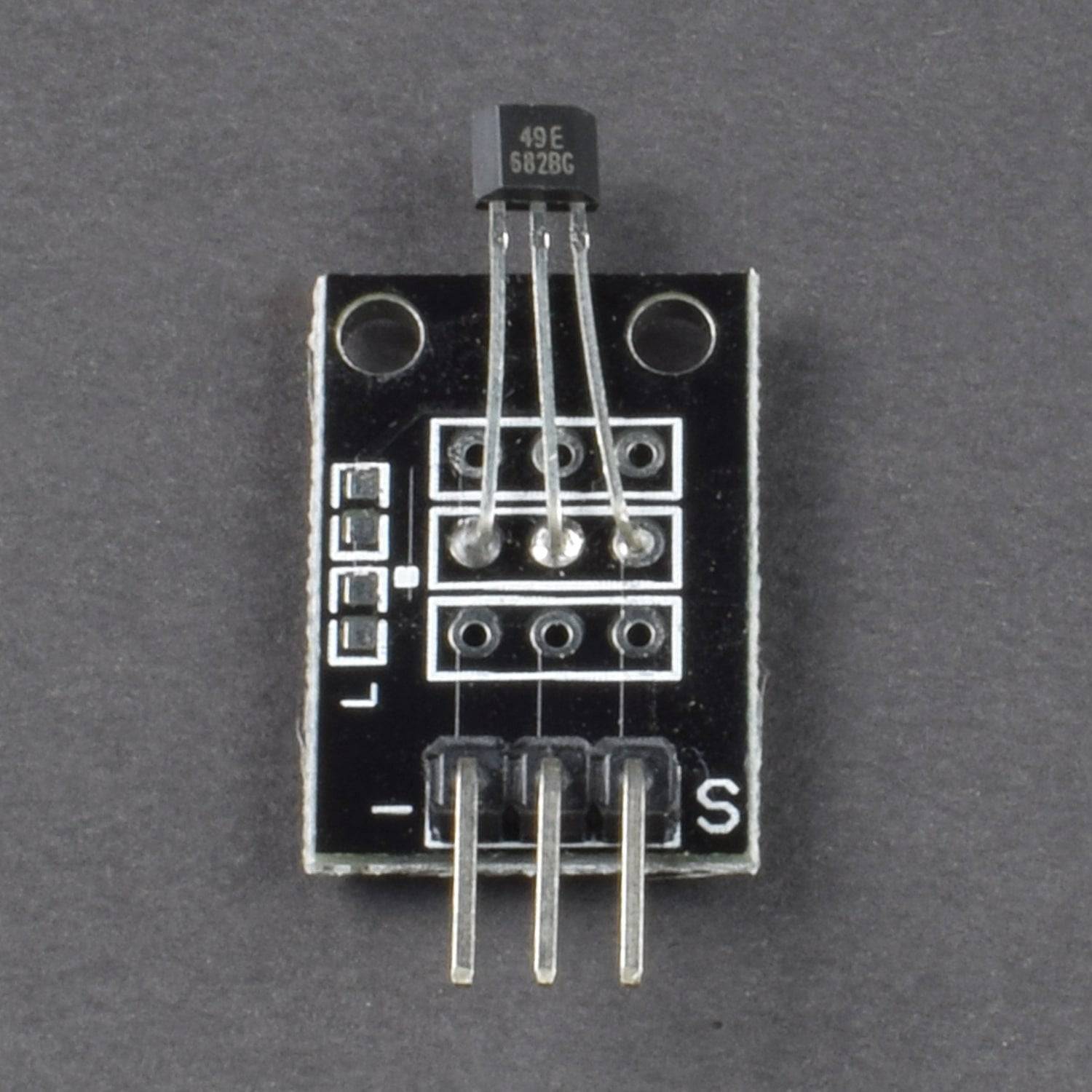

- 49E hall sensor
- Power: 2.3V ~ 5.3V
- Features wide range voltage comparator LM393
- Adjustable sensitivity
- Signal output indicator
Description:
Hall Switch Integrated Circuit Using hall Effect Principle. USES The Semiconductor Integrated Technology Manufacturing Magnetic Susceptibility of the Circuit. Its Input For the Magnetic Induction Intensity, the Output is a Digital Voltage Signal.
Specification:
- Power: 2.3V ~ 5.3V
- Power Consumption at Rest: 3mA
- Power Consumption when Switched: 8mA
- Operating Temperature: -40~90°C
- Mounting holes size: 2.0mm
Features:
- Analog magnetic sensor module and a digital interface
- Built-in 13 LED build a simple circuit to produce a magnetic flash
- Black PCB board, made of the flame retardant epoxy resin material
- Small size and high sensitivity.
- Fast response temperature and good performance.
Applications:
- Motor speed measurement
- Object position detection
- Smart car
- Electronic bricks
How to Use(In the case of working with a MCU) :
- VCC ↔ 2.3V ~ 5.3V
- GND ↔ power supply ground
- AOUT ↔ MCU.IO (analog output)
- DOUT ↔ MCU.IO (digital output)
How To Use:
Display the Magnetic Field value on 20*4 LCD using Linear Hall Magnetic Module
Package Included:
1 x 49E Hall Sensor LM393 Linear Hall Effect Detection Module
