Description:

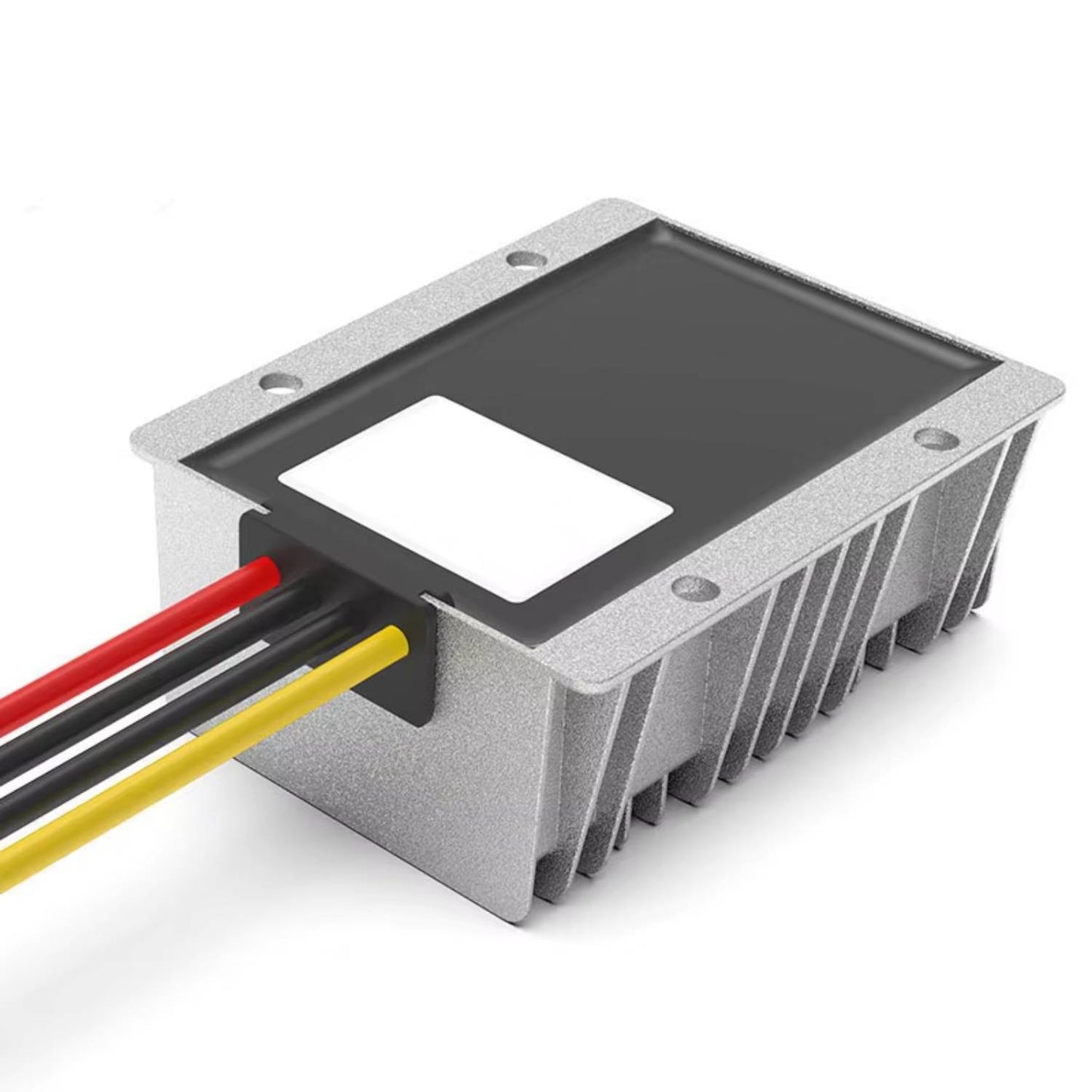

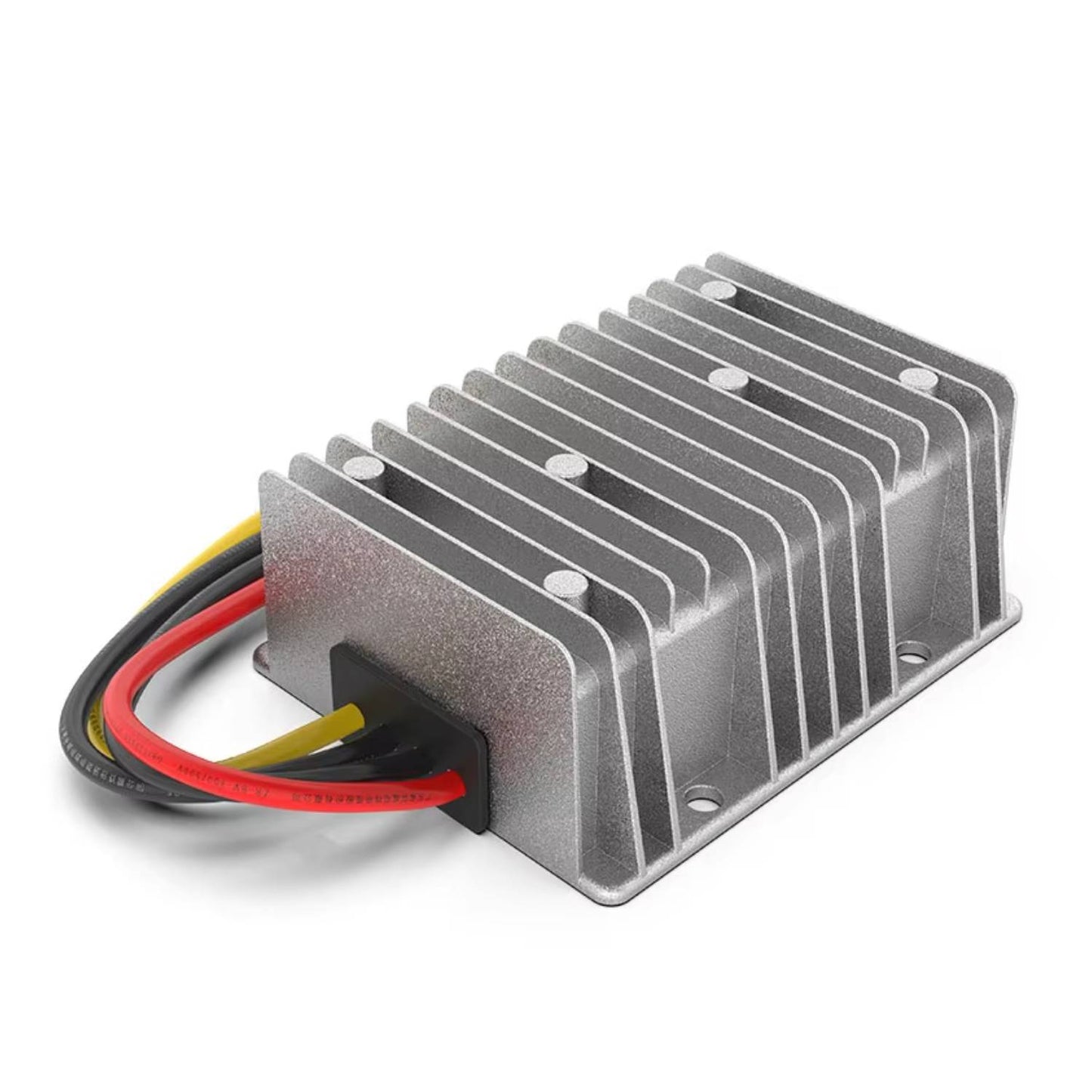

This highly efficient non-isolated, synchronous rectification buck converter provides reliable and stable 24V DC output from a wide input voltage range of 35-72V DC, making it suitable for various applications with fluctuating power sources.
Specifications:
- Module Type: Non-Isolated Module Synchronous Rectification
- Input Voltage：DC 48V/60V

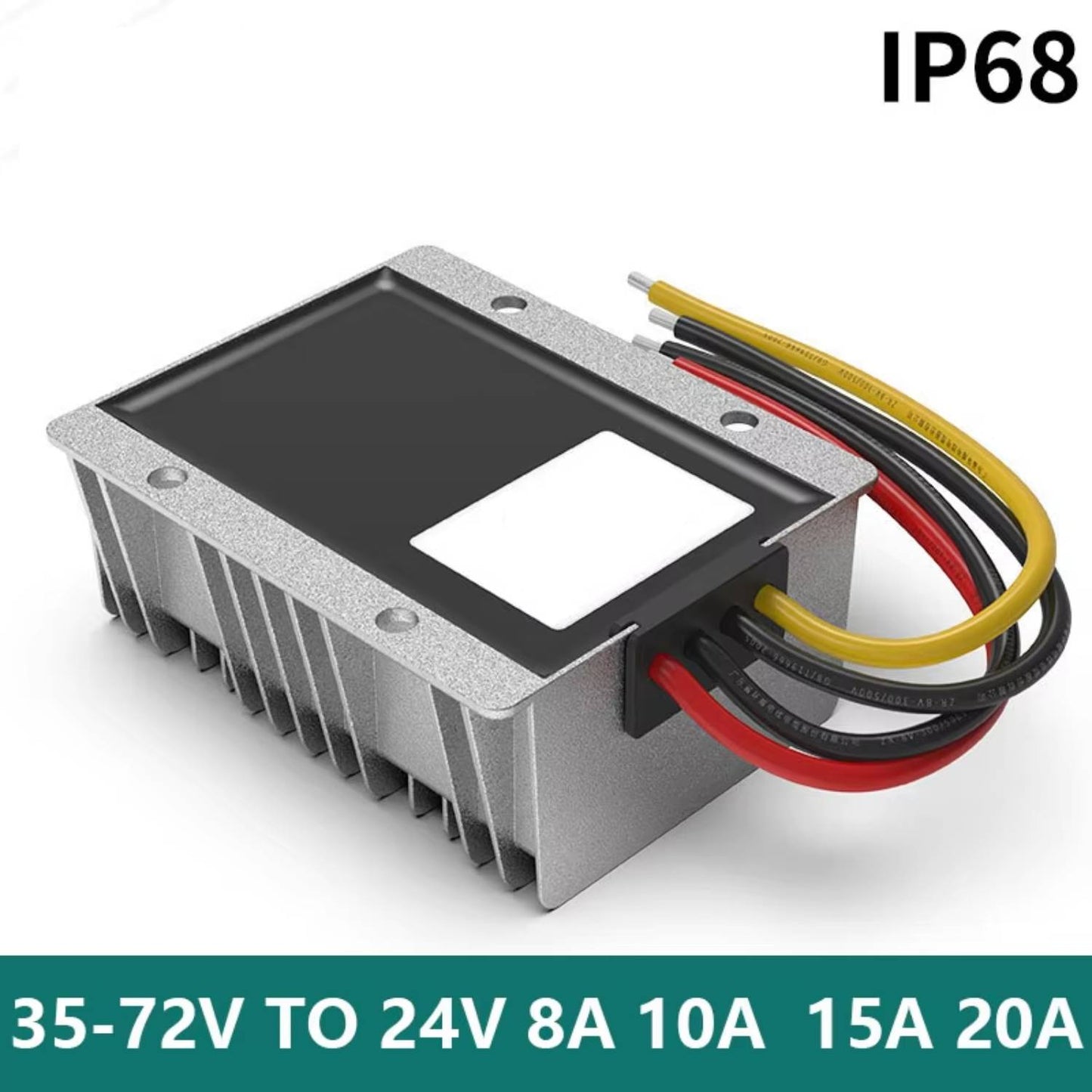

- Input Voltage Range：DC 35-72V
- Output Voltage：DC 24V
- Output Current：8A/10A/15V/20A
- Output Power：192W/240W/360W/480W
- Conversion Efficiency：95%
- Operating Temperature：-40°C ~ 80°C
- Waterproof Level：IP68
- Net Weight：500G
Features:
- DC DC Buck Converter Delivers a stable 24V output voltage, ideal for powering a wide range of electronic devices.
- DC DC Step Down Converter supports multiple current ratings (8A, 10A, 15A, 20A), enabling it to power devices with varying power demands.
- High Power Buck Converter Available in 240W, 360W and 480W power ratings to suit different system requirements.
- Buck Converter is Designed for reliable operation in various environments.
Package Included:
1 x 48V 60V 35V-72V to 24V High Power Buck Converter
