- 47 uF
- 200 VDC
- 20 %
- 290 mA
- - 40 C
Description:
Electrolytic Capacitors from United Chemi-Con have capacitance range from 6.8 to 680µF, voltage range from 160 to 450V, and operating temperature range from -40ºC to 105ºC.
Specification:
- 47 uF
- 200 VDC
- 20 %
- 290 mA
- - 40 C
- + 105 C
- 10 mm
- 20 mm
- 5 mm
- Electrolytic Capacitors
- Capacitors
Pin Configuration:

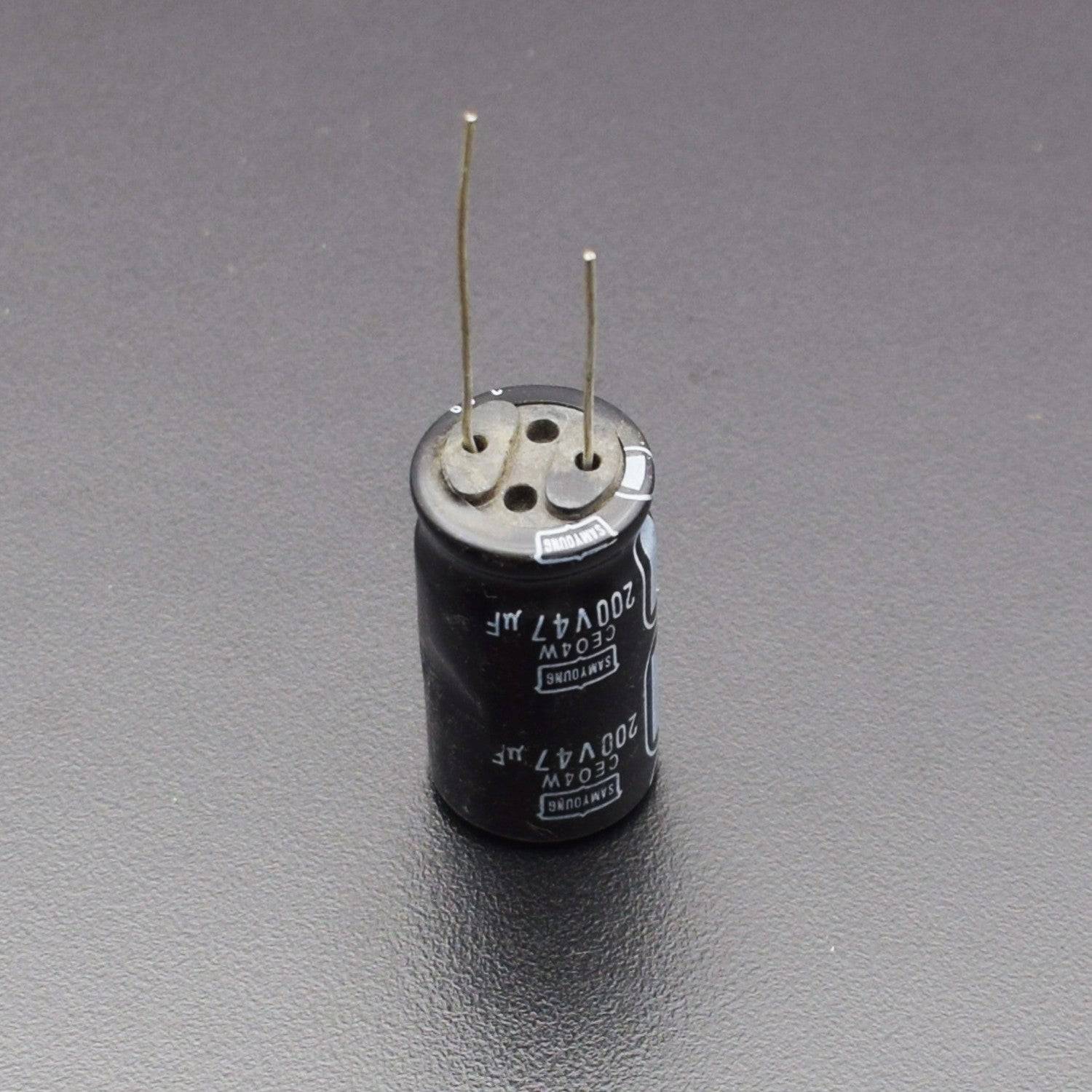

The Electrolytic Capacitors have polarity. Meaning they have a positive and negative pin. The pin which is long is the positive pin and the pin which is short is the negative pin. You can also identify the polarity using the negative strip on the capacitor label. As shown in the picture above the negative pin will be directly under the negative symbol.
Applications:
- Filter circuits like High/Low pass filter etc.
- Remove noise from a circuit
- Smoothing ripples in converters
- Fading LED circuits
- Resonant circuits.
Package Include:
1 x 47UF 200V CAPACITOR
