- Ultra slim version, only 8mm diameter, capacitor height is 20mm
- High Endurance / Lifetime of 9000 Hours - ESR is only 0.030 ohms
- Compact Case Style Ideal For Repairs Where Limited Space Is Available With No Compromise On Quality
Description:
When working with Electronics circuits, there are many times in which you may need a capacitor to help smooth out, filter or store electrical charge. In such times, a 470uf25V Electrolytic Capacitor is ideal for low frequency signals, to reduce the effects of ripples, surges as well as sudden drops in current. With a capacitor, these differences in current are stored, controlled and capable of outputting a stable, consistent current to keep your projects running optimally.
Specification:
- Value: 470uF
- Maximum working voltage: 25V DC
- Diameter: 8mm
- Length: 20mm
- Lead spacing: 5mm
- Endurance: 9000 hours at 105 degrees centigrade
- Impedance: 0.030 Ohms at 100kHz, 20 degrees centigrade
- ROHS compliant: Yes
- Operating Temperature Range:-40°C to +105°C
Package Included:

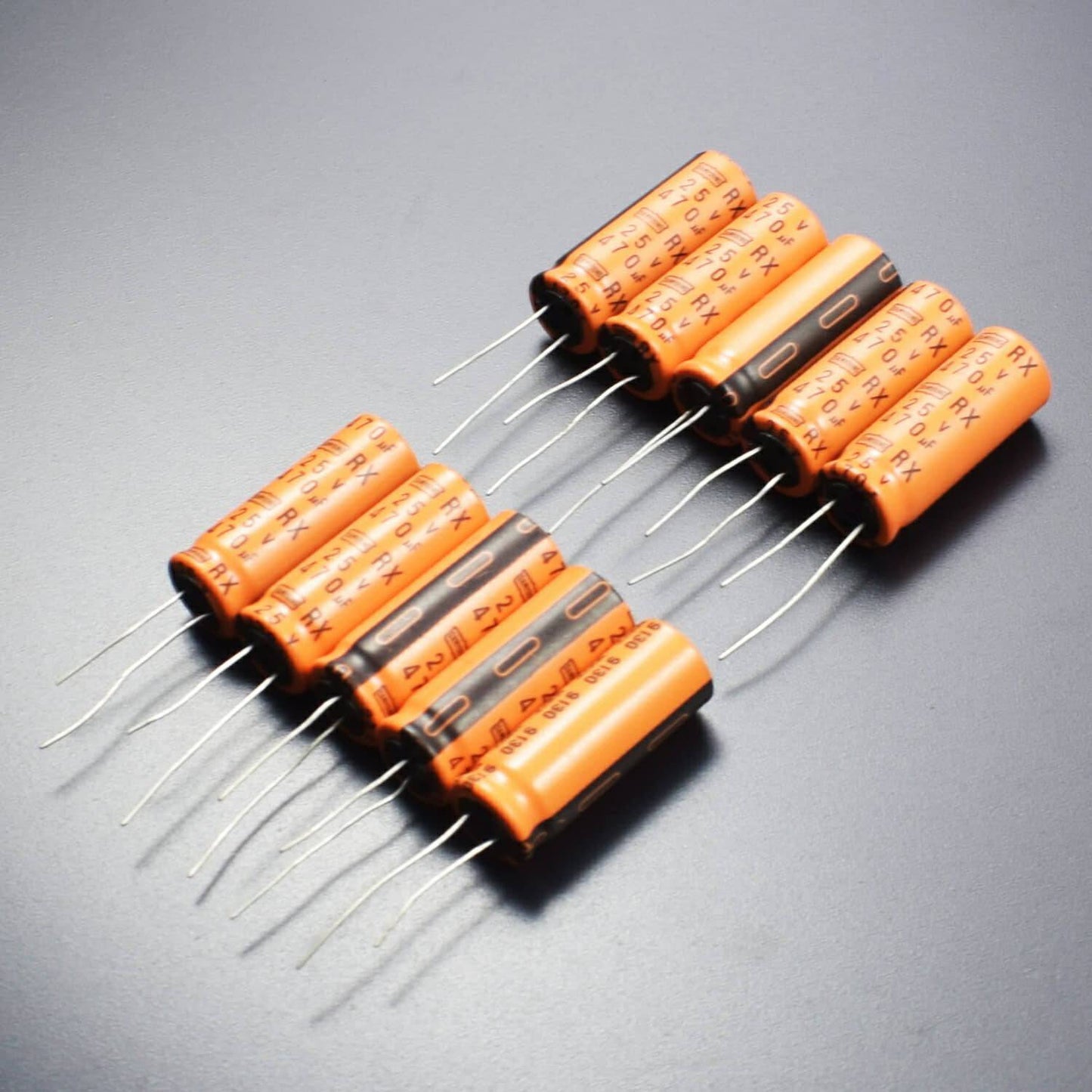

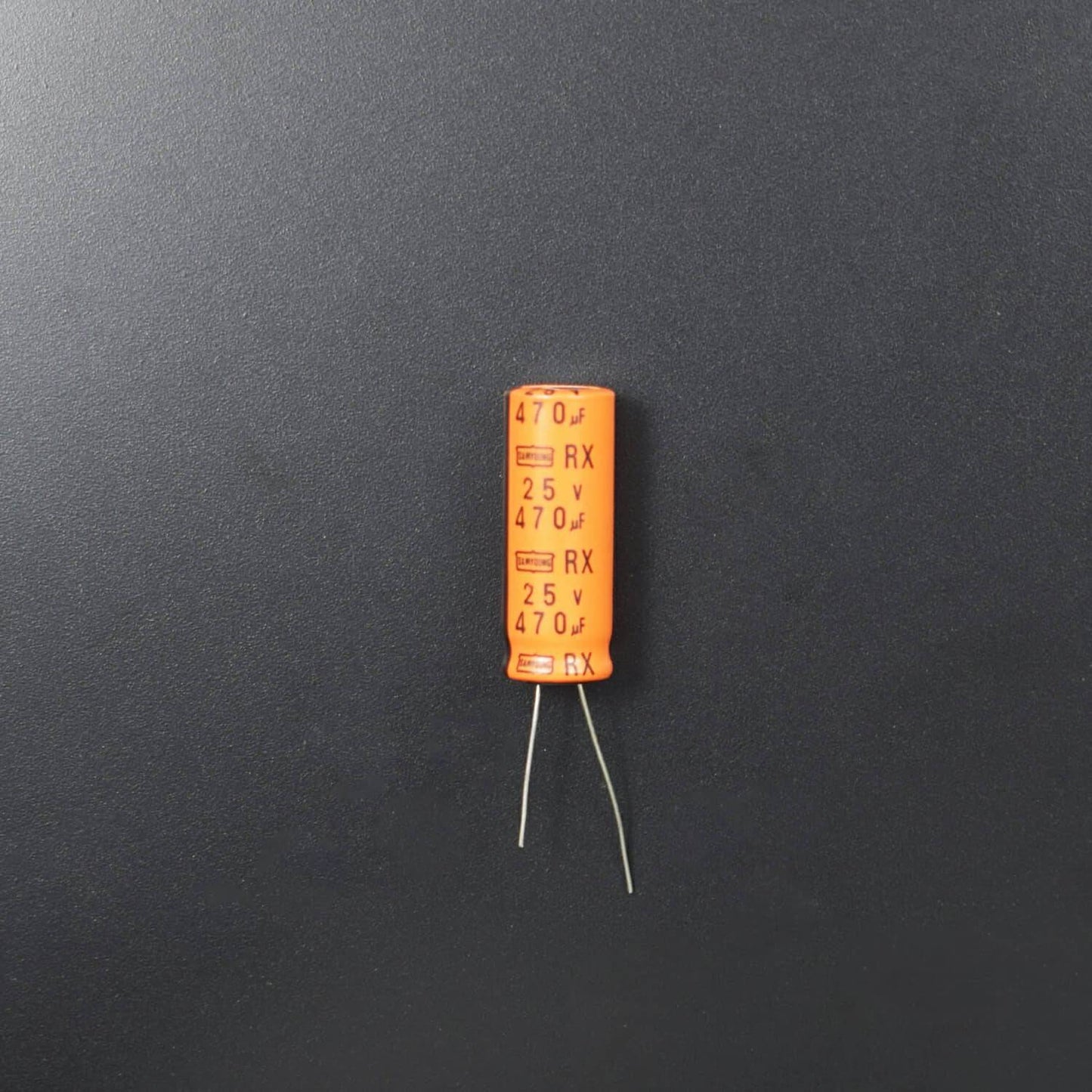

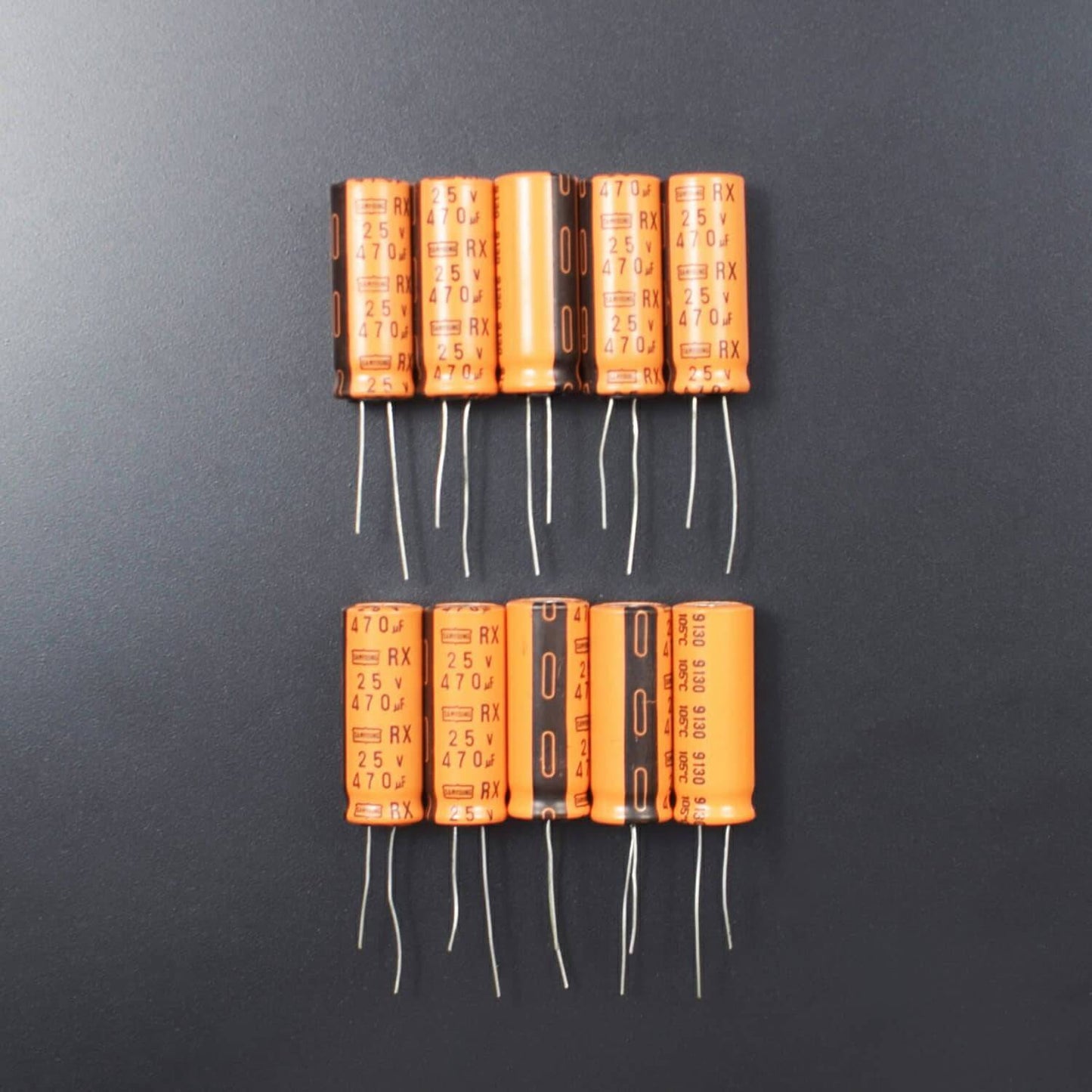

5 x 470uF 25V EEUFR1E471L Slim Ultra Low ESR Electrolytic Capacitors
