Description:
433MHz Wireless Relay Module Wireless with RF Remote Control Switch without Battery can be controlled by a wireless remote through a wireless RF link. The 433MHz Wireless Relay Module can be used to control 240 V AC up to 10A appliances, motors, other electronic circuits, etc. The 433MHz Wireless Relay Module can operate within a range of 50m when the remote is in line of sight and around 25m when indoors.
Specifications:
- Working Mode: Output selectable between Latching and Non-Latching types
- Operating Voltage: 24V DC
- Working Current: 50 ~ 200mA
- Operating Frequency: 433MHz
- Maximum Relay Load Ratings: 5A 220VAC / 10A 24VDC
- Application: 4 x AC 230V up to 10A
How to Operate:

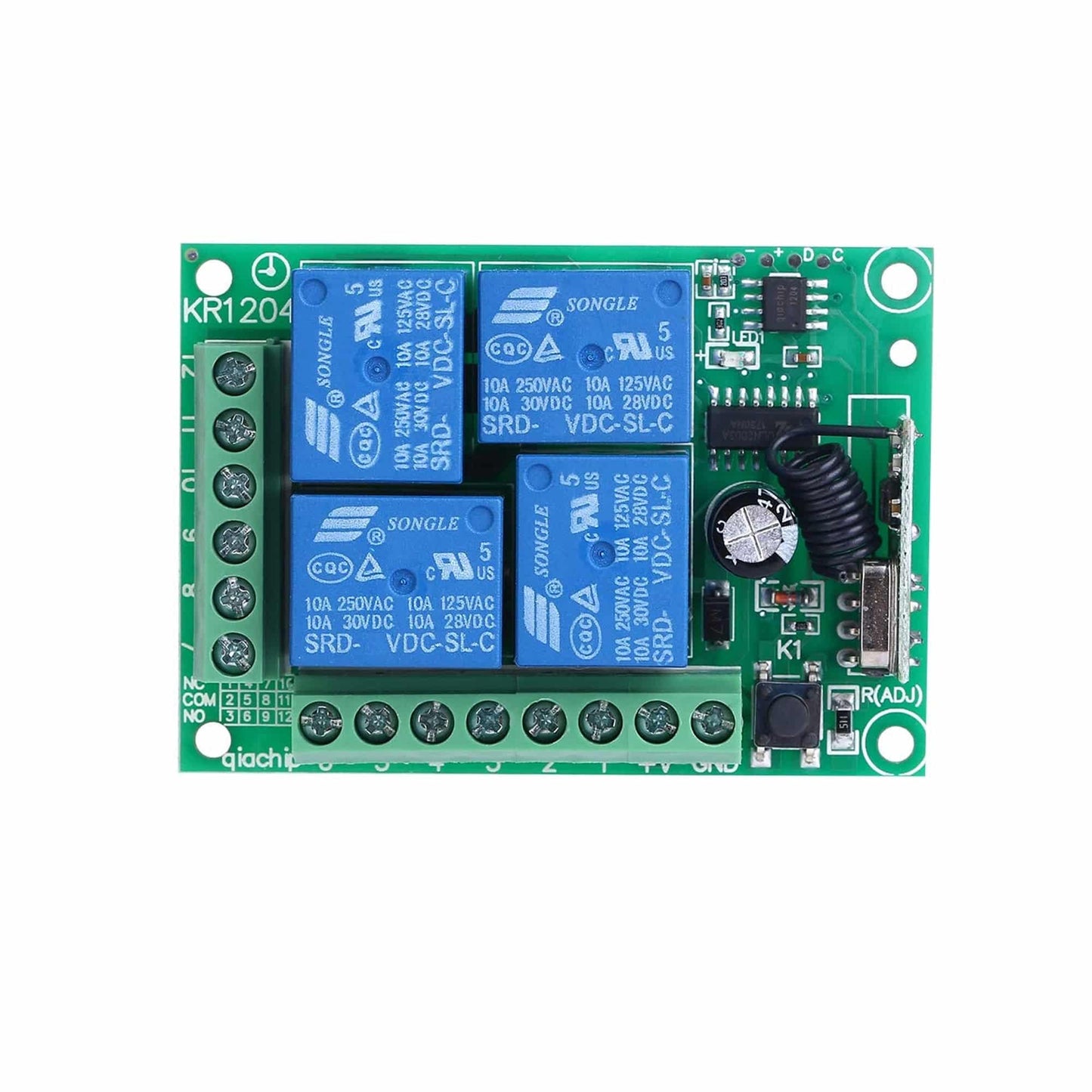

Set Output Type Set output type by changing the position of the upper left corner of the JP2 jumper to adjust-
- Interlock status – all vacant Jumper
- Non-lock status – the jumper on 3,4
- Self-locking state – the jumper on 1,2
- 2 2 Non-Self-locking lock –1,2 plug, plug 3,4
Linking Remote-
- To link the remote and relay, power the 433MHz Wireless Relay Module, hold down the button for about 1 second to learn to let go,
- Learn indicator light flashes, press the button on the remote control to learn indicator light flashes after a few off, both represent learning success.
Package Included

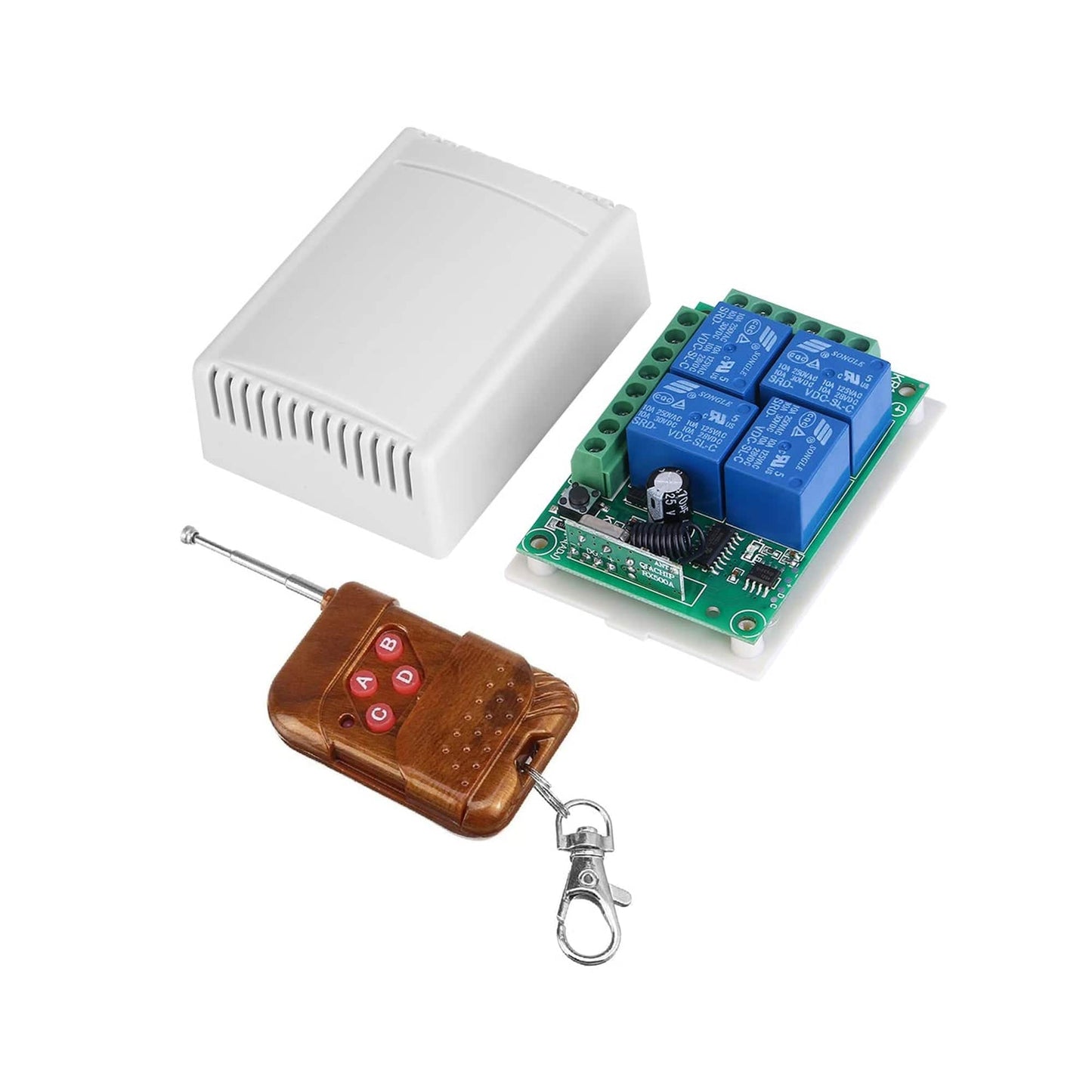

1 x 433MHz Wireless Relay Module 433MHz 24V 4 Channel Relay Module Wireless With RF Remote Control Switch - Without Battery
