433MHz Wireless Transmitter-Receiver Kit 433MHz ASK/Superheterodyne Module Set 100m Range STX882/SRX882 Wireless Communication Kit Low Power Consumption Transmitter And Receiver - RS3195

433MHz Wireless Transmitter-Receiver Kit 433MHz ASK/Superheterodyne Module Set 100m Range STX882/SRX882 Wireless Communication Kit Low Power Consumption Transmitter And Receiver - RS3195

SKU:RS3195

58 in stock

Regular price Rs. 175.00
Regular price Sale price Rs. 175.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

Introducing the 433MHz 100 Meters STX882 ASK Transmitter Module SRX882 Superheterodyne Receiver Module with Antenna kit. Designed for long-range data transmission and reception, this kit includes everything you need to establish reliable wireless communication links across distances of up to 100 meters STX882 is an ASK transmitter module with small size, ultra-high power, low harmonics. With high stability, it is achievable at 50mW power when the voltage is 3.6V, it is the maximum transmitter power module under the same voltage in the market. The data port of the module can be connected to the microcontroller directly, make wireless product development and production more convenient.

SRX882 is a superheterodyne receiver with a micropower and strong driving force, which is a supplementary STX882 / STX888 module. The data port of the module can be connected to the microcontroller directly, make wireless product development and production more convenient.

SRX882 is a superheterodyne receiver with a micropower and strong driving force, which is a supplementary STX882 / STX888 module. The data port of the module can be connected to the microcontroller directly, make wireless product development and production more convenient.

Suitable antenna:

SW315-TH23 Gold Plated Spring Antenna: Designed for 315MHz wireless systems, offering small size, good VSWR, and stability..

SW433-TH22 Gold plated spring antenna: Tailored for 433MHz wireless systems, providing compact design, low VSWR, and durability.

Specification:

SRX882 Receiver:

  • Frequency Range: 315MHz to 433.92MHz
  • Voltage Range: 2.4V to 5.5V
  • Latency: 20ms @ 315MHz, 9ms @ 433MHz
  • Low Power Consumption: 2.5mA @ 315MHz, 2.8mA @ 433MHz
  • Sensitivity: -110 dBm @ 1.2Kbps
  • RF Data Rate: 0.1-9.6 Kbps
  • Wide Receiver Bandwidth: 200 KHz
  • Dimension: 35mm x 10.5mm
  • Antennas: Included for enhanced performance

SRX882 Transmitter

  • Frequency Range:315MHz to 433.92MHz
  • Maximum Output Power: 50mW at 3.6V (Market-leading)
  • Voltage Range: 1.2V to 6V
  • Data Rate: Up to 10kbps
  • RF Power:13dBm @2.4V, 15dBm @3V, 20dBm @5V
  • Low-Power Sleep Mode: 1μA
  • Modulation: ASK/OOK
  • Compatibility: Direct microcontroller connectivity
  • Frequency Stability: Reliable and stable
  • International Standards: 0.875rem;">: Complies with various testing standards
  • Antenna dimensions:26 x 4.5 mm (Height x Dia.)

Specification:

  • Operating Voltage (V): 1.2 ~ 6
  • Current Consumption: 34mA @3.3V
  • Operating Temperature: -20 ~ +70
  • Sleep Current : 0.01A @DATA AS Low Level
  • Frequency Range (MHz): 315 ~ 433.92
  • RF Power : 13dBm @2.4V, 15dBm @3V, 20dBm @5V
  • Air Rate (Kbps): 0.1 ~ 9.6

Features:

  • Frequency Range: 433 MHz.
  • ASK /OOK modulation mode.
  • Super anti-power interference.
  • Low-power sleeps less than 1A.
  • Low self-radiation.
  • Small size.
  • Frequency stability and reliability.
  • Various international testing standards.
  • Antenna dimensions: 36 x 5.5 mm(HxD)

Pin Description:

  • ANT: Connect 50 Ohm Antenna
  • GND: Connect Power Ground
  • VCC: Connect Power Positive
  • CS: Modules Enable Pin, Floating or Connected to High Level Work, Sleep When Connect Ground
  • DATA: Data Input
  • GND: Connect Power Ground
  • ANT: Connect 50 Ohm Antenna

  • ANT: Antenna Input
  • DATA: Data Input
  • VCC: Connect Power Positive
  • GND: Connect Power Ground

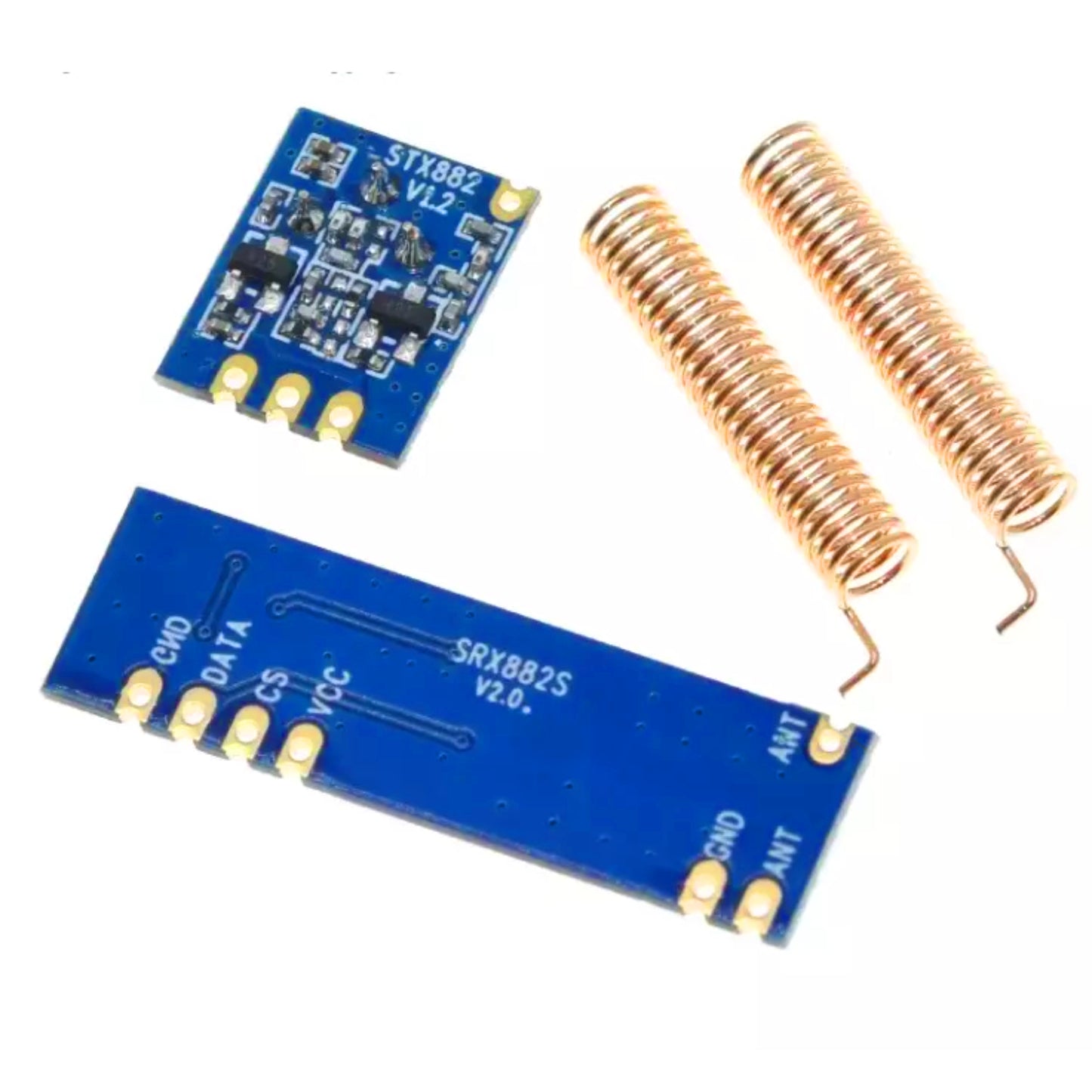

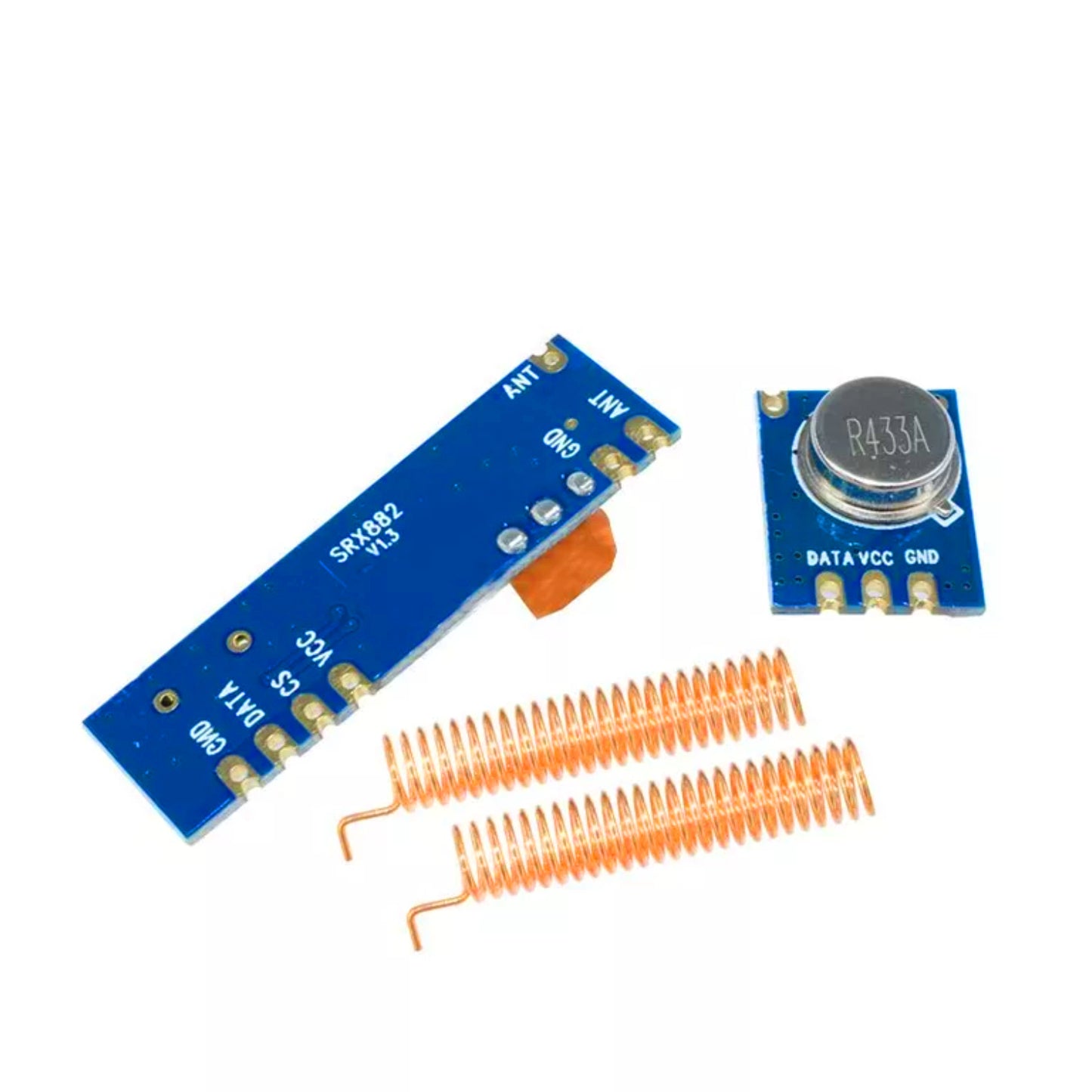

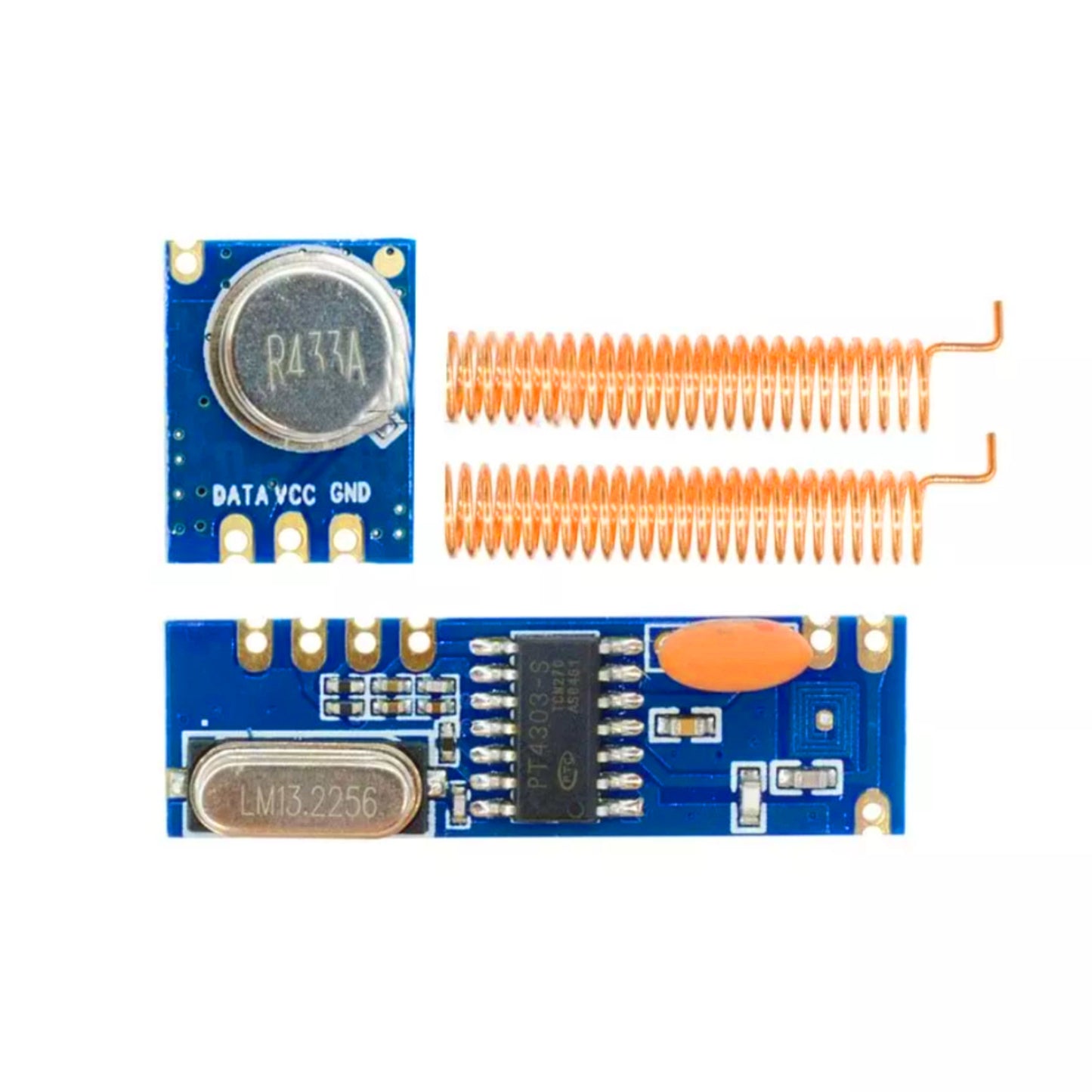

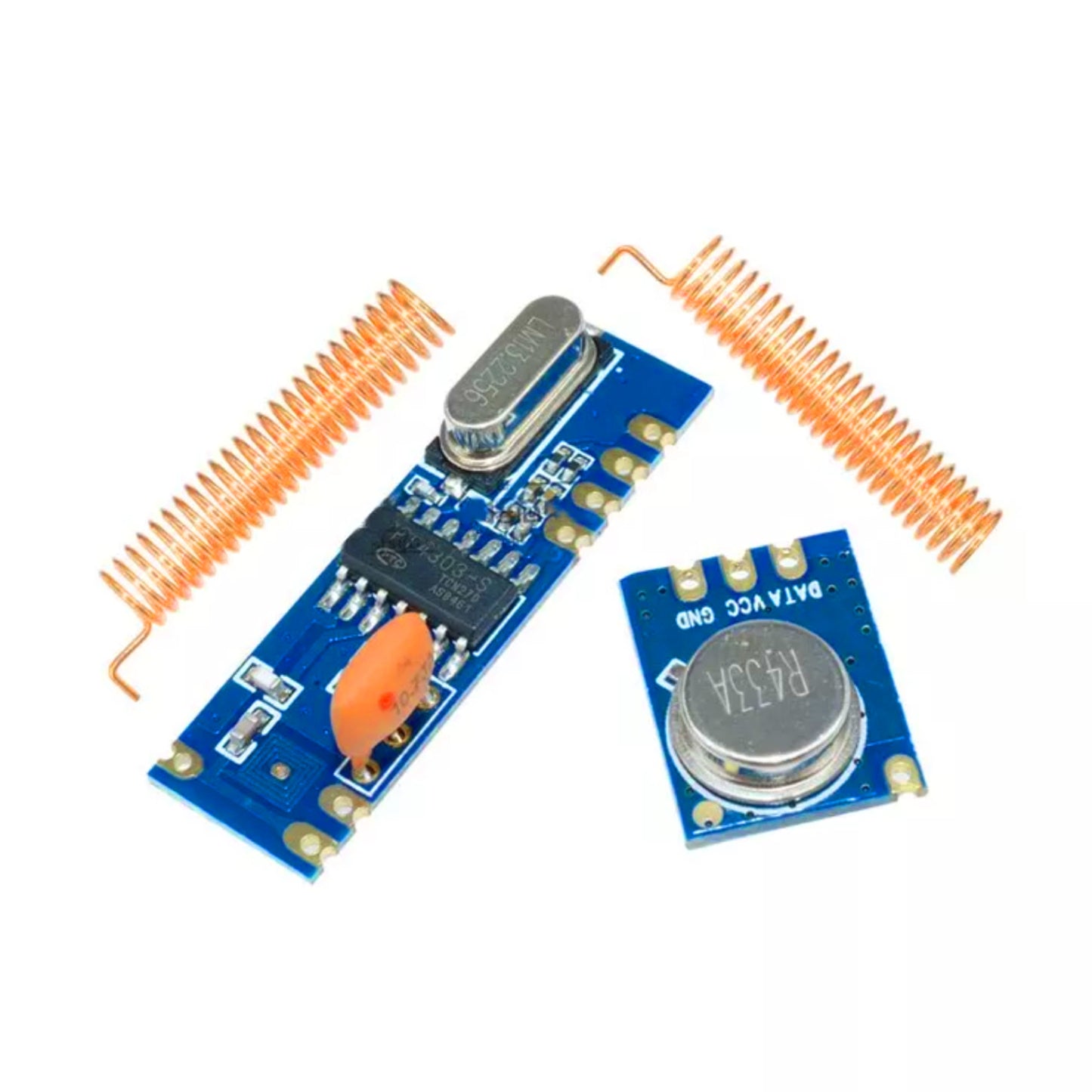

Package Included:

  • 1 x STX882 Transmitter Module.
  • 1 x SRX882 Receiver Module.
  • 2 x Antennas
