RF ASK Transmitter:
- Frequency Range: 433.92 MHz
- Supply Voltage: 3V ~ 12V
- Output Power : 4 ~ 12 dBm
- Standard Operating Voltage: 5V
Description :

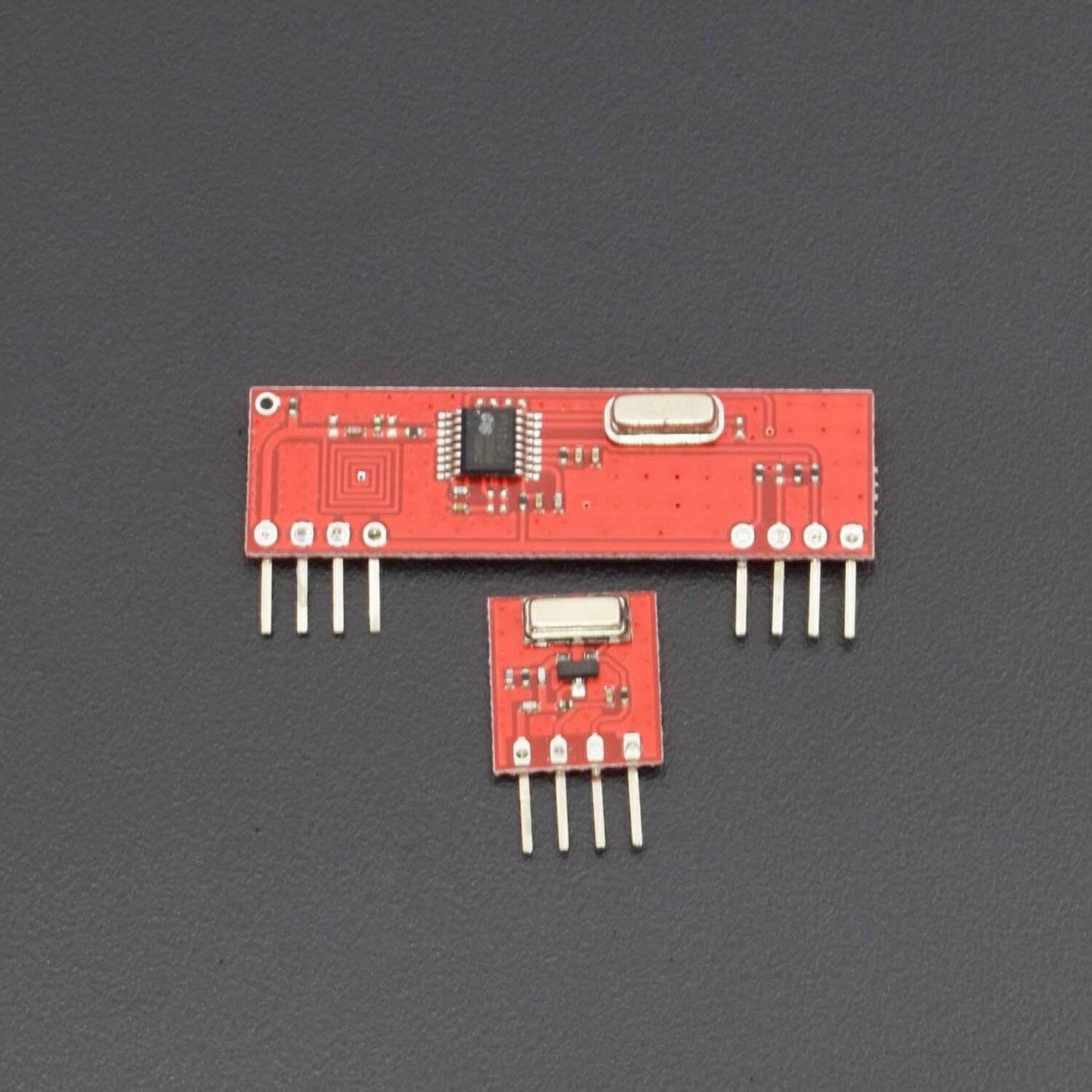

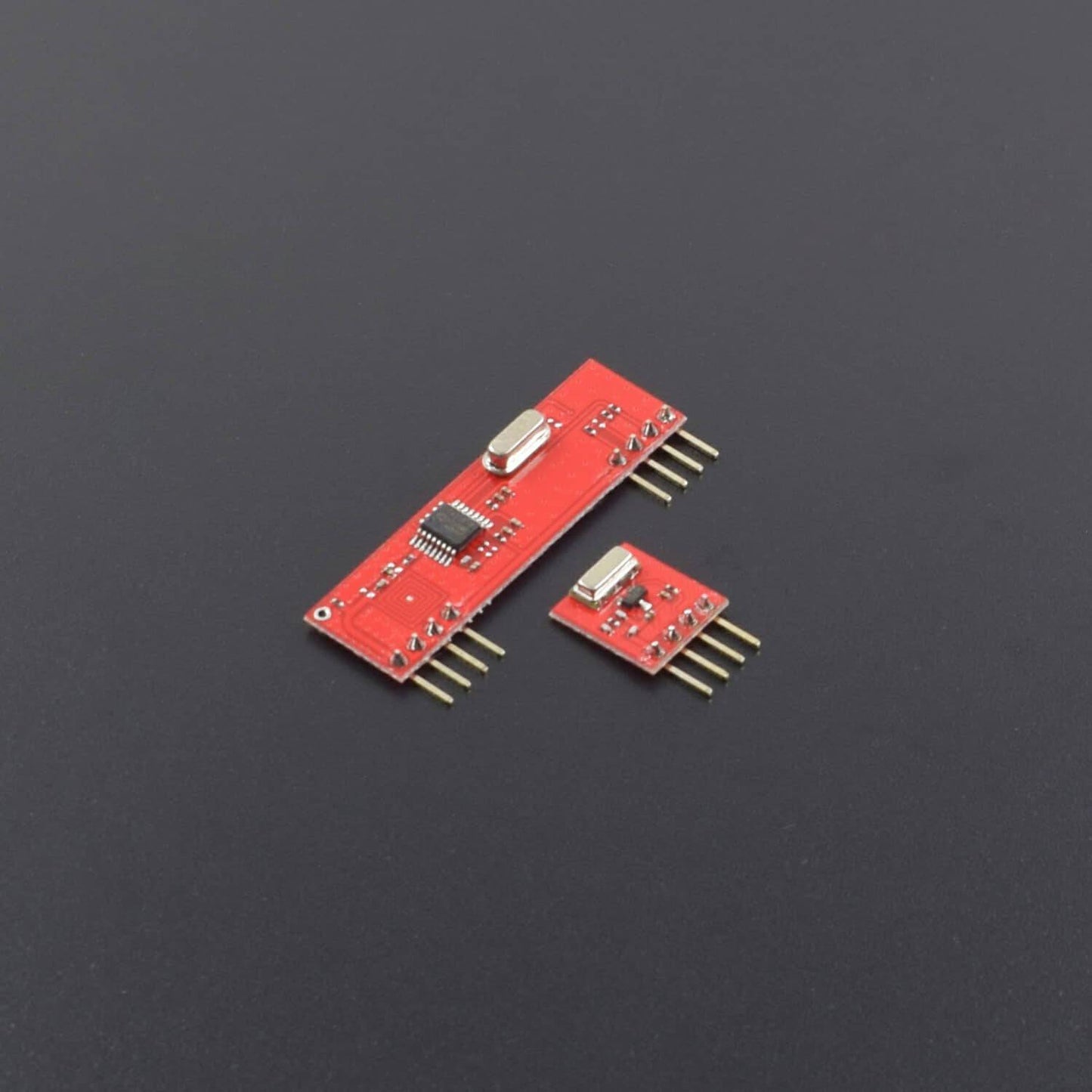

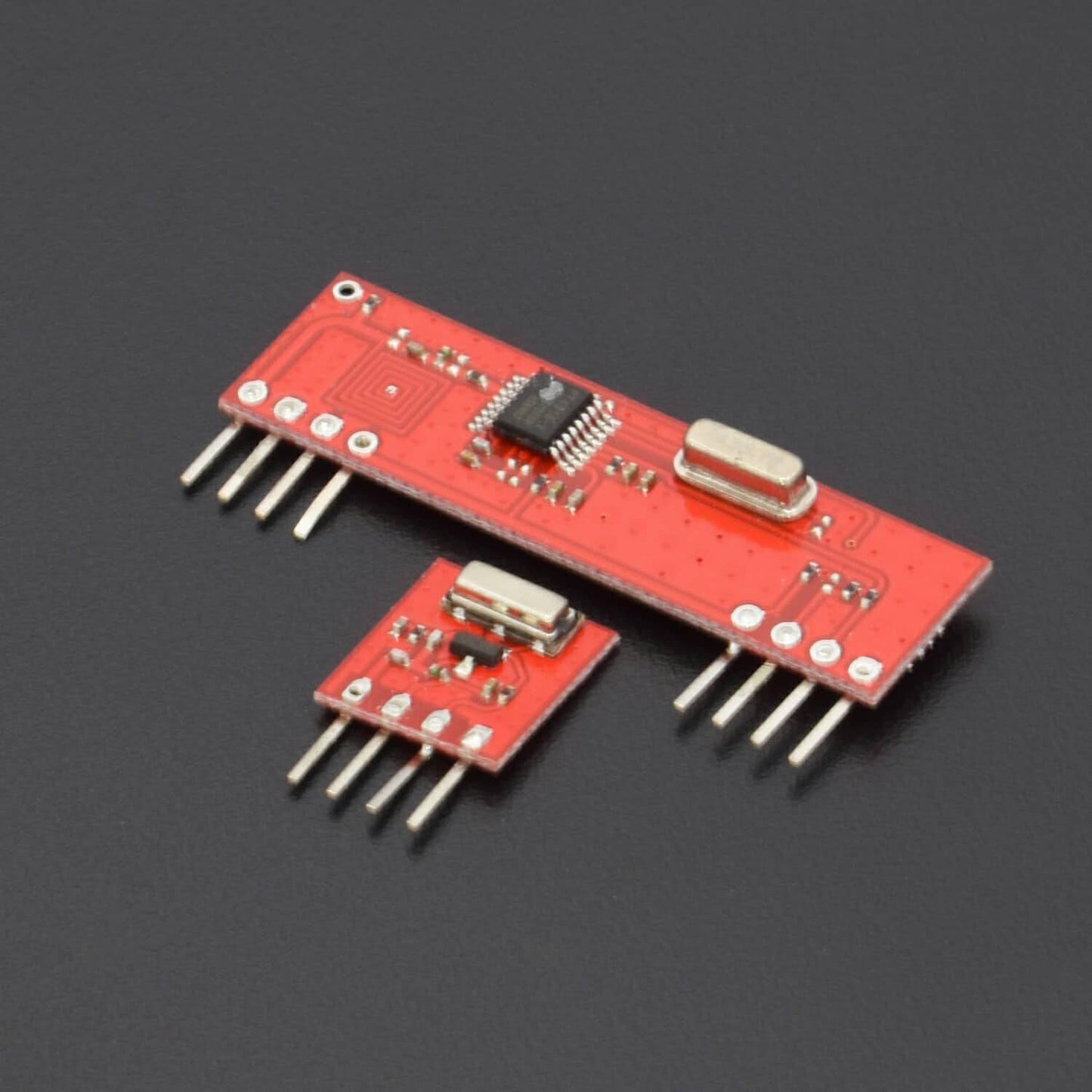

This RF module comprises an RF Transmitter and an RF Receiver. The transmitter/receiver (Tx/Rx) pair operates at a frequency of 434 MHz. An RF transmitter receives serial data and transmits it wirelessly through RF through its antenna connected at pin4. The transmission occurs at the rate of 1Kbps – 10Kbps. The transmitted data is received by an RF receiver operating at the same frequency as that of the transmitter. In many projects, we use RF modules for transmitting and receive the data because it has a high volume of applications than IR. RF signals travel in the transmitter and receiver even when there is an obstruction. It operates at a specific frequency of 433MHz. RF transmitter receives serial data and transmits to the receiver through an antenna which is connected to the 4th pin of the transmitter. When logic 0 applied to transmitter then there is no power supply in the transmitter. When logic 1 is applied to transmitter then the transmitter is ON and there is a high power supply in the range of 4.5mA with the 3V voltage supply.
Specification:
-
RF Transmitter:
- Frequency Range: 433.92 MHz
- Supply Voltage: 3V ~ 12V
- Output Power : 4 ~ 12 dBm
- Standard Operating Voltage: 5V
-

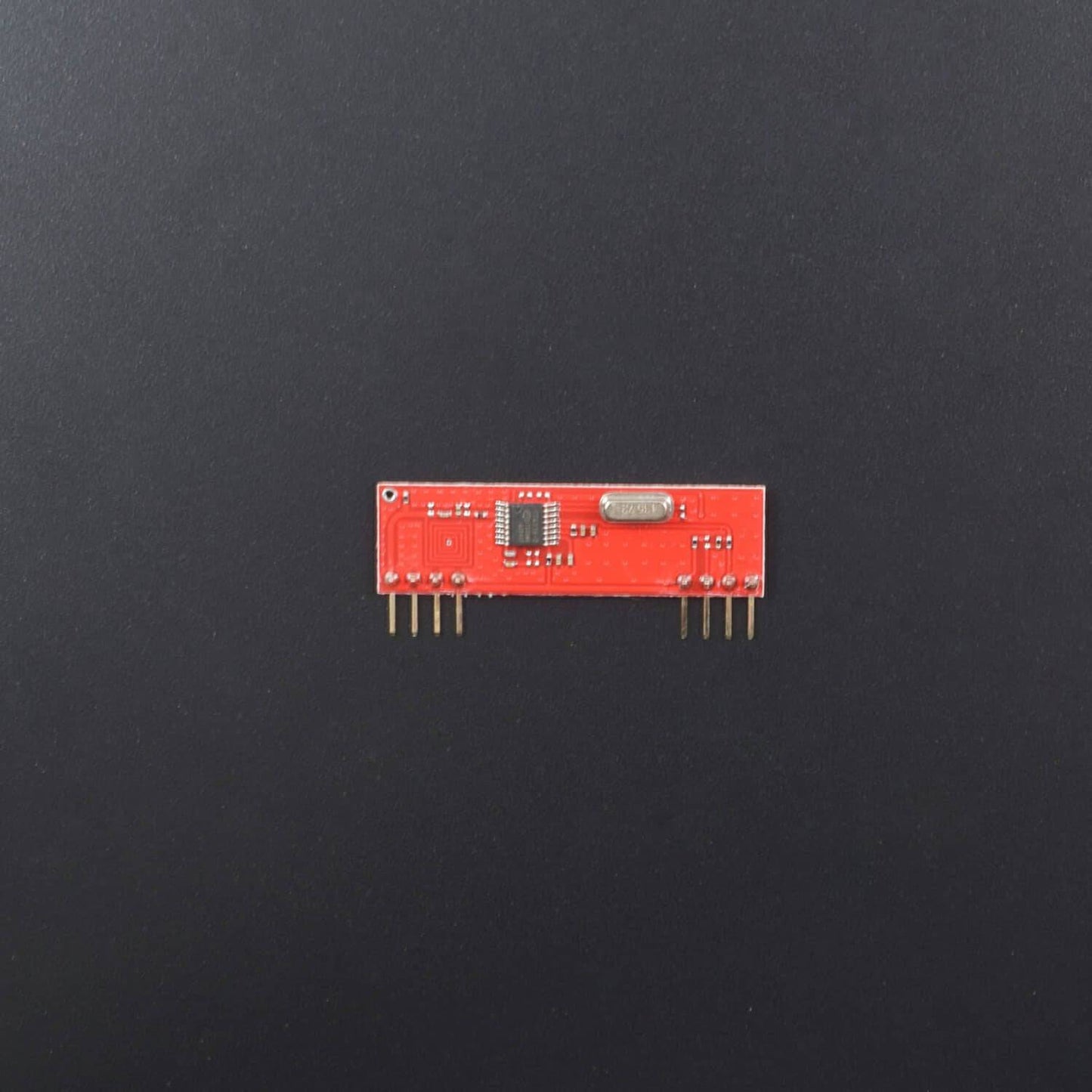

RF Receiver:
- Receiver Frequency: 433.92 MHz
- Typical Sensitivity : 105 dBm
- Supply Voltage: 3V ~ 12V
- Supply Current: 3.5 mA
- Standard Operating Voltage: 5V
Applications
- Remote Controls
- Automation System
- Wireless Security System
- Sensor Reporting
- Car Security System
- Remote Keyless Entry
Pin Description:
Package Included:
1 x 433 MHz Transmitter And Receiver
