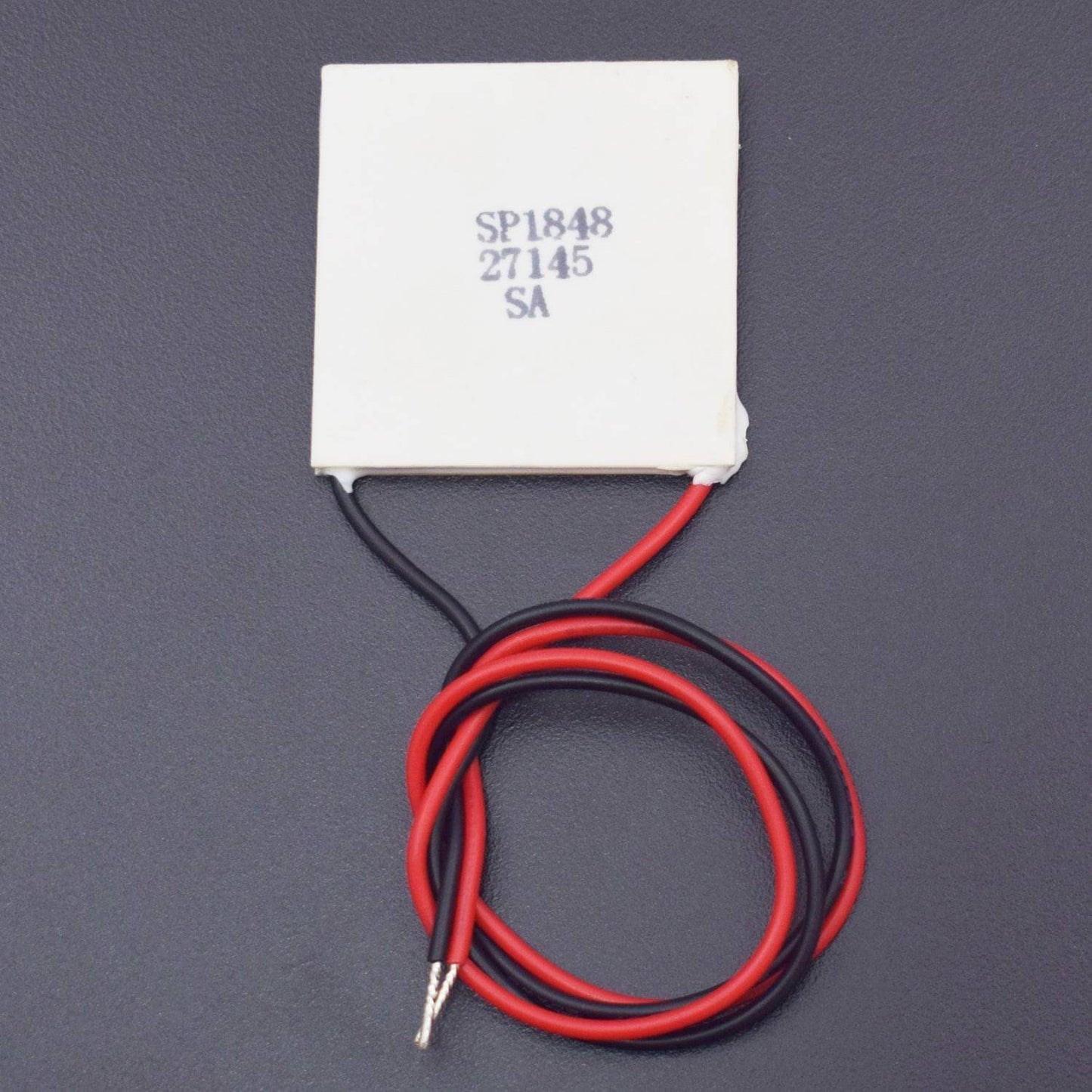

1 x SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150°C Peltier Module
- Small and lightweight, convenient for use.
- Designed specifically for power generation.
- Sealed for moisture protection and contain thermal elements formulated for optimum Seebeck power generation.
- High-temperature 120°C, with NM static protection.
- Operating Temperature: 0-150°C
- Maximum Temperature: 150°C
- Open Circuit Voltage: 4.8V
Description:
This magical cells based on the Peltier effect are capable of generating electric power. The SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150°C Peltier Module operates maximum up to 150°C which will give you different voltage and current outputs at different values of temperature.
Specification:
- Parametric model: SP1848-27145
- Color: White
- Temperature(C): 150 degree
- Open-circuit voltage(V): 4.8V
- Current(MA): 20/0.97/225; 40/1.8/368; 60/2.4/469; 80/3.6/559; 100/4.8/669
- Module weight: 25g / 0.89oz
- Module size: 4 * 4 * 0.4cm / 1.6 * 1.6 * 0.2inch (L * W * H)
- Package weight: 26g / 0.92oz
