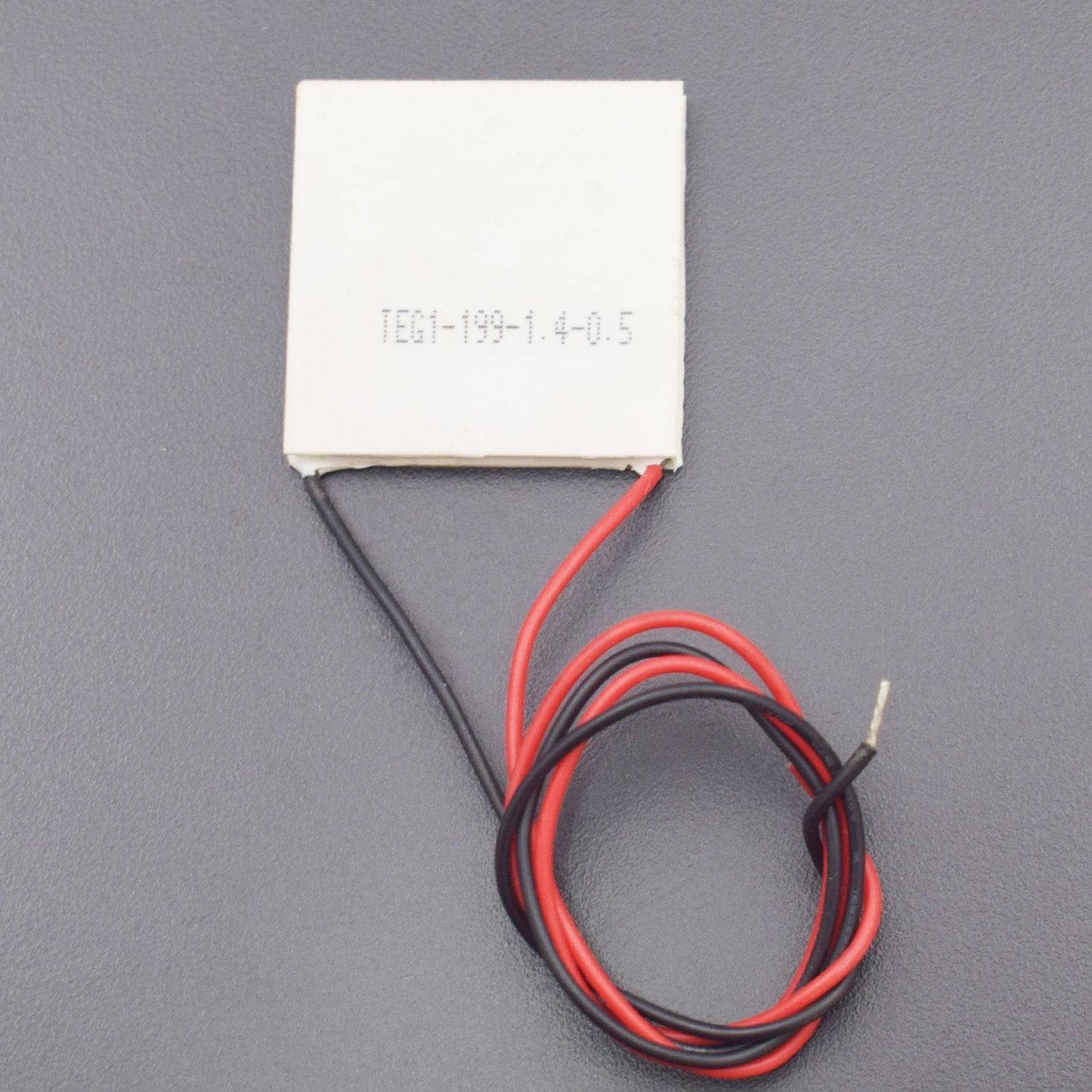

40x40mm TEG1-199-1.4-0.5 High Temperature Resistant Industrial Grade Thermoelectric Power Generator-RS1505

40x40mm TEG1-199-1.4-0.5 High Temperature Resistant Industrial Grade Thermoelectric Power Generator-RS1505

RS1505

Low stock: 5 left

Rs. 749.00
Rs. 749.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • TEG1-199-1.4-0.5
  • Model interpretation:
  • The standard TEG is used as the only correct identification of the thermoelectric generator
  • 1 represents a single layer of power generation devices
  • 199 for the thermoelectric power generation sheet the total log PN junction
  • 1.4 for the P node N knot individual particle cross-sectional area size 1.4*1.4mm
  • 0.5 for the P node N knot individual particle height 0.5mm

Description:

  • TEG1-199-1.4-0.5
  • Model interpretation:
  • The standard TEG is used as the only correct identification of the thermoelectric generator
  • 1 represents a single layer of power generation devices
  • 199 for the thermoelectric power generation sheet the total log PN junction
  • 1.4 for the P node N knot individual particle cross-sectional area size 1.4*1.4mm
  • 0.5 for the P node N knot individual particle height 0.5mm

Interpretation of electrical performance parameters:

  • The following data in a stable and continuous temperature difference of 120 degrees,
  • the environment is not the same, the data will be different, for reference only
  • Size: 40mmx40mmx4.2mm
  • Open circuit voltage: 11.1 Volts
  • Matched load resistance: 3.07 ohms
  • Matched load output voltage: 5.6 Volts
  • Output current: 1.8 Amperes
  • Output power: 10 watts
  • Heat flow through the module: About 192 watts
  • Heat flux: about 12 watts/cm2

Package included:

1 x 40x40mm TEG1-199-1.4-0.5 High Temperature Resistant Industrial Grade Thermoelectric Power Generator
