- Frequency: 10HZ-20KHz, 0dB
- Input 1 input (left and right channels), output 4 (left and right channels)
- Power supply voltage: AC 220V ± 10%
- Power consumption: 3W
Description:

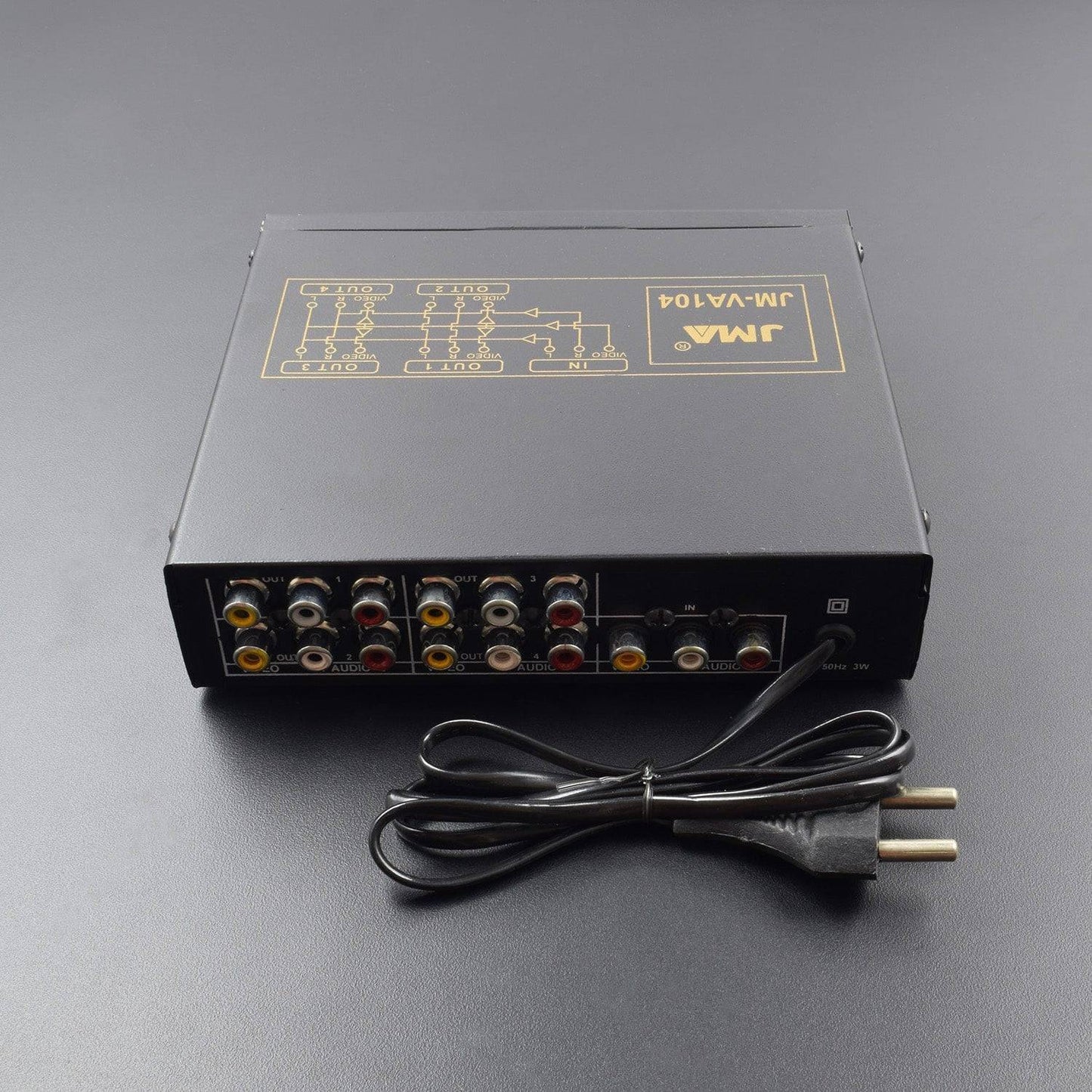

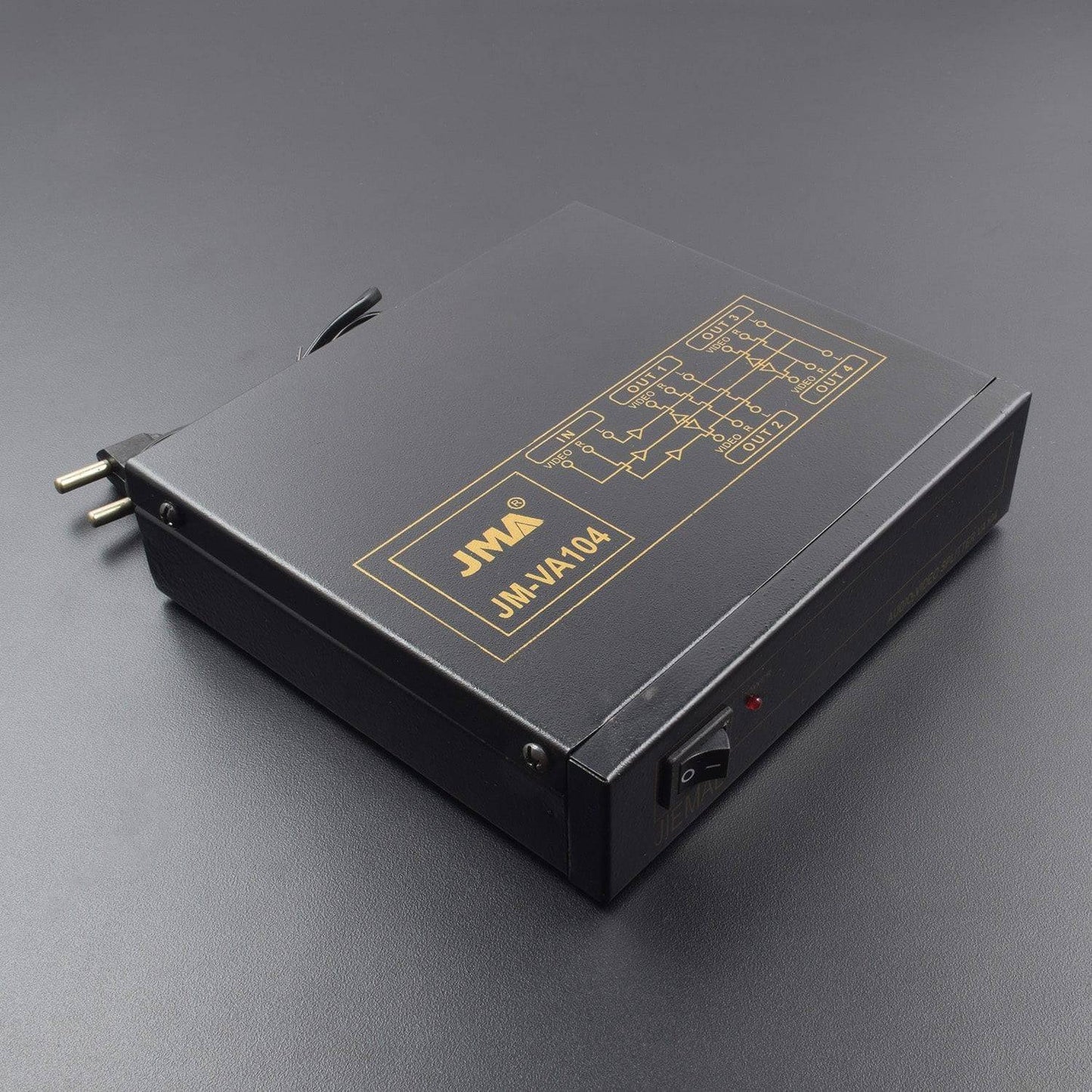

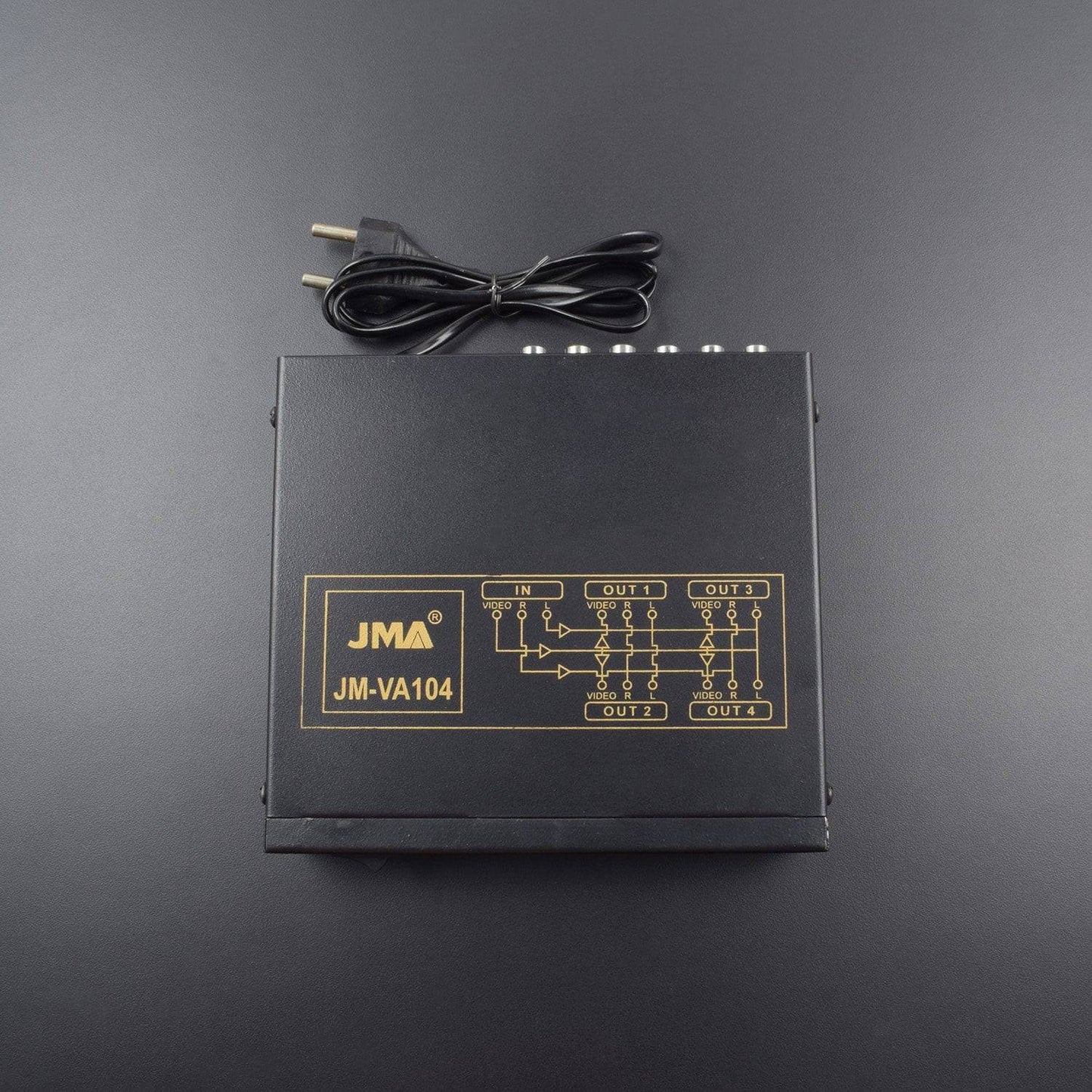

This is 4 way video to audio AMP splitter. Amplifies standard composite AV signal (yellow-red-white) and splits to 4 TV's or other devices at the same time. Powered by AC adapter. This is adopting high-quality components and advanced circuit design technology. It has independent amplified outputs, high isolation, excellent interference resistance ability. Suitable for family, hotel, shopping mall, school, factory, singing hall, etc.
Specification:
Video:
- Rated input signal level and impedance: VS0.8-1.0Vp-p/75
- Rated output signal level and impedance: VS0.8-1.0Vp-p/75
- Bandwidth: 50Hz-5.5MHz
- 1 input, 4 outputs
Audio:
- Rated input signal level and impedance: 2V (RMS) / 47K?
- Rated output signal level and impedance: 2V (RMS) / 1K?
- Frequency: 10HZ-20KHz, 0dB
- Input 1 input (left and right channels), output 4 (left and right channels)
- Power supply voltage: AC 220V ± 10%
- Power consumption: 3W
Features:
- Independent amplified outputs, high isolation
- Excellent interference resistance ability
- No additional software needed
- LED power indicator
- Metal enclosure
Package Included:
1 x 4 Way Video to Audio AMP Splitter
