Description:

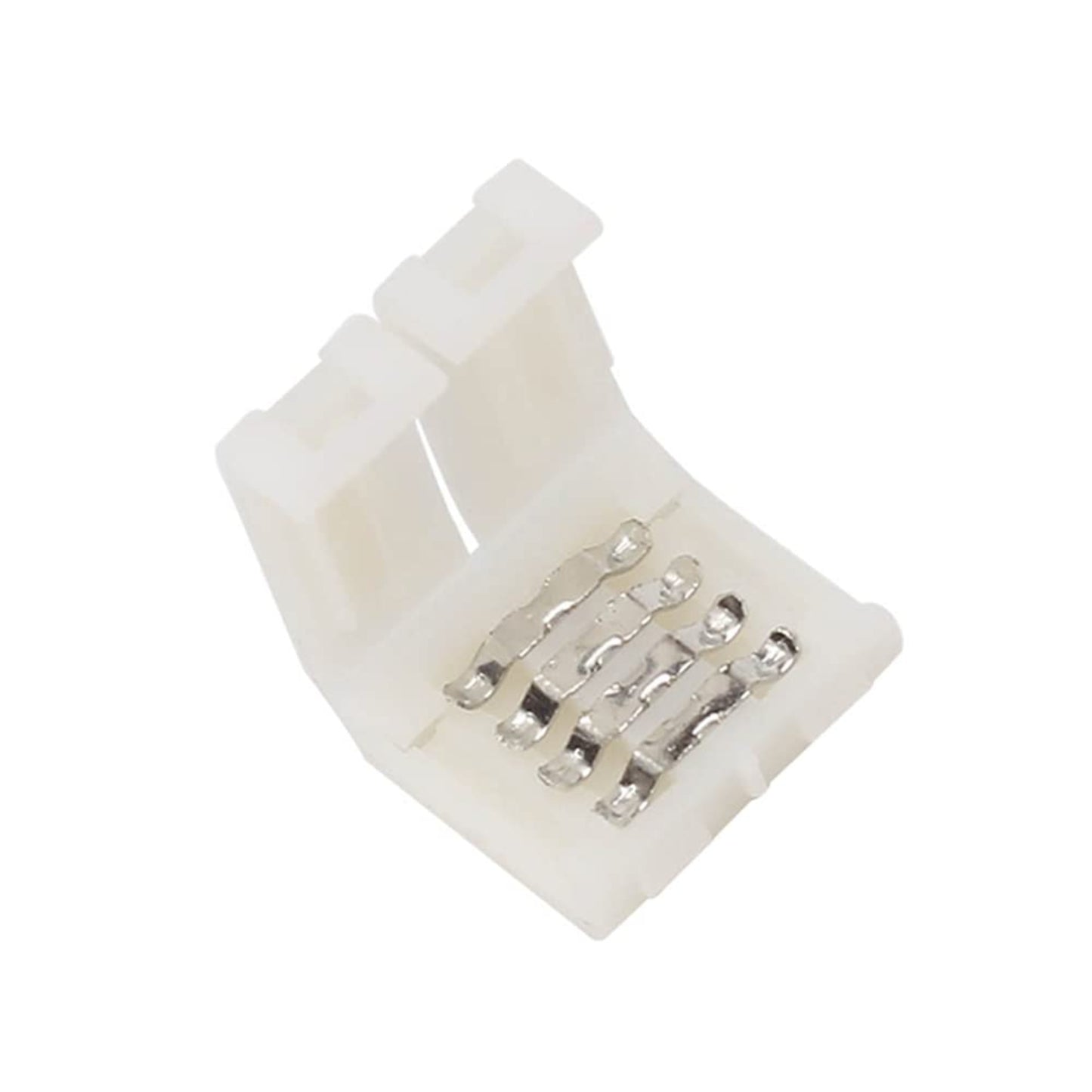

Our 4-pin LED strip gapless connector works for a 10 mm wide 5050 RGB LED strip. Provide solderless, gapless, and seamless connection for Both Waterproof and Nonwaterproof SMD5050 RGB LED strip lights. Not for SMD3528 RGB LED strip lights.
They are made from premium PVC material, heat resistant, Anti-burning, and No Fire Hazard. Make LED strips turn easily; Avoid twisting and damaging the LED strip.

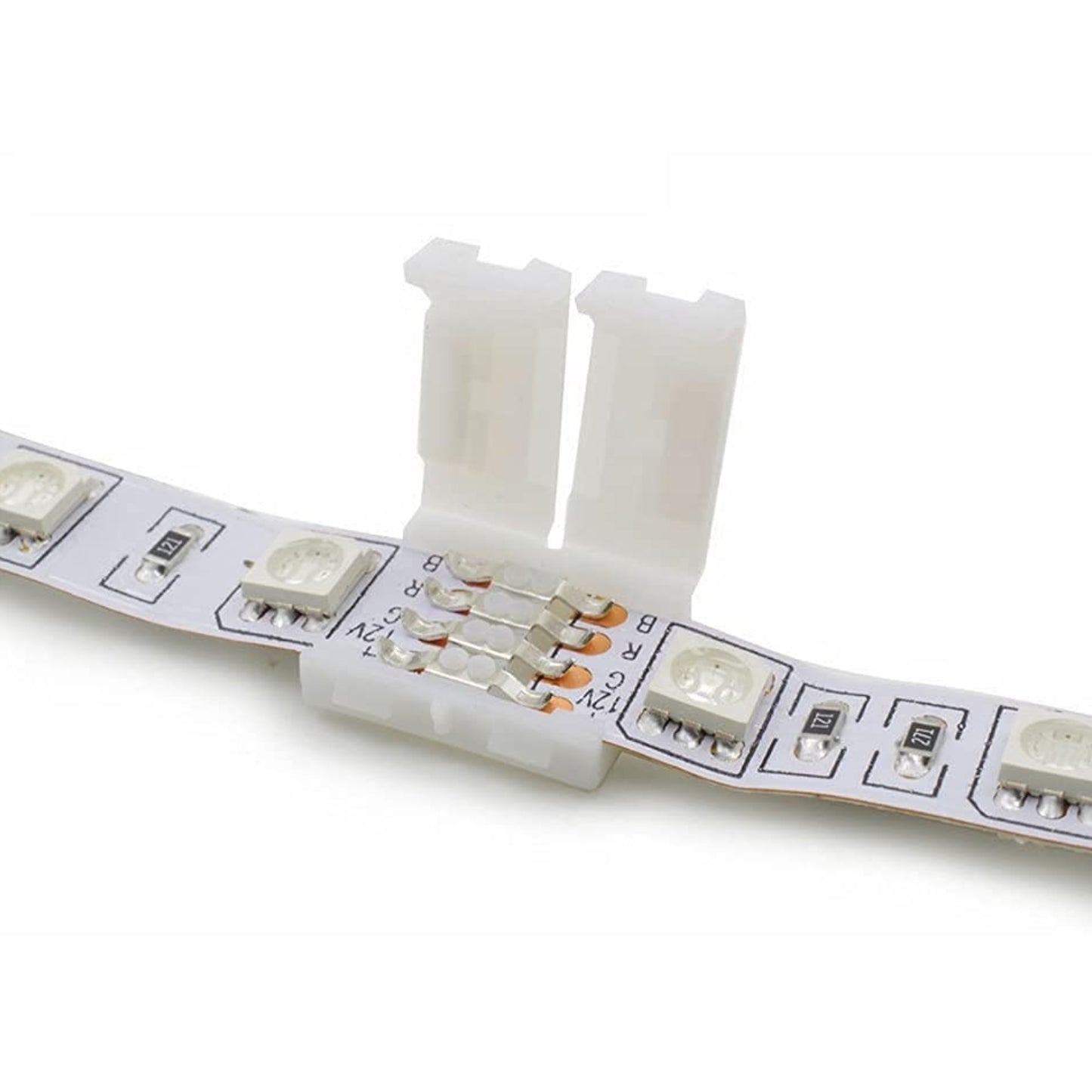

Connect between two 5050 LED strip sections to bypass/bend around a corner, curve, angle, or gap, making the connection natural and beautiful. Locks the LED light strip very tightly. 4-pin LED Light Strip Connector is better than the corner connectors because you don't waste space with the wires that connect them, the two strips literally join together right at this connector.
No need to solder. Open the wire clip. It should snap open with just a little effort. Insert your 10mm LED light strip inside the clip underneath the two contact prongs, making sure the side of the strip aligns with the symbol. Close Snap the wire clip shut. Gently pull on the wire to confirm you've secured the strip inside the connector. If you need to solder it with light strip cable, you had better use less tin in order to avoid short circuits.
Specifications:

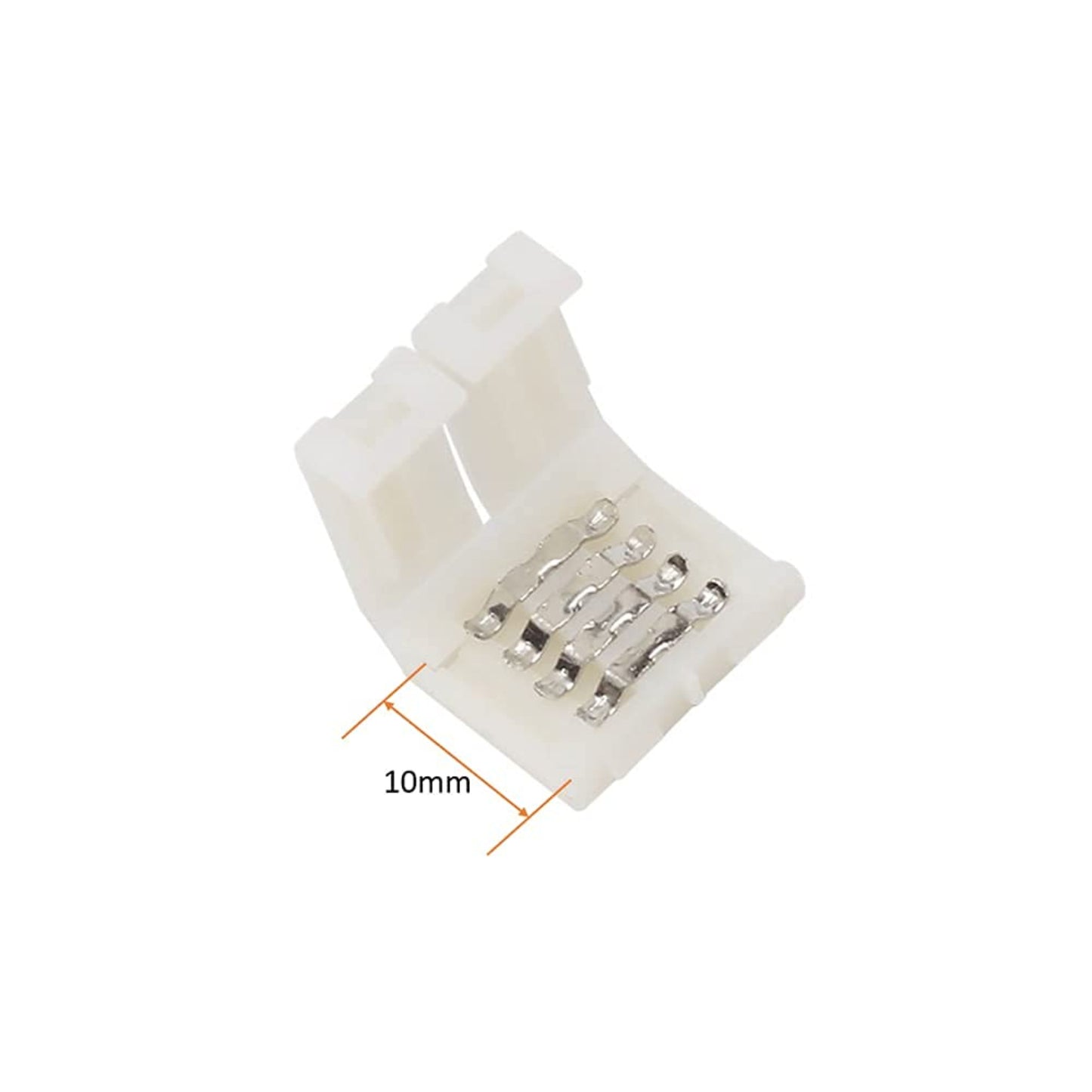

- Width: 10mm (4-PIN)
- Special Feature: Waterproof
- Light Source Type: LED
- Power Source: Corded Electric
- Light Colour: RGB
- Theme: Indoor
- Style: Modern
- Material: Plastic
Features:
- Welding Free
- Timesaving
- Easy to fix Reliable Connection

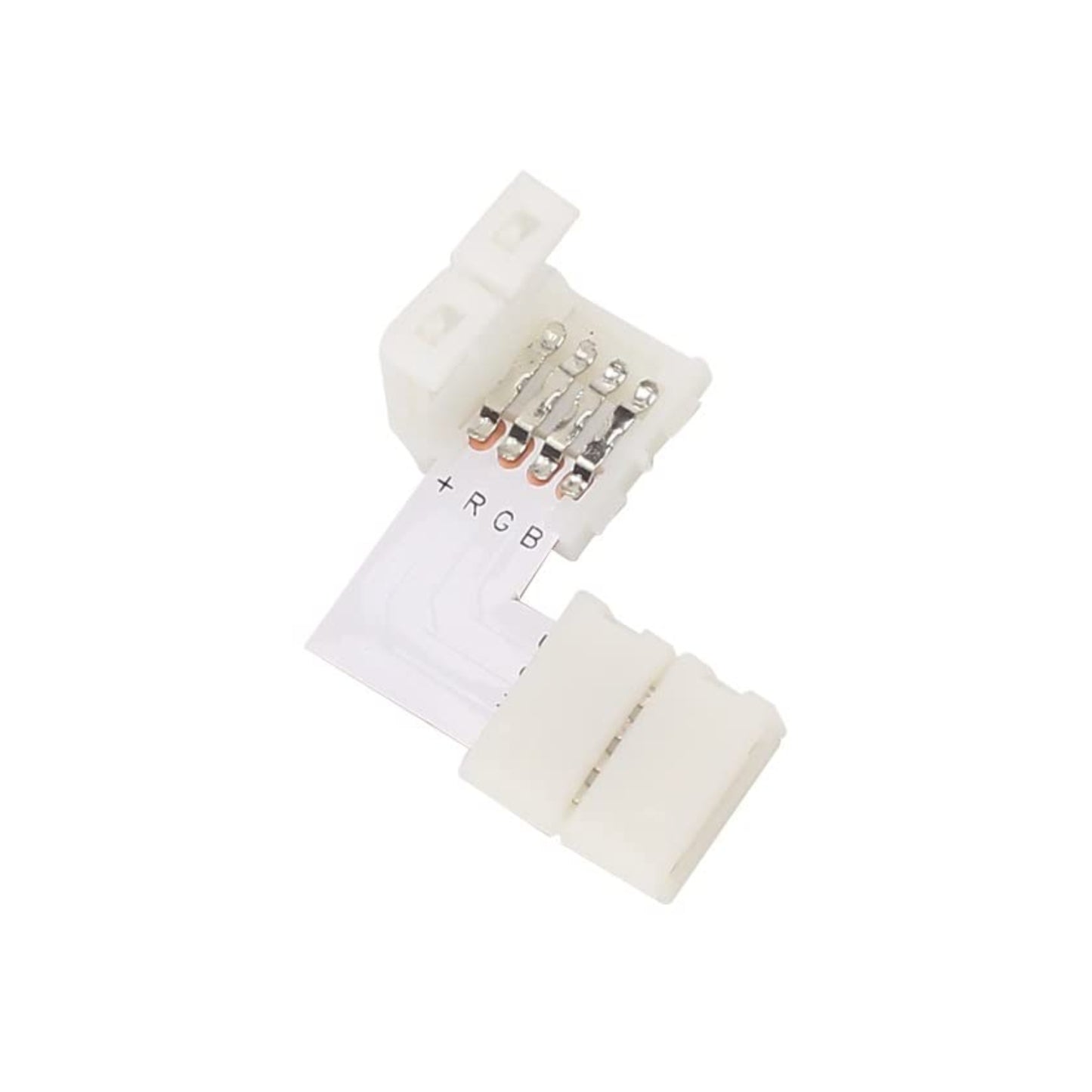

- Shape: L Shape
Installation Instructions:
- Ensure your section of LED light strip is 10mm wide RGB 5050 LED strip and has four contacts (+, B, R, and G) and all the contacts are dry and clean.
- Open the white clasp of the connector.
- If you have a waterproof LED strip, you should peel off silicon on the surface around the soldering/Cutting line area, then insert the LED light strip into the clasp, with the 4 contacts of the led strip under the 4 prongs of the connector- make sure to match the + side of the strip to the + side of the clasp;
- If you have a non-waterproof LED strip, just insert the LED light strip into the clasp, with the 4 contacts of the led strip under the 4 prongs of the connector- make sure to match the + side of the strip to the + side of the clasp.
- Close the clasp.
- Gently pull the LED light strip to confirm you've made a solid connection.
- Your connection is successfully made!
Package Included:
2 x LED Connector 4pin 10mm
