Description:
The 4-in-1 Car Refractometer Tester is made of high-quality material that can ensure the durability and stability of the refractometer. The antifreeze tester can test measure Ethylene Glycol, Propylene Glycol, Cleaning Fluids Battery Fluids, and so on, you can use it according to your needs.
The Automotive Refractometer Kit battery has a professional design and reasonable structure, the compact appearance can make it easier to operate. The battery antifreeze refractometer has a carry case that you can store is convenient to carry, and is simple to use. The antifreeze tester head has a transparent cover that can protect the measuring part from damage, and the service life is longer.
Specifications:
- Body Material: Aluminum and ABS Rubber
- Connectivity: USB
- USE: Freezing Point Refractometer
- Product Type: Refractometer
Features:
- ATC range: -10~30 ℃ (50~86 ℉)
- Automatic temperature compensation (ATC) easy to get the measurement data.

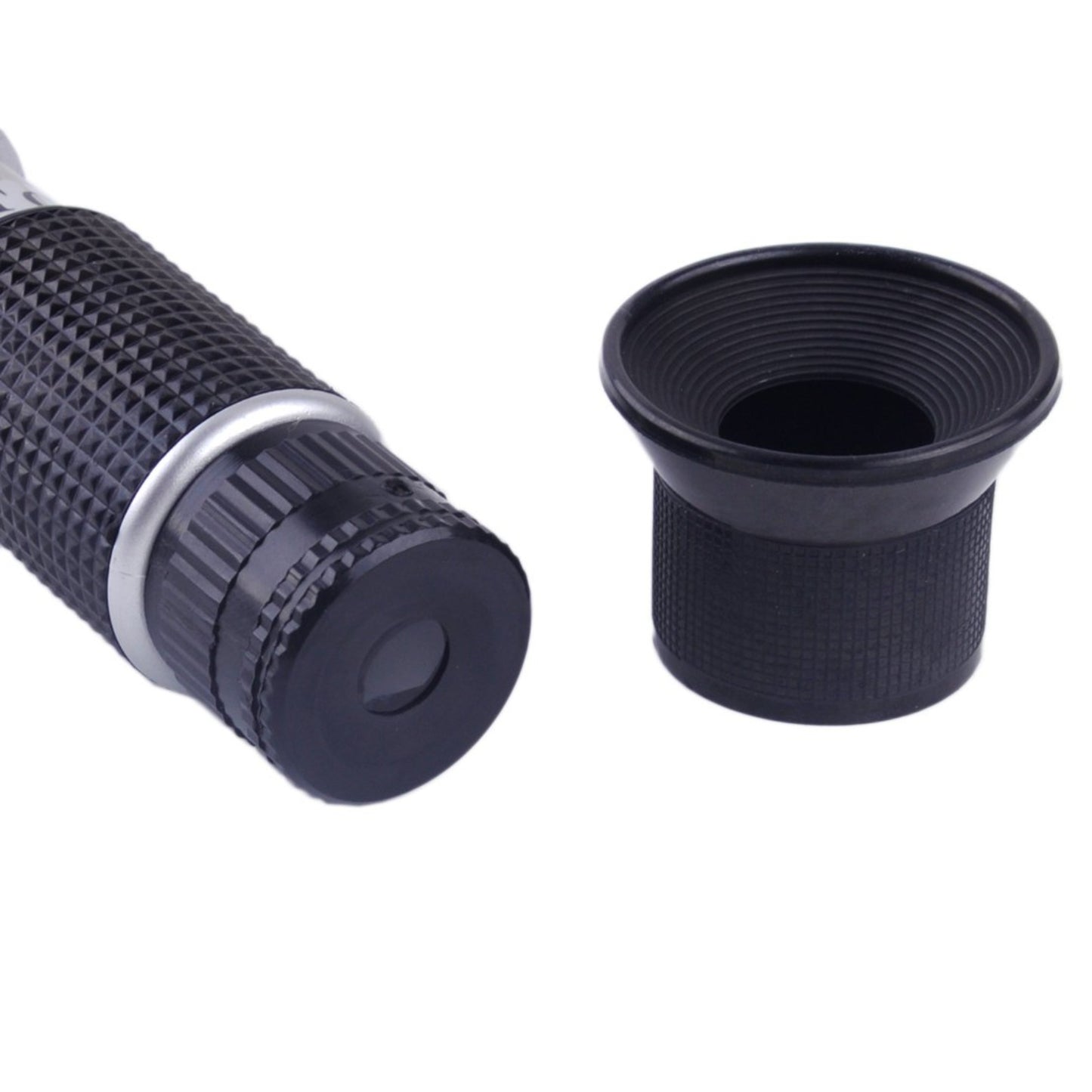

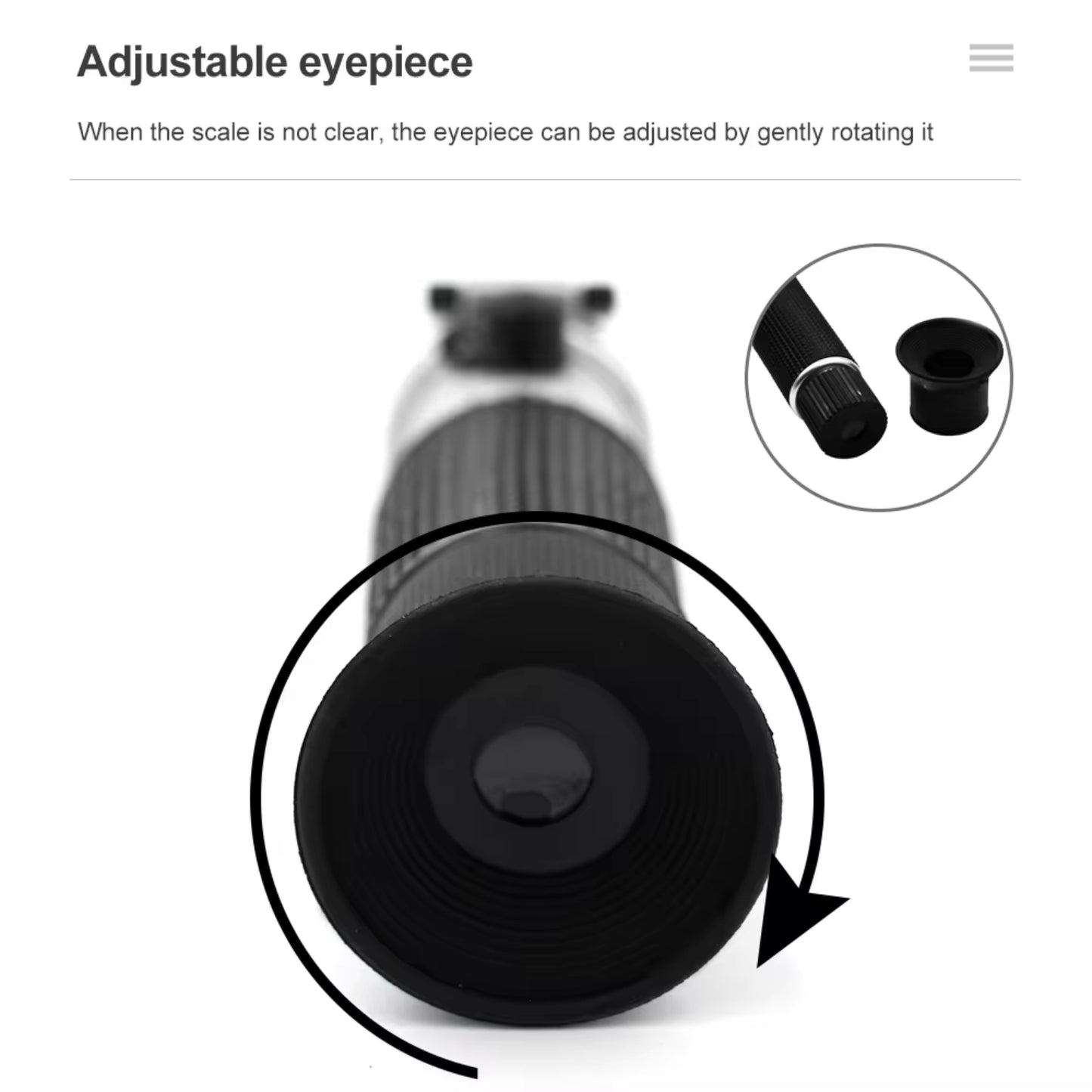

- Antifreeze refractometer can adjustable visual eyepiece to let you see the scale
- Use ambient light only which means a battery or power source is not required.
- The antifreeze refractometer can measure the automobile glass water, Adblue, Antifreeze, and battery liquid.
Steps For Usage:

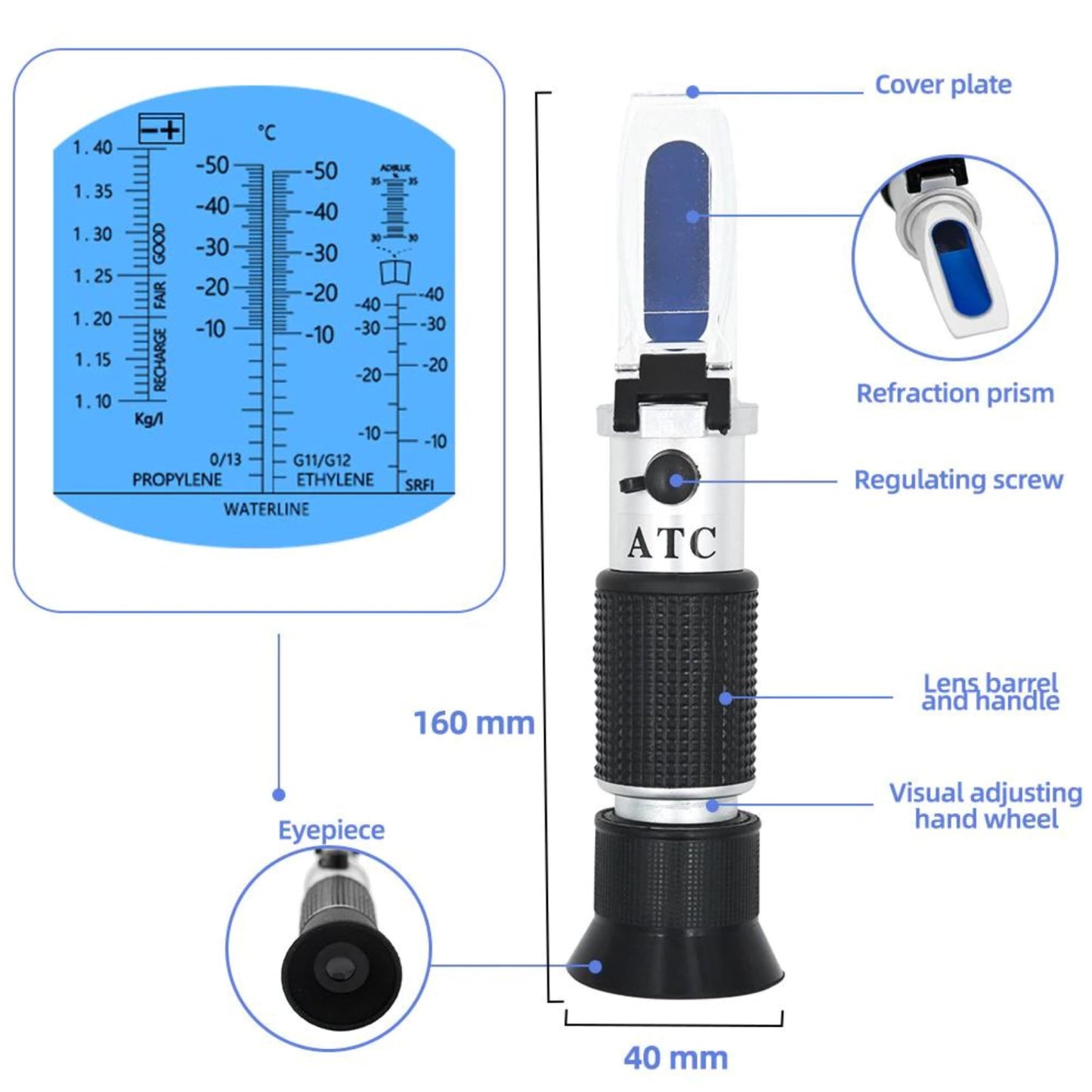

- The direction of the light refraction prism is aligned, adjust the eyepiece diopter ring, until the reticle is clear.
- Adjust the reference: first measured before using standard liquid (pure water), based on the same instruments and test liquid temperature. Open the cover, then take 2 to 3 drops of liquid droplets on a standard refractive prism, and gently press the flat cover, see a blue dividing line through the eyepiece. Rotational alignment screws so that the eyepiece of the blue boundary coincides with the reference line (0%) (Note: This optical instrument factory calibration, and can be used directly).
- Measure: Use a soft cloth to wipe the surface of the prism and cover, open the cover, take 2 to 3 drops of test solution on the refractive prism, Close the lid, and gently press the flat, which does not have bubbles, then read through the eyepiece relative scale blue demarcation line, is the measurement value of the measured liquid.
- After measurement, clean the surface of the prism and direct attachment on the cover with a damp cloth, to be dried and properly stored.
- When measuring the battery fluid, be careful not to spill on the skin and eyes, to prevent burns, carefully wipe the instrument after the test.
Package Included:
1 x 4-In-1 Refractometer Tester Automotive Refractometer Kit 4-In-1 Car Fluid Tester 4-In-1 Automotive Refractometer For Antifreeze, Battery Fluid, Urea, Glass Water & Coolant Tester
