4 Channel DC 5V/12V/24V Relay Module High/Low Trigger, Optocoupler Isolation Load 30A DC 30V AC 250V for PLC Automation Control, Industrial System Control (4-Channel 5V) - RS1868

4 Channel DC 5V/12V/24V Relay Module High/Low Trigger, Optocoupler Isolation Load 30A DC 30V AC 250V for PLC Automation Control, Industrial System Control (4-Channel 5V) - RS1868

RS1868

32 in stock

Rs. 699.00
Rs. 699.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

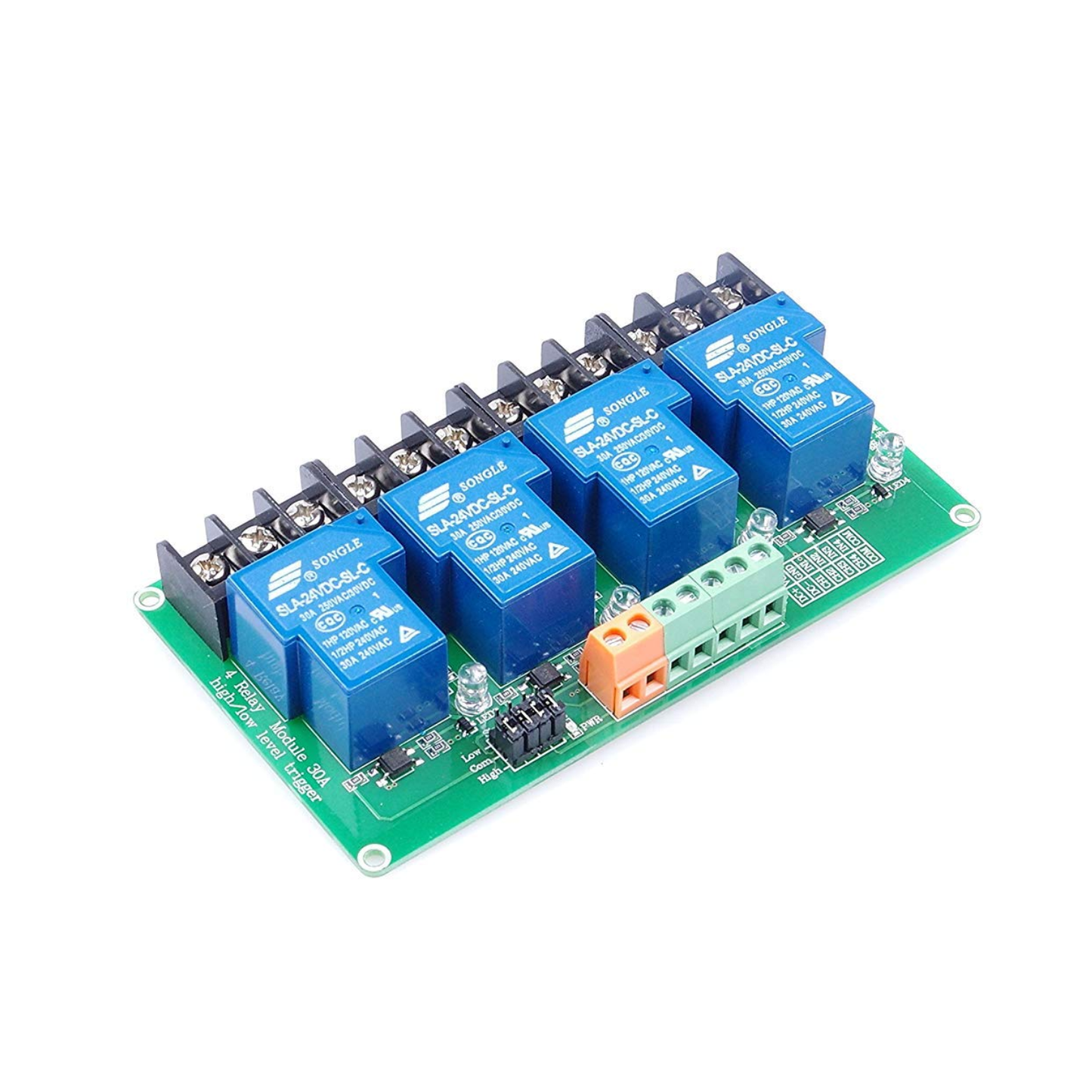

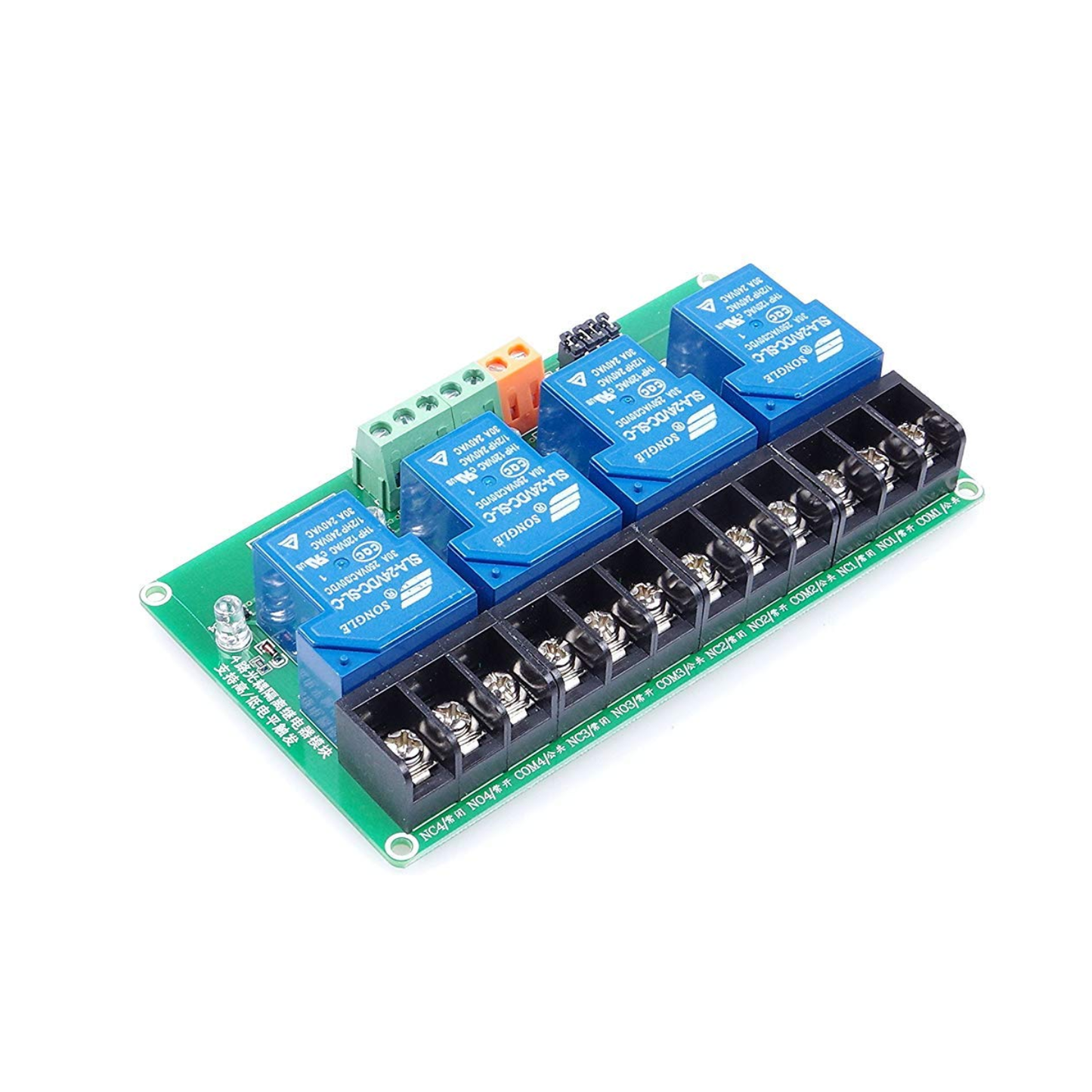

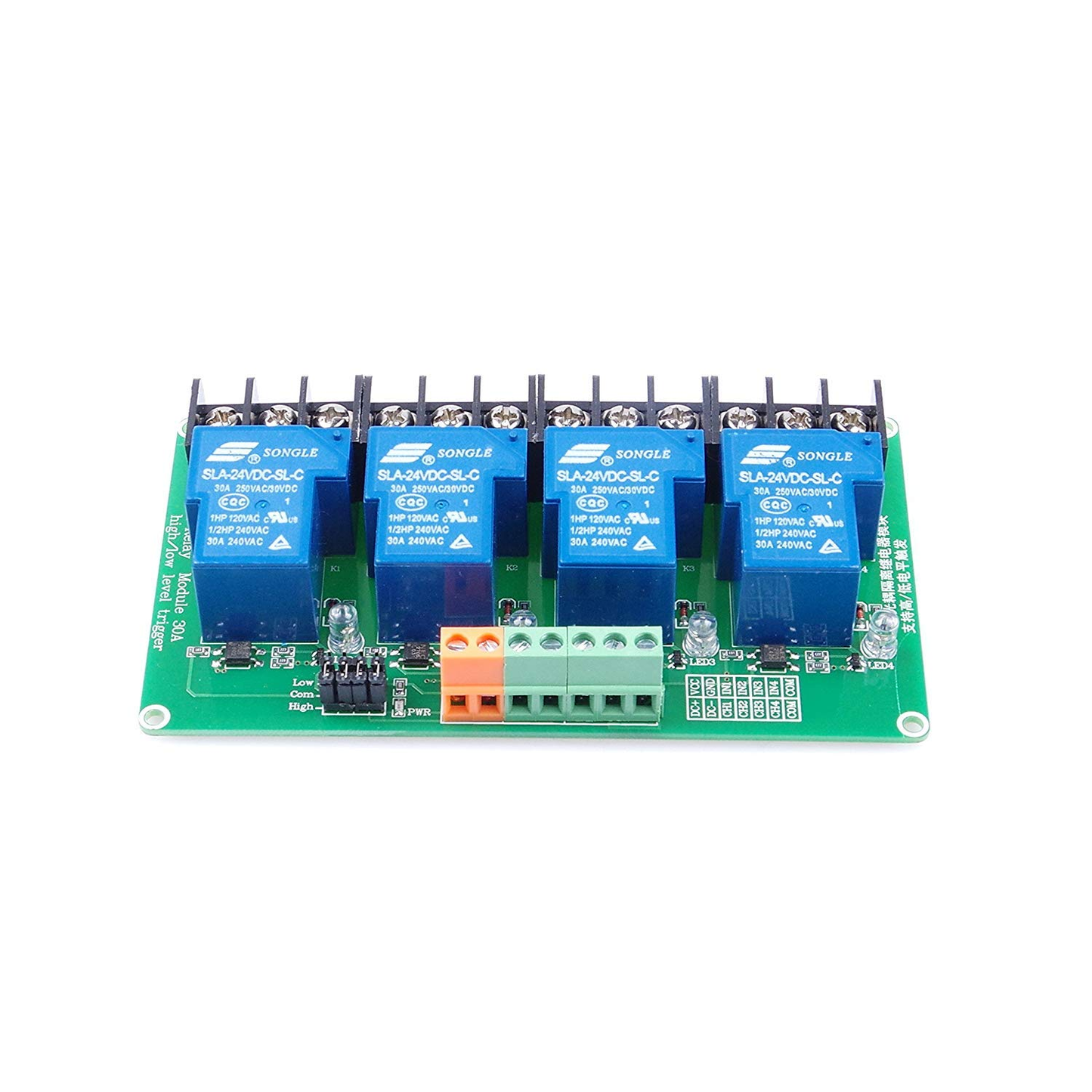

This 4-channel relay module is a high-power switching device that can be used to control up to four separate circuits. It has a maximum switching capacity of 30A at 30VDC or 250VAC, making it suitable for a wide range of applications. The module is optically isolated, which helps to protect the control circuitry from high voltages and currents. It also has a high and low trigger input, which makes it compatible with a variety of microcontrollers and other control devices

Specification:

  • Supply Voltage: DC 5V / 12V / 24V
  • Quiescent Current: 5mA
  • Maximum Operating Current: 190mA
  • Trigger Mode: high and low-level trigger
  • Load Voltage: DC 30V / AC250
  • Load Current: 30A
  • Relay Life: more than 100,000 times
  • Trigger Voltage Range: Low-level trigger: 0-2V relay ON; 3-5V relay OFF; High-level trigger: 3.3-5V relay ON; 0-2.5V relay OFF

Features:

  • Using a high-power relay, the maximum control load is DC 30V 30A / AC 250V 30A.
  • With each optocoupler isolation, anti-interference ability.
  • In line with international safety standards, the control area and the load area with isolation slots.
  • Each channel has a relay on LED indication.

Application:

  • PLC automation equipment control
  • Industrial system control
  • Logistics network control
  • Home intelligent product control
  • Electronic enthusiasts to develop experiments
  • All kinds of circuit modification

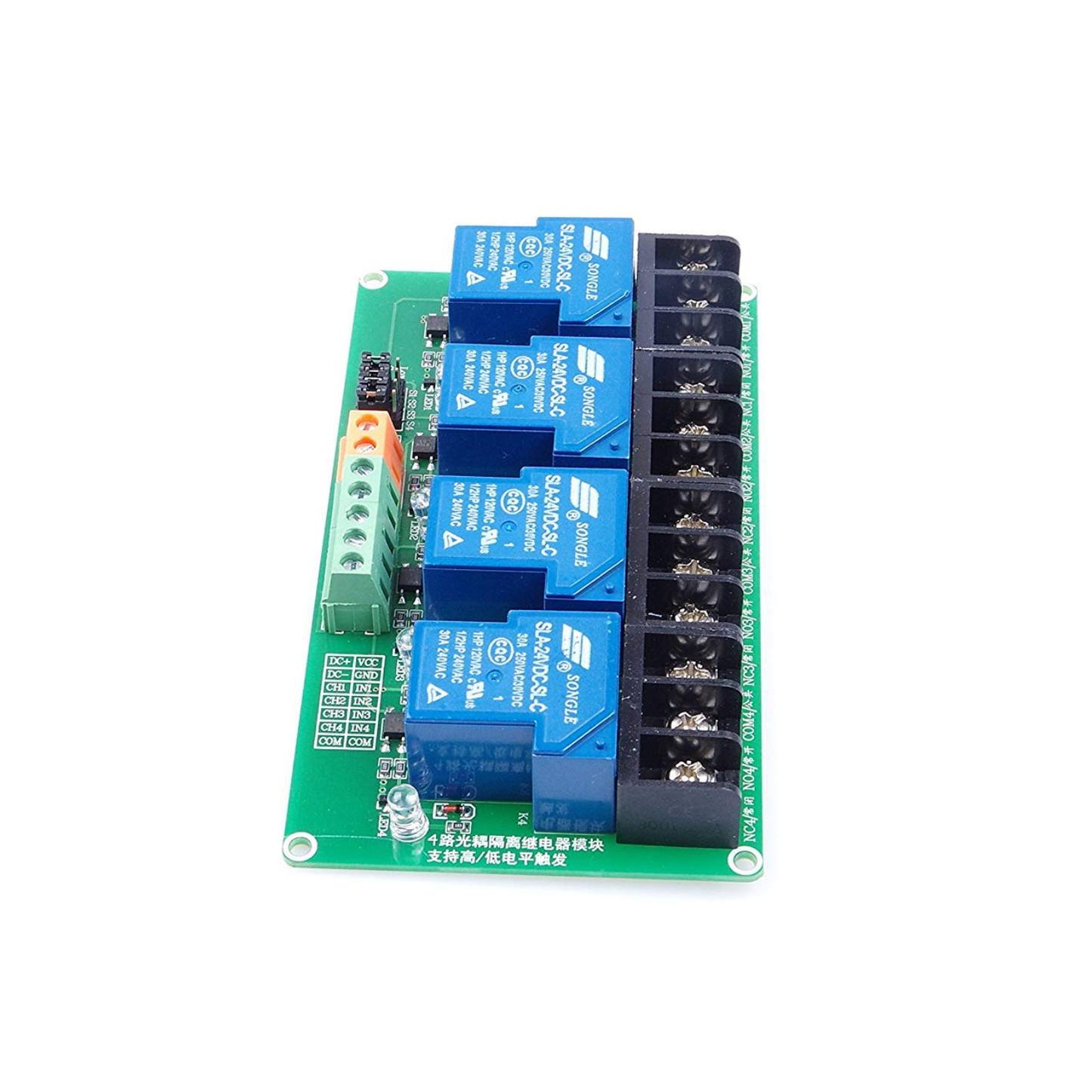

Module Interface Description:

  • DC +: DC power supply positive
  • DC -: DC power supply module negative
  • IN: Signal input terminal(support High/Low-Level switch freely)
  • Normally open (NO): Relay normally open
  • Common terminal (COM): Relay common
  • Normally closed terminal (NC): relay normally closed terminal

Package Included:

1 x 4-Channel DC 24V Relay Module
