- Rated Operating Voltage (VDC) : DC 30V 30A
- Input Voltage (V AC) : AC 250V 30A
- Maximum Supply Voltage (V) : 5.5
- Trigger Voltage (VDC) : 3.3-5V
Description :

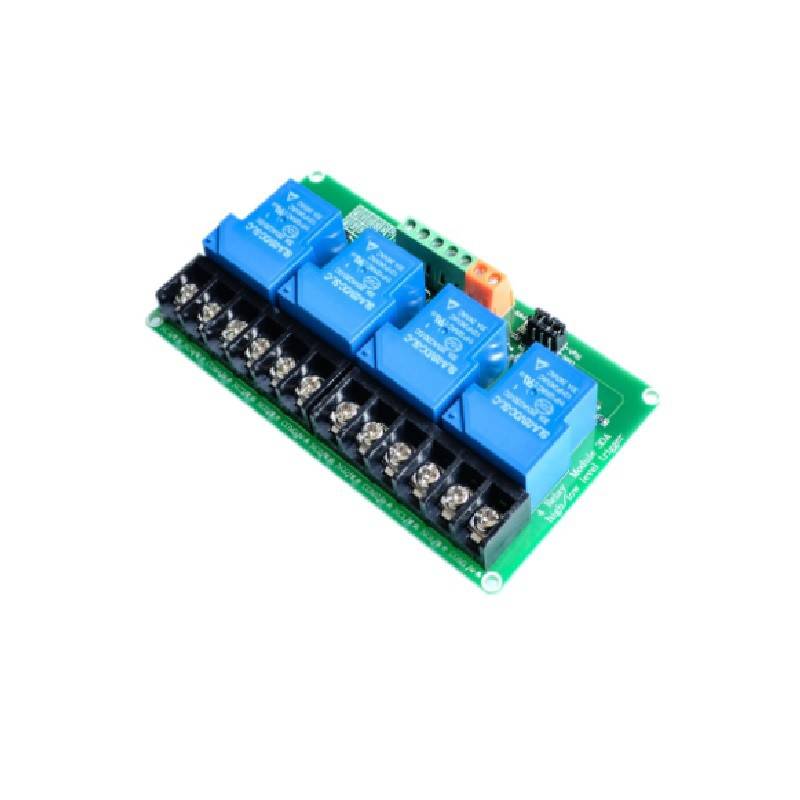

This is a 4-Channel DC 5V Relay Module High/Low-Level Triggering Optocoupler Isolation. Using a high-power relay, the maximum control load is DC 30V 30A / AC 250V 30A. With each optocoupler isolation, anti-interference ability. In line with international safety standards, the control area and the load area with isolation slot. Each channel has a relay on LED indication
Application:
- PLC automation equipment control
- Industrial system control
- Logistics network control
- Home intelligent product control
- Electronic enthusiasts to develop experiments
- All kinds of circuit modification
Features:
- Using a high-power relay, the maximum control load is DC 30V 30A / AC 250V 30A.
- With each optocoupler isolation, anti-interference ability.
- In line with international safety standards, the control area and the load area with isolation slot.
- Each channel has a relay on the LED indication.
Module Interface Description:
- DC +:DC power supply positive
- DC -:DC power supply module negative
- IN: Signal input terminal(support High/Low-Level switch freely)
- Normally open (NO):Relay normally open
- Common terminal (COM):Relay common
- Normally closed terminal (NC):relay normally closed terminal
Specifications :
- Rated Operating Voltage (VDC) : DC 30V 30A
- Input Voltage (V AC) : AC 250V 30A
- Maximum Supply Voltage (V) : 5.5
- Trigger Voltage (VDC) : 3.3-5V
Package included:
1 x 4 Channel 5V 30A Relay Module with High/Low-Level Triggering Optocoupler Isolation
