Description:
The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The 4.8 kg-cm NEMA17 Stepper Motor can provide 4.8 kg-cm of torque at 2.5A current per phase.
The motor's position can be commanded to move or hold at one position with the help of Stepper Motor Drivers. The 4.8 kg-cm NEMA17 Stepper Motor provides excellent response to starting, stopping and reversing pulses from the stepper motor driver.
They are very useful in various applications, especially those that demand low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters etc.
It is a brushless 4.8 kg-cm NEMA17 Stepper Motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism so doesn't require complex electronic control circuitry.

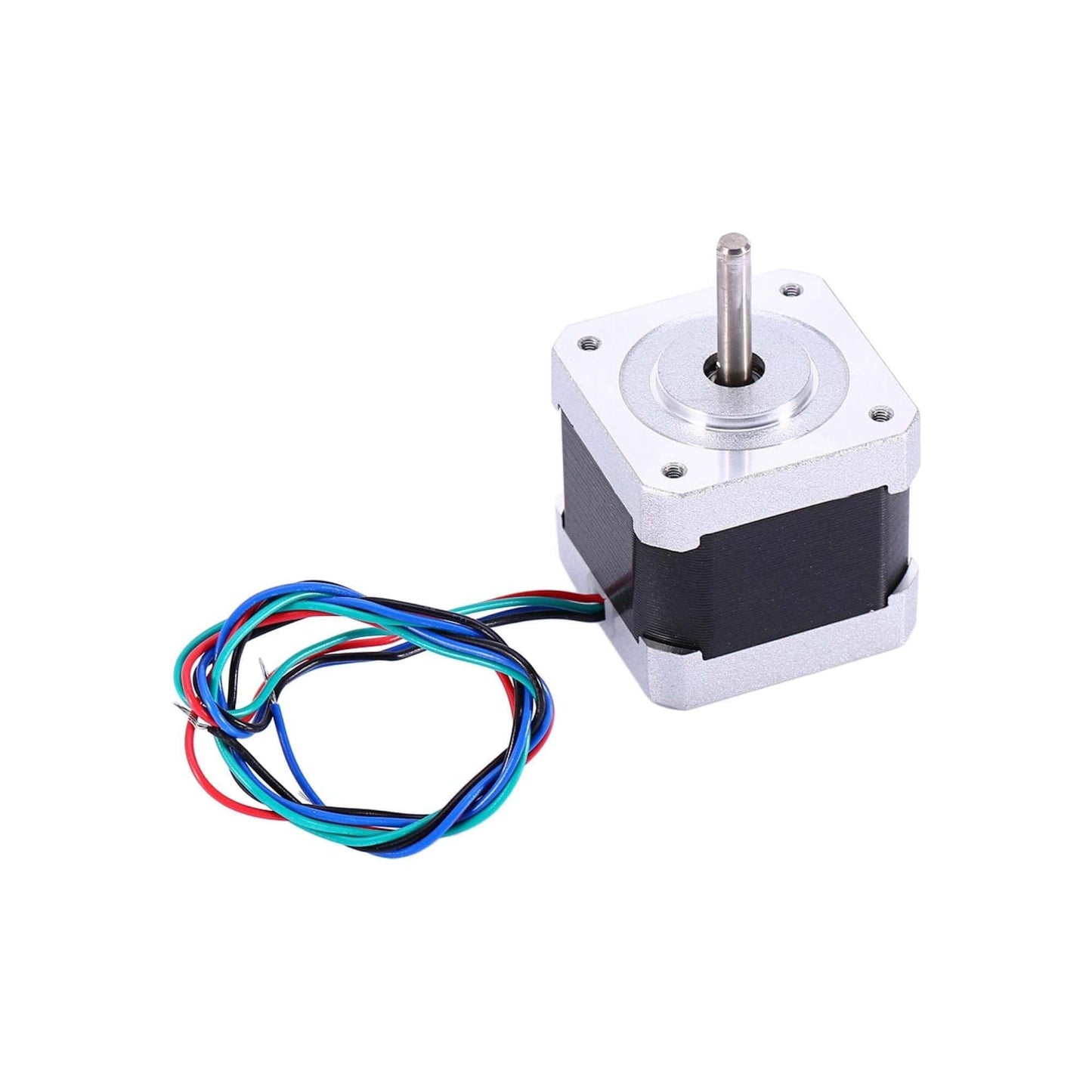

4.8 kg-cm NEMA17 Stepper Motor comes with a detachable 72cm cable which makes wiring and rewiring very fast and easy to work. The design of this cable is such that it can directly be mounted on a stepper motor controller. So, playing with the connection is done with just a snap of the fingers.

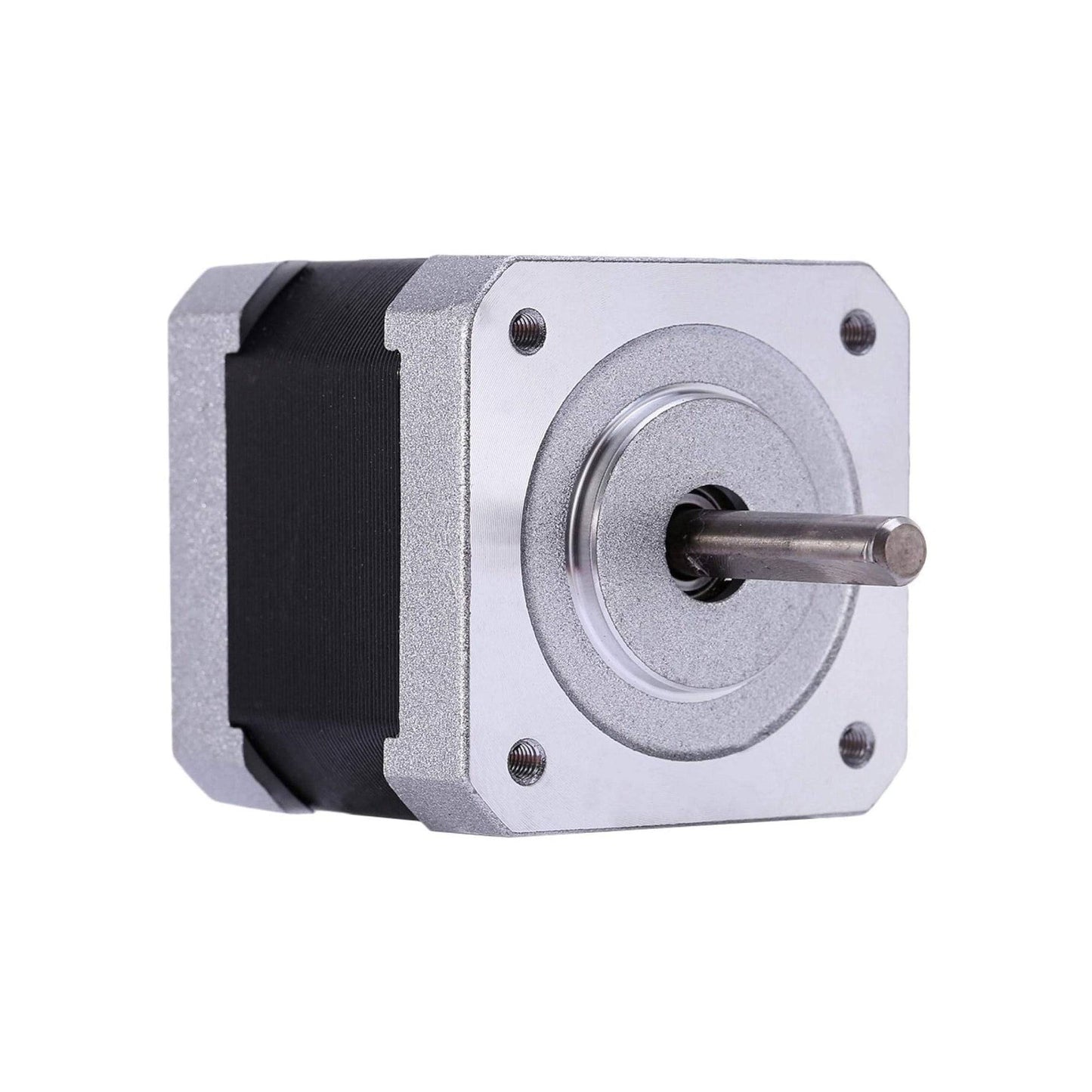

The 4.8 kg-cm NEMA17 Stepper Motor D-type shaft has been machined for good grip with a pulley, drive gear etc., and especially avoiding stall or slip.
Specifications:
| Motor Type |
Single Shaft |
| Step Angle |
1.8 degree |
| Holding Torque |
4.8Kg-Cm |
| Operating Voltage |
3.1V DC |
| Supply Current |
2.5 A/Phase |
| No. of Leads |
4 |
| Inductance |
1.8 mH/Phase |
| Resistance |
1.25 ohms |
| Rotor Inertia |
68gm-cm2 |
| Weight |
366gm |
| Dimensions LxWxH |
42x42x48mm |
| Detent Torque |
0.28kg-cm |
| Frame Size |
42 x 42mm |
| Inductance Accuracy |
±20% |
| Resistance Accuracy |
±10% |
| Shaft Type |
D-type |
| Shaft Diameter |
5-(Round-side); 4.7-(D-side)mm |
| Shaft Length |
22mm |
| Step Angle Accuracy |
±5% |
| Cable Length |
72cm |
Features:
- The input pulse decides the rotation angle of the motor.
- 4.8 kg-cm NEMA17 Stepper Motor has high accuracy of around 3 to 5% a step.
- 4.8 kg-cm NEMA17 Stepper Motor provides good starting, stopping and reversing.
- Control of this motor is less costly because of the exclusion of complex control circuitry.
- The speed is proportional to the frequency of the input pulses.
Package Included:
1 x 4.8 kg-cm NEMA17 Stepper Motor NEMA17 4.8 kg-cm Stepper Motor with Detachable 72 CM Cable
