4.7K ohm Variable Resistance - RS1651

4.7K ohm Variable Resistance - RS1651

RS1651

58 in stock

Rs. 10.00
Rs. 10.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Resistance Value: 4.7k-Ohm
  • Max. Power Rating @ Tamb 40°C: max 0.1W (P40)
  • Max. Power Rating @ Tamb 70°C: max 0.05W (P70) L
  • Limiting Element Voltage (VLE): max 21.7V (P40)
  • Limiting Slider Current (ILS): max 4.6mA

Description:

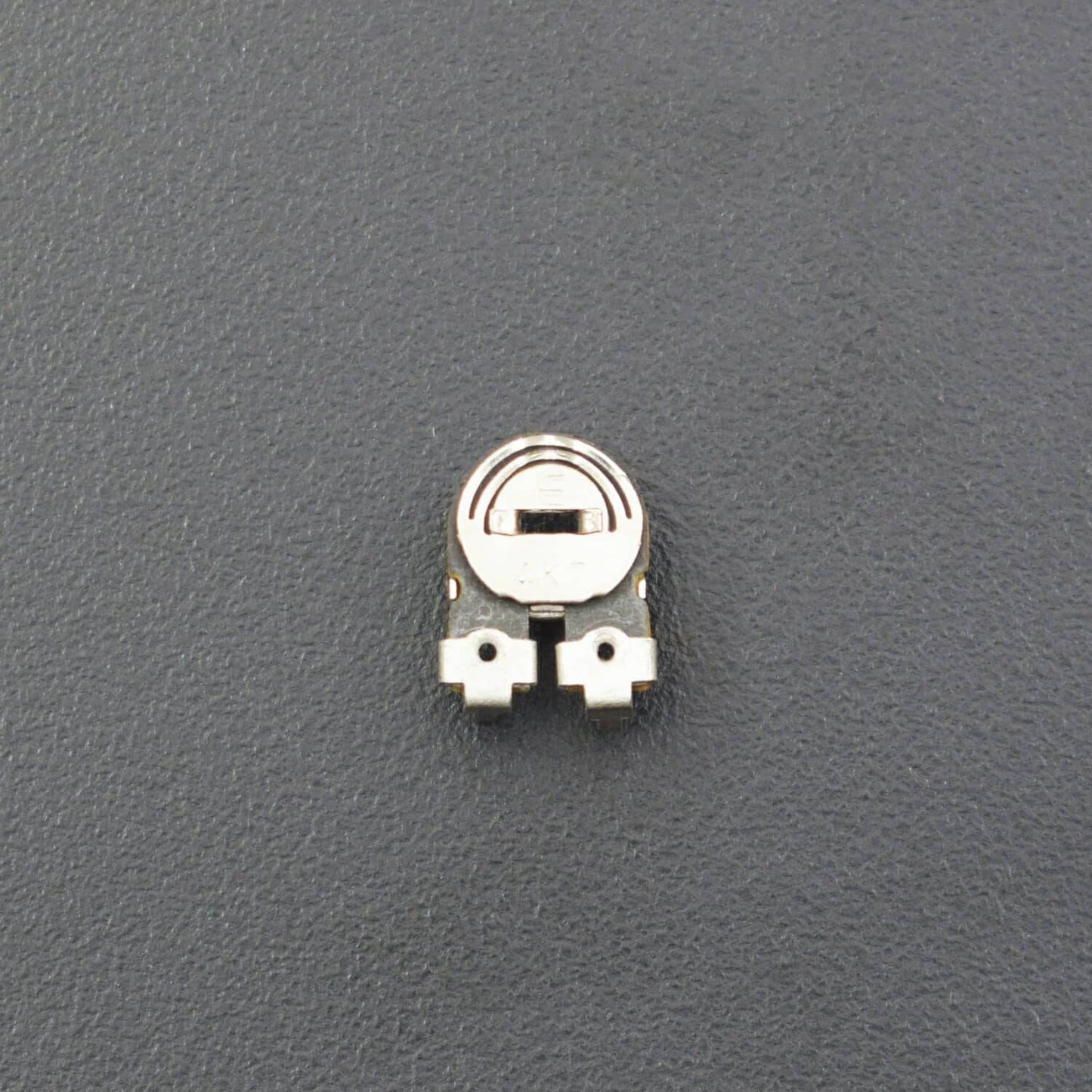

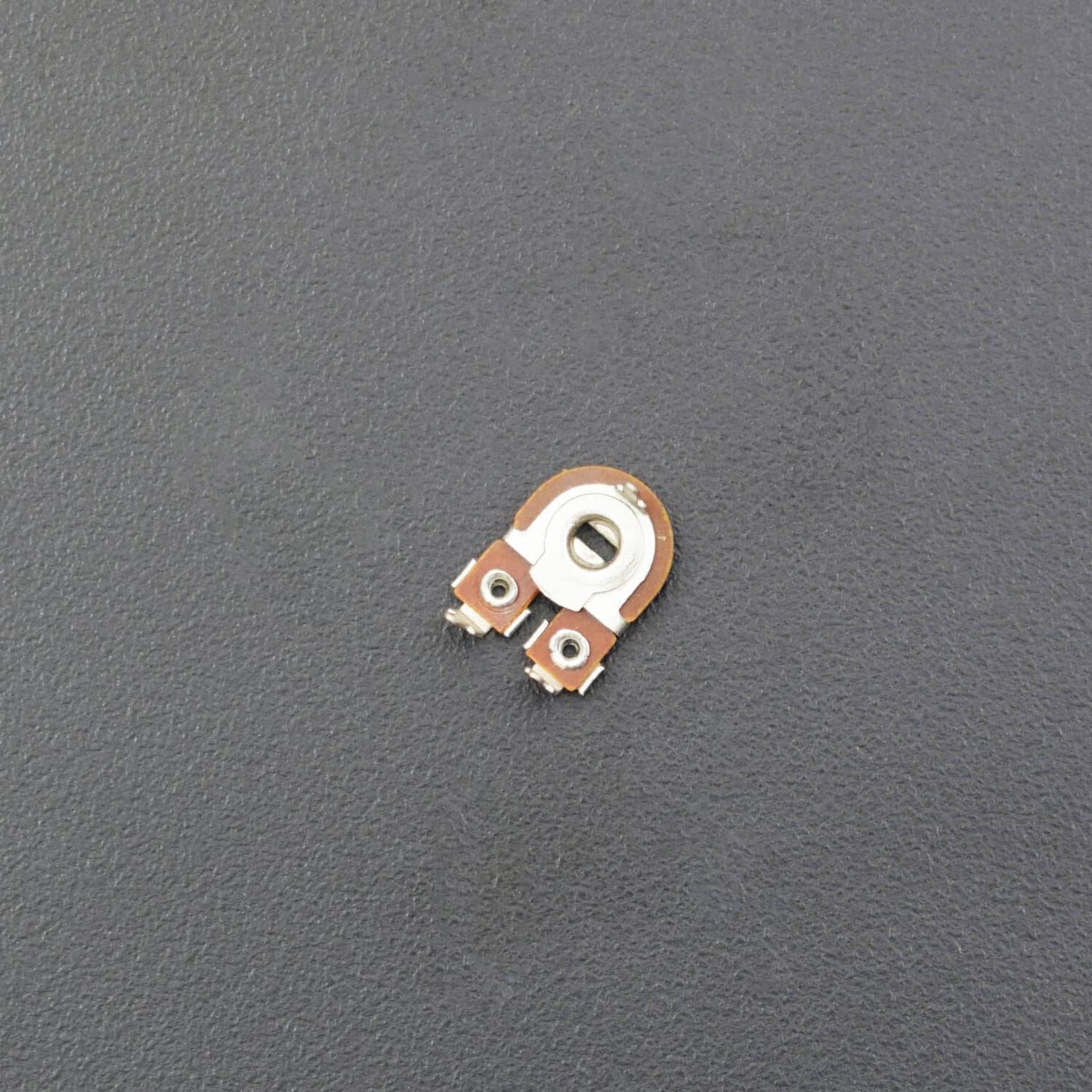

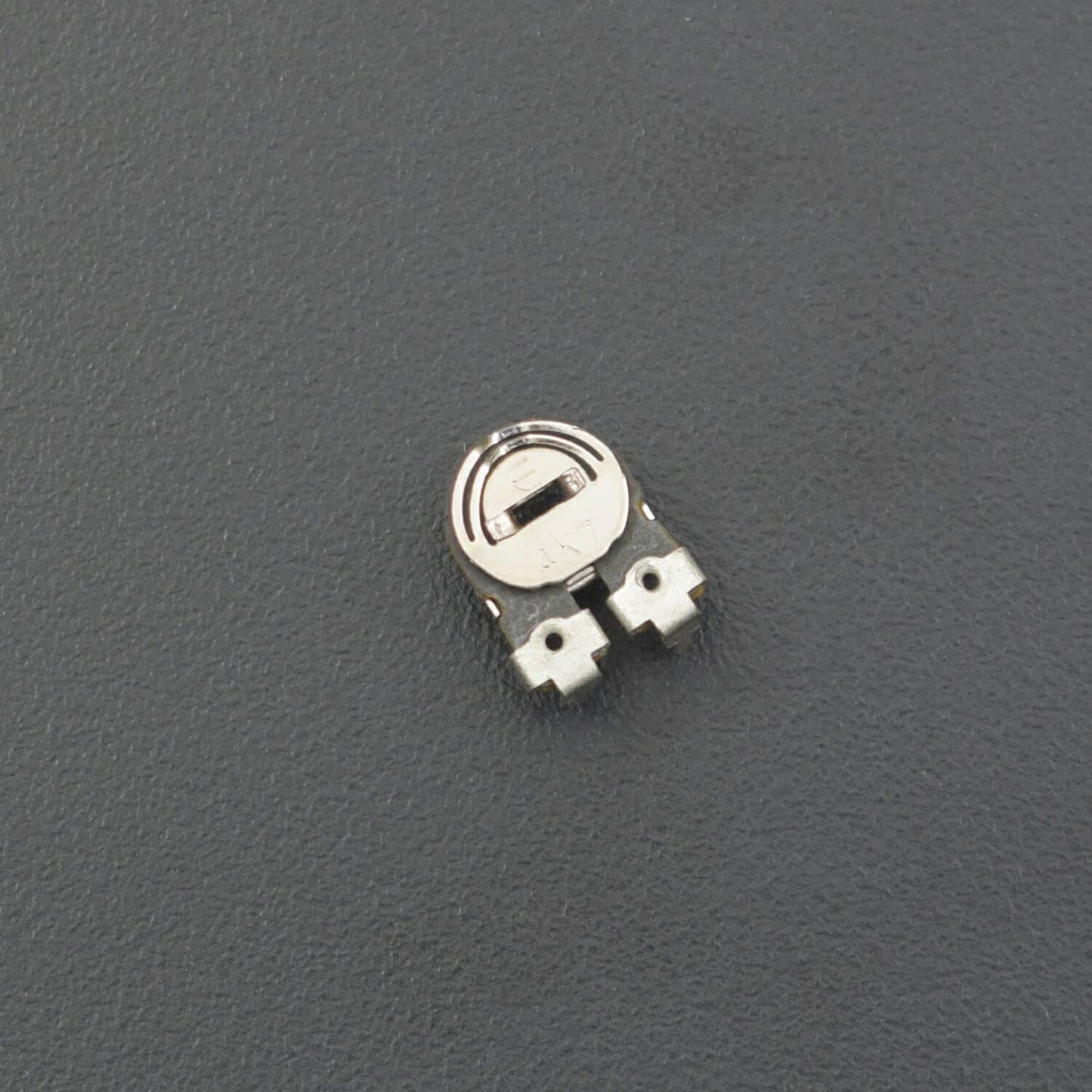

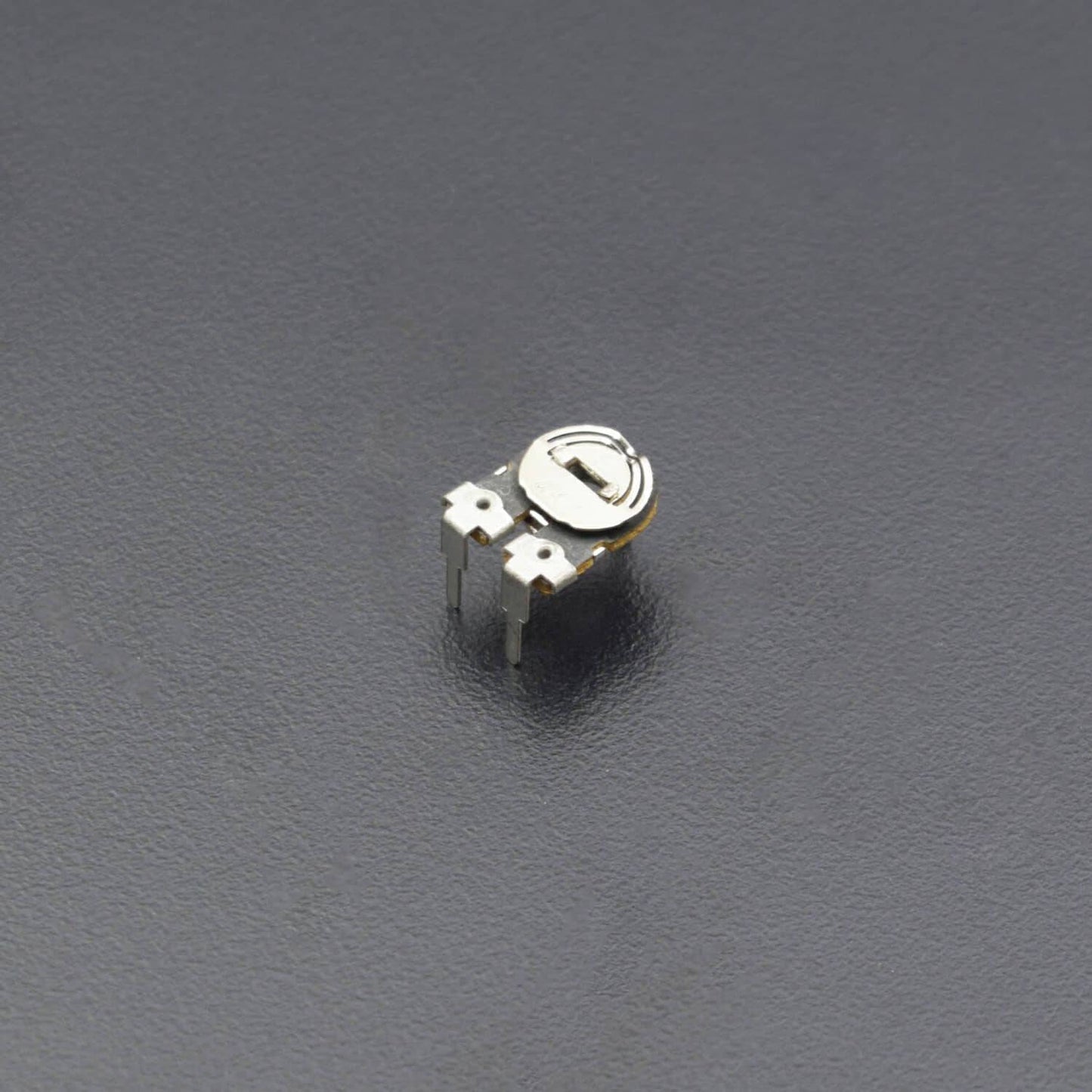

This potentiometer is a preset variable resistor potentiometer, with track resistance of 4.7k Ohm and resistance tolerance ±20%. This potentiometer are PCB mountable and has 3 terminals. Variable resistors are commonly used for variating voltage as per the need in a circuit. The voltage between the terminal varies as the preset is rotated.

Specification:

  • Resistance Value: 4.7k-Ohm
  • Max. Power Rating @ Tamb 40°C: max 0.1W (P40)
  • Max. Power Rating @ Tamb 70°C: max 0.05W (P70)
  • Limiting Element Voltage (VLE): max 21.7V (P40)
  • Limiting Slider Current (ILS): max 4.6mA
  • Temperature Coefficient: -500ppm/K to +300ppm/K
  • Pin Spacing: 2.54mm
  • Tolerance: ±20%
  • Temperature Range: -25°C to +70°C
  • Mechanical Travel: 260°
  • Electrical Travel: 200°

Package Included:

1 x 4.7K ohm Variable Resistance
