- OPERATING VOLTAGE : 3.3V/5V

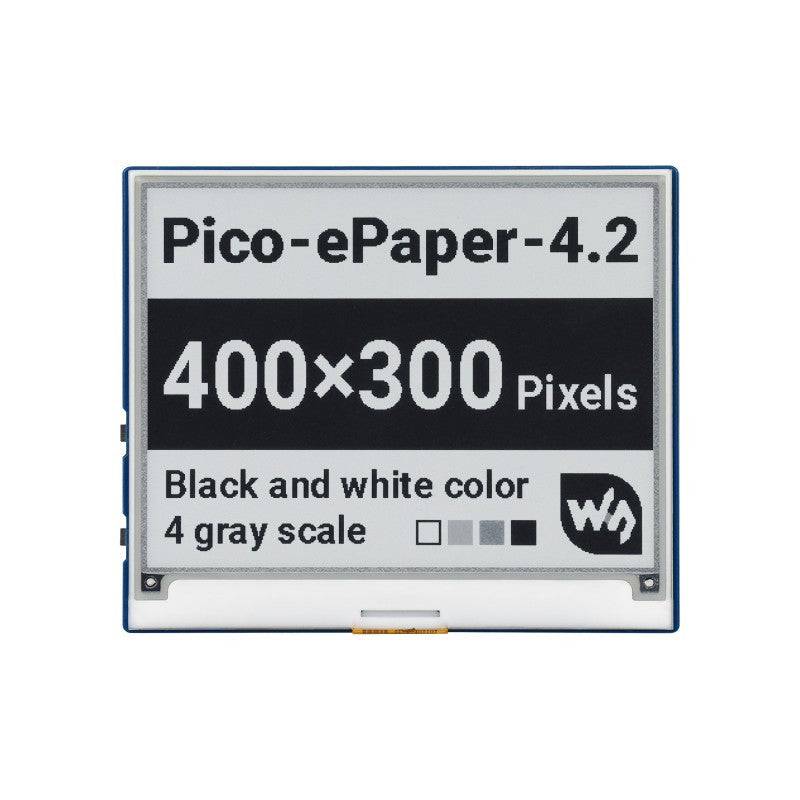

- DISPLAY COLOR : Black, white
- RESOLUTION : 400×300 pixels
- GREY SCALE : 4
- INTERFACE : 3-wire SPI, 4-wire SPI
- VIEWING ANGLE : >170°
- PARTIAL REFRESH TIME : N/A
- FULL REFRESH TIME : 4s
- OUTLINE DIMENSIONS : 93.5 × 78.5mm
- DISPLAY SIZE : 84.8 × 63.6mm
- REFRESH POWER : 26.4mW (typ.)
- STANDBY CURRENT :<0.01uA (almost none)
- DOT PITCH : 0.212 × 0.212mm
Features :
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing

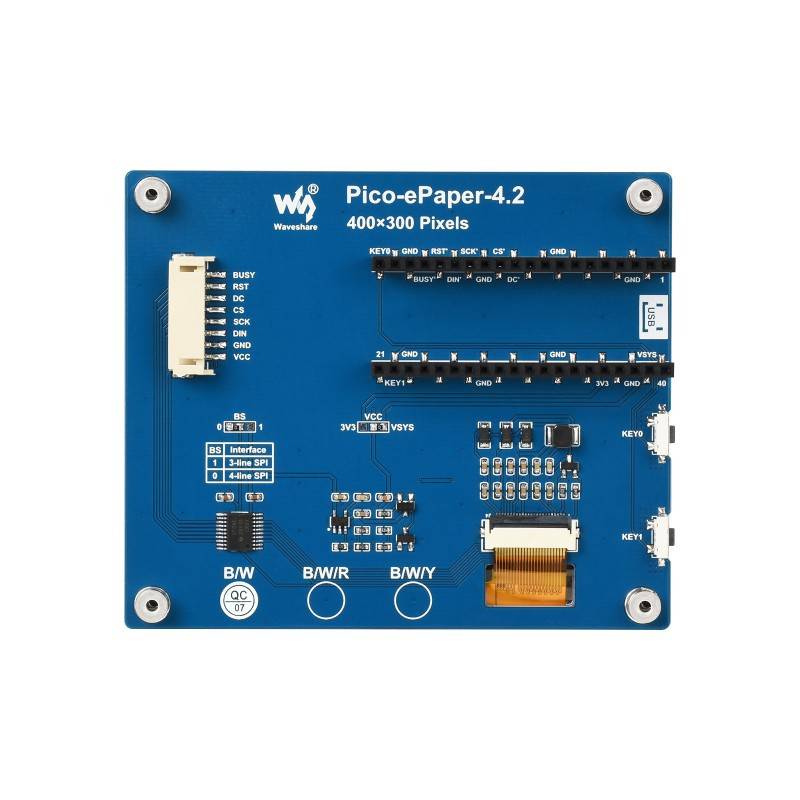

- SPI interface, requires minimal IO pins

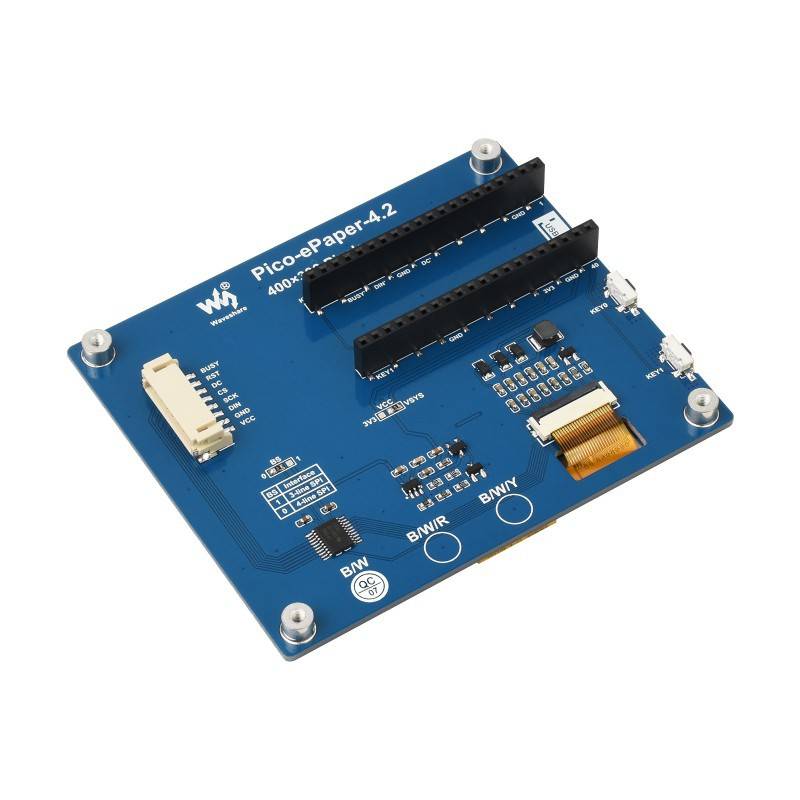

- Onboard voltage translator, compatible with 3.3V / 5V MCUs
- 2x user buttons for easy interacting

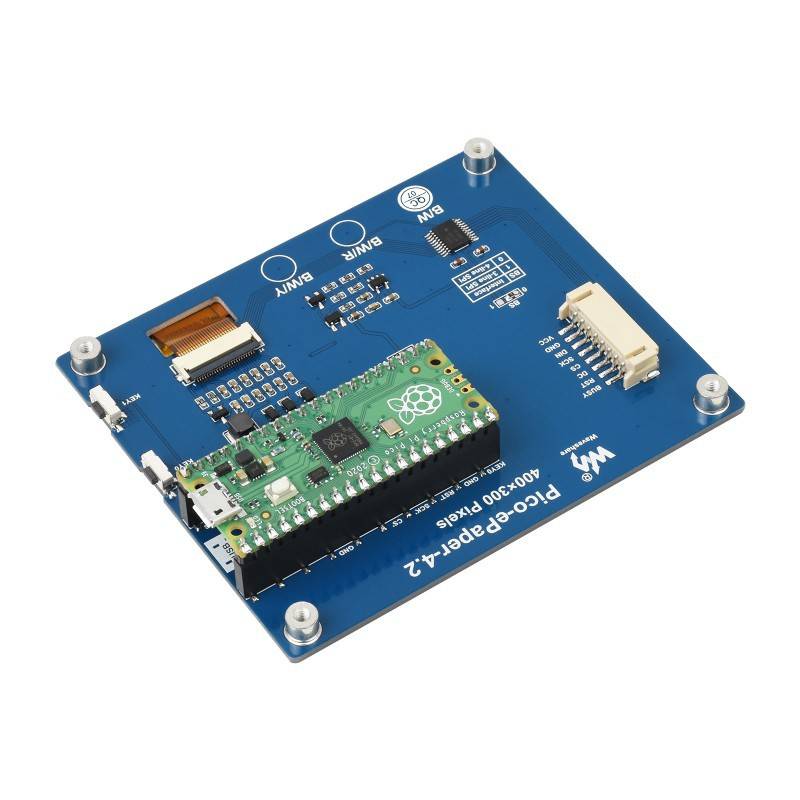

- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications :
- OPERATING VOLTAGE : 3.3V/5V
- DISPLAY COLOR : Black, white
- RESOLUTION : 400×300 pixels

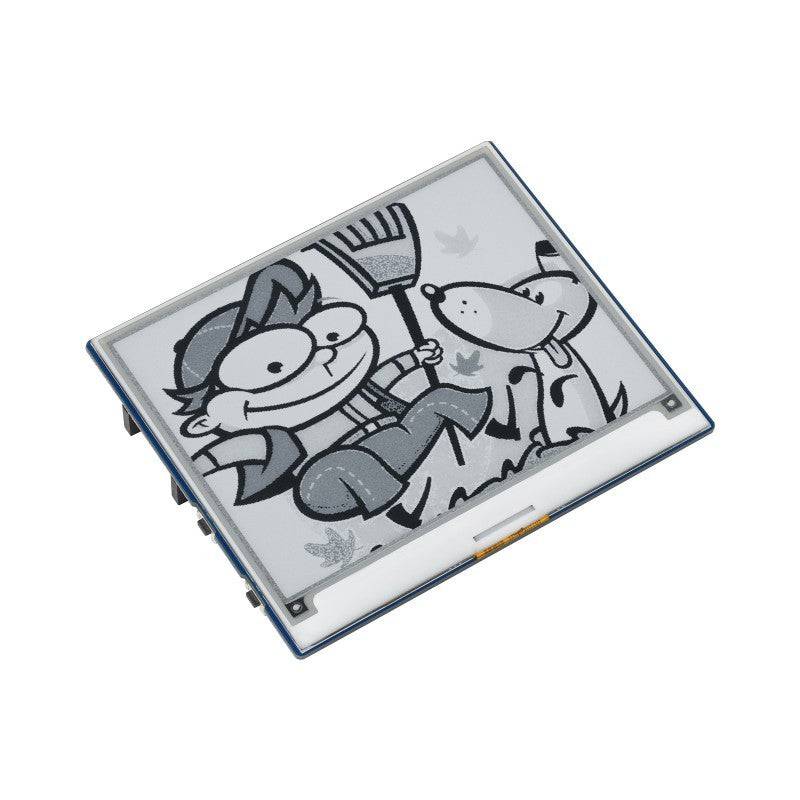

- GREY SCALE : 4
- INTERFACE : 3-wire SPI, 4-wire SPI
- VIEWING ANGLE : >170°
- PARTIAL REFRESH TIME : N/A
- FULL REFRESH TIME : 4s
- OUTLINE DIMENSIONS : 93.5 × 78.5mm
- DISPLAY SIZE : 84.8 × 63.6mm
- REFRESH POWER : 26.4mW (typ.)
- STANDBY CURRENT :<0.01uA (almost none)
- DOT PITCH : 0.212 × 0.212mm
Package Included :

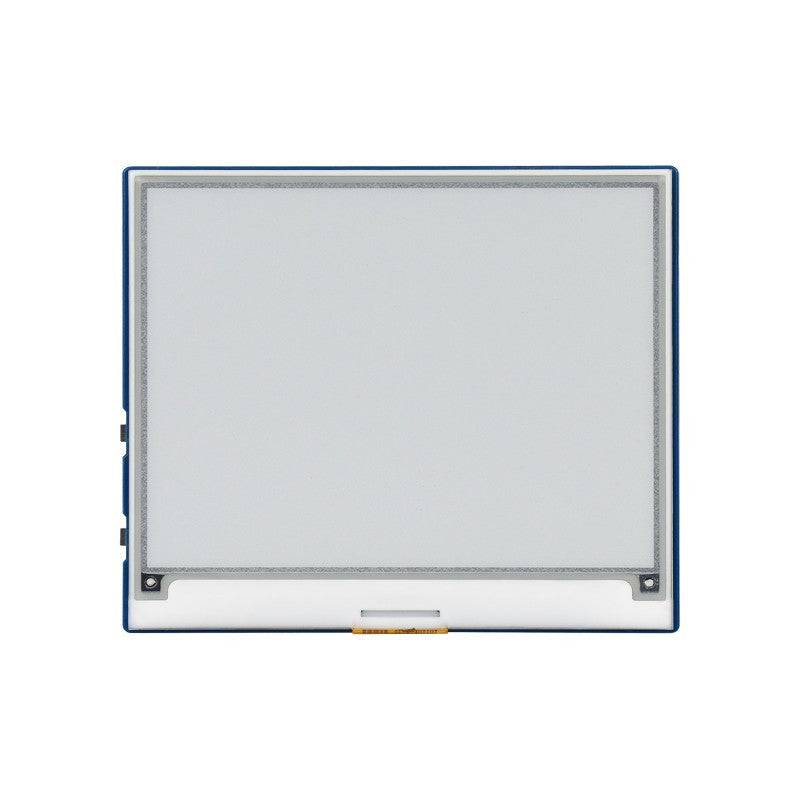

1 x 4.2 " E - Paper E - INK Display
