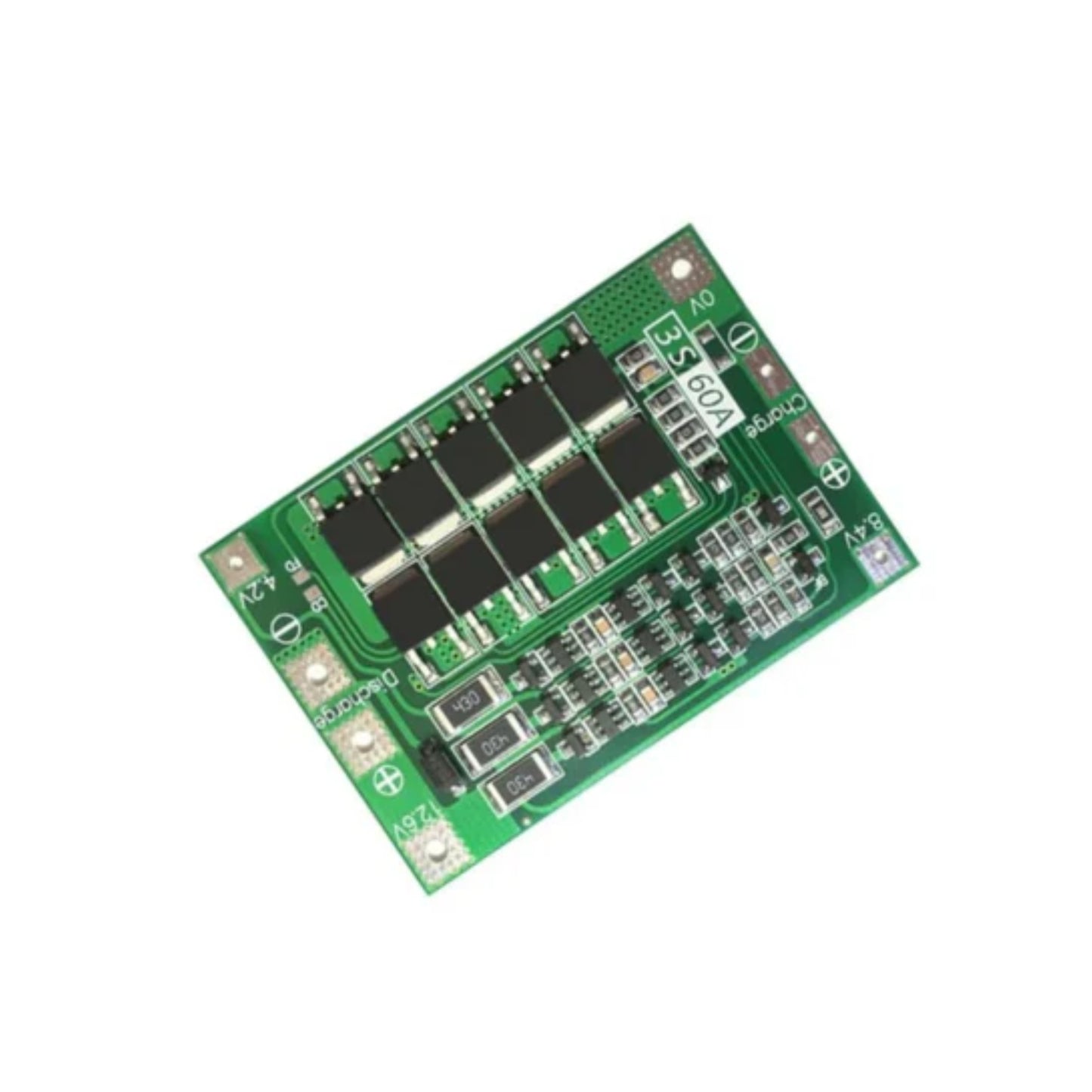

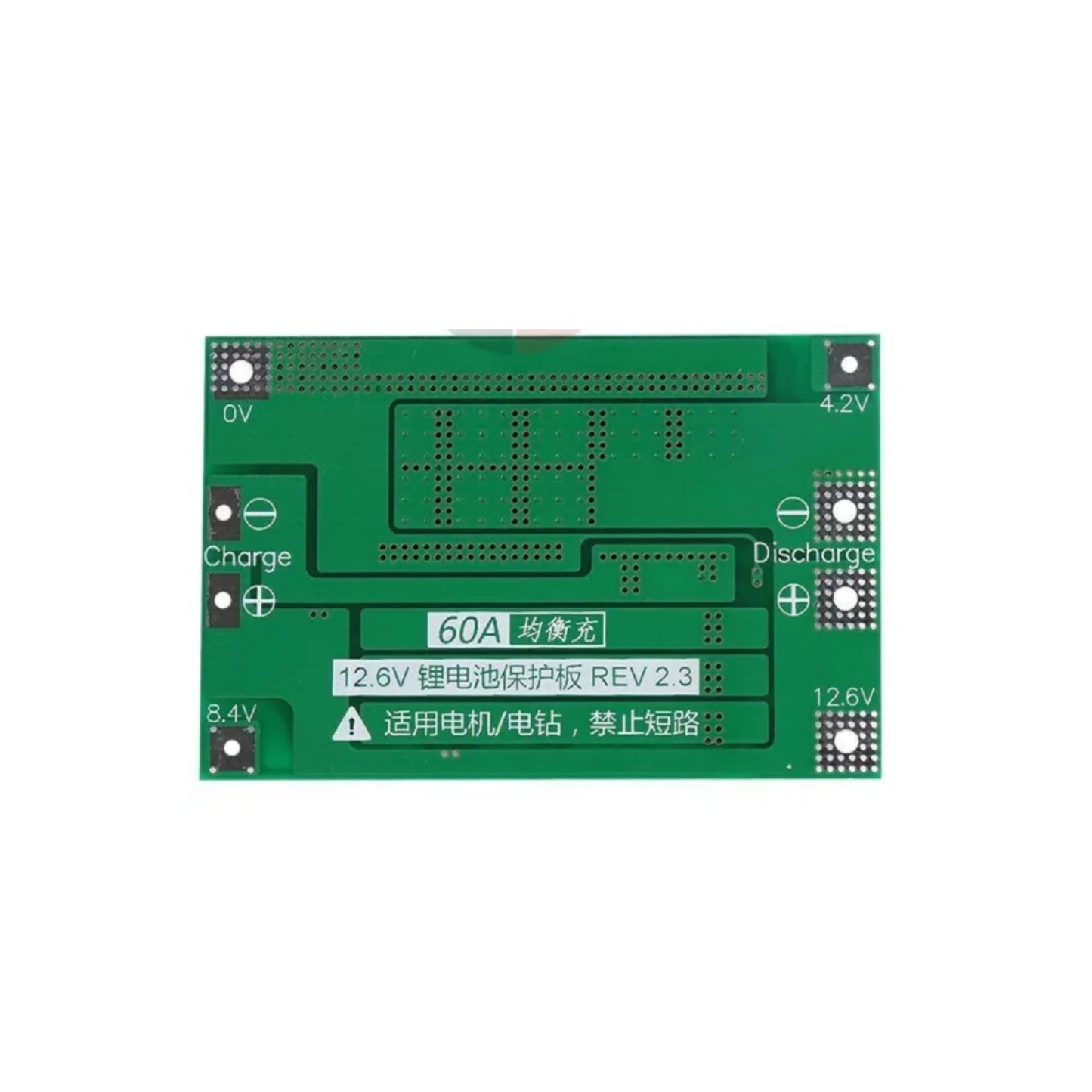

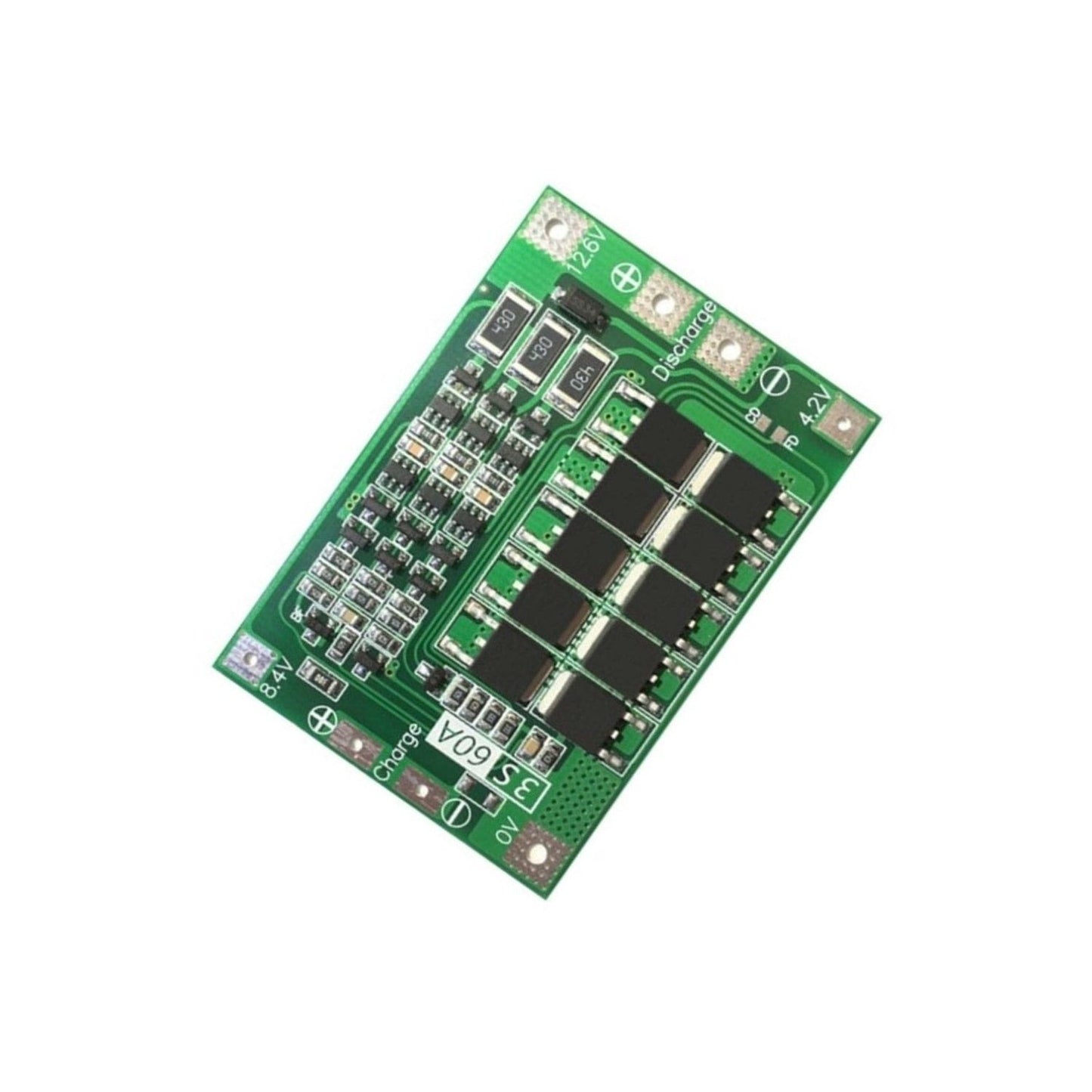

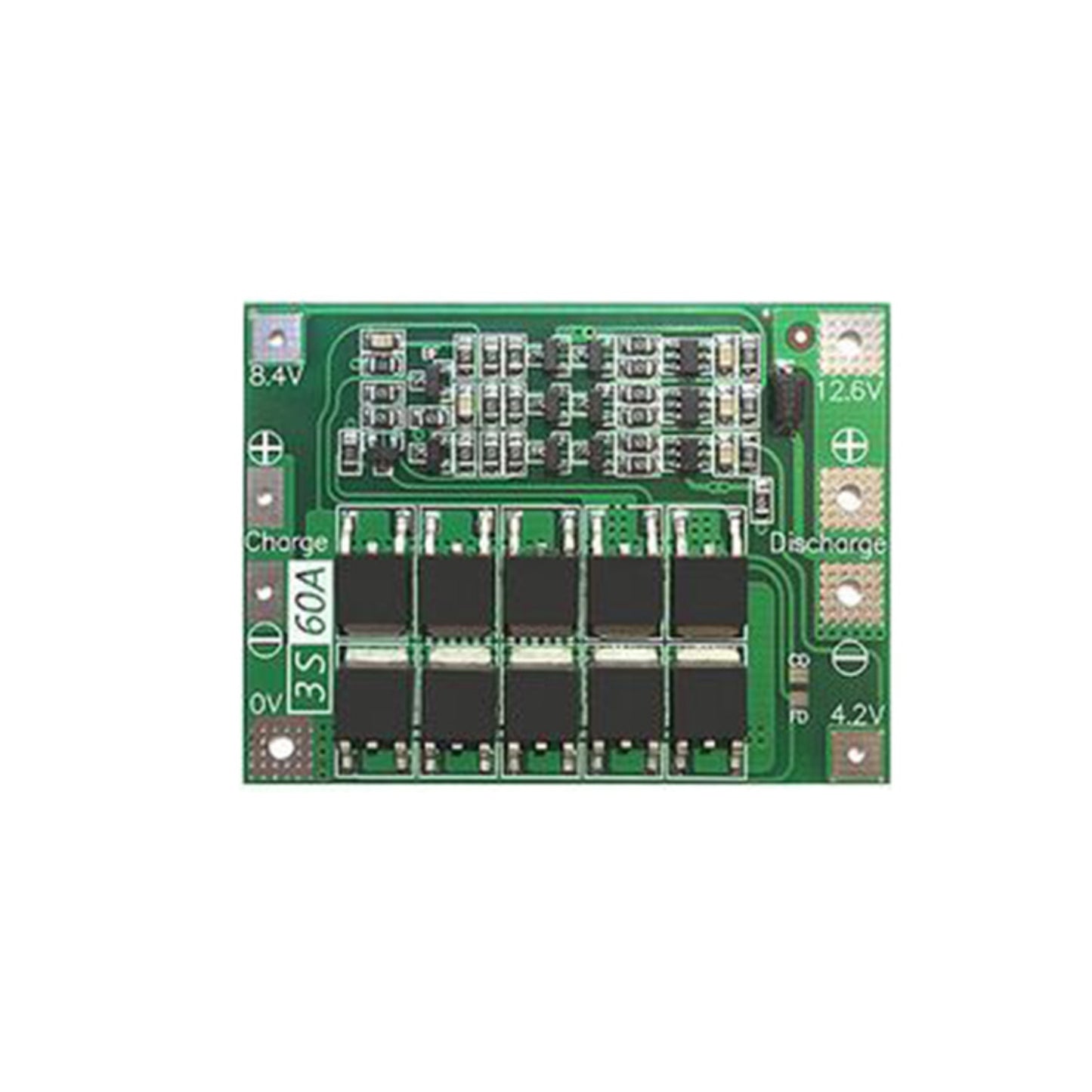

Description:
3S 60A Li-ion BMS Board is a compact size and lightweight high-accuracy voltage detection circuit it has overcharge protection, over-discharge protection, and overcurrent Protection, short circuit protection Low Standby current MOS transistor can control the battery charge and discharge, and low standby current consumption. It can be used in electric drills, sprayers, LED lights, low-power reverse Charge and discharge batteries of transformers and other products.
This 18650 battery protection module is used to charge/discharge three groups of lithium batteries in series, and each group can connect multiple lithium batteries in parallel. It can withstand a continuous charging current of 20A, continuous discharge current of 40A, and instantaneous current below 80A. used During the process, the heat dissipation conditions should be good. If the heat dissipation conditions are not good, please reduce the current usage and do not let the board have a noticeably hot feeling.
Specifications:
- Type: 3S 60A Balanced Lithium-Ion Battery
-
Charging Voltage: 12.6V-13V
- Continuous Charging Current: 20A
- Continuous Discharge Current: 40A
- Overcurrent Protection: 125A
- Overcharge Detection: 12.8V ( for 3 groups of batteries )
- Overcharge Release: 12.3V ( for 3 groups of batteriese)
- Overdischarge Detection: 2.4V ( for 1 group of batteries )
- Overdischarge Release: 3.0V ( for 1 group of batteries )
- Maximum Working Current: 60A
- Colour: Green
Features:
- Handles up to 60A continuous discharge for demanding applications.
- Easy to integrate into various projects and devices.
- Minimizes power consumption when idle.
- Precise monitoring of battery voltage levels
- Built to withstand harsh environments and vibrations.
Package Included:
1 x 3S 60A Li-ion BMS Board 18650 Battery Charger Protection Circuit 3S 60A BMS For Li-ion Batteries Three-Cell Li-ion Battery Protection Module - Balanced Version
