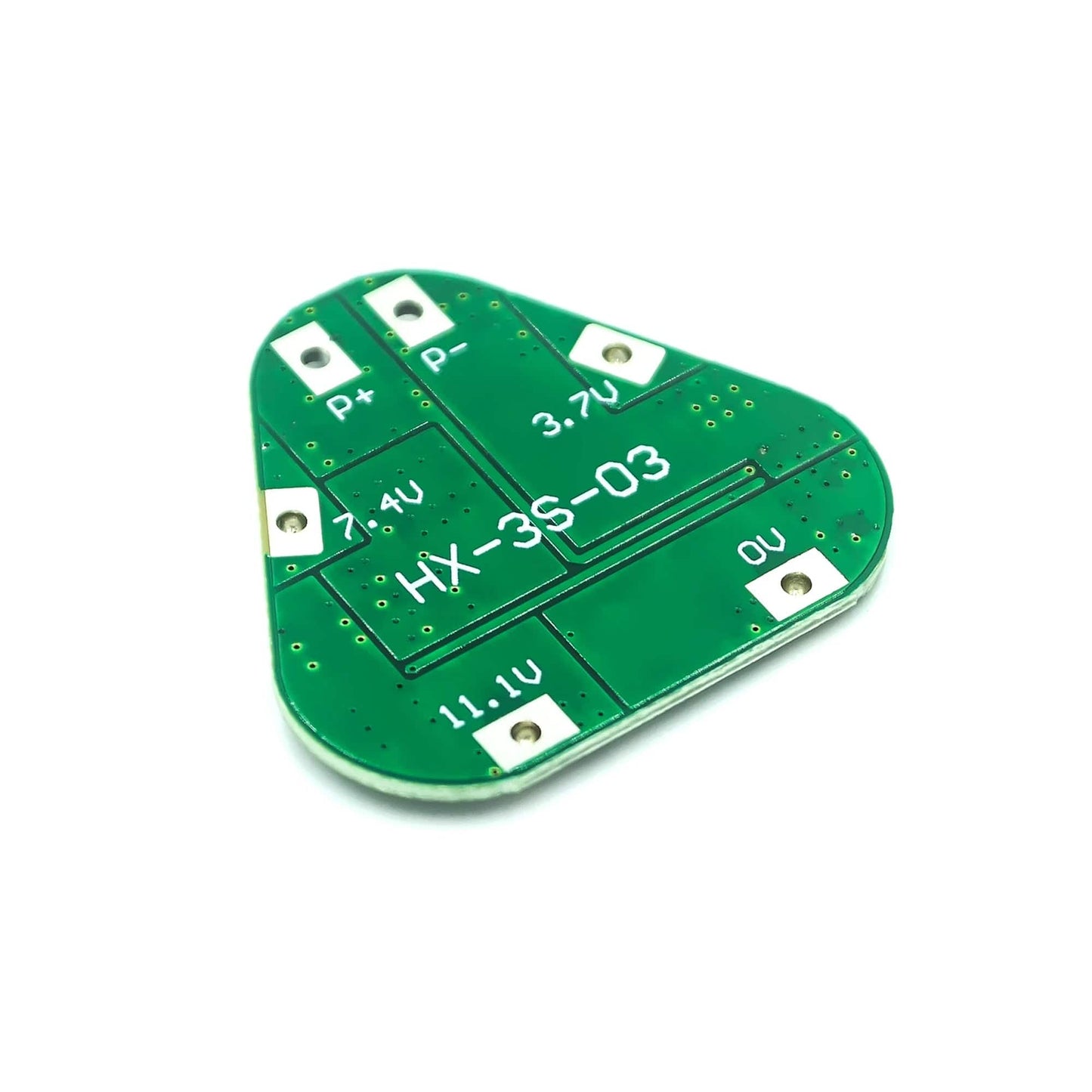

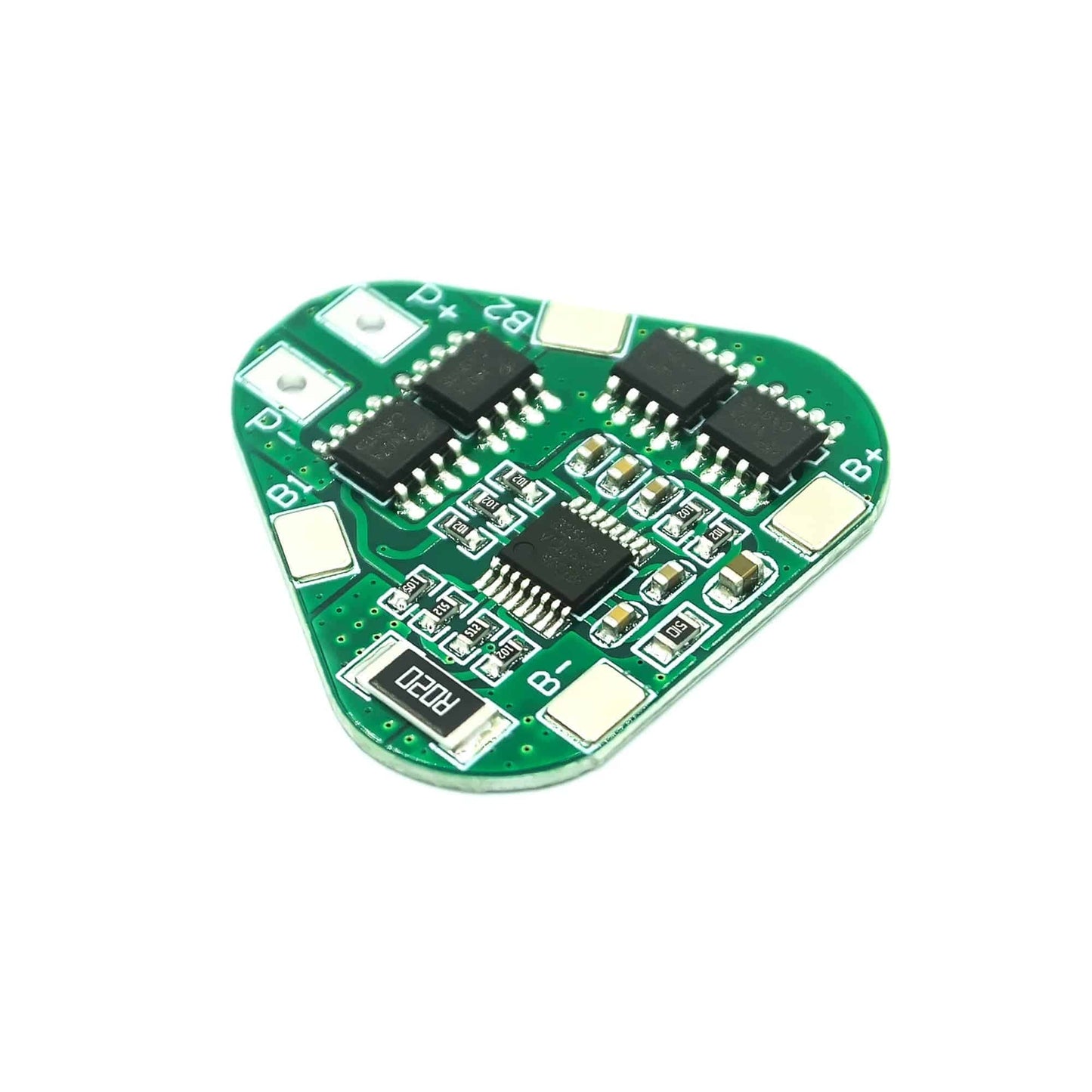

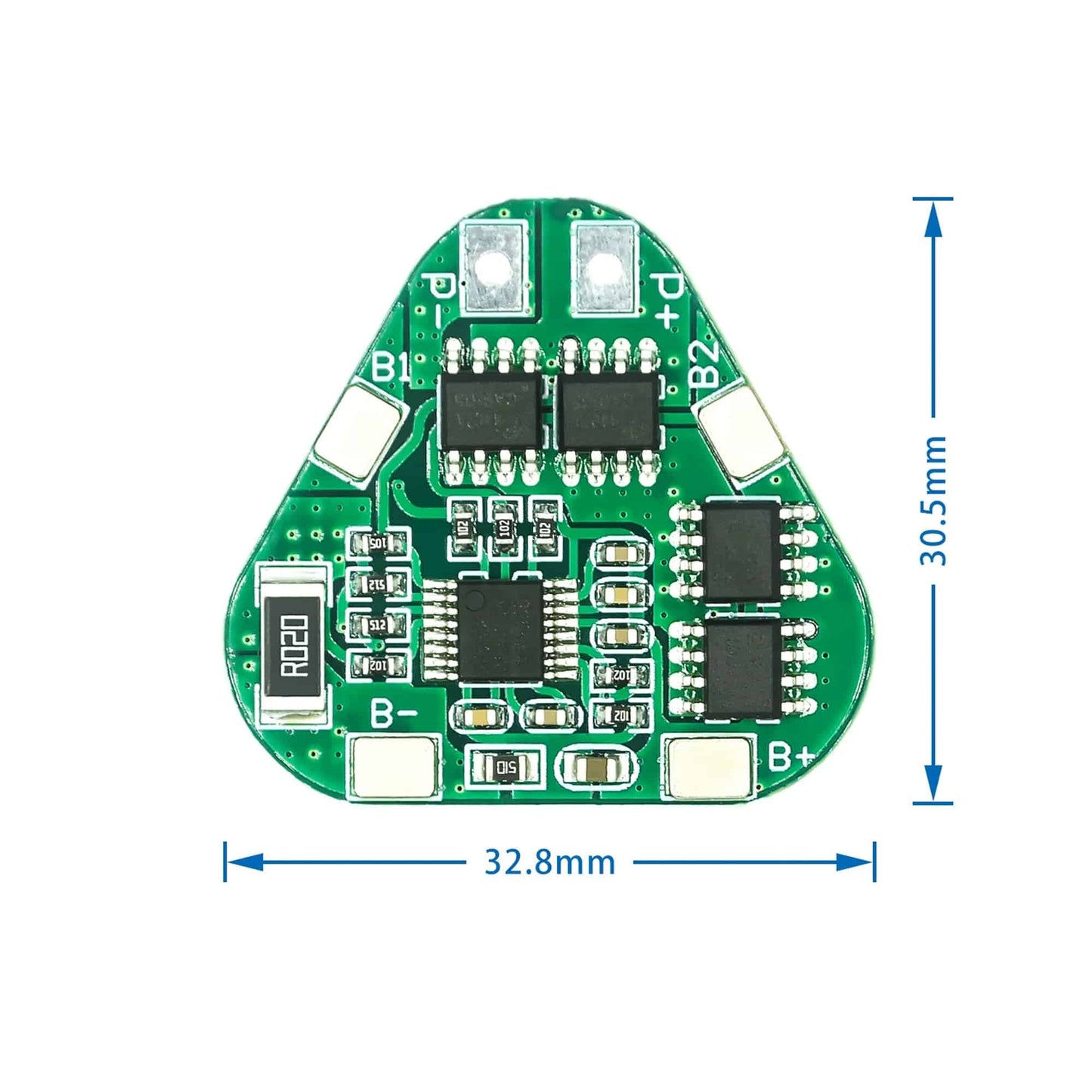

3S 12V BMS Board 3S 12V 18650 Lithium Battery Protection Board 11.1V 12.6V overcharge over-discharge protect 8A 3 Cell Pack Li-ion BMS PCM PCB - RS4958

3S 12V BMS Board 3S 12V 18650 Lithium Battery Protection Board 11.1V 12.6V overcharge over-discharge protect 8A 3 Cell Pack Li-ion BMS PCM PCB - RS4958

SKU:RS4958

175 in stock

Regular price Rs. 119.00
Regular price Sale price Rs. 119.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

The 3S 12V BMS Board for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube.

3S 12V BMS Board provides a continuous discharge of 6A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter.  (if the cooling environment is not good, please reduce the load current use)

The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can be range between 12.6V to 13V. The 3S 12V BMS Board operates smoothly with a Continuous charge current of (upper limit): 6A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance)

Specifications:

  • Charging Voltage: 12.6V~13V
  • Overcharge voltage range: 4.25-4.35vplusmn0.05v
  • Over-discharge voltage range: 2.3-3.0vplusmn0.05v
  • Upper limit working current: 6~8A
  • Working temperature: -40~+50 degC
  • Upper limit instantaneous current: 9~10A
  • Storage conditions: -40~+80 deg C
  • Quiescent current: less than 30uA
  • Effective life: more than 30,000 hours
  • Internal resistance: less than 100mOmega
  • Short circuit protection: protection, delay self-recovery.

Package Included:

1 x 3S 12V BMS Board 3S 12V 18650 Lithium Battery Protection Board 11.1V 12.6V overcharge over-discharge protect 8A 3 Cell Pack Li-ion BMS PCM PCB
