• 3S 11.1V BMS Board
  • 3S 11.1V BMS Board
  • 3S 11.1V BMS Board 3S 11.1V 10A 18650 Lithium Battery
  • 3S 11.1V BMS Board 3S 11.1V 10A 18650 Lithium Battery
1 4

Generic

3S 11.1V BMS Board 3S 11.1V 10A 18650 Lithium Battery Overcharge And Over-current Protection board-Good Quality - RS4248

3S 11.1V BMS Board 3S 11.1V 10A 18650 Lithium Battery Overcharge And Over-current Protection board-Good Quality - RS4248

RS4248

124 in stock

Rs. 109.00
Rs. 109.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

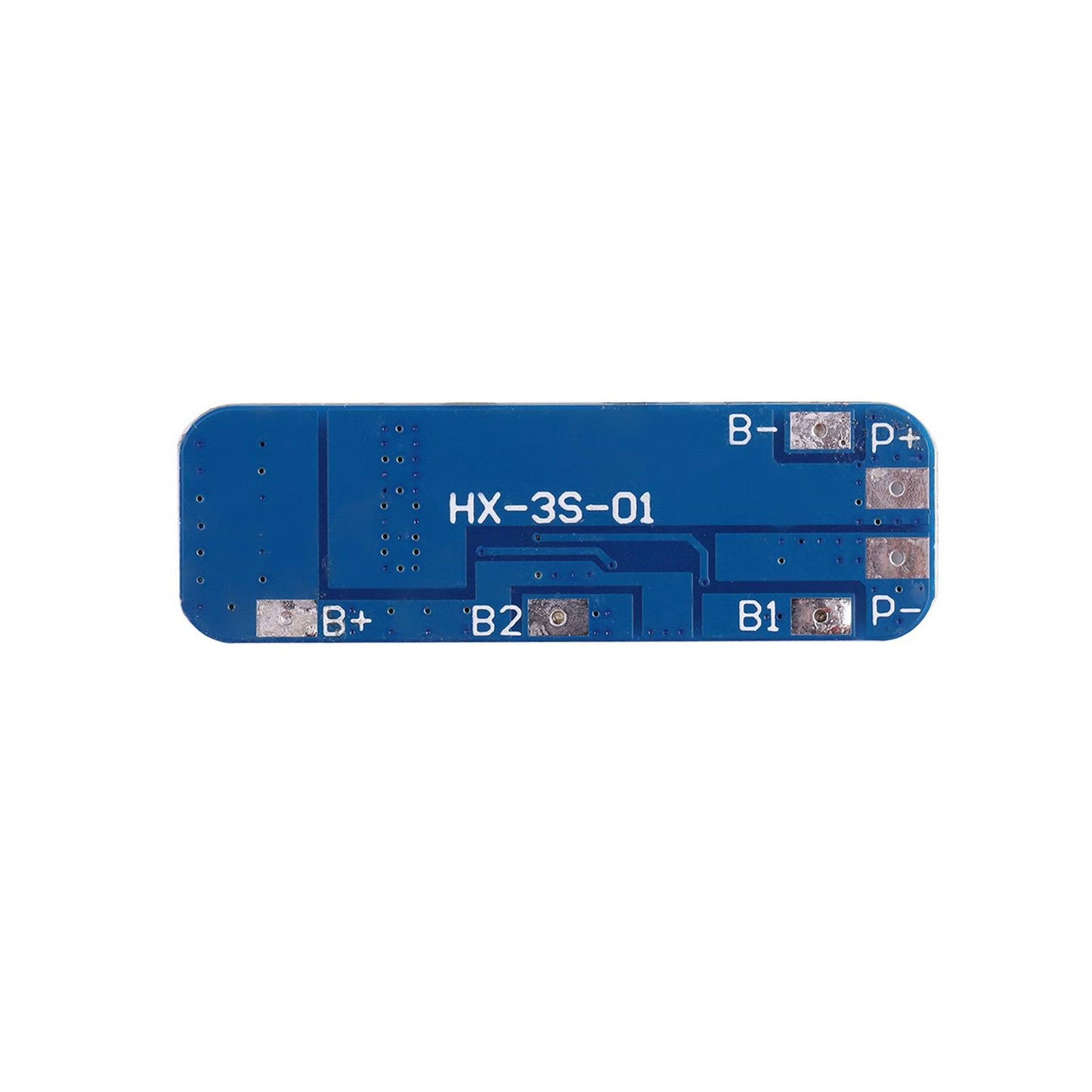

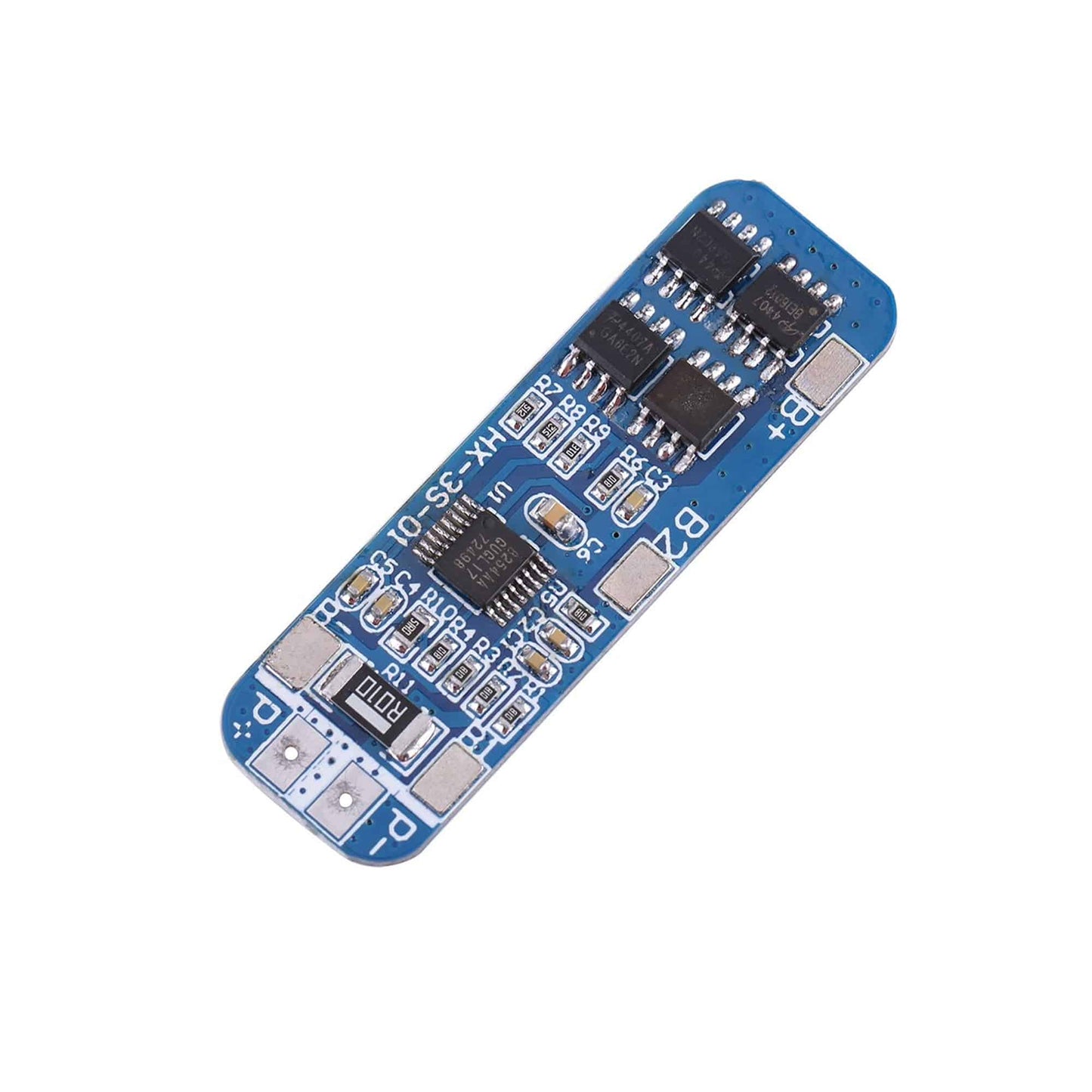

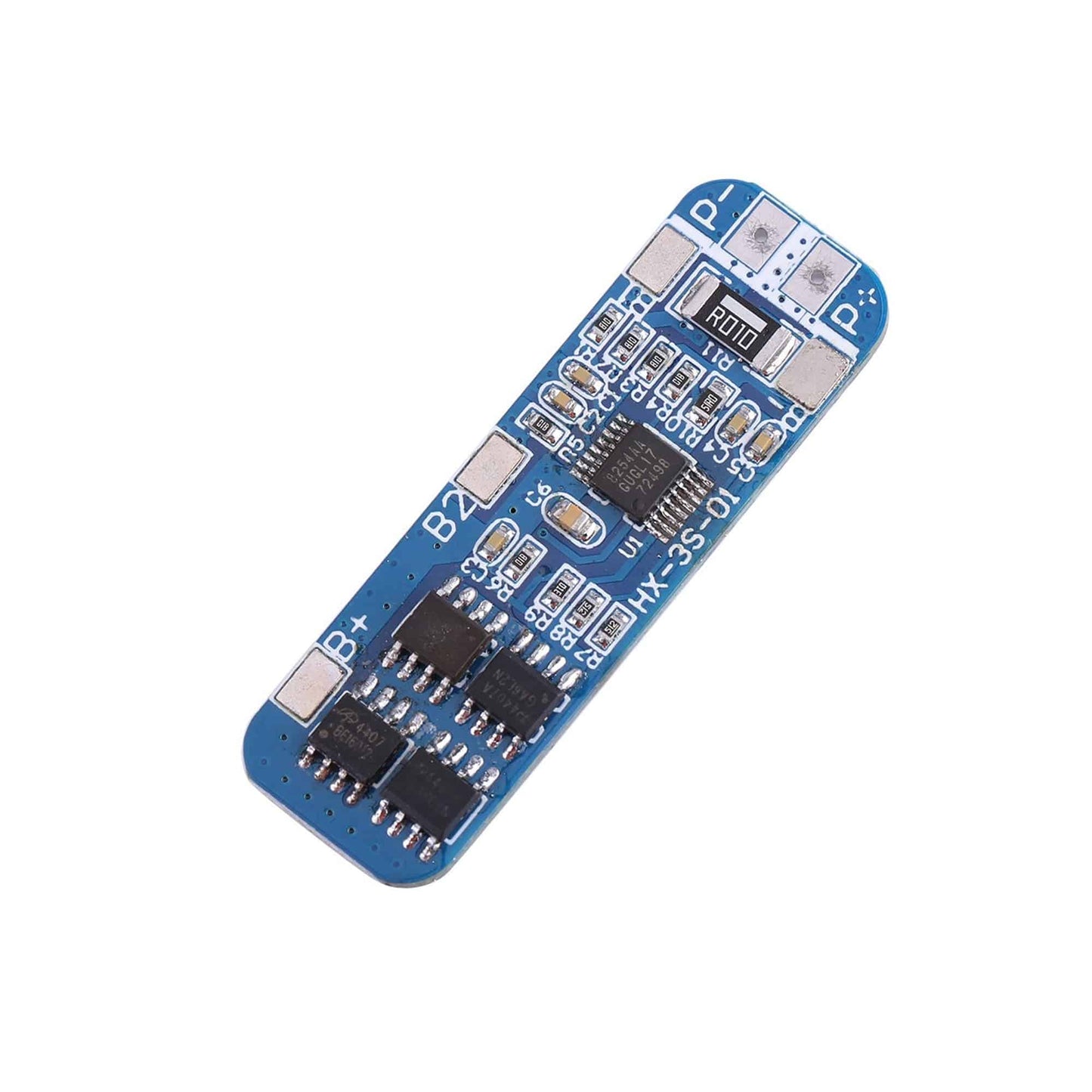

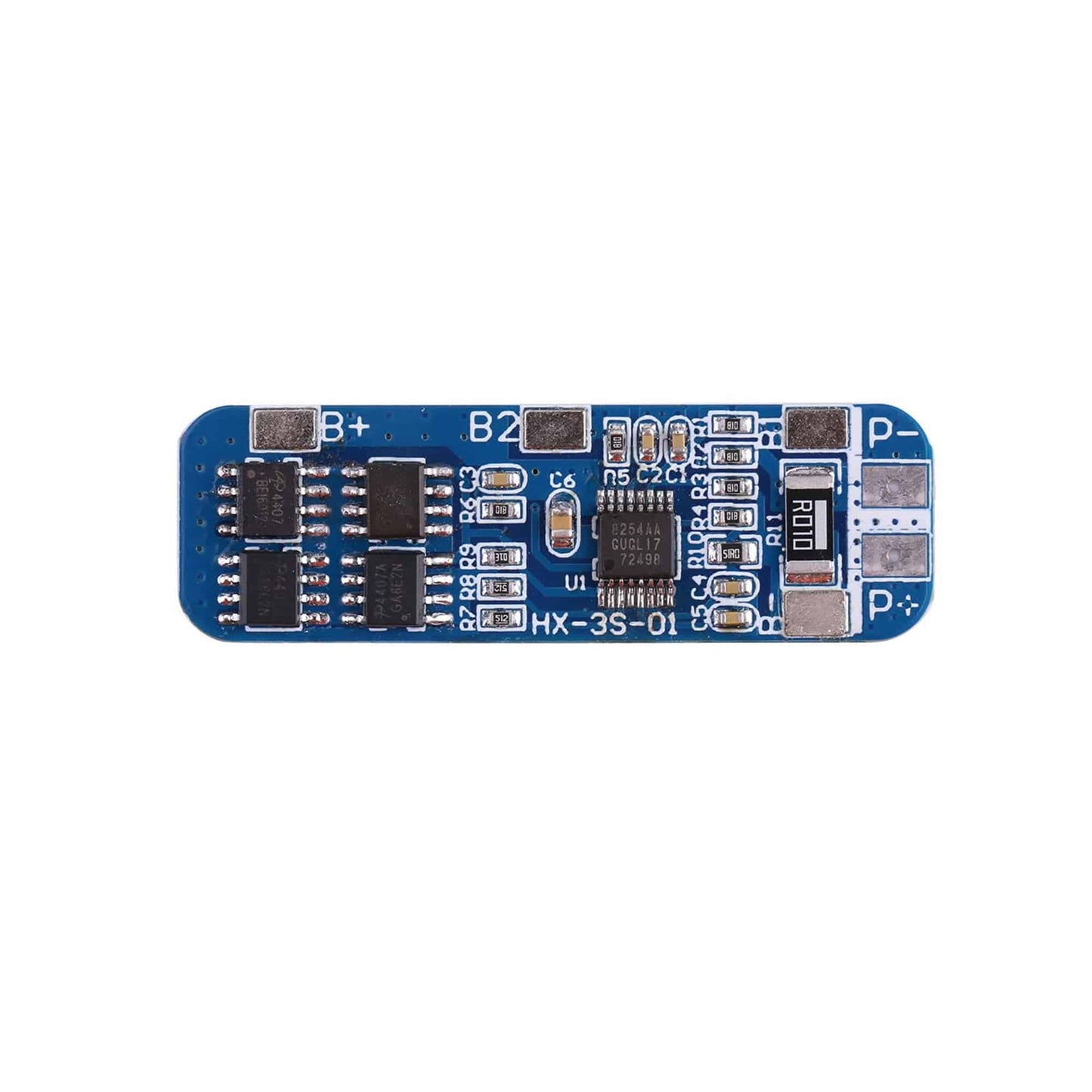

3S 11.1V BMS Board ensures the security of the battery pack. This battery management system is designed and suitable for: 10.8V (Rated voltage of polymer battery) 11.1V (18650 or 3.7V lithium battery rated voltage) 12.6V (Lithium battery full charge voltage).

Specifications:

  • Full Charge Voltage: 12.6V 13V
  • Operating Temperature: -40~+50°C
  • Over-Current Protection: Yes
  • Under-Voltage Protection: Yes
  • Effective life: >30000h
  • Internal Resistance: 100mΩ
  • Maximum Operating Current: 6 ~ 8A
  • Maximum Transient Current: #1: 9-10A, #2:10-13A
  • Over-voltage Range: 4.25-4.35v0.05v
  • Quiescent Current: 30A
  • Storage Condition: -40 to 80°C

Features:

  • Three series of lithium battery protection boards.
  • 3S 11.1V BMS Board is suitable for lithium battery packs of 11.1V, 12V, 12.6V.
  • Quiescent current < 30uA, so power consumption is small.
  • Automatically cancel protection after protection conditions restore.
  • With the function of overcharge protection, over-discharge protection, short circuit protection, and over-current protection.

    Package Included:

    1 x 3S 11.1V BMS Board 3S 11.1V 10A 18650 Lithium Battery Overcharge And Over-current Protection board-Good Quality
