- Charge Voltage Range: 12.6-13V
- Overcharge Voltage Range: 4.25-4.35v ± 0.05v
- Overpressure Voltage Range: 2.3-3.0v ± 0.05v
- Maximum Operating Current: 6-8A
Description:

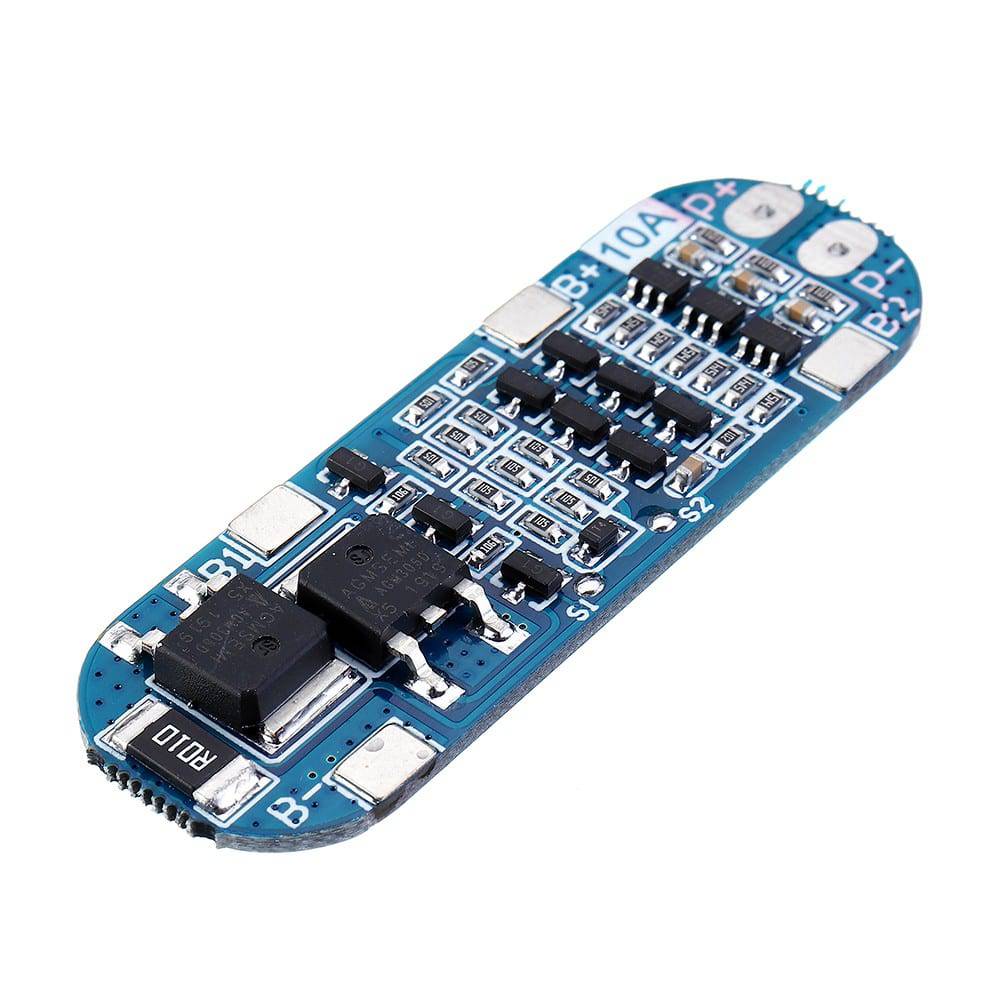

In 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module, 3S stands for 3 18650 batteries or polymer lithium battery series combination. With 10.8V rated voltage for polymer battery, 11.1V 18650 or 3.7V lithium battery rated voltage and 12.6V lithium battery can be charged. And discharge 10A (referring to the maximum discharge current limit) Lithium battery protection board it also Comes with over-charge, over-discharge, over-current, short circuit protection. For any protection condition, the 3S 10A Lithium Ion BMS Module recovers automatically after some time after the protection trigger condition is not present.
Specification:
- Charge Voltage Range: 12.6-13V
- Overcharge Voltage Range: 4.25-4.35v ± 0.05v
- Overpressure Voltage Range: 2.3-3.0v ± 0.05v
- Maximum Operating Current: 6-8A
- Maximum Instantaneous Current: 10-13A
- Maximum Discharge Current: 8A ± 2A
- Maximum Charging Current: 10A ± 1A
- Operating Temperature: -40~+50 ℃
- Storage Conditions: -40~+80 ℃
Warning:
The protection board can not be used for lithium iron phosphate batteries, lamp hernia, hand drill battery, electric battery fish, electric bicycle battery, car battery for children, 775 (4A) motor, 1 W fish eye LED light, please pay attention customer purchase connection! Described in terms of power for the following products: Massager rechargeable battery, LED ready light power supply, 12 V electronic products, solar street lamp battery, power backup monitor, and other products.
Package Included:
1 x 3S 10A 11.1V 12V 12.6V Lithium Battery Charger Protection Board Module for 18650 Li-ion Lipo Battery Cells BMS 3.7V
