Description:

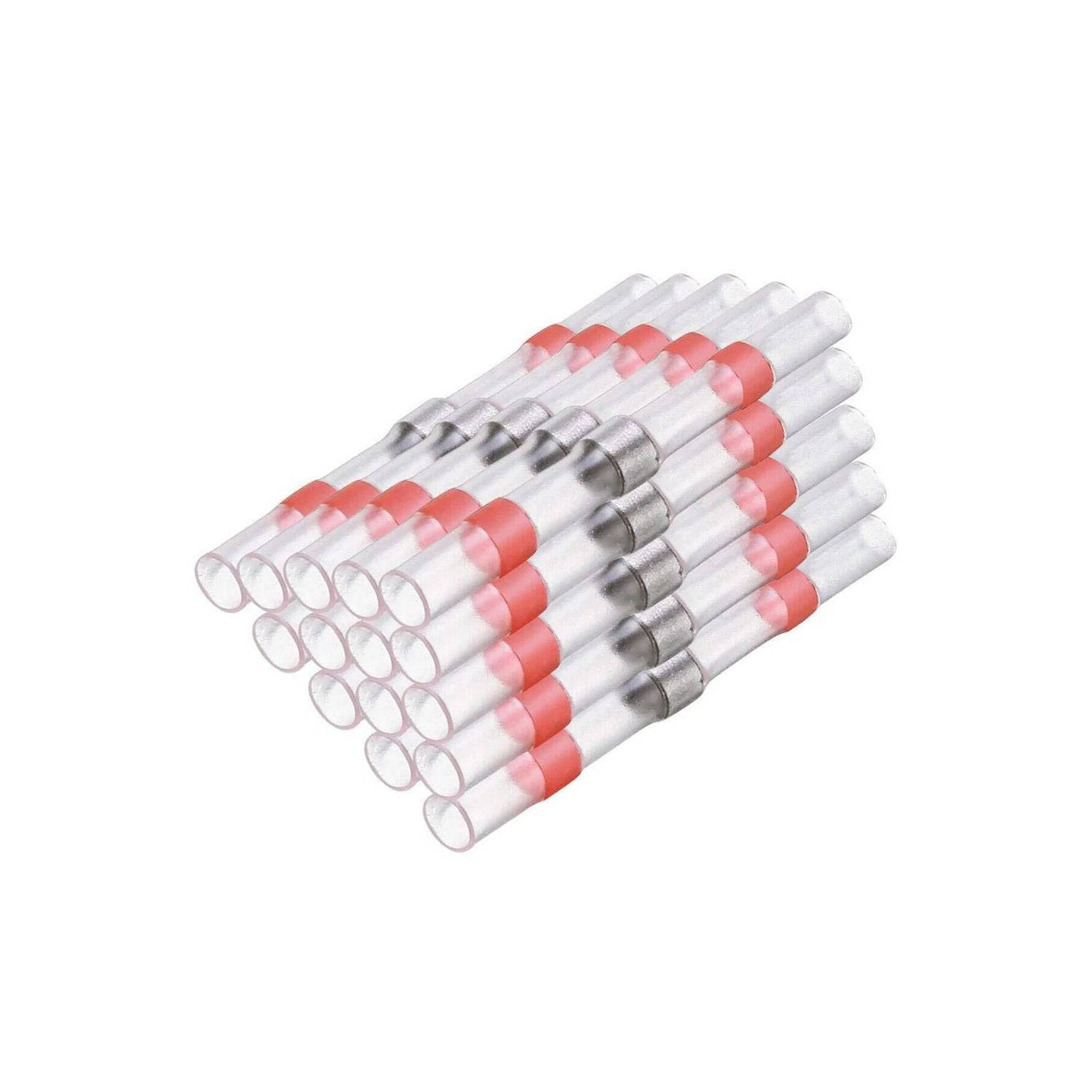

3mm Waterproof Heatshrink is designed for electrical termination of multiple-wire combinations. 3mm Waterproof Heatshrink provides a reliable alternative to crimping, welding, or conventional twist-on-style closed-end connectors. Their unique combination of wire fixtures and controlled soldering technology provides dependable electrical termination.
Specifications:
- Shrink Ratio: 2:1
- Tubing: Polyolefin
- Plating: Tin
- Allowed Wire Size: 22 ~ 18AWG
- Terminal Body: Copper
- Colour: Red
- Operating Temperature: -55 to 125°C
- Shrink Temperature: 80°C
Features:

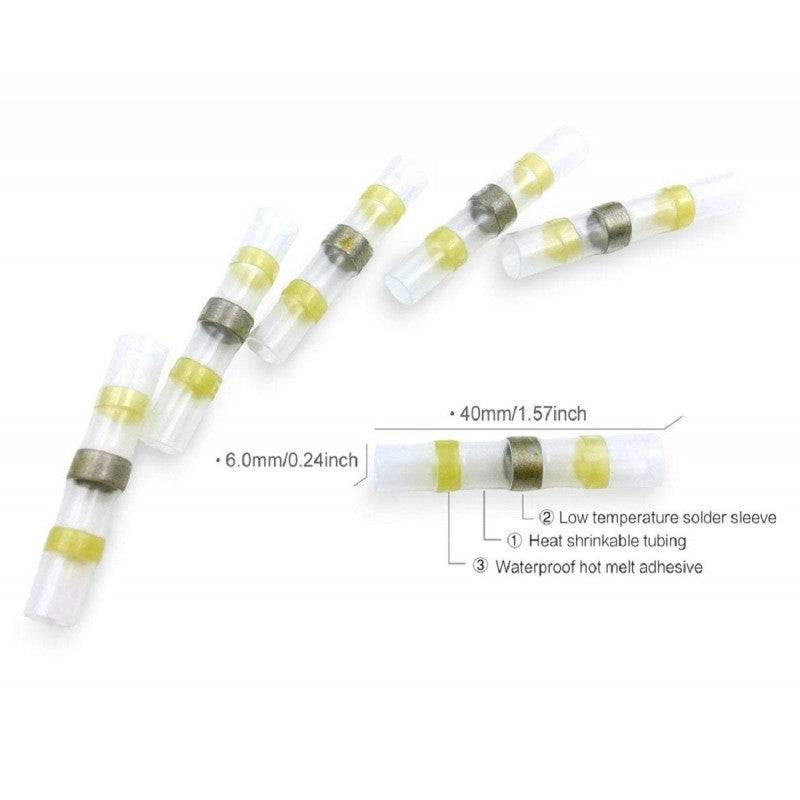

- 3mm Waterproof Heatshrink has Waterproof Protection Hot Melt Adhesive & Solder inside the insulated polyolefin tubing creating a durable waterproof seal between the wire and the connector; and preventing any corrosion.

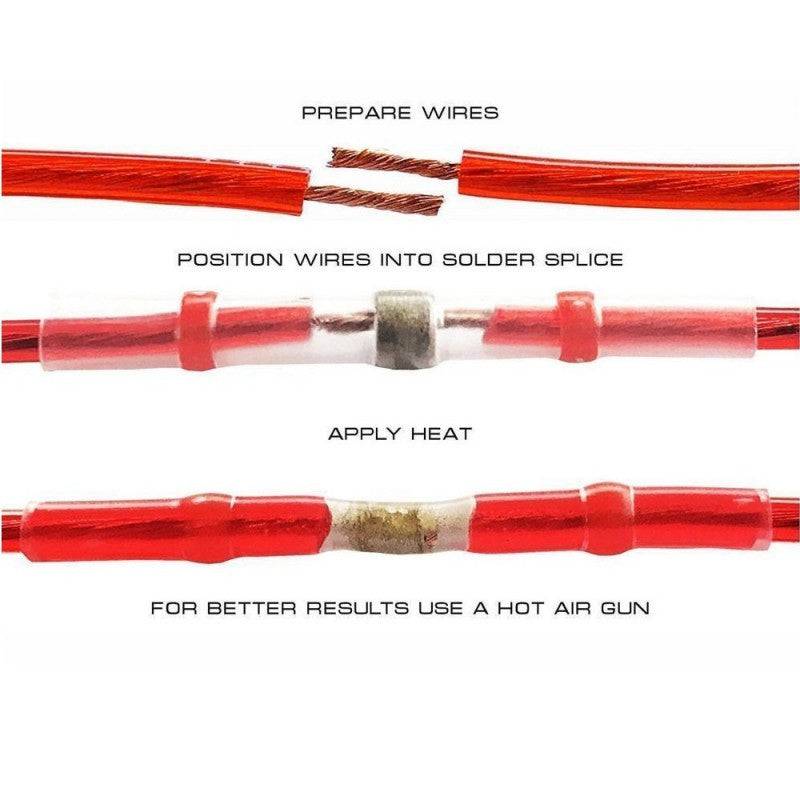

- 3mm Waterproof Heatshrink has Fast & Easy Operation No need to crimp, just strip your wires, insert them into the solder sleeve and apply heat to finish the connection. Use a heat gun to heat until the heat shrink tube wrap terminal.
- No Slip Wire Contact When heat is applied, tubing reduces in size and melted solder flows through the stripped wires; ensure strong holding and avoid wires slipping out from the terminal.
- 3mm Waterproof Heatshrink has Easy Identification of Different Colors for Different Sizes of the Solder Seal Wire Connectors; easy to identify and pick up for use. The transparent sleeve provides precise inspection when stripping and inserting wires inside.
- This 3mm Waterproof Heatshrink is widely used for marine, aviation; and automobile applications, maintenance operation, and other wiring projects.
Package Included:
1 x 3mm Waterproof Heatshrink 3mm Electrical Waterproof Seal Heat Shrink Splice Wire Sleeve - Red
