Description:
Phototransistor operation Phototransistors are operated in their active regime, although the base connection is left open circuit or disconnected because it is not required. The base of the phototransistor would only be used to bias the transistor so that additional collector current was flowing and this would mask any current flowing as a result of the photo-action. For operation, the bias conditions are quite simple. The collector of an n-p-n transistor is made positive with respect to the emitter or negative for a p-n-p transistor.The light enters the base region of the phototransistor where it causes whole electron pairs to be generated. This mainly occurs in the reverse biased base-collector junction. The hole-electron pairs move under the influence of the electric field and provide the base current, causing electrons to be injected into the emitter.
Specifications:
- Structure: NPN
- Function: Photodiodes
- Work Efficiency: Low-frequency tube
- Power: Low power tube
- Installation: Plug-in transistor
Package Included:

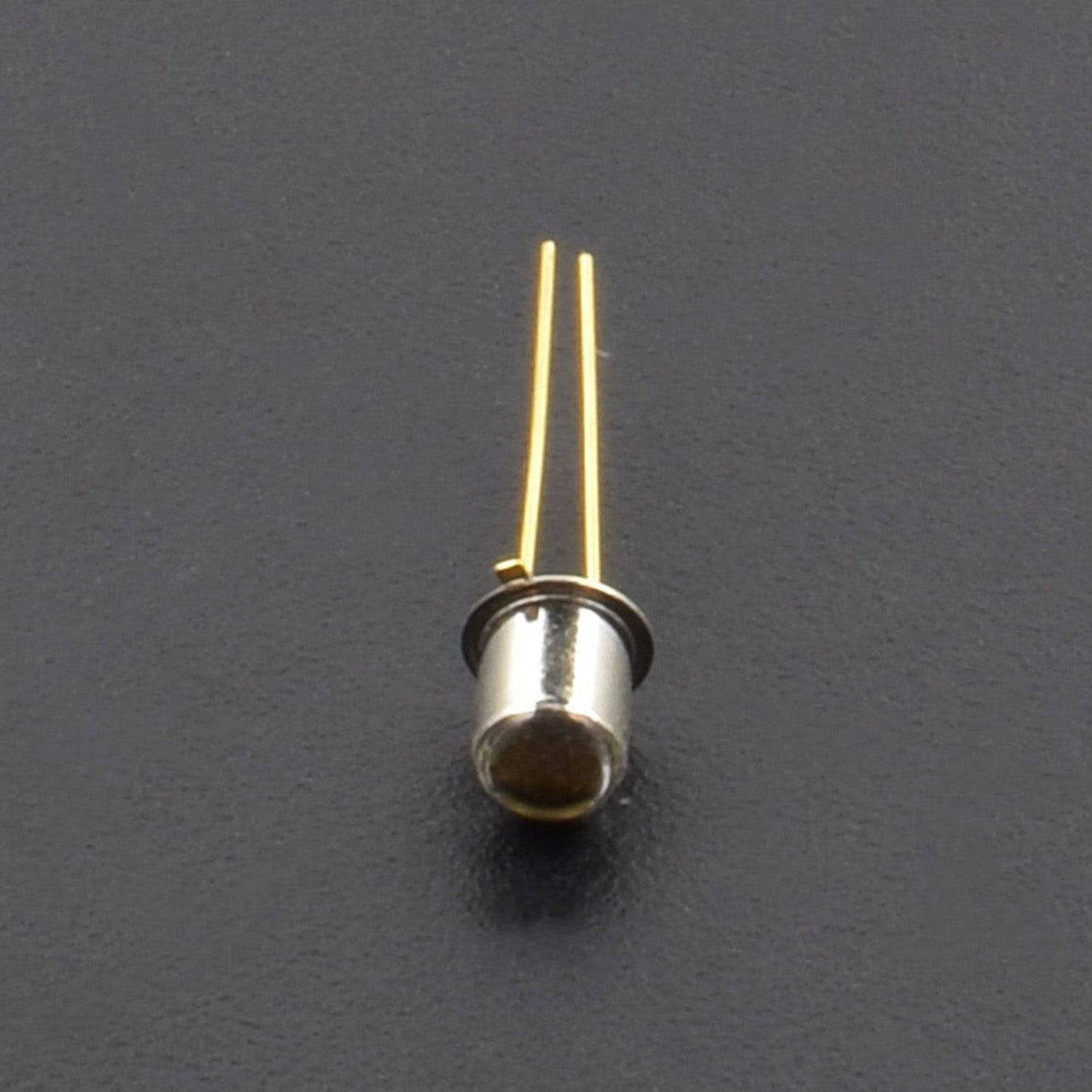

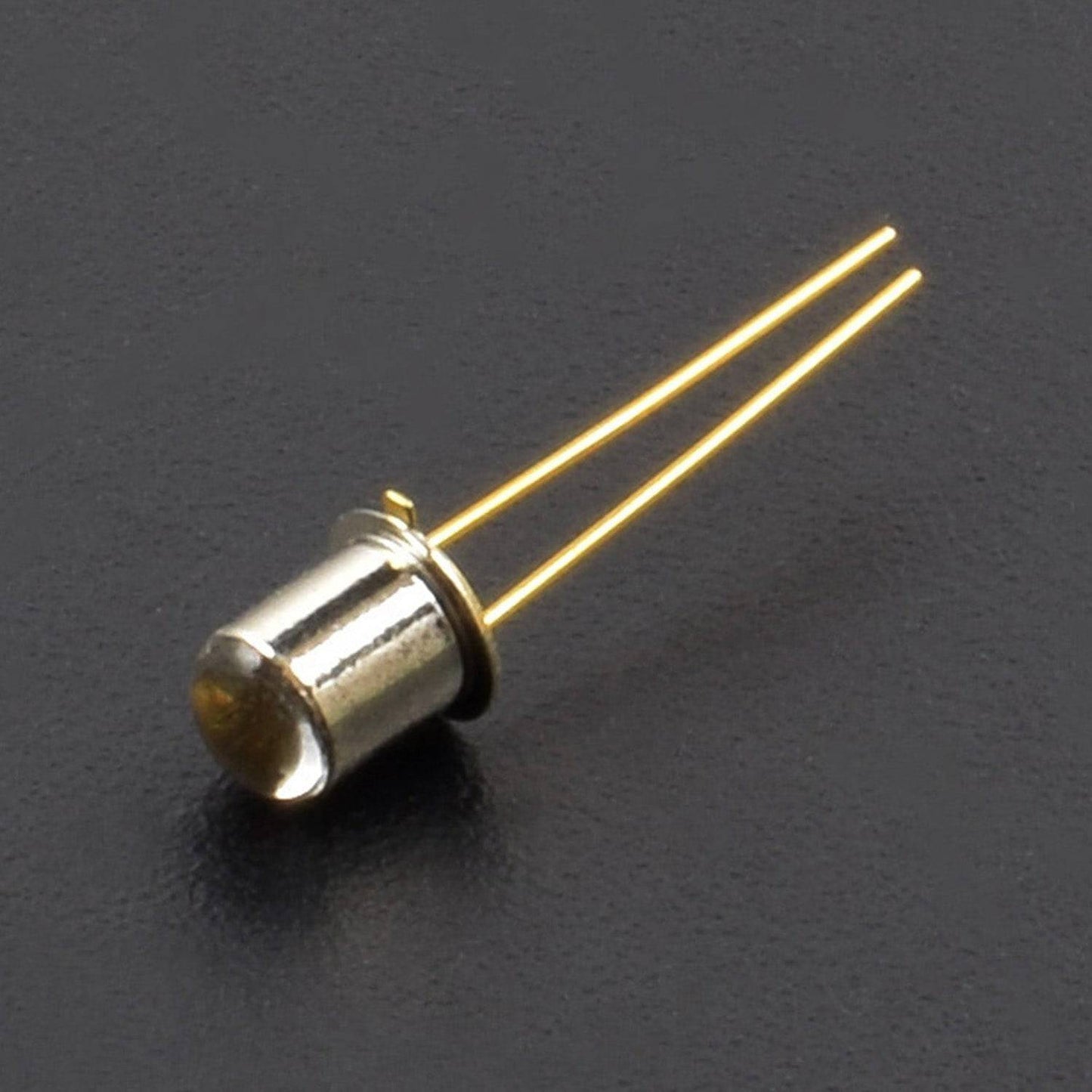

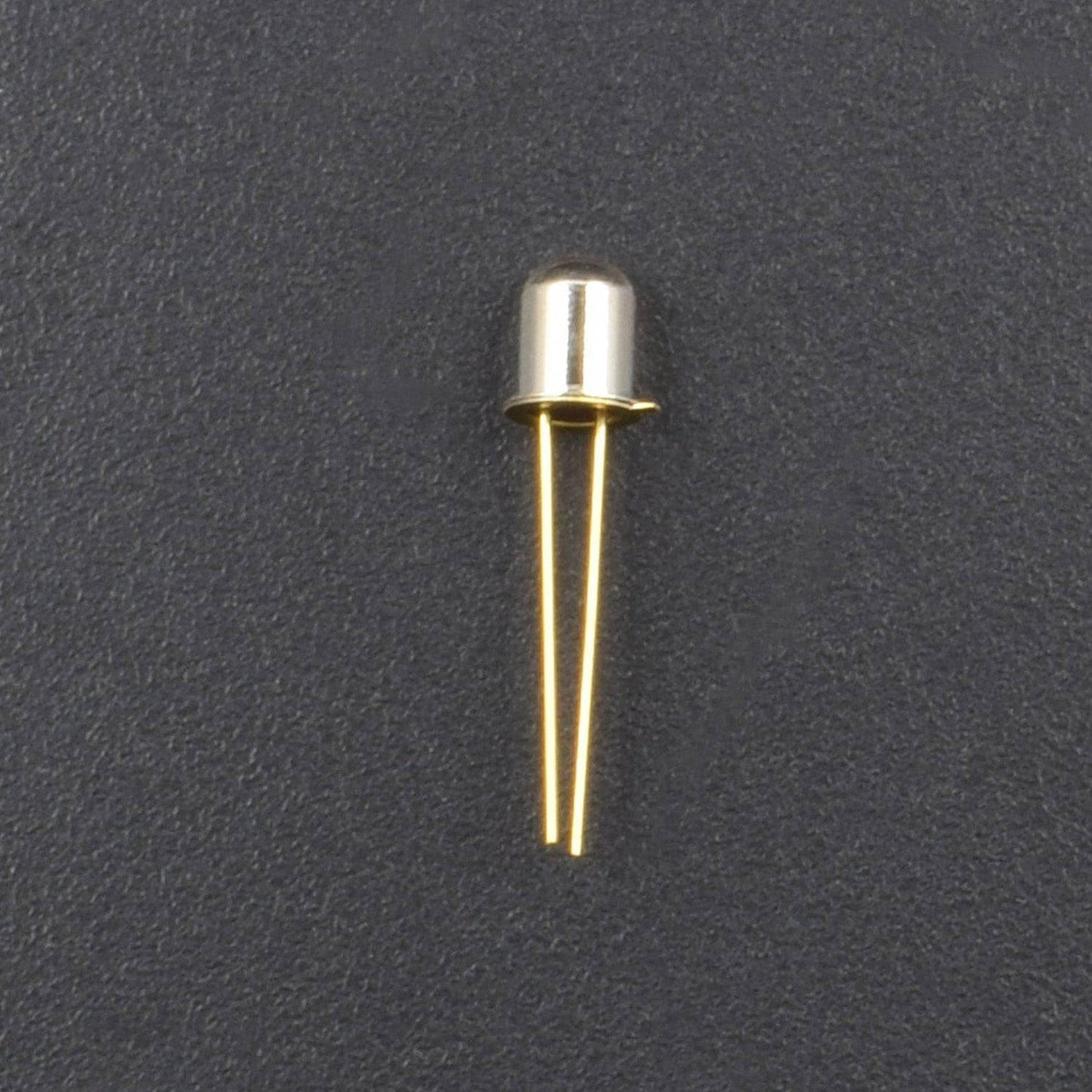

1 x 3DU5C Metal Encapsulated Silicon Phototransistor Transistor
