Description:

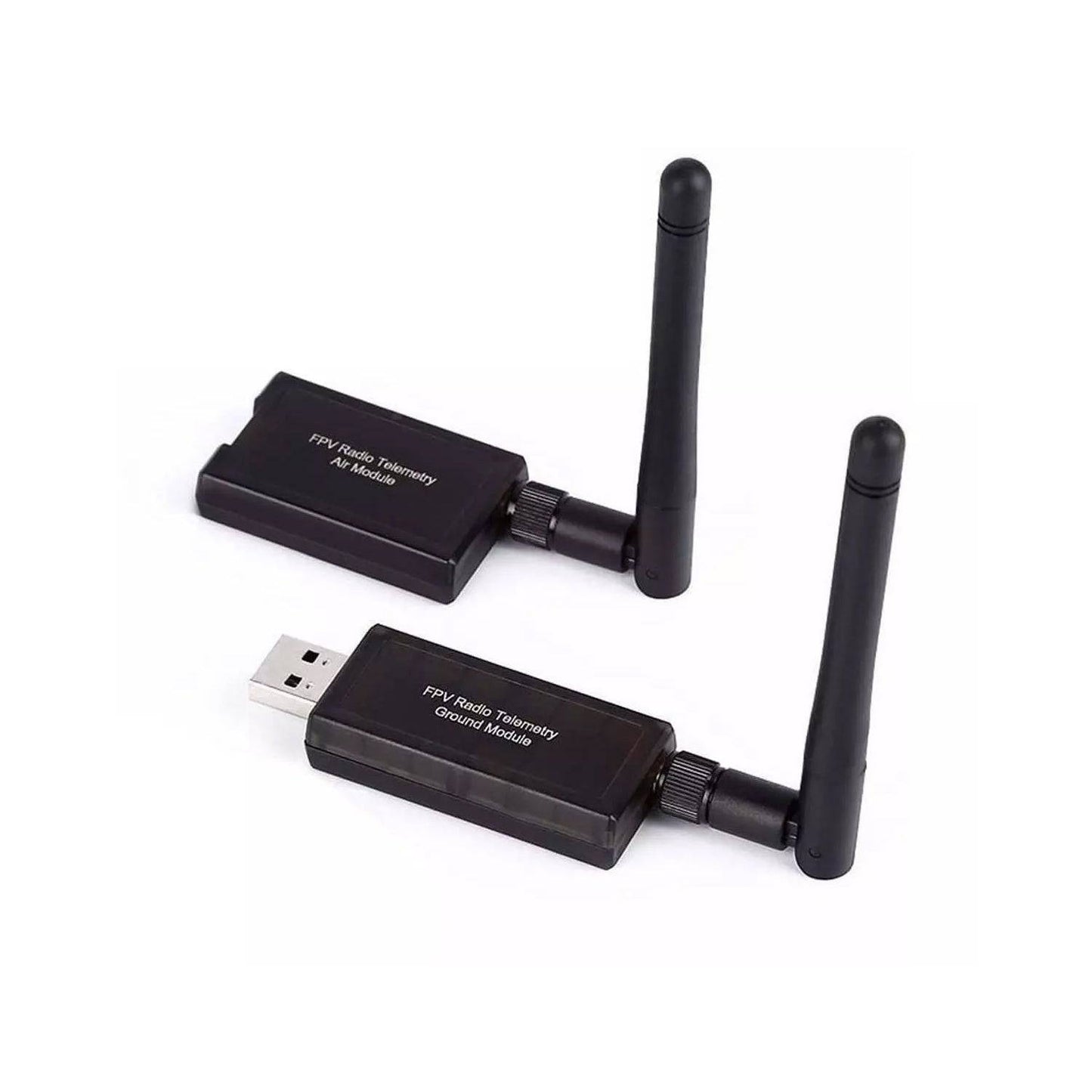

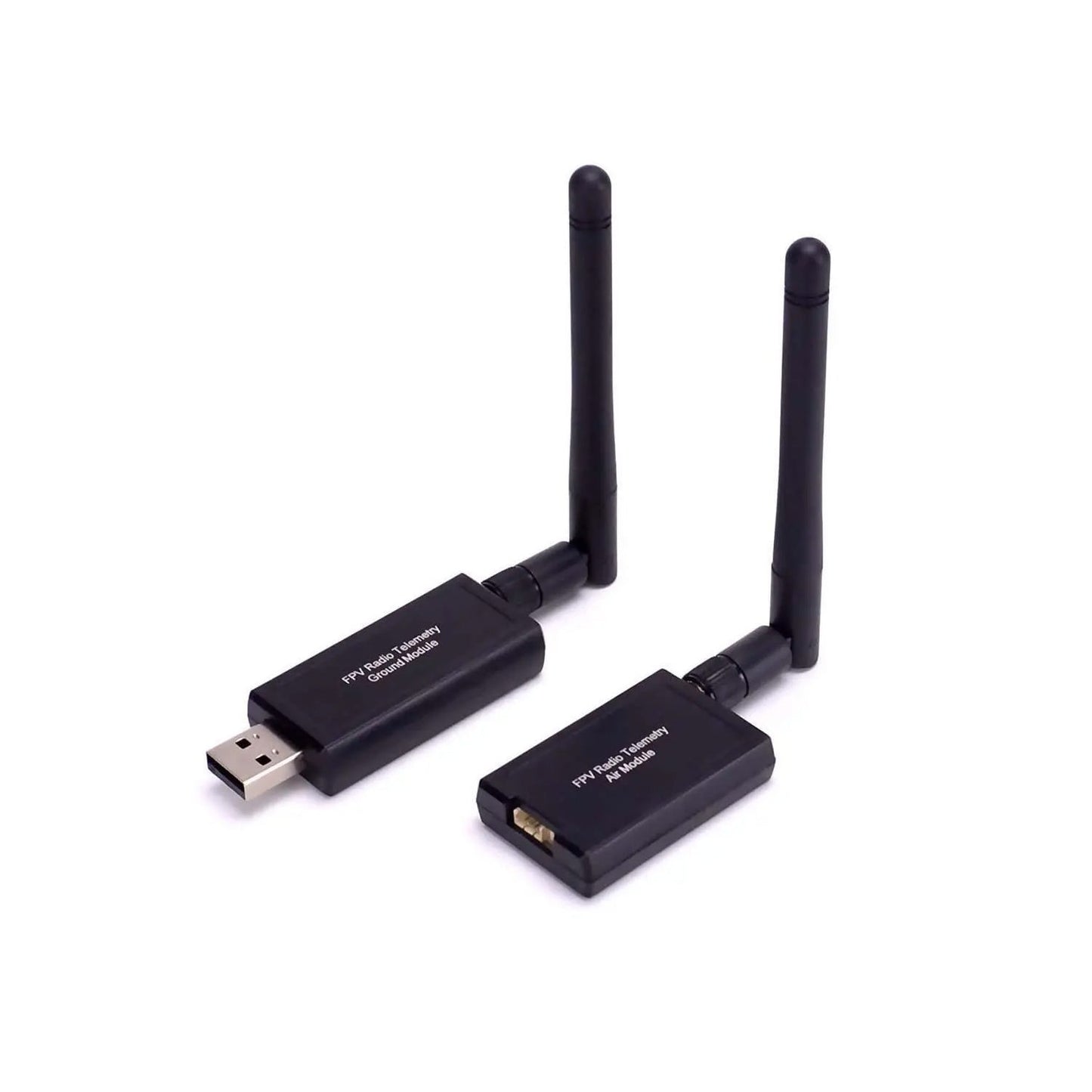

This is a 915Mhz Radio Telemetry Kit that is based on the 3DR Telemetry kit and is 100% compatible as it runs the same firmware onboard. This firmware used by 3D Robotics is completely open-source.
The 915Mhz Radio Telemetry Kit is compatible with Ardupilot or Pixhawk-based systems and allows you to easily add a two-way telemetry connection between your drone and ground station. 915Mhz Radio Telemetry Kit is the new and improved V2 of the Unmanned Telemetry kit. The full features and specifications are listed below but the main features are that both air and ground modules are now interchangeable, and each has a USB connector and a DF13 connector.
The wiring is complete, and the independent housing is added. 915Mhz Radio Telemetry Kit is safer and more beautiful. The data transmission is more stable. 915Mhz Radio Telemetry Kit does not distinguish between the ground end and the air end. The two pieces are the same, all with USB, and a 6-pin serial port dual TTL design, don’t need to use any tools, users can upgrade firmware by themselves.
Specifications:
- Type: 3DR Radio Telemetry Module
- Frequency Channel: 915MHz
- Receiving Sensitivity: -121dBm
- Transmitted power: Up to 20dBm(100mW)
- Antenna Connector: RP-SMA
- Connector output power: 100mW(20dBm)
- Sensitivity can be adjusted between 1-20dBm
- Sensitivity interface: Standard TTL UART
Features:
- Transparent serial link
- Air data rates up to 250kbps
- MAVLink protocol framing and status reporting
- Frequency-hopping spread spectrum (FHSS)
- Adaptive time-division multiplexing (TDM)
- 915Mhz Radio Telemetry Kit support for LBT and AFA
- Built-in error-correcting code (can correct up to 25% of data bit errors)
- Demonstrated range of several kilometres with a small Omni antenna
- Can be used with a bi-directional amplifier for even more range
- 915Mhz Radio Telemetry Kit has a configurable duty cycle
- Open source firmware
- AT commands for radio configuration
- RT commands for remote radio configuration
- Adaptive flow control when used with APM
- Based on HM-TRP radio modules, with Si1000 8051 micro-controller and Si4432 radio module

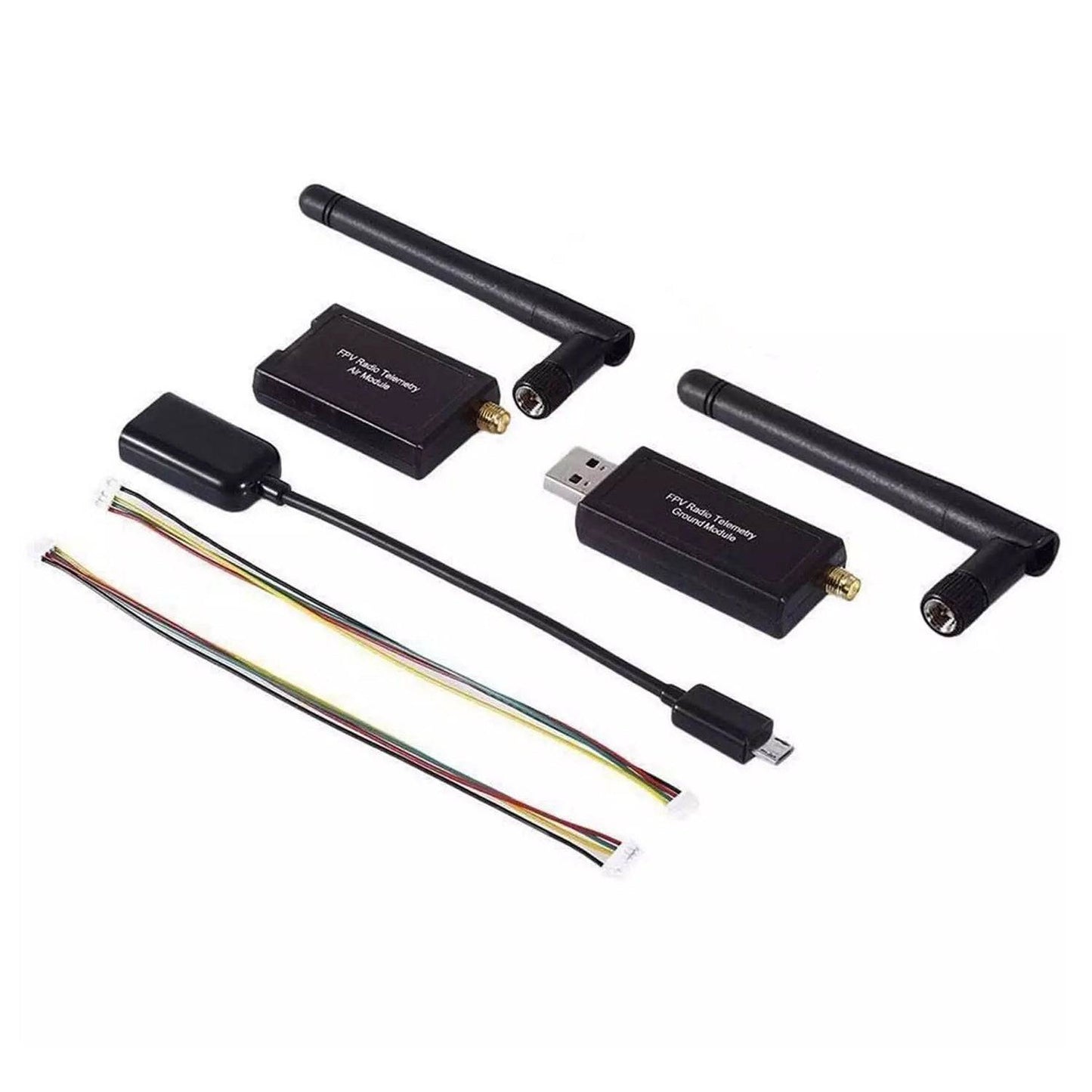

Package Included:
- 1 x 3DR Radio Telemetry with the case (Air+Gnd module)
- 2 x cables (APM/PIX).
- 2 x 3.5dbi antennas.
